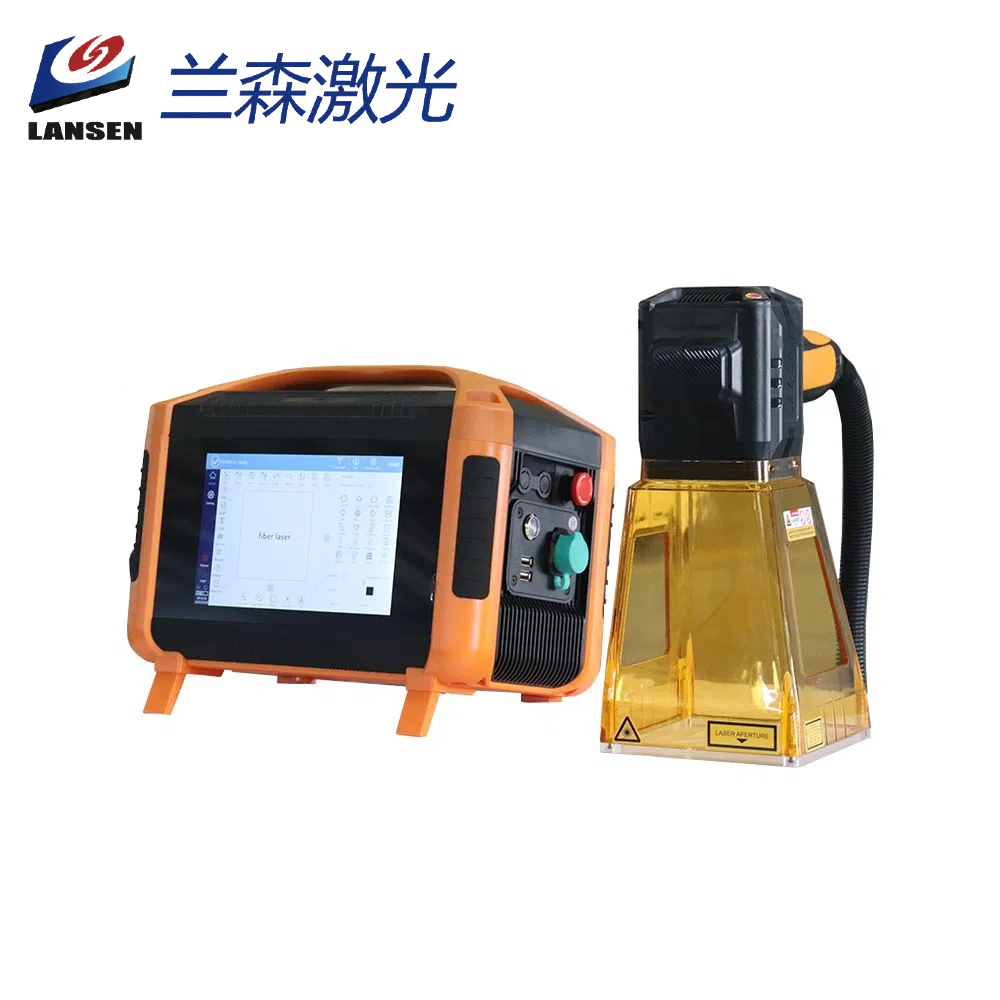

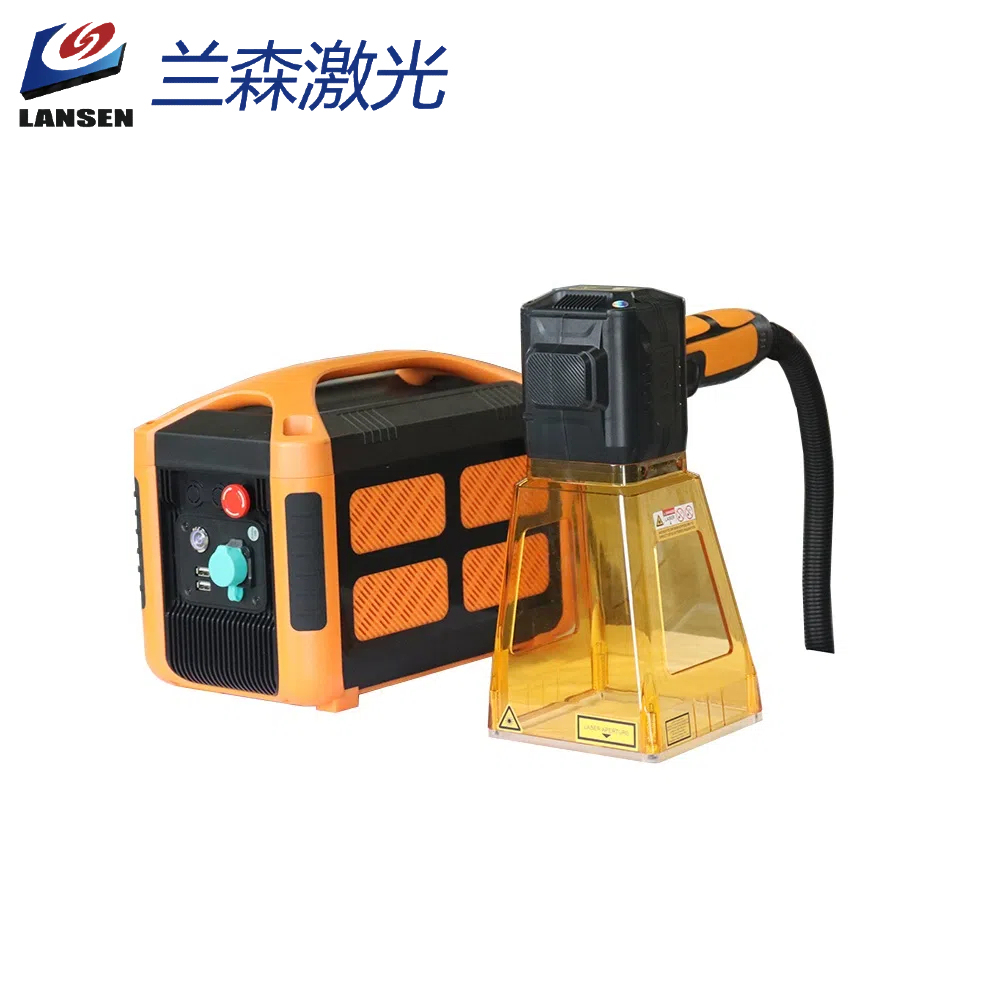

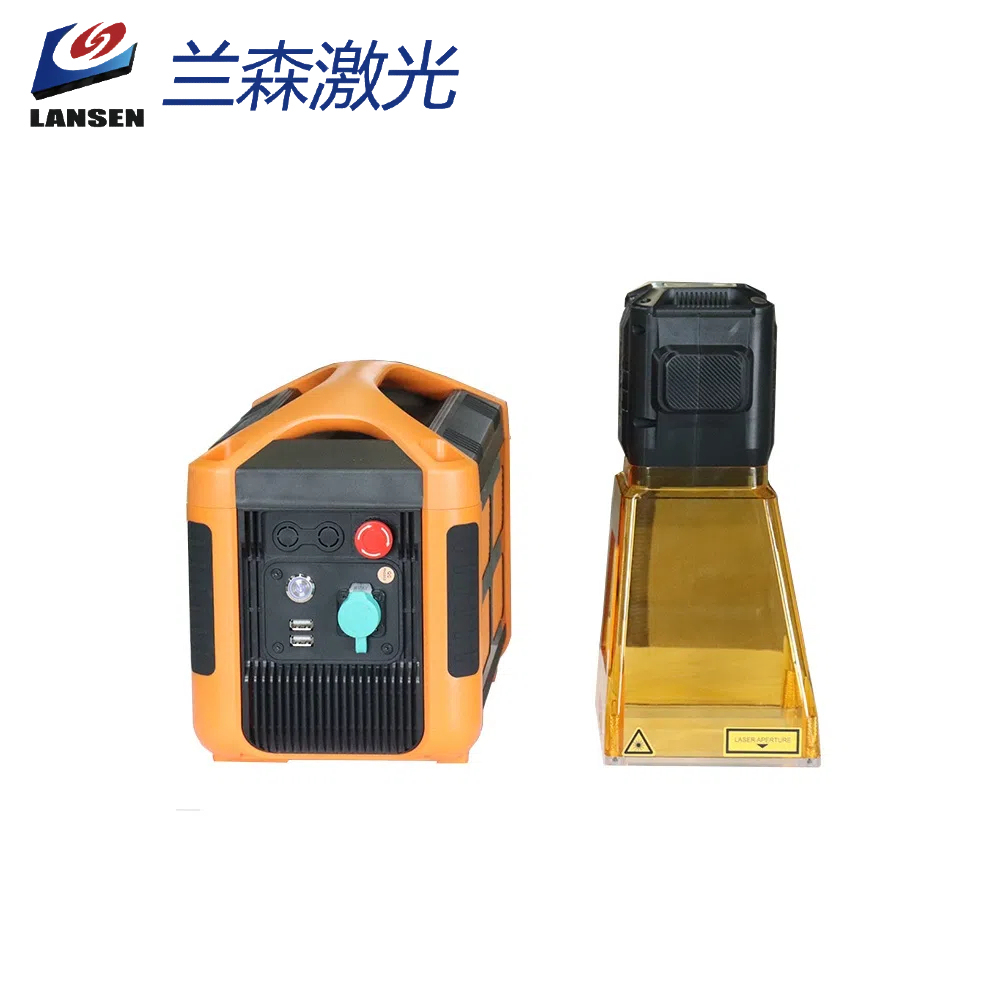

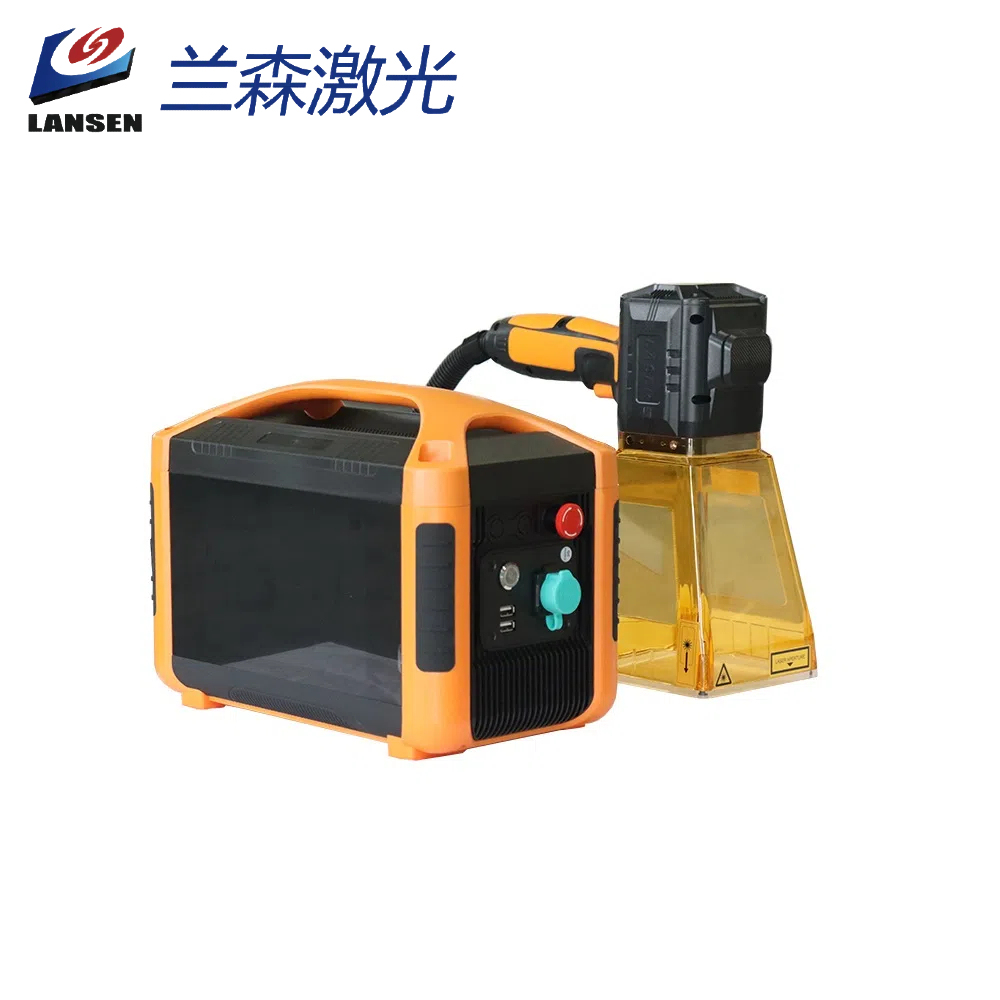

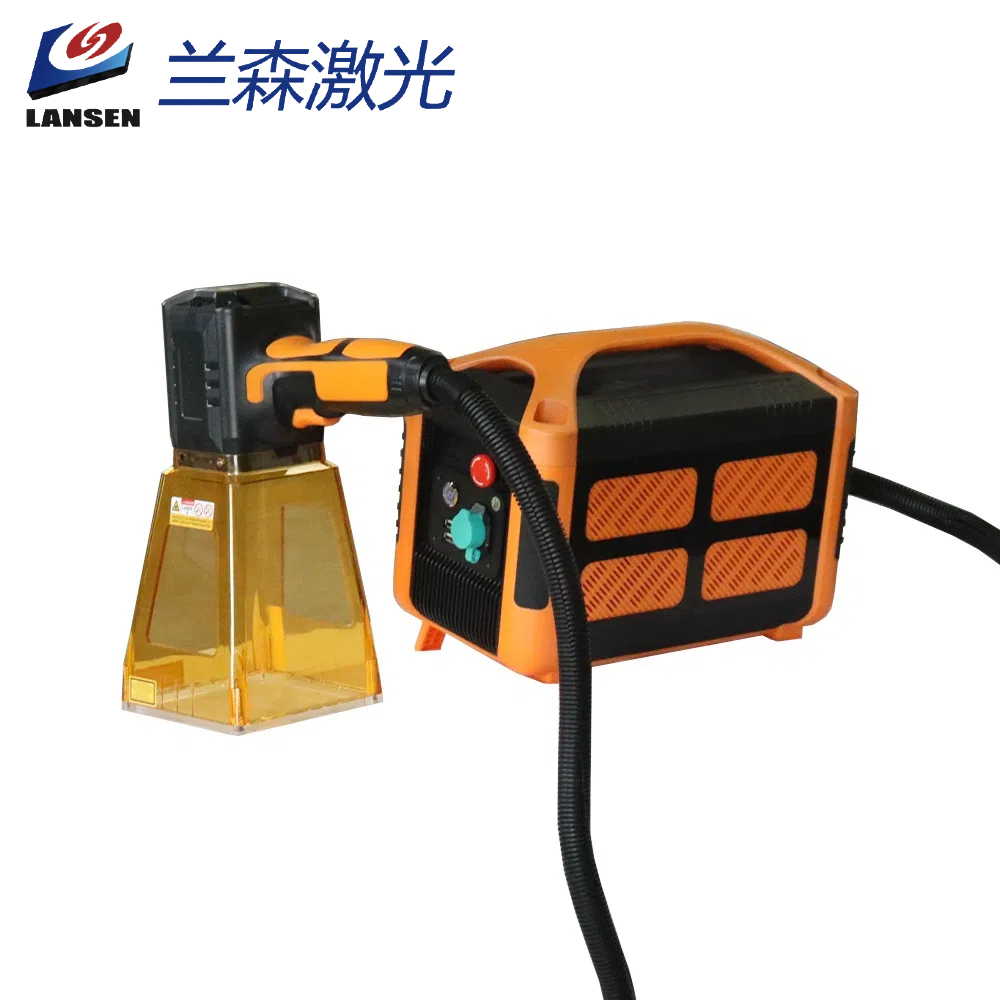

Portable Fiber Laser Marking Machine With Battery for Metal Printing

Handheld laser marking machine, designed to solve various marking difficulties.

Advanced lasertechnology is used to achieve fast focus adjustment and high-precision marking.

With a highly integrateddesign, the fuselage is small and lightweight, and the detachable design of the battery can last unlimitedand improve work efficiency.

Handheld laser marking equipment has a wider range of use and greaterflexibility, which can meet the daily needs of customers

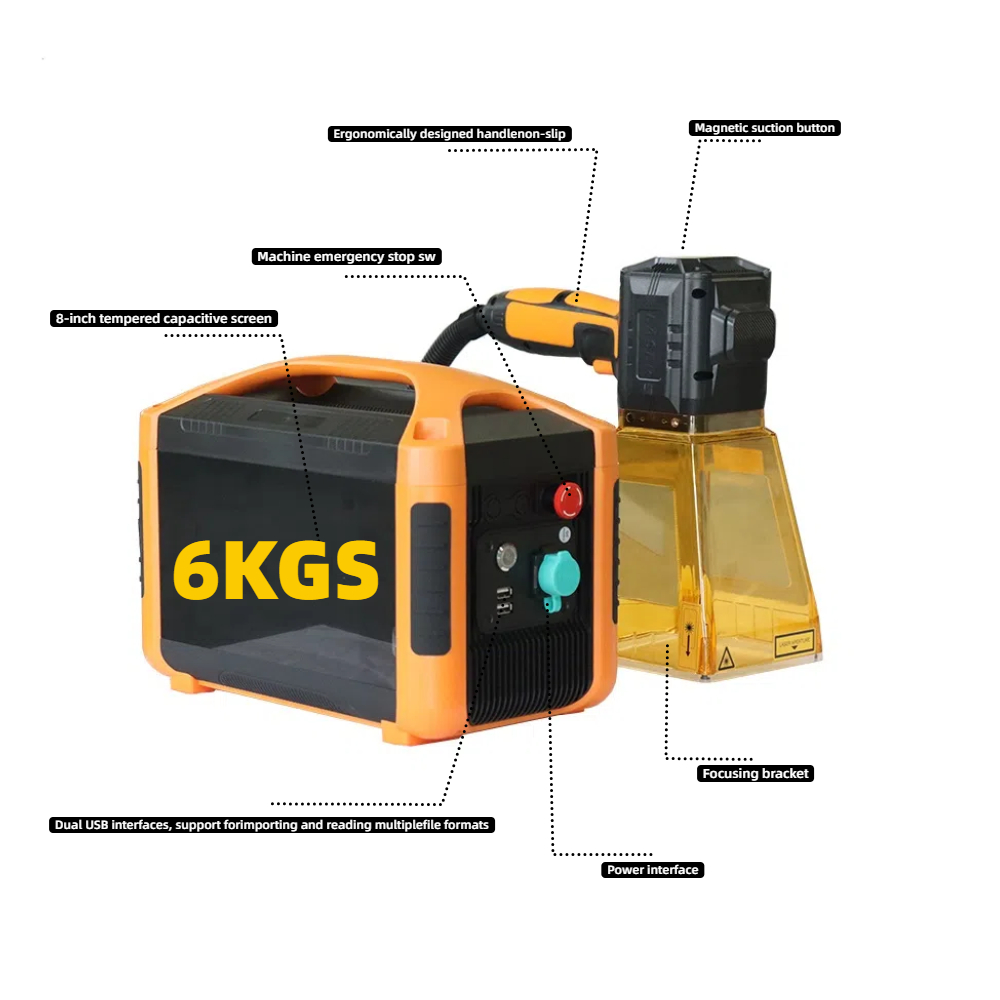

The body is ergonomically designed compact and light, the whole machine weighs only 6kg Easy to carry, flexible operationv

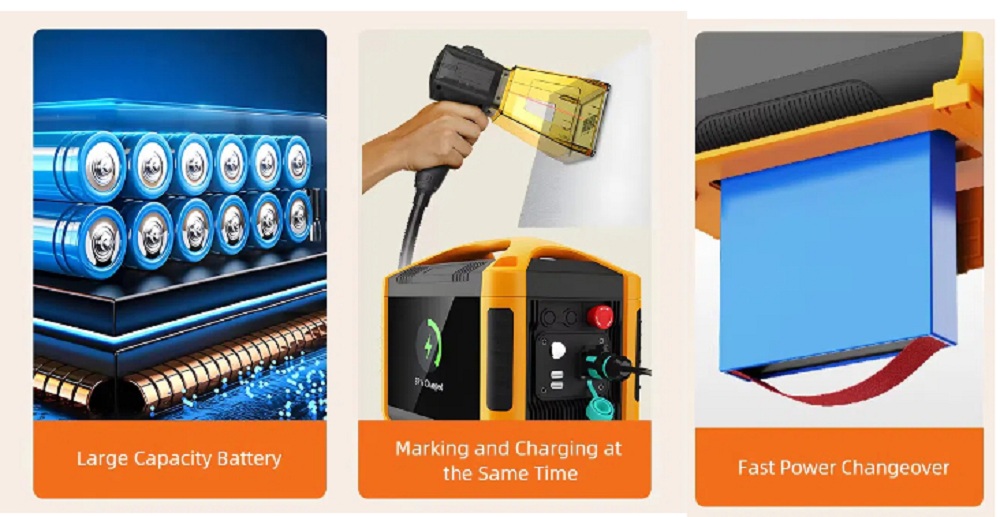

Large battery, excellent heat dissipation and high-precision optical system ensure continuous full power marking withoutheat accumulation, achieve sufficient power outout and areatly improve production efficency

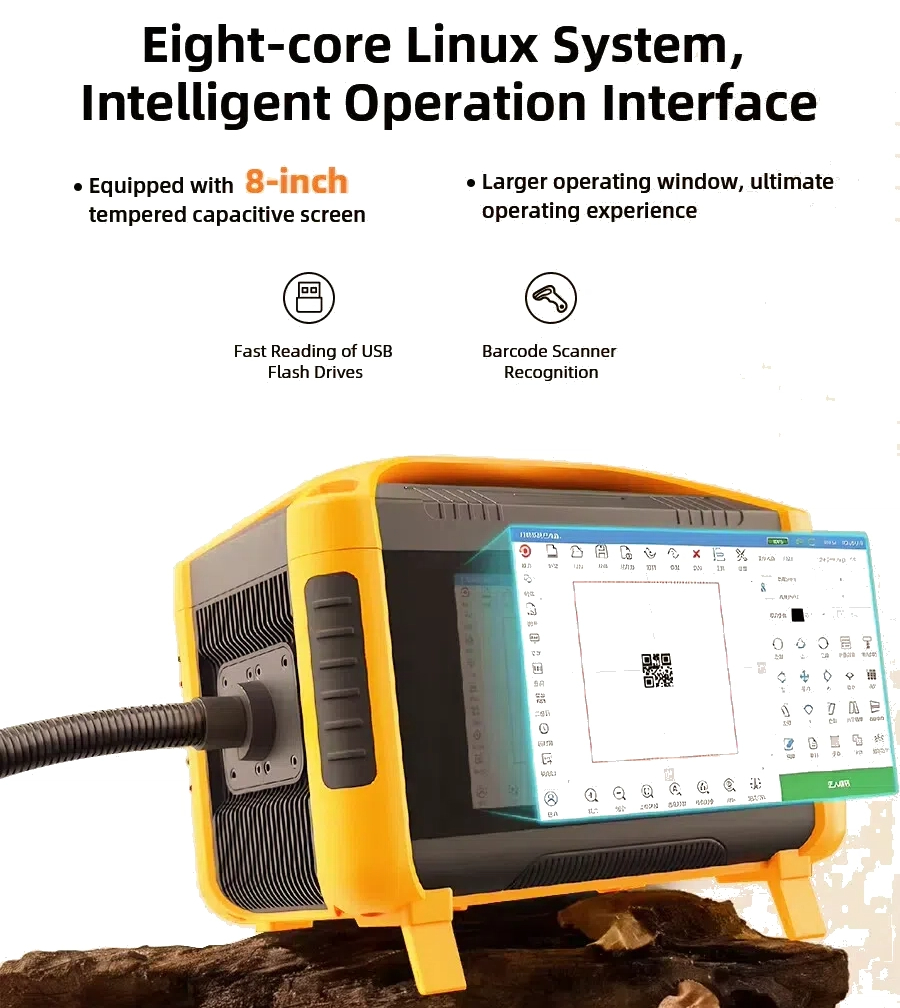

Equipped with 8-core linux system and intelligent operation interface, simplify operation and easily cope with various

marking tasks.

8-inch tempered capacitive screen, even to the operating window.

Configure the emergency stop switch for safer use.

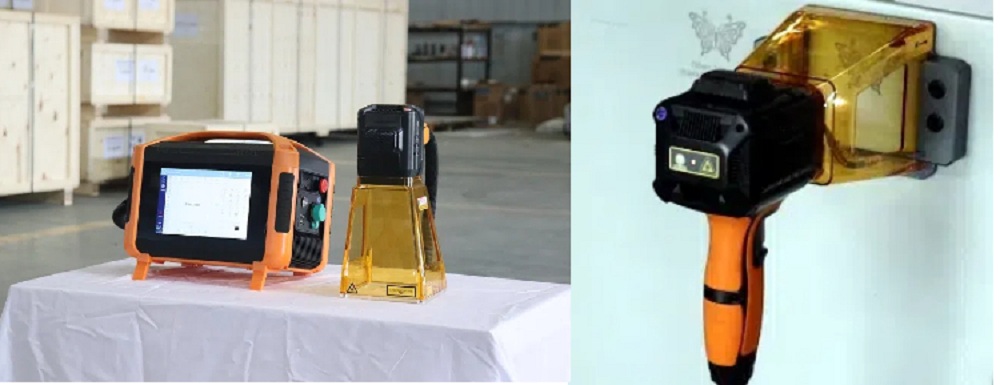

Can use electromagnetic suction mode, up to 80kg of heavy objects

1. The equipment has the characteristics of quick start and easy operation. The system is smooth, the operation interface is simple, and the touch screen operation is possible.

   2. The focal length fixed focal length cover is adopted, and there is no need to manually adjust the focal length, which greatly improves the work efficiency.

   3. Energy saving settings.
   The machine enters the standby state after 10 seconds of no operation, and then presses the light-emitting button of the handle to power on remotely. There is no need to click the power-on button on the screen separately, which makes the operation more convenient and prolongs the
   service life of the machine.

   4. Solve the problem of not working without power supply.
   The built-in 24V12AH lithium battery can work normally under complex conditions, with a full battery life of 6-8 hours.

   5. The product is light in weight and small in size,which is easy to carry.
   It is used in narrow, outdoor and special space operations, especially for marking objects that are inconvenient to move. Just align the handle with the workpiece and press the switch to easily achieve marking.The handle weighs 1kg, which is very convenient for both men and women to operate.

   6. Maintenance-free.
   Long-term work, the dust of laser marking will contaminate the lens, usually just wipe the lens.

   Laser Power	20w/30w/50w
   Marking Area	70*70mm/100*100mm
   Galvometer	high-precision two dimension scanning
   Wavelength	1064nm
   Focal Lens	F100/F160
   Marking Speed	＜7000mm/s
   Control System	Integrated Motherboard,8-inch Screen
   Operation System	Linux System
   Marking Type	Lattice and vector
   Line Width	0.03mm
   Repeated Positioning Accuracy	0.01mm
   Positioning Mode	Red Light Positioning
   Character Line Number	Content Related
   Character Marking Speed	Content Related
   Typeface	English、Chinese Standard Font Library
   File Format	BMP、DXF、HPGL、JPEG、PLT
   Power	110V/220v
   Overall Power Consumption	145-450W
   Running Temperature	0-40C
   Weight	6~6.8kg

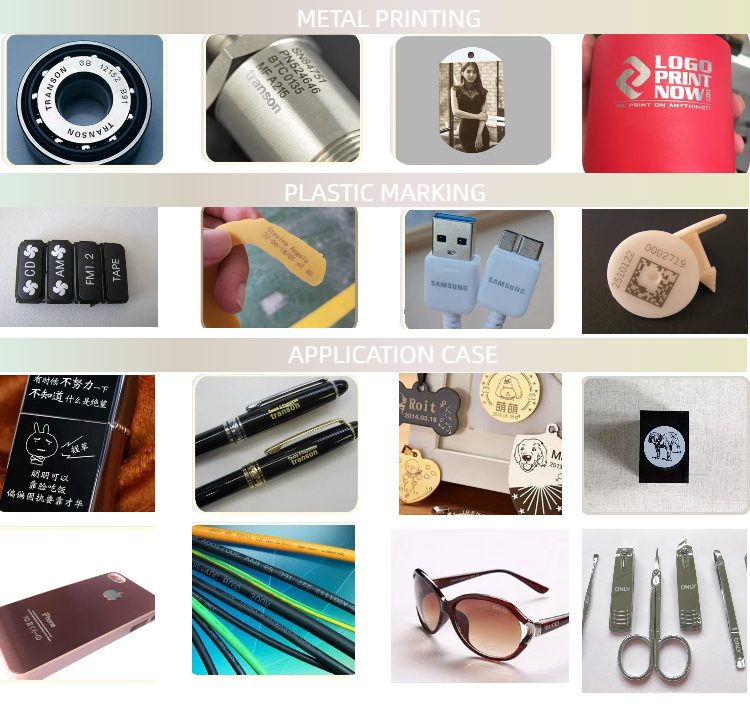

   Fiber laser marking machine is used for marking various metals (including rare metals) and some nonmetals, such as plastics, eletroplating materials, coating materials, rubber, epoxy resin, ceeramic, ABS, etc.
