Name: Mini Integrated Handheld Fiber Laser Marking Machine for Tire Logo Printing
Brand: JINAN LANSEN LASER EQUIPMENT CO., LTD
Availability: InStock
Rating: 5 (1 reviews)

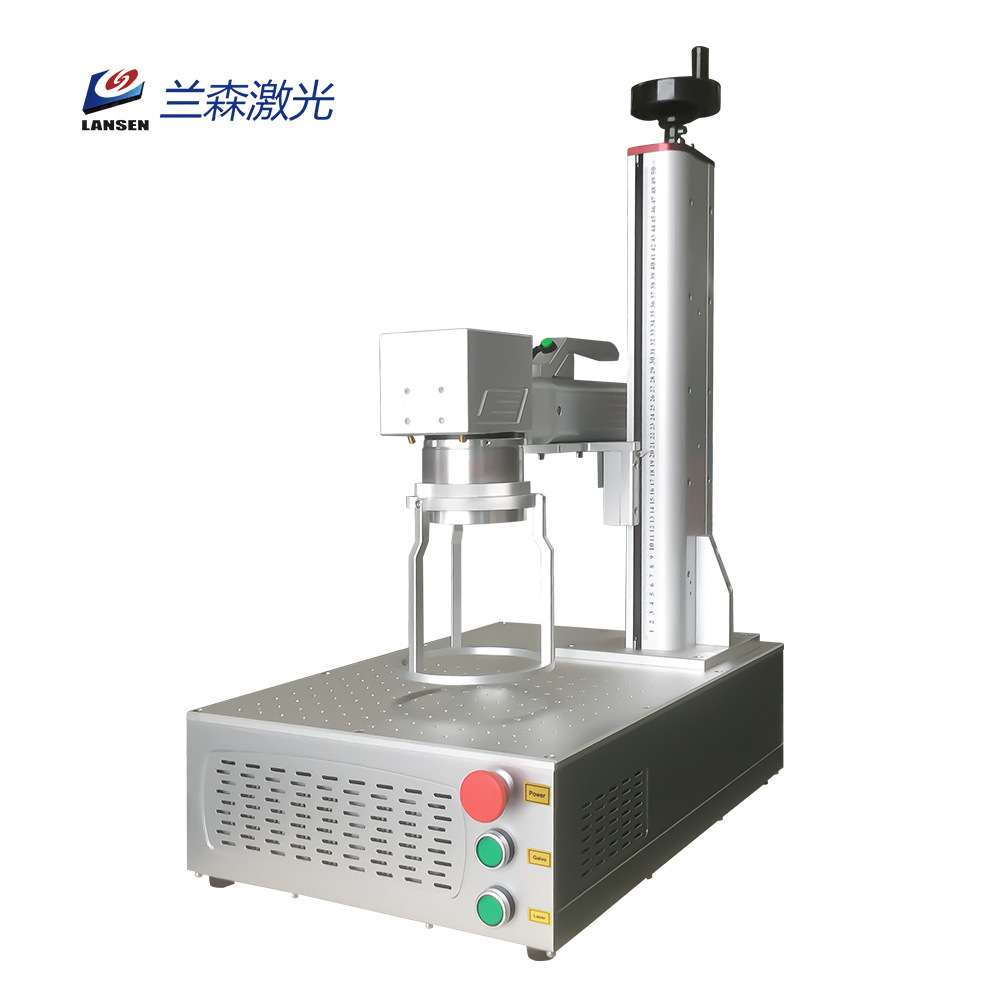

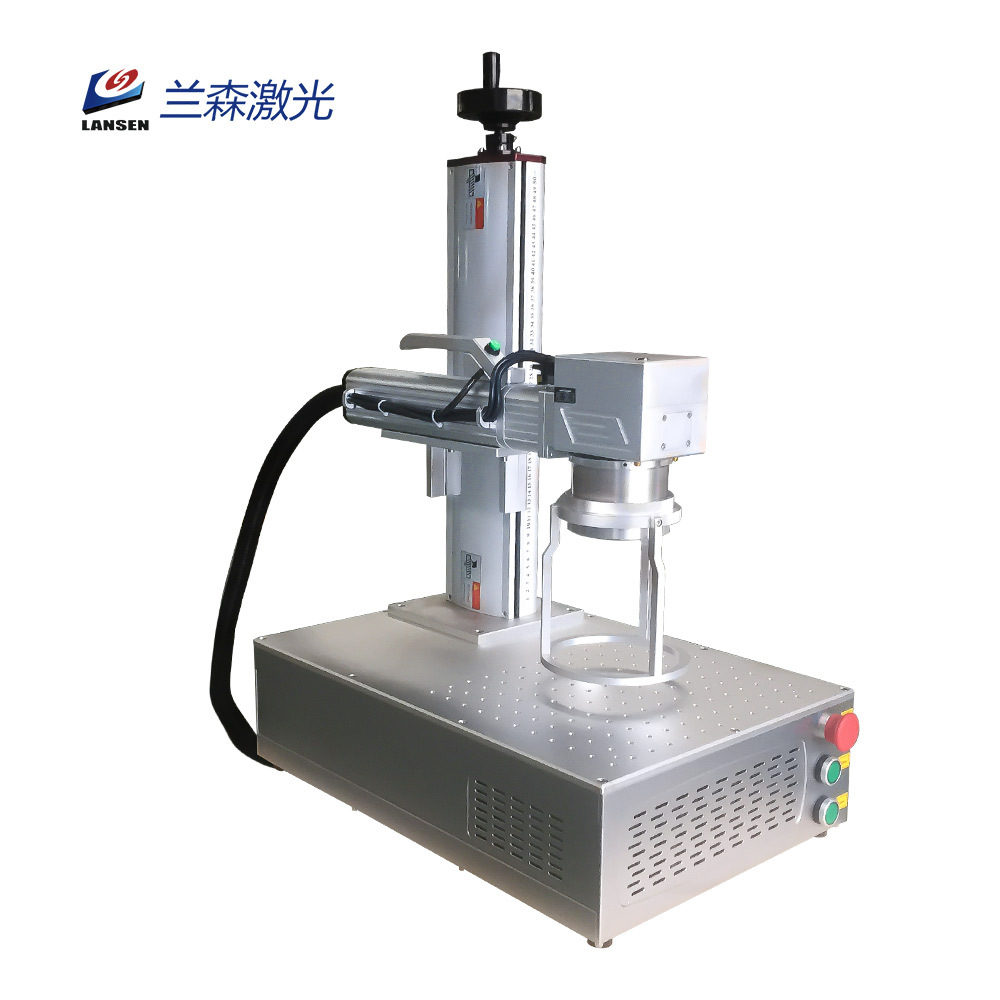

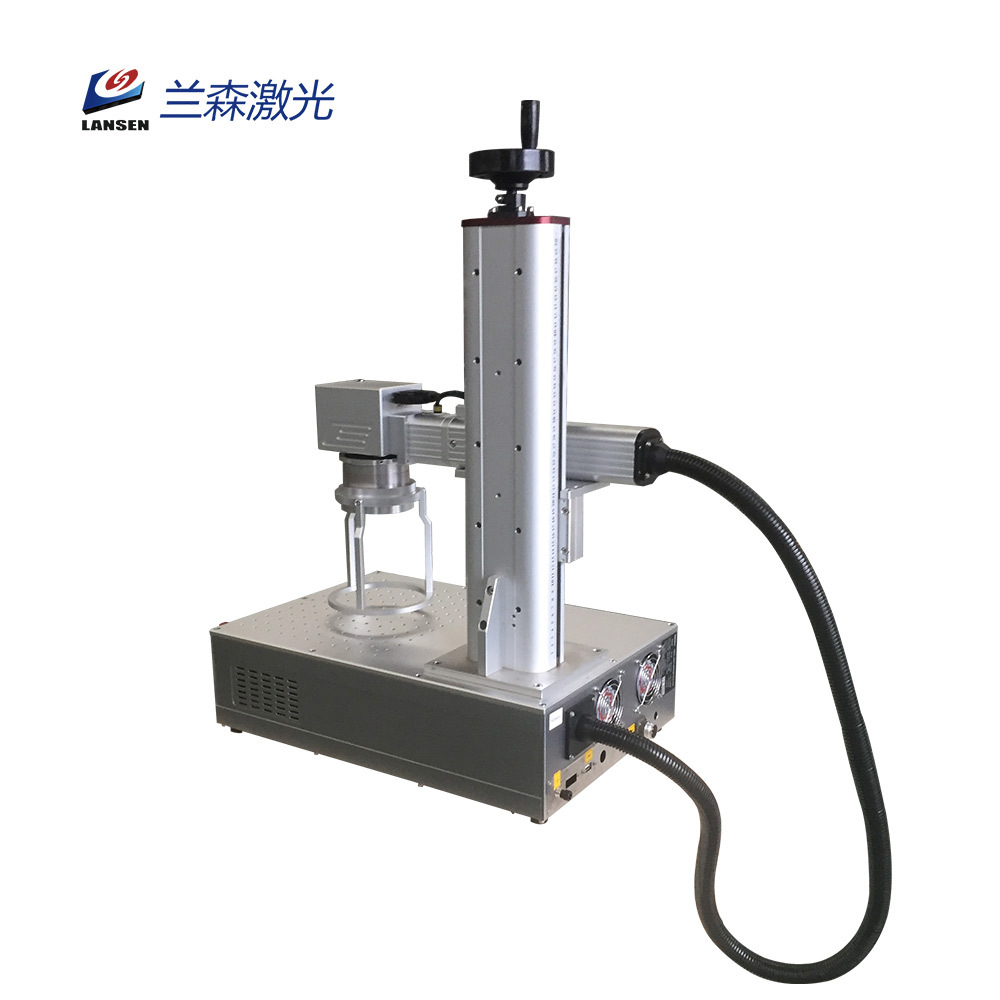

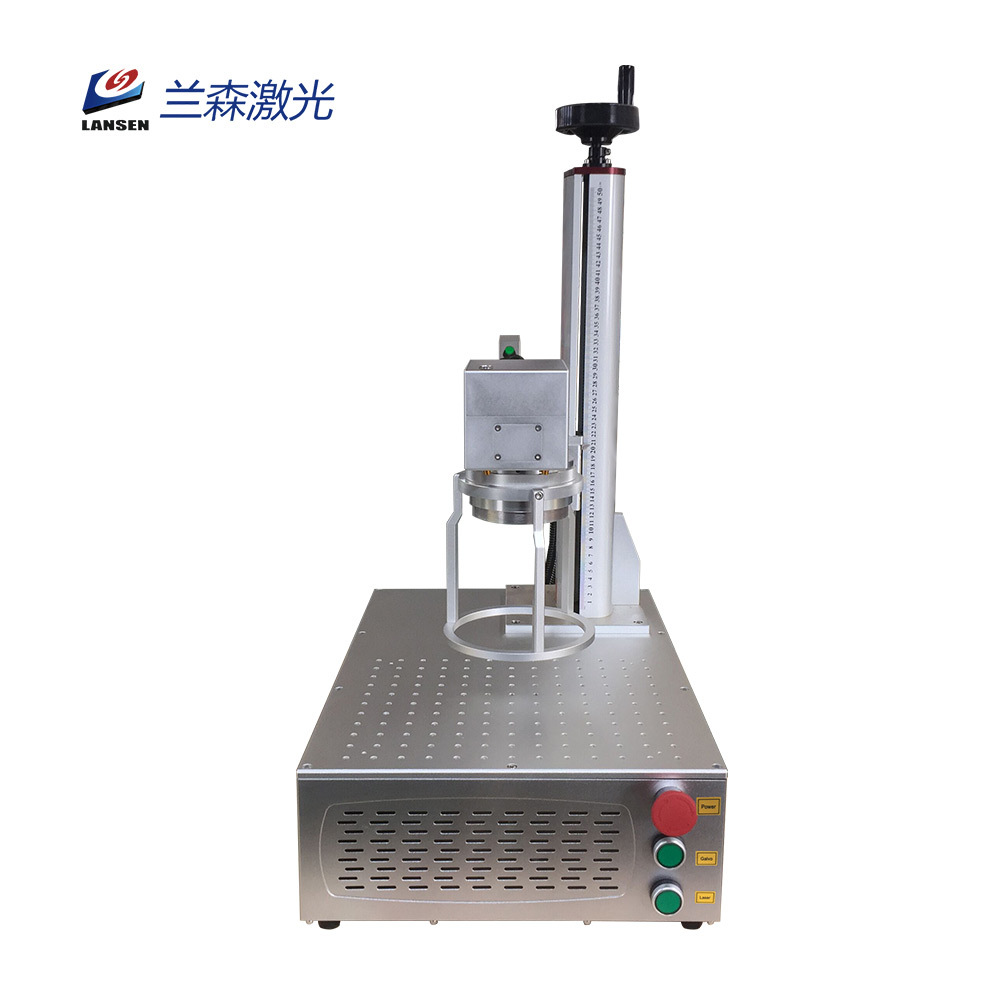

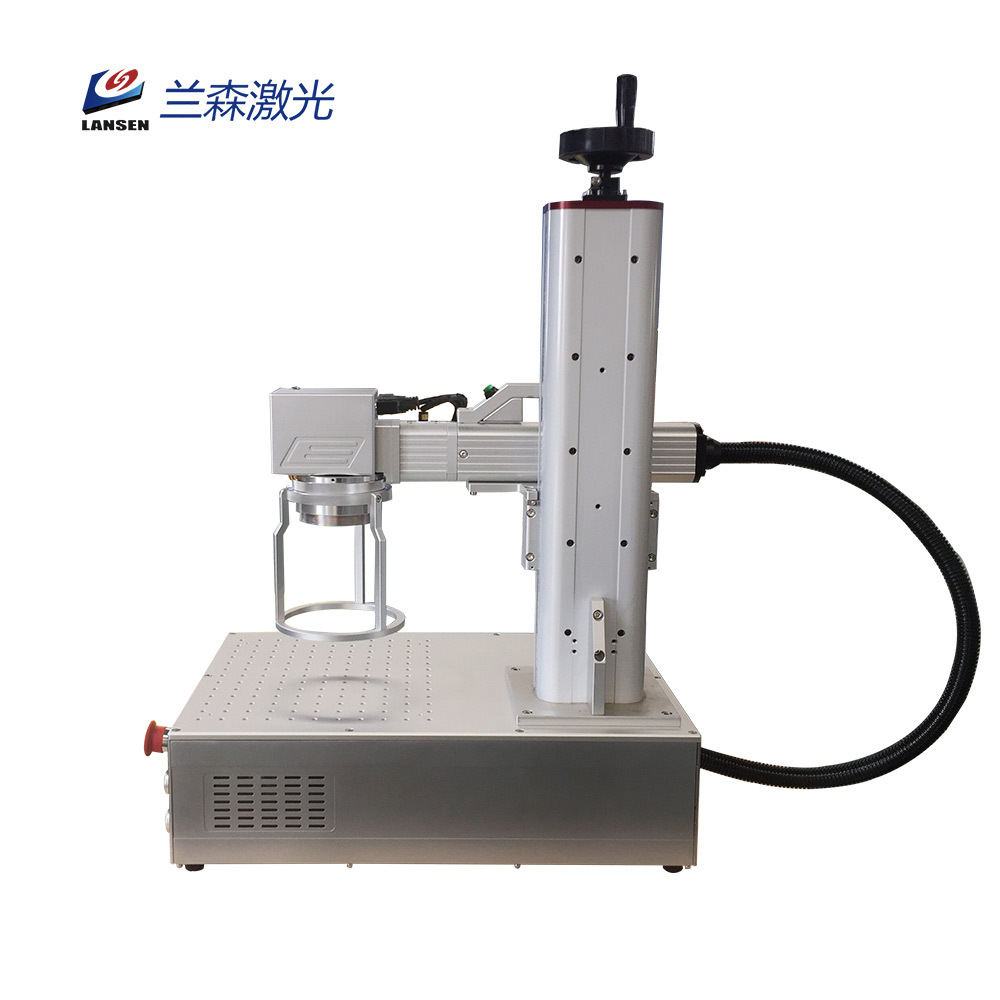

Mini Integrated Handheld Fiber Laser Marking Machine for Tire Logo Printing

Lansen Laser is the world famous fiber laser marking machine manufacturers and suppliers, recently launched a new laser marking machine: Handheld Fiber Laser Marking Machine .

This type of laser marking machine can remove the original fixed bracket and make handheld marking, the laser marking machine mini structure and handheld design can meet a variety of production needs, the laser marking machine is compact and mini size, small footprint, marking speed is twice as the same type of laser. Adopting high quality fiber laser, the core components of the life length up to 20,000-100,000 hours or more, no need of consuming materials.

Power:

20W

30W

50W

Description
Parameter

Features:

Compact and portable: this laser marking machine with small size, light weight, laser marking machine is easy to carry, galvanometer can be rotated 90 degrees according to the requirements, this laser marker is suitable for side marking and pipeline work.
Desktop and handheld design: this laser marking machine with removable fixed bracket, to meet a variety of marking needs.
Fixed automatic focusing bracket: the laser marking machine adopts fixed automatic focusing bracket, and the laser marking machine is flexible and convenient to use.
Laser beam stabilization: laser stability, small loss, free from the outside dust and mechanical impact, laser marking beam stability.
The laser marking machine is maintenance-free, no supplies, and no need to adjust or clean the lens.
The laser marker processing speed is 2-3 times of the traditional laser marking machine.
The spot quality of laser marker is excellent and the peak power is high, and the best marking effect can be achieved in the same material.
Using integrated air-cooled system, integrated design, the appearance of laser marking machine is simple.

Laser Marker Model	HandHeld Mini model
Type	Handheld
PC	Without PC (Optional)
Laser Source	Pulse, high energy ytterbium doped fiber laser
Operating Mode	Pulse
Polarization	Random
Average output power	20W/30W/50W/60W
Central emission wavelength	1060 nm, Q switch operation Output power range is 10% -100%
Pulse width (FWHM)	100ns
working voltage	220V
Maximum power consumption	600W
Scanning speed	0-7000mm/s
Marking speed	0-8000mm/s
Marking size	110mm×110mm/175mm175mm/200mm200mm
Spot size	≤ 40 micron (F-theta 160)
Cooling system	Air cooling
Pilot laser	650 nm laser diode, red light marking guide
Continuous working time	≥16h
Humidity	45 to 85% (without condensation)
Working temperature	0~40℃
Control system	EasyCAD(Chinese version)

Applications:

Electronic components, instrumentation, hardware tools, auto parts, daily necessities, jewelry, food and beverage packaging, precision instruments, gifts jewelry, medical equipment and other high-end products, high precision marking printing. Typical applications, such as plastic (PA66) insulation laser marking, metal plate automatic loading and unloading laser marking, packaging box online laser marking, metal mark.

The Fiber Laser Marking machine for metal adopts international most advanced technology and the fiber laser source's lifetime can reach 100,000 hours, 5-6 years without any consumables and maintenance. This laser etching machine for metal with PC for metal is the best choice for the customers who have special requirements to the smallest & finest laser beam and character. The software has already been installed and the parameter is settled before delivery. Once received, the laser etcher could work directly without data adjustment. Laser marking machinecan do quickly and permanently mark of text, picture, serial numbers, bar codes, QR code, etc. for all metal material and part nonmetal material. It mainly use for mark on tools, metal parts, jewelry, firearms and industry polymers. Can be use as animal ear tag laser marking machine, jewelry laser marking machine, led bulb laser marking machine, etc.

Laser Source	RAYCUS/JPT M7
Beam quality	M2<1.8
Laser wavelength	1064±1nm
Power adjustment range	10~100%
Frequency ofpulse	20~250KHz
Power supply	220V/50Hz(110V/60Hzcan choose)
Cooling system	Air Cooling
Marking content suppor	import vector files lke PLT
	Add Text,series number,etc.inSHX,TTFand CSF
	Add Barcode,QR code
Working area	110110mm(Standard) 5050mm,7575mm,150150mm,175mm175mm,200200mm,300*300mm(0ption al)
Marking depth	<1mm
Marking speed	<7000mm/s
Min.line width	0.05mm
Repeatability accuracy	0.003mm
Power Machine	300W-800W(Depend onfiber laser power)
Operation temperature	-15~+60*C
Operating environment	Clean and free of dust
Warranty	18 Months forlaser source,2 years for machine
Optional	Conveyor belt at differentsize/C02 laser source fornonmetal/Auto feeding system
Model	LSD DiskLaser Marking Machine
Type	Standby
Computer	ncludes PC
Mode of operation	Pulsed
Polarization	random
