Mini flying fiber laser marking machine

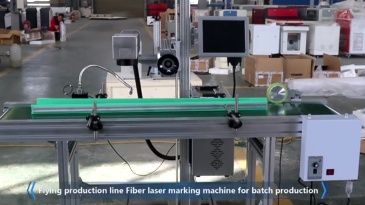

Flying Fiber Laser Marking machine adopts pulse Fiber Laser, With sensitive device, it can match the conveyor to mark automaticly.

  • Mini flying fiber laser marking machine
  • Mini flying fiber laser marking machine
  • Mini flying fiber laser marking machine
  • Mini flying fiber laser marking machine
  • Mini flying fiber laser marking machine
  • Mini flying fiber laser marking machine
  • Description

  • Parameter

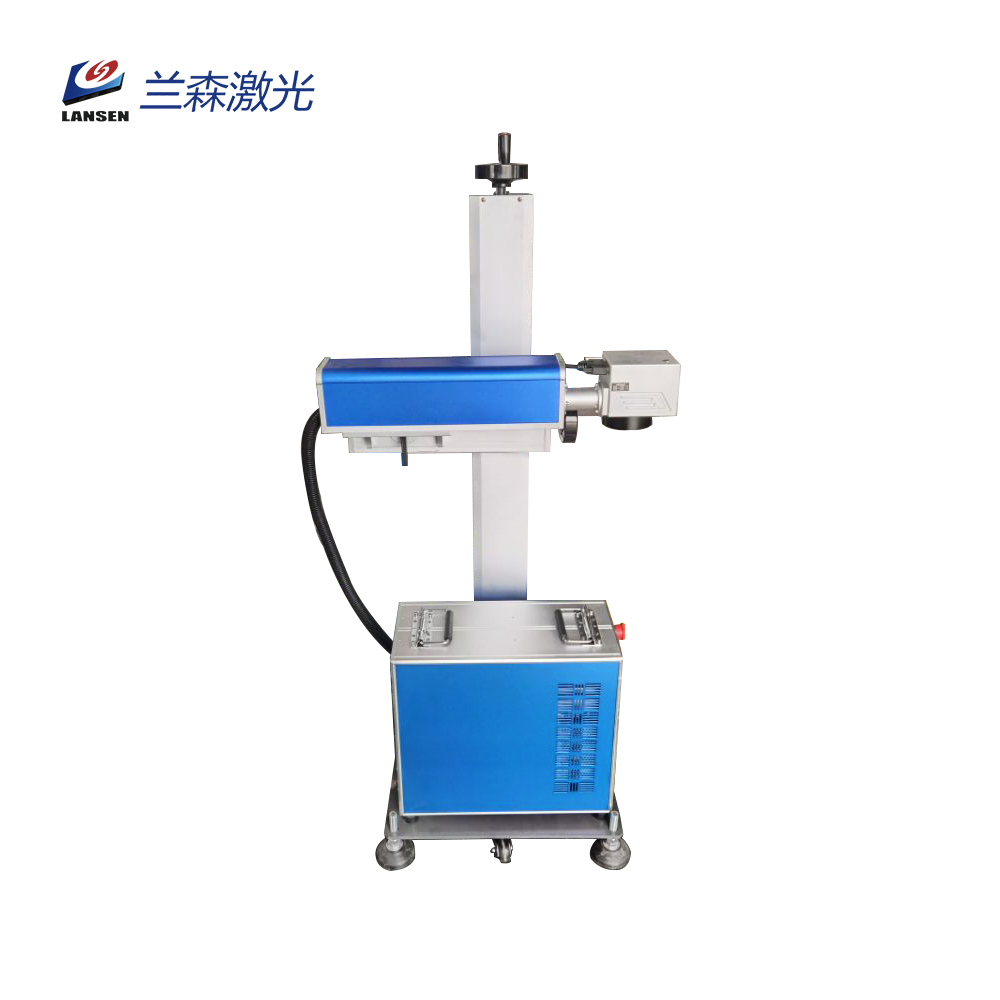

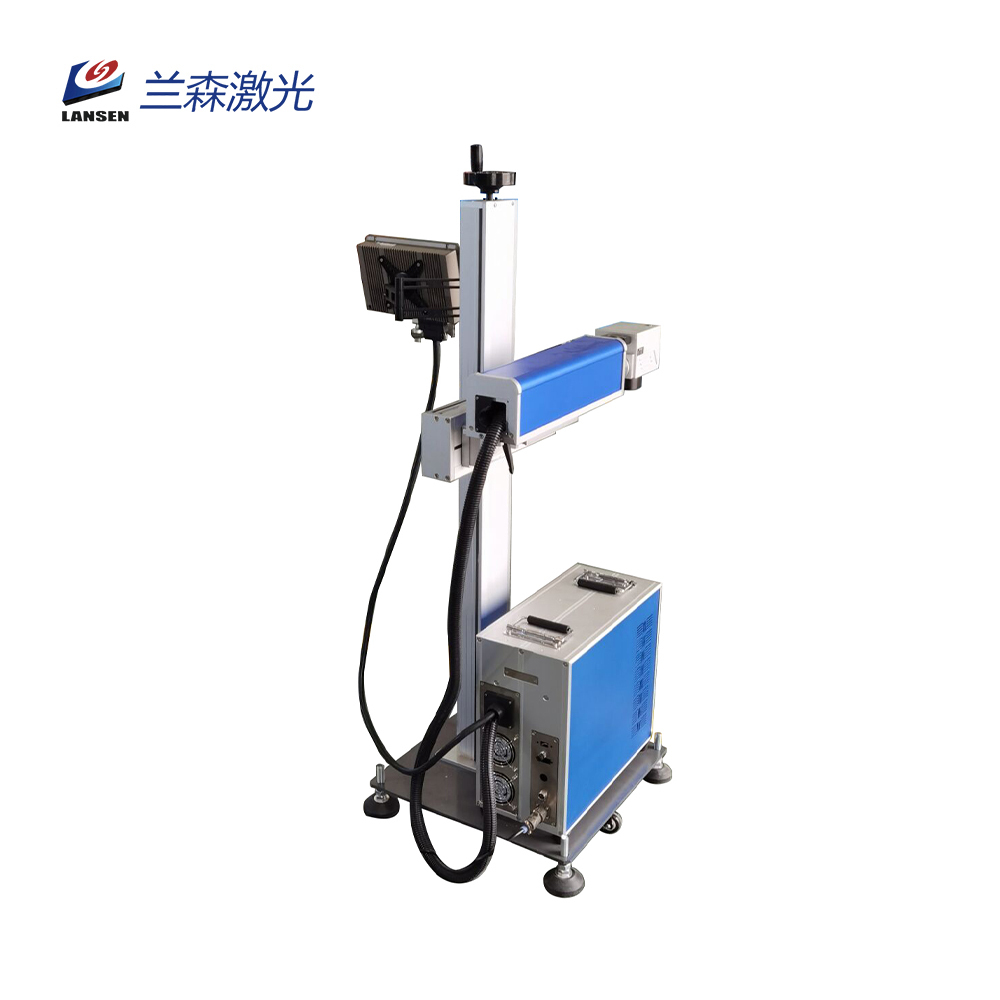

Lansen Flying Fiber Laser Marking machine adopts pulse Fiber Laser, suitable for all the metal marking and some nonmetal marking work. With sensitive device, it can match the conveyor to mark automaticly.
* Wide range of adjusting height

* Independent and sealed cabinet can be used in terrible working environment,it has strong expansibility, can also be used together with rotary device

* Precision translation tables,assembly line and other nonstandard special tools and flying marking production line for optional

* This machine can mark many kinds of workpieces,especially those products with different outline sizes.

* The Galvo scanner can rotary for 90 degree to mark on different shape work piece.

* Moving back and forward to fit work requirements.

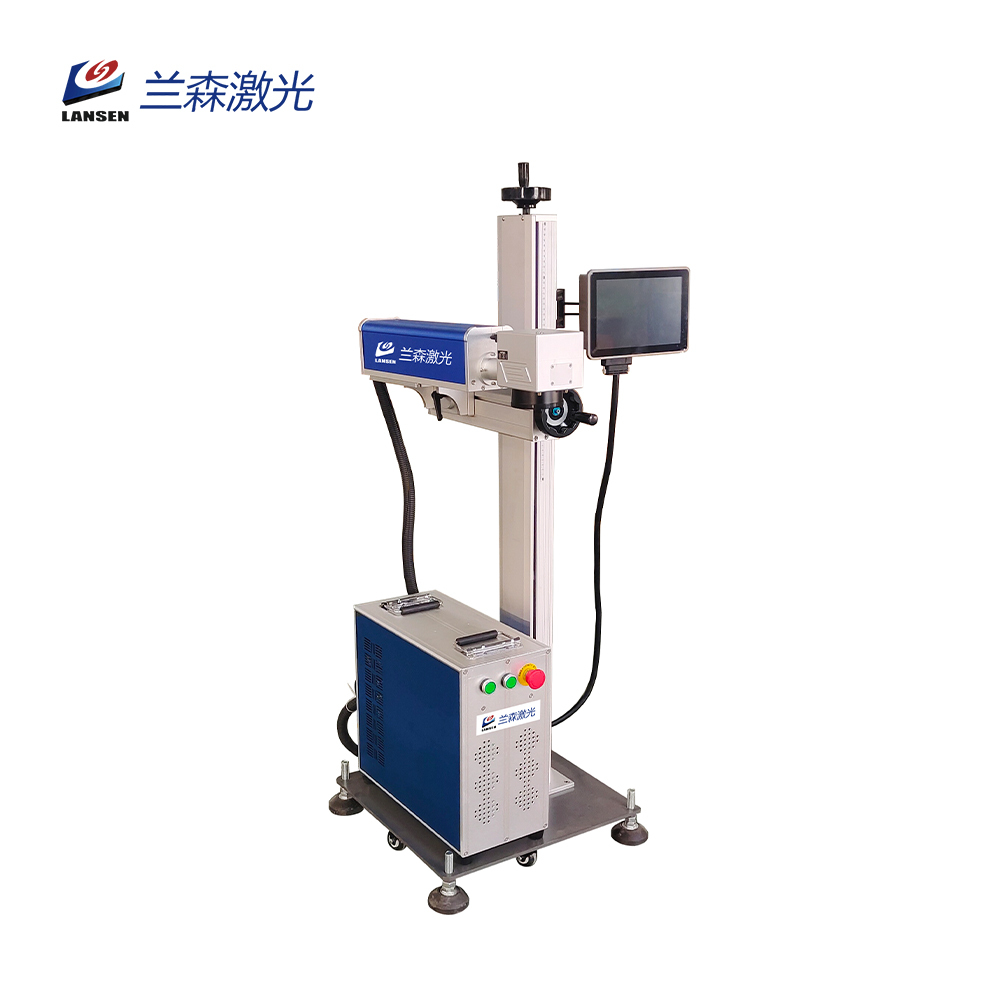

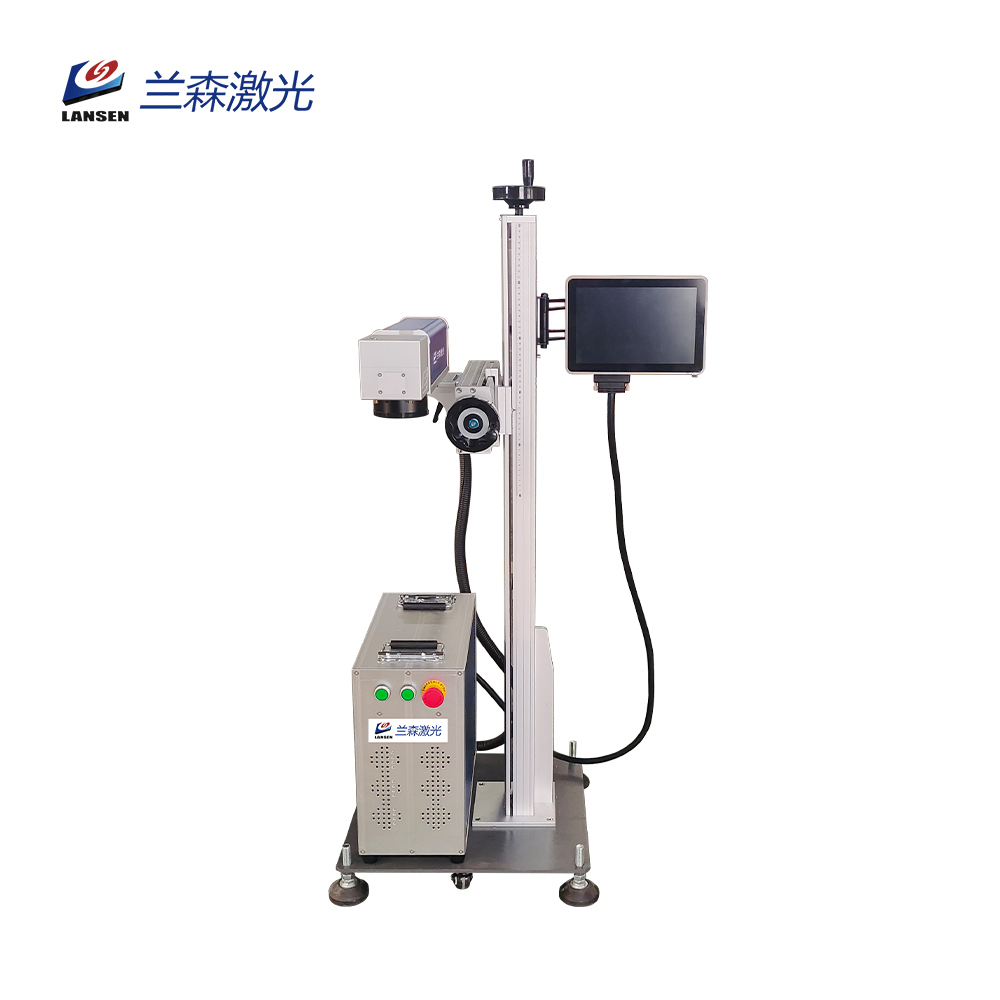

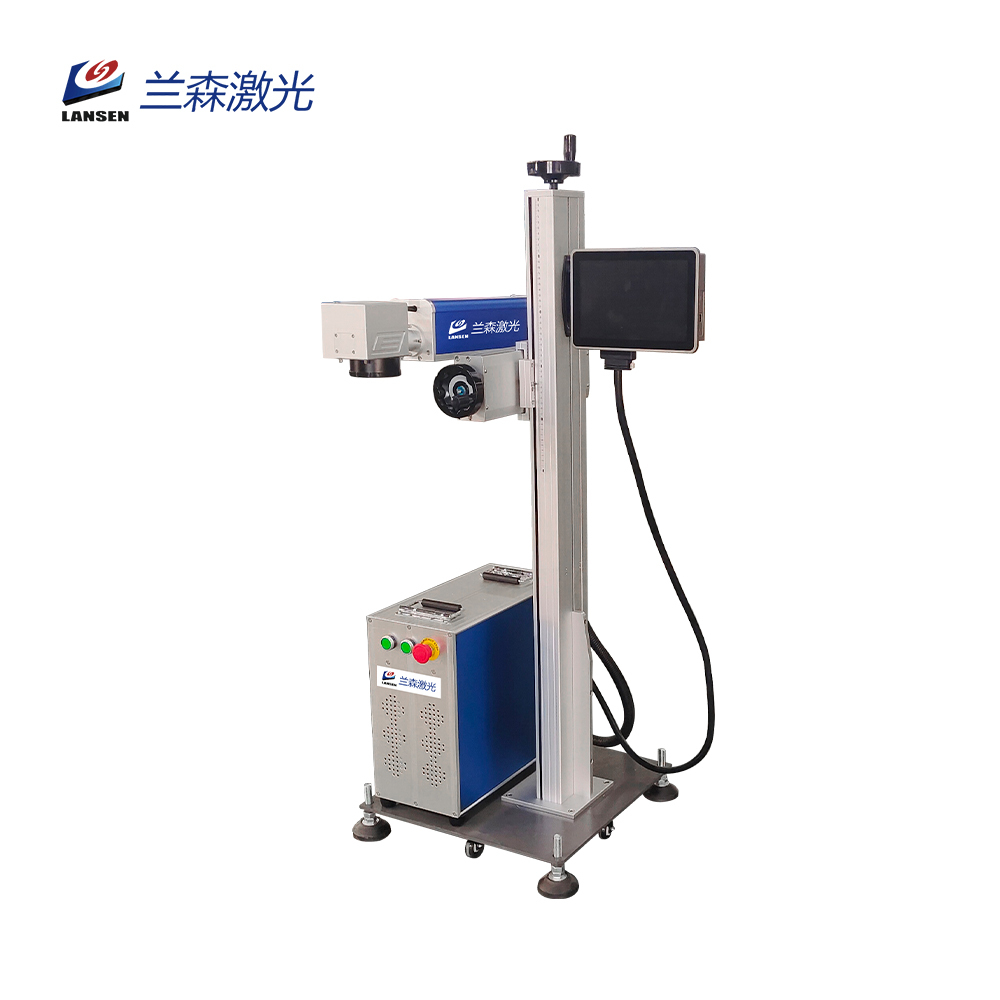

* Touch screen computer convenient to operate



Laser type

Fiber Laser(C02 laser sourceoptional)

Laser power

30w 50w 100w

Beam quality

M2<1.5

Laser wavelength

1064±1nm

Power adjustment range

10~100%

Frequency ofpulse

20~250KHz

Power supply

220V/50Hz(110V/60Hzcan choose)

Cooling system

Air Cooling

Marking content suppor

mport vector files lke PLT



Add Text,series number,etc.inSHX,TTFand CSF



Add Barcode,QR code

Working area

110*110mm(Standard)
50*50mm,75*75mm,150*150mm,175mm*175mm,200*200mm,300*300mm(0ption
al)

Marking depth

<1mm

Marking speed

<7000mm/s

Min.line width

0.05mm

Repeatability accuracy

0.003mm

Power Machine

300W-800W(Depend onfiber laser power)

Operation temperature

-15~+60*C

Operating environment

Clean and free of dust

Warranty

18 Months forlaser source,2 years for machine

Optional

Conveyor belt at differentsize/C02 laser source fornonmetal/Auto feeding
system

The Fiber Laser Marking machine for metal adopts international most advanced technology and the fiber laser source's lifetime can reach 100,000 hours, 5-6 years without any consumables and maintenance. This laser etching machine for metal with PC for metal is the best choice for the customers who have special requirements to the smallest & finest laser beam and character. The software has already been installed and the parameter is settled before delivery. Once received, the laser etcher could work directly without data adjustment. Laser marking machinecan do quickly and permanently mark of text, picture, serial numbers, bar codes, QR code, etc. for all metal material and part nonmetal material. It mainly use for mark on tools, metal parts, jewelry, firearms and industry polymers. Can be use as animal ear tag laser marking machine, jewelry laser marking machine, led bulb laser marking machine, etc.

Laser Source

RAYCUS/JPT M7

Beam quality

M2<1.8

Laser wavelength

1064±1nm

Power adjustment range

10~100%

Frequency ofpulse

20~250KHz

Power supply

220V/50Hz(110V/60Hzcan choose)

Cooling system

Air Cooling

Marking content suppor

import vector files lke PLT



Add Text,series number,etc.inSHX,TTFand CSF



Add Barcode,QR code

Working area

110*110mm(Standard)
50*50mm,75*75mm,150*150mm,175mm*175mm,200*200mm,300*300mm(0ption
al)

Marking depth

<1mm

Marking speed

<7000mm/s

Min.line width

0.05mm

Repeatability accuracy

0.003mm

Power Machine

300W-800W(Depend onfiber laser power)

Operation temperature

-15~+60*C

Operating environment

Clean and free of dust

Warranty

18 Months forlaser source,2 years for machine

Optional

Conveyor belt at differentsize/C02 laser source fornonmetal/Auto feeding
system

Model

LSD DiskLaser Marking Machine

Type

Standby

Computer

ncludes PC

Mode of operation

Pulsed

Polarization

random
