Co2 laser markers are widely used in the field of non-metal field, such as: garment & shoes engraving, fabric cutting, medical packaging, handicrafts & gift, food printing, soft drink printing, cigarette code, beverage packaging tobacco printing, rubber marking machine, acrylic marker, water bottle marker, marking on plastic, leather engraving industries.

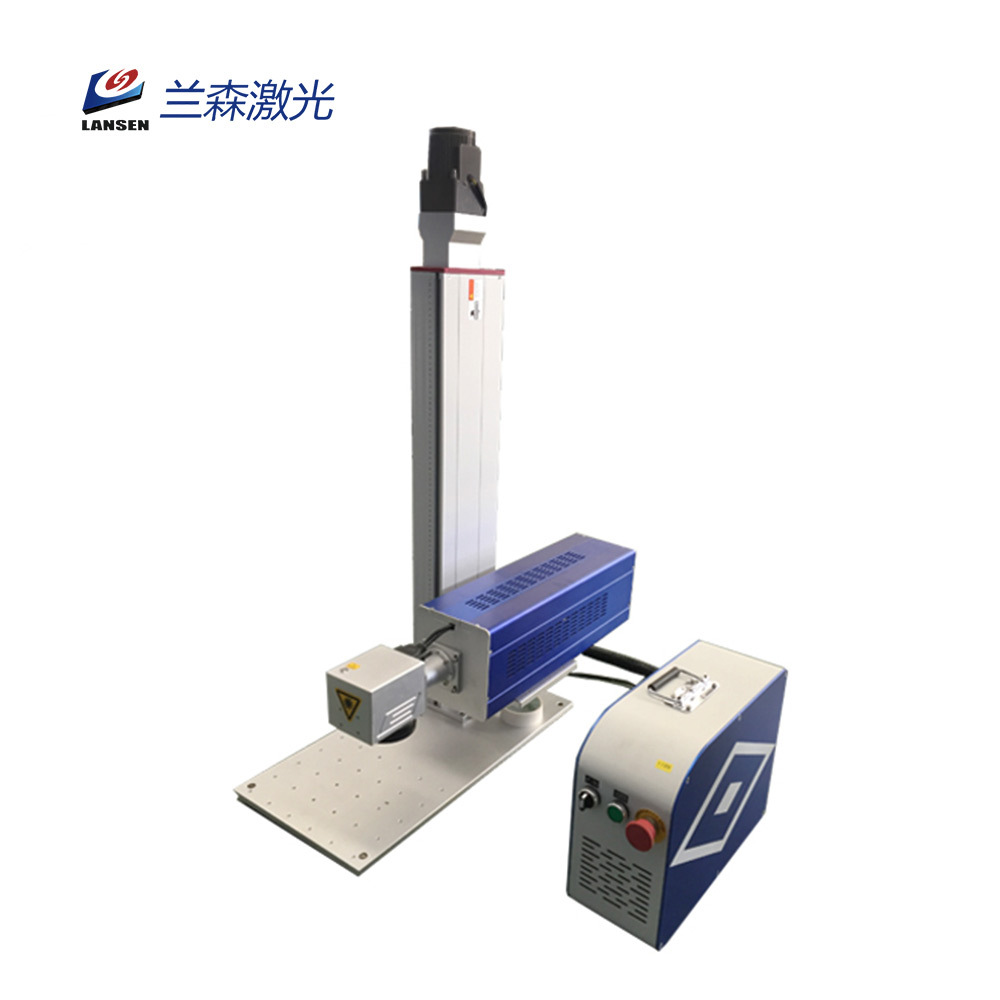

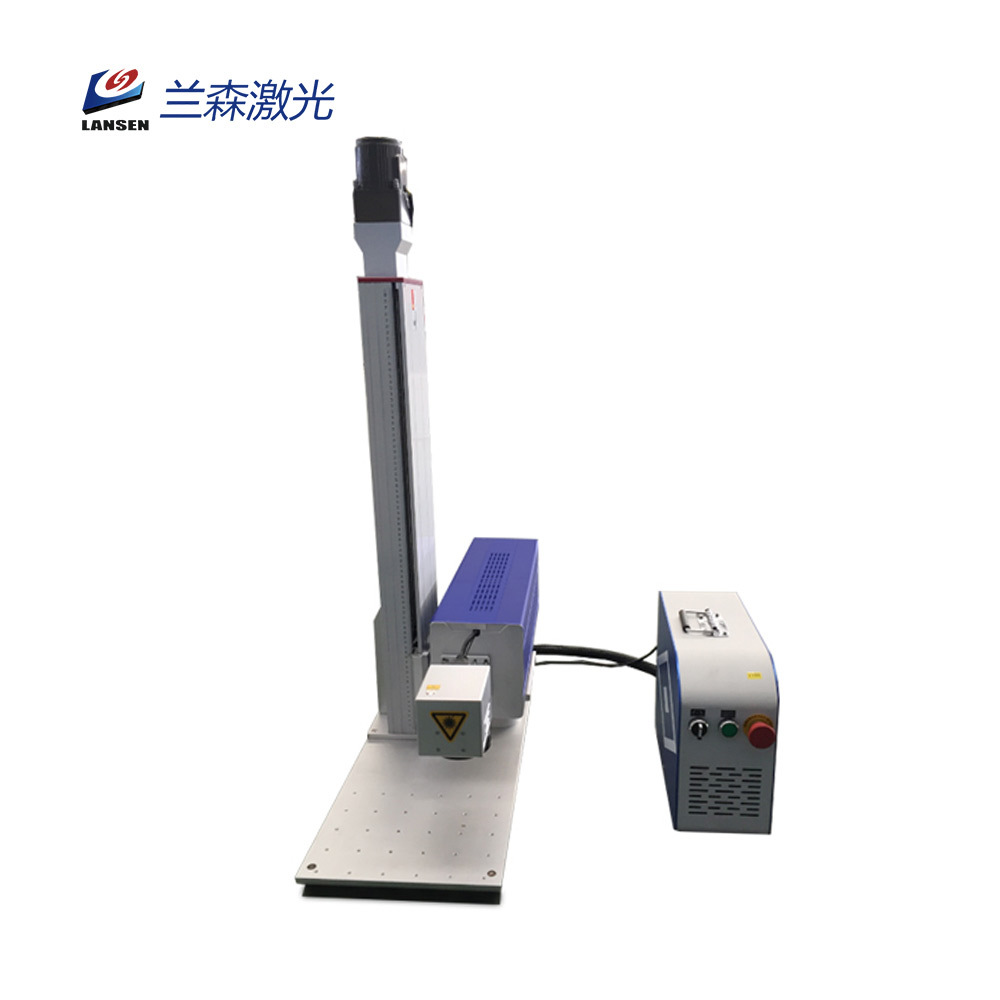

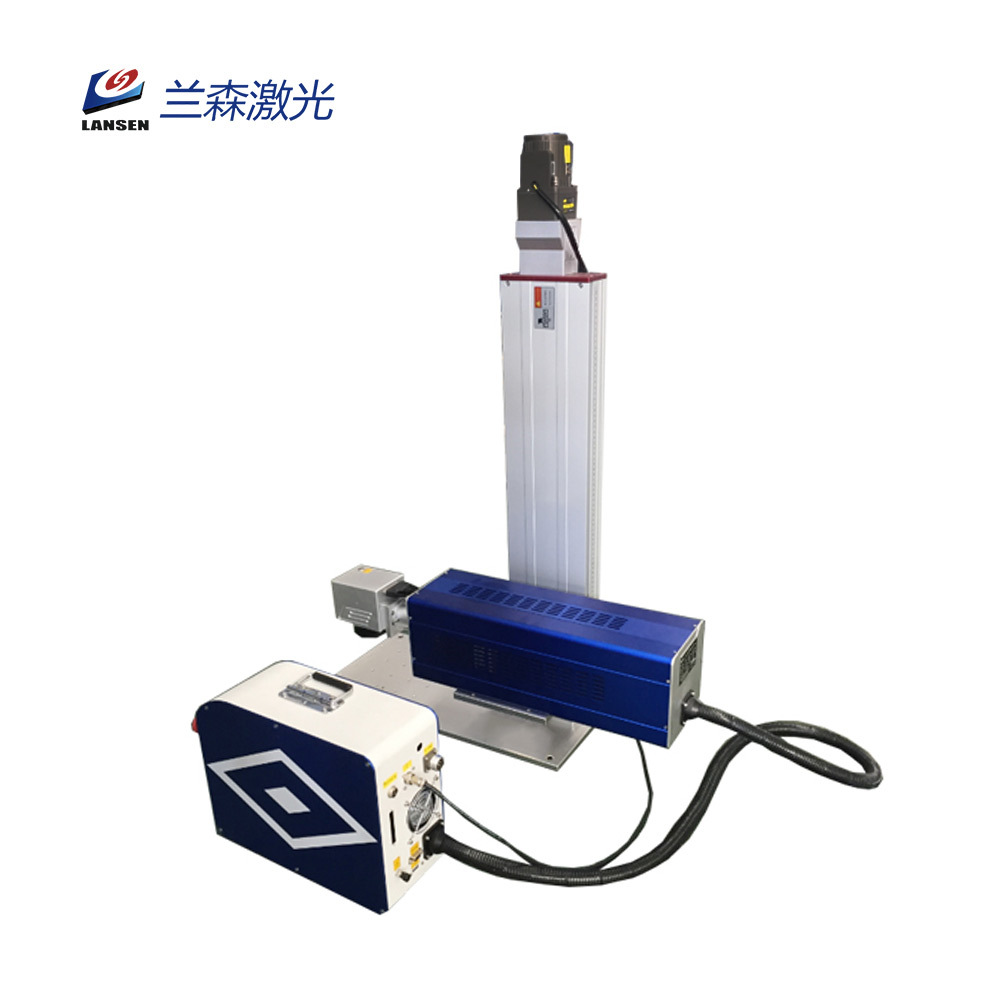

Lansen brand Co2 laser marking machine take USA Synrad original RF metal laser tube as the laser source, with lifespan 20,000~30,000 hours free of maintenance, and the Co2 laser markers also can be re-filled after using up. Once invested, whole-life benefited.
Co2 laser markers adopt world famous digital laser scanning head, this Co2 laser markers are quite suitable for users requiring highest precision and fastest speed batch production, tags, nameplate, logos.
|
Type |
LS-C02-30W |
|
Laser power |
Metal RFtube(China orimported) |
|
Laser Wavelength |
10.6μm |
|
Laser Repetition Frequency |
s25KHZ |
|
MakingArea |
100mm*100mm/200mm*200mm/300mm*300mm |
|
MakingDepth |
s0.3mm(adjustable accordingto materials |
|
Linear Speed |
7000mm/s |
|
Min.LineWidth |
0.1mm |
|
Min.Letter |
0.4mm |
|
Repeatable Accuracy |
±0.01mm |
|
Gross Power |
1.2KW |
|
Electricity Source |
220V/50Hz/8A |
|
CoolingSystem |
Air Cooling |
|
Suitable for |
Nonmetal materials marking or leather cloth quickly cutting |
|
Package size/Weight |
1210mm*740mm*1090mm/171kg |
