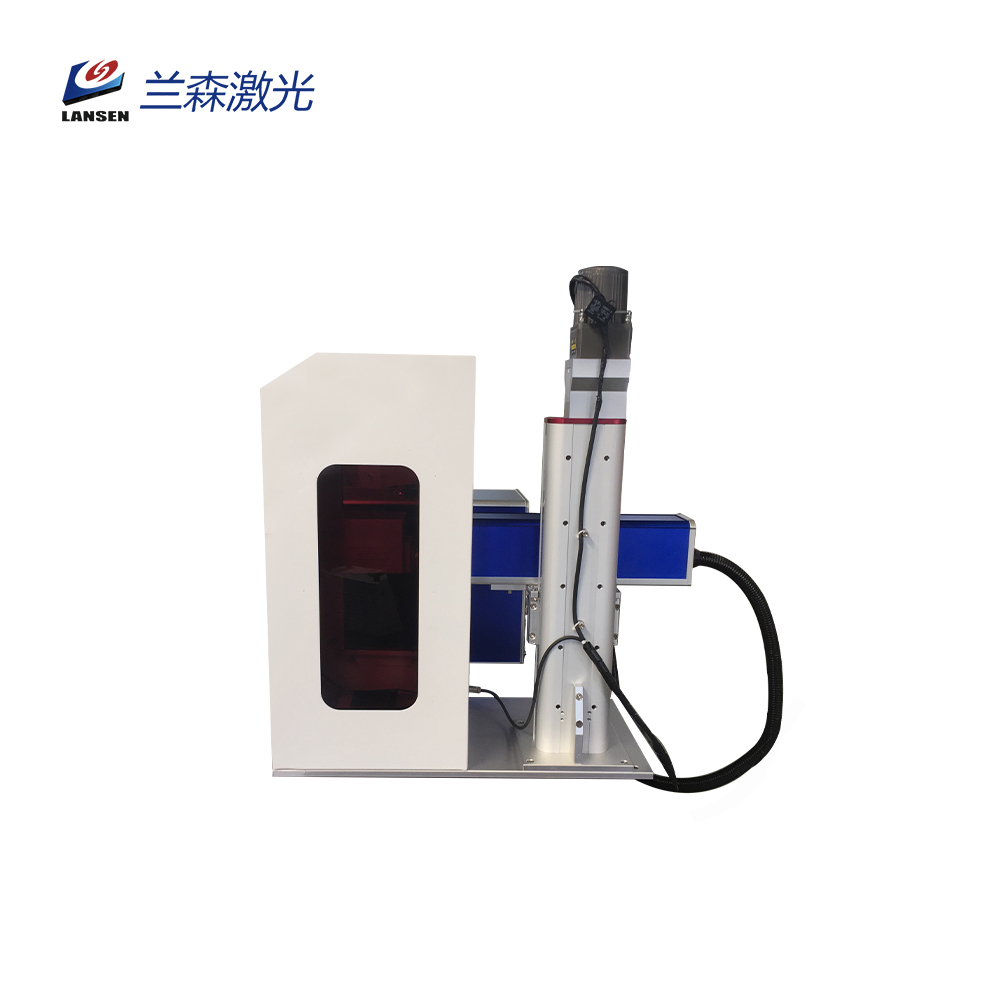

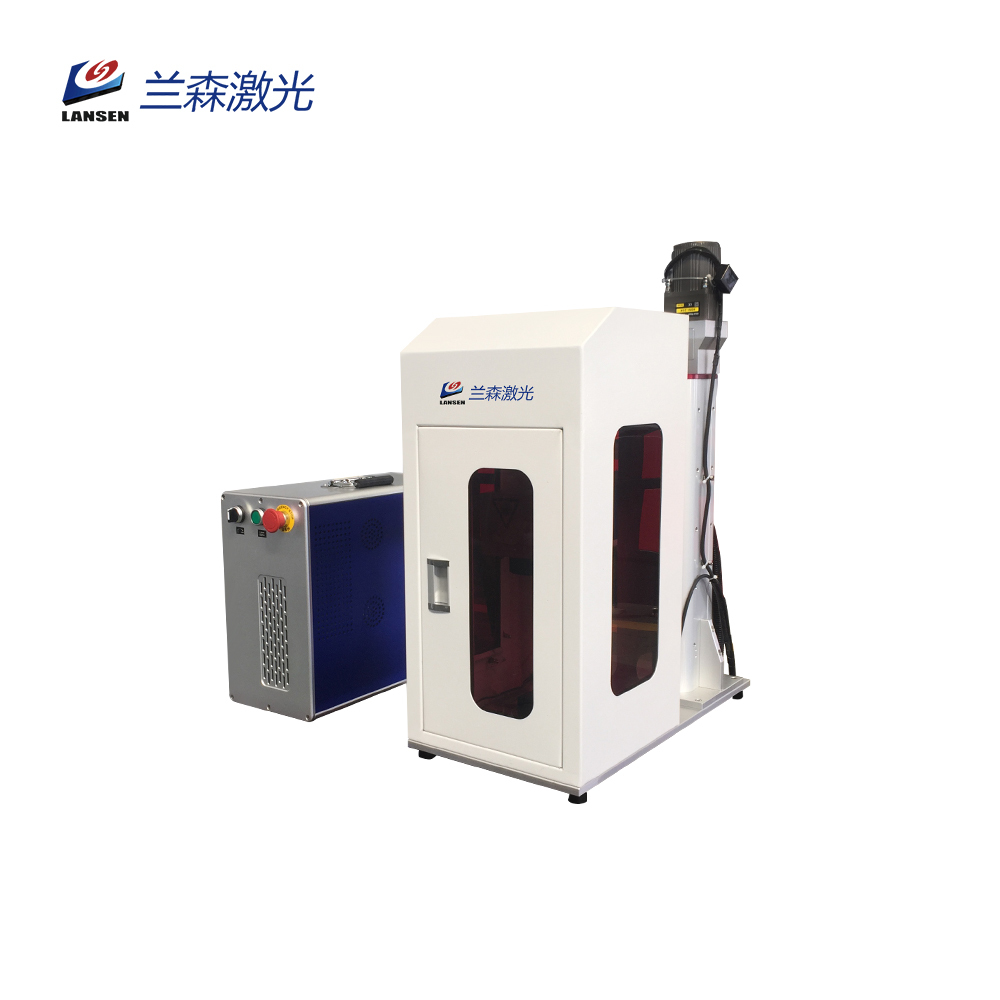

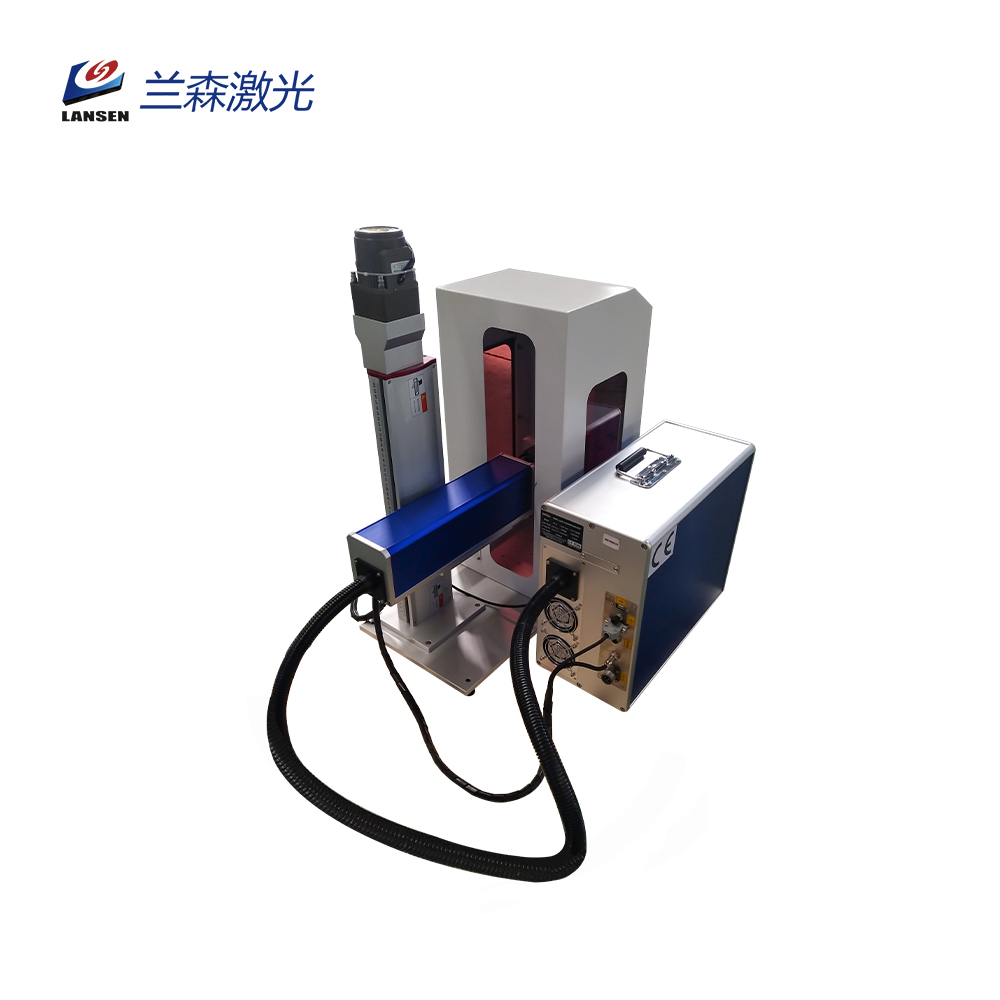

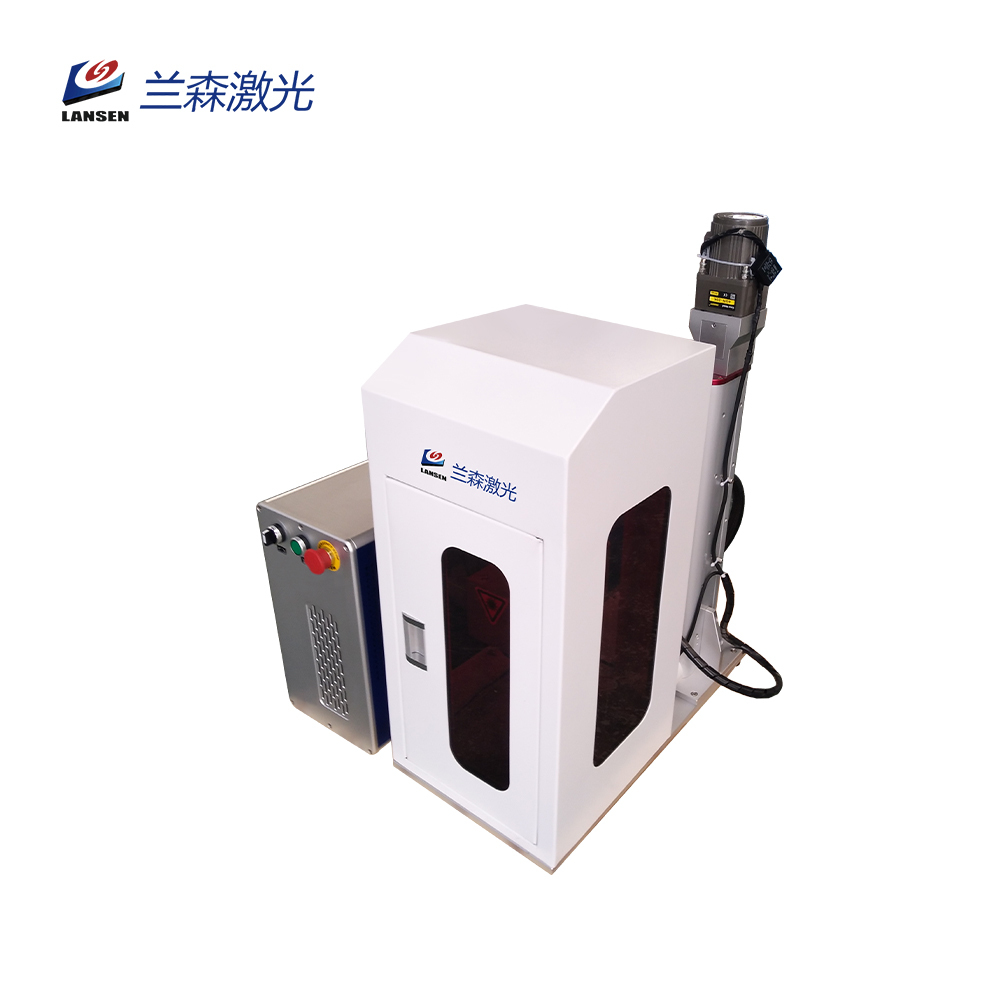

Closed Fiber Laser Marking Machine descriptions:

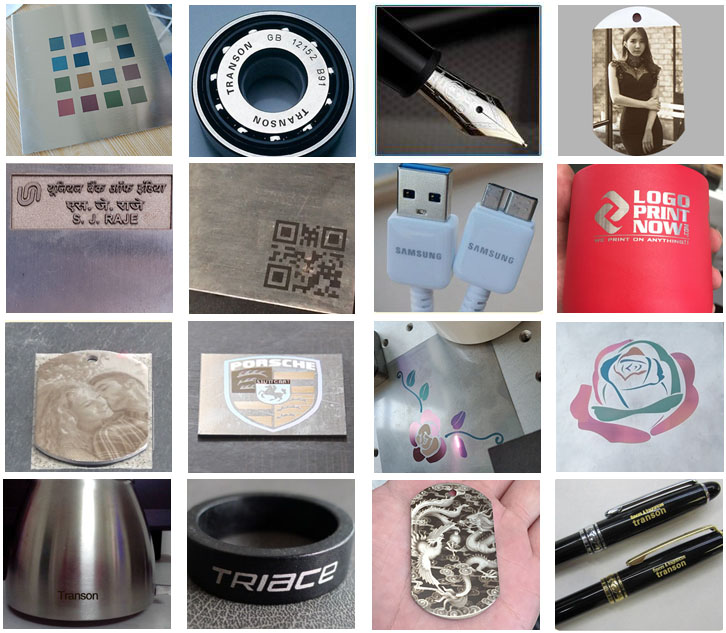

Closed Fiber Laser Marking machine can carve both on metal materials and some non-metallic materials.
The Closed Fiber Laser Marking machine has a sealed structure. During work, fog will be kept in the enclosed laser cabinet without emission to outside. Environmental, friendly and healthy, this design is special for European market or other markets which have high demands for working environment. The effect of the metal etching machines is particularly outstanding.
Features:
1, Enclosed model no harm to your body, small window seat in the front no harm to your eye.
2, With button control auto focus function, easy operate.
3, Optional air filter, no smoke come out, suit work in any public area like hall, shopping center,etc.
4, With door open protection, if door open, software will warn and won't mark, only when door closed can it mark.








|

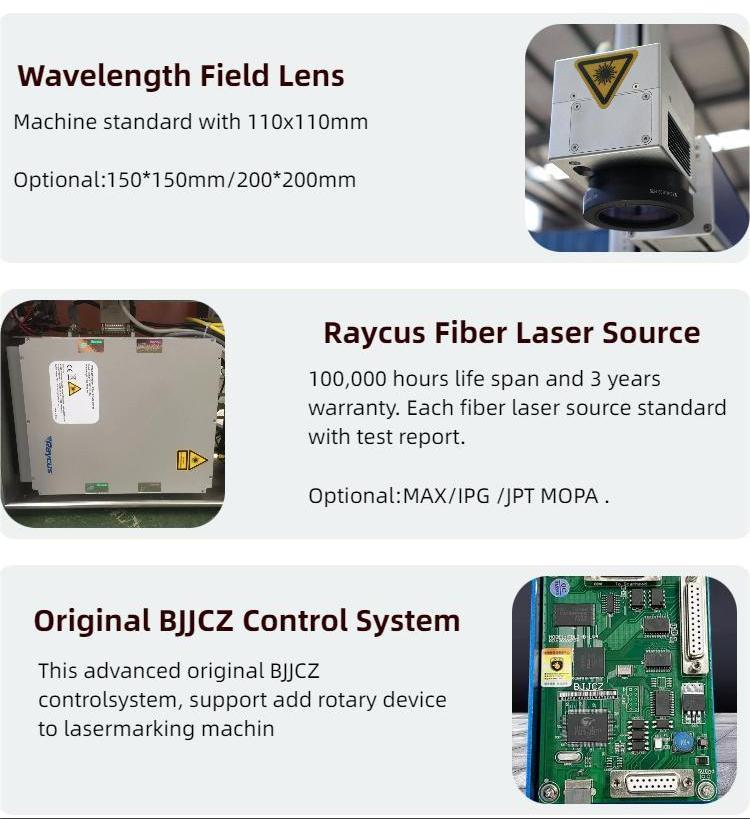

Laser Source |
RAYCUS/JPT M7 |
|
Beam quality |
M2<1.8 |
|
Laser wavelength |
1064±1nm |
|
Power adjustment range |
10~100% |
|
Frequency ofpulse |
20~250KHz |
|
Power supply |
220V/50Hz(110V/60Hzcan choose) |
|
Cooling system |
Air Cooling |
|
Marking content suppor |
import vector files lke PLT |
|
|
Add Text,series number,etc.inSHX,TTFand CSF |
|
|
Add Barcode,QR code |
|
Working area |
110*110mm(Standard) |
|
Marking depth |
<1mm |
|
Marking speed |
<7000mm/s |
|
Min.line width |
0.05mm |
|
Repeatability accuracy |
0.003mm |
|
Power Machine |
300W-800W(Depend onfiber laser power) |
|
Operation temperature |
-15~+60*C |
|
Operating environment |
Clean and free of dust |
|
Warranty |
18 Months forlaser source,2 years for machine |
|

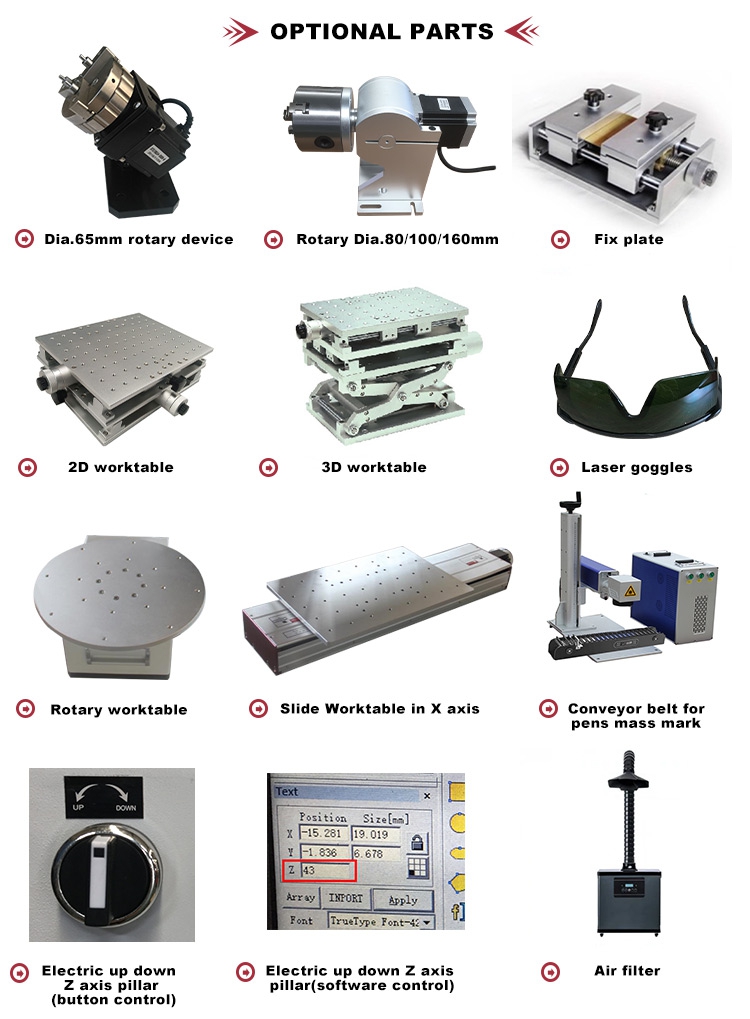

Optional |
Conveyor belt at differentsize/C02 laser source fornonmetal/Auto feeding |
|
Model |
LSD DiskLaser Marking Machine |
|
Type |
Standby |
|
Computer |
ncludes PC |
|
Mode of operation |
Pulsed |
|
Polarization |
random |
