Standard Configuration of 4 Axis CNC Router:
1.Working size:1500*3000*600mm,C axis:+180°
2.Taiwan SYNTEC control system
3.Italy HSD 9.0KW air cooling spindle
4.Rotate head for spindle rotary
5.Japan YASKAWA servo driver and motor
6.Taiwan HIWIN linear guide
7.Helical rack and pinion for X,Y,TBI ball screw for Z axis
8.Japan Shimpo reducer for X,Y Axis
9.T slot vacuum table
10.Working voltage:380V,3PH/220V,3PH 50HZ/60HZ
|

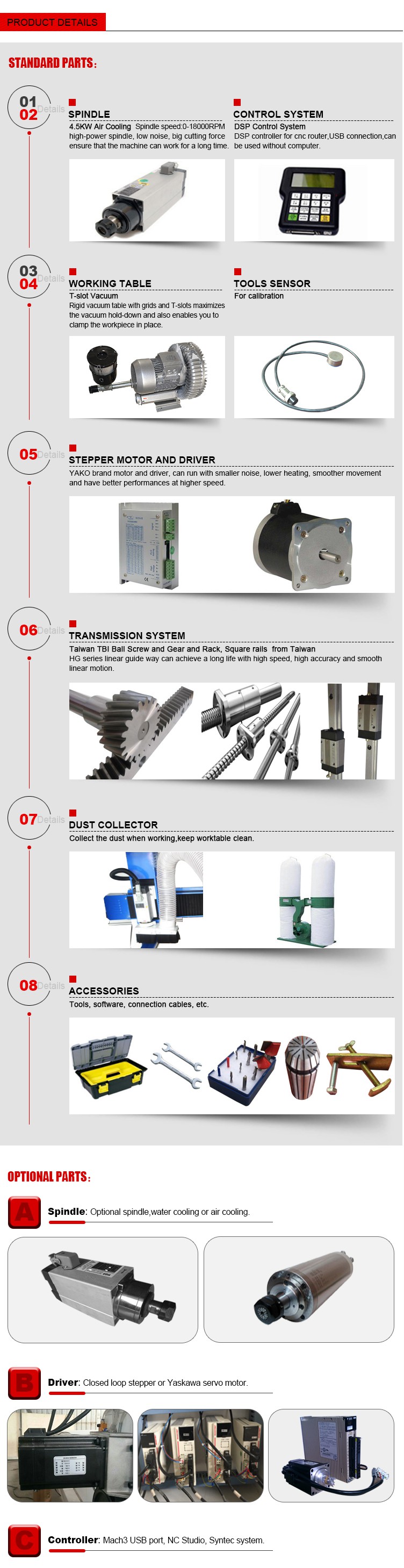

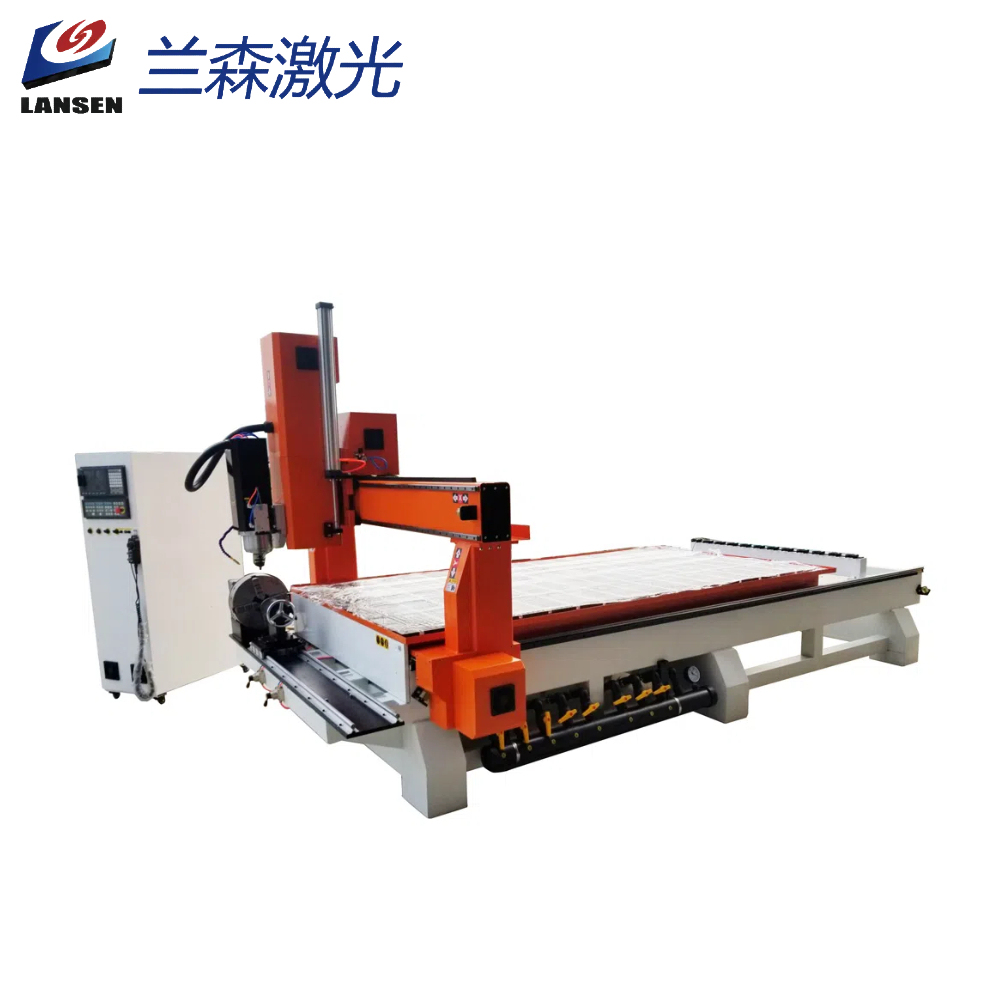

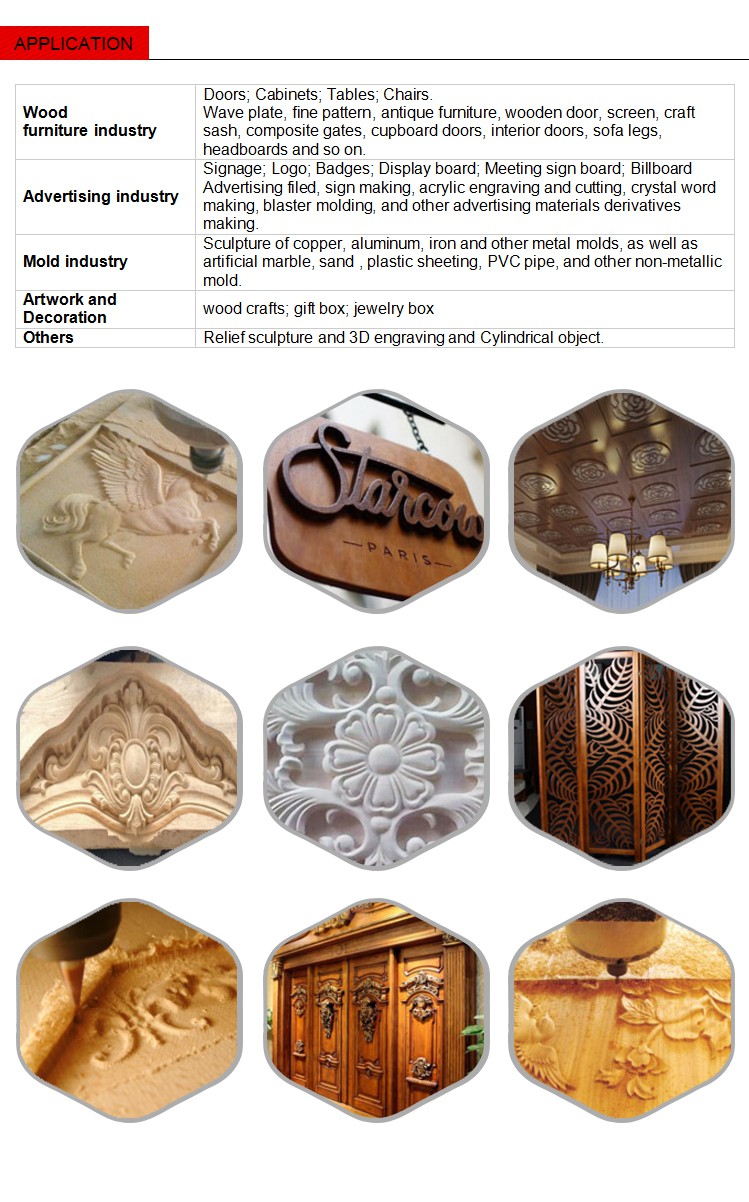

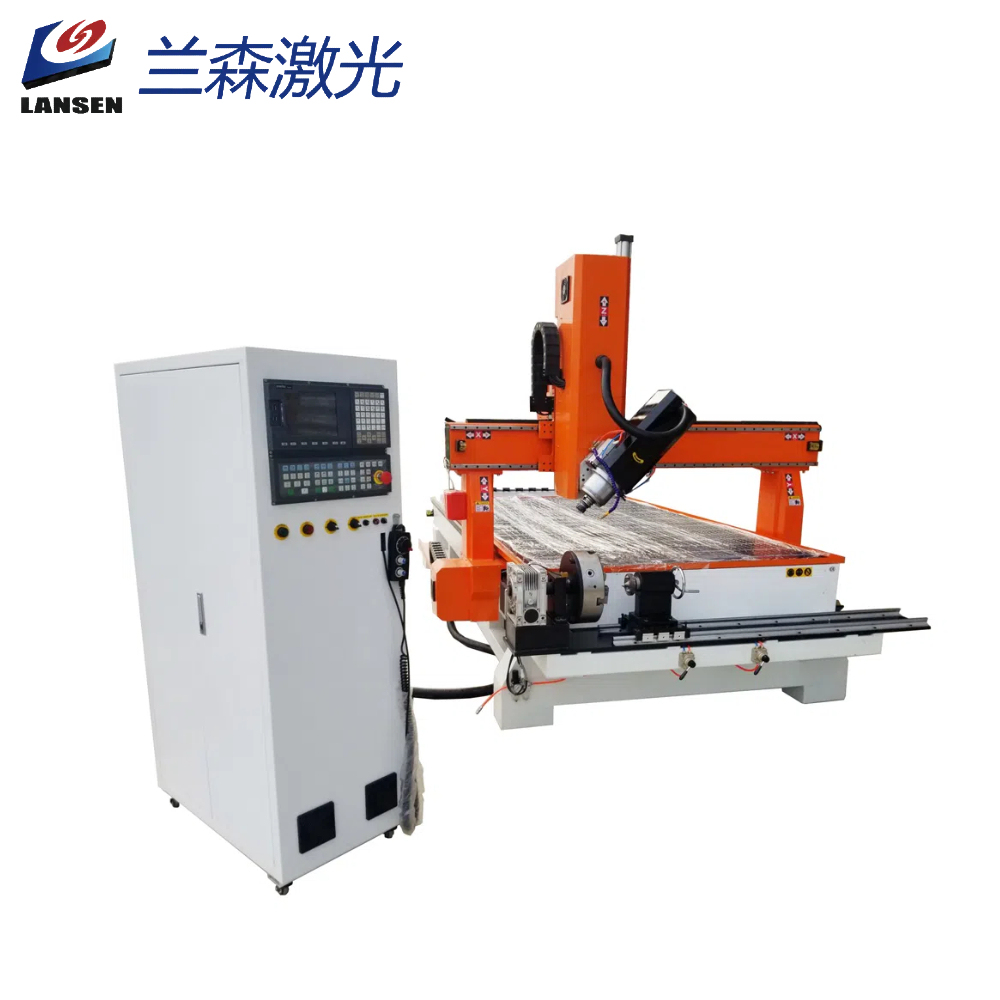

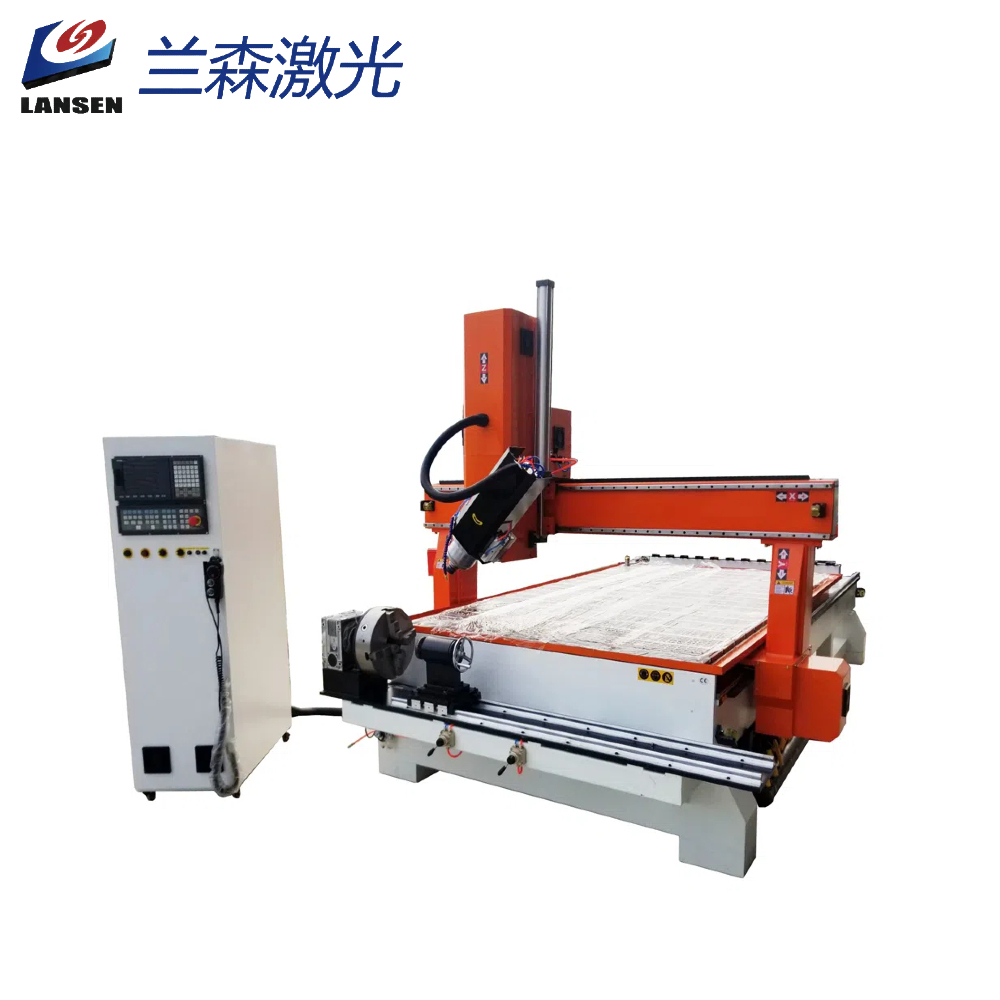

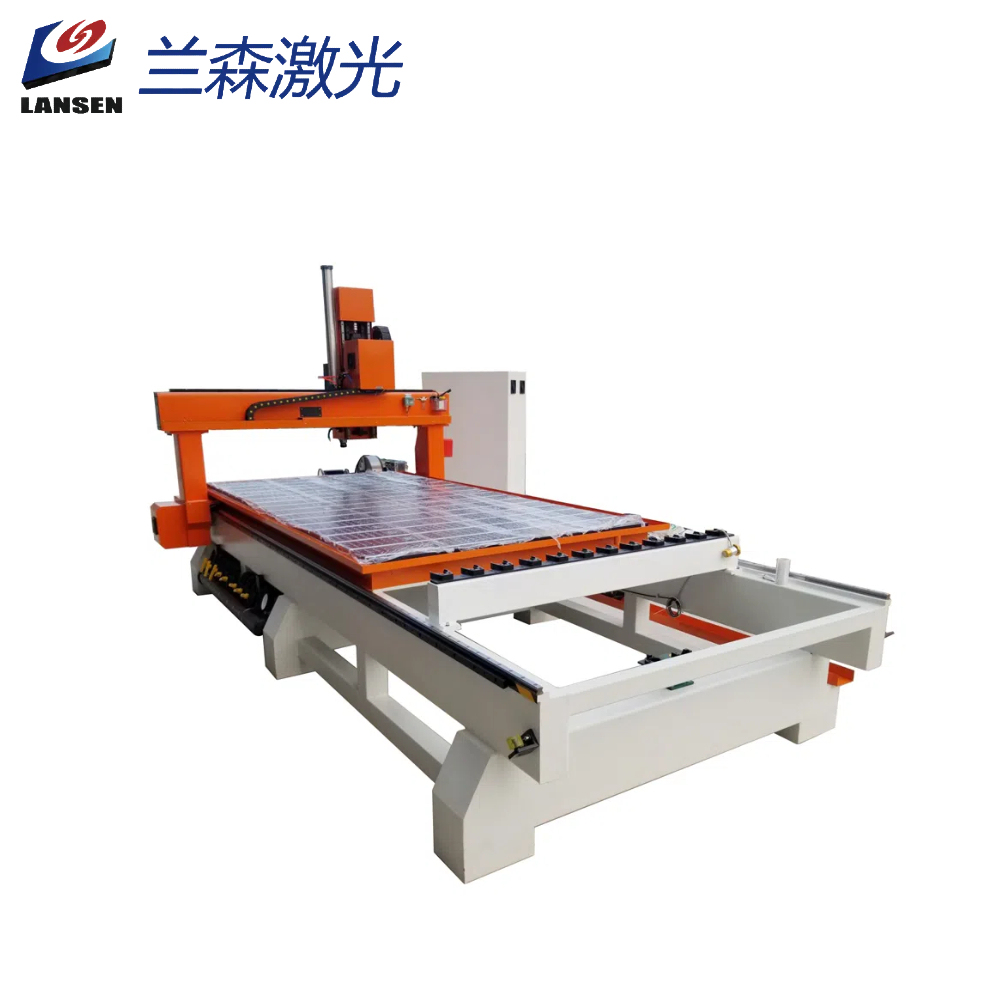

Model
|
LSW1325 5 Axis ATC
|
|
X,Y axis travel
|
1300x2500mm, option: 1500*3000mm; 2000*3000mm; 2000*4000mm, etc
|
|
Z axis travel
|
600mm, option: 400mm, 500mm, 700mm etc
|
|
Spindle
|
9kw ATC air cooling spindle
|
|
Inverter
|
11kw
|
|
The 4th axis
|
can swing from -90 degree to +90 degree
|
|
The 4th axis
|
Rotary device
|
|
Tool magazine
|
Carousel type auto tool changer Option: linear type auto tool changer
|
|
Tool holder with collet
|
ER32 collet: φ4, φ6, 1/8, 1/2
|
|
Control system
|
Taiwan SYNTEC/LNC controller
|
|
Driving system
|
1kw Japan YASKAWA AC servo driverand 850w AC servo motor, 4 sets. option: 1kw Taiwan Syntec servo
|
|
Working Table
|
Aluminum T-slot & vacuum work table
|
|
Positioning cylinder
|
Option: 5 pieces (X2, Y3)
|
|
Linear guide
|
Taiwan Linear guide
|
|
Transmission
|
X,Y axis: Taiwan /Germany Helical Rack and Pinion
Z axis: Taiwan TBI high precision ball screw
|
|
Lubrication system
|
1.5L automatic lubrication system
|
|
Tool Calibration
|
Automatic tool sensor calibration
|
|
Cables
|
Germany Igus cables with CE, cUL certificate
|
|
CompatibleSoftware
|
Powermill, UG, Alphacam, Fusion 360, etc
|
|
CommandLanguage
|
G Code & M Code
|
|
Traveling speed
|
80m/min
|
|
Working speed
|
0-25m/min
|
|
Re-positioningaccuracy
|
±0.03mm
|
|
System resolution
|
±0.0025mm
|
|
Working accuracy
|
±0.03mm
|
|
Working air pressure
|
0.6MPa
|
|
Working air pressure
|
220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ
|
