Model |

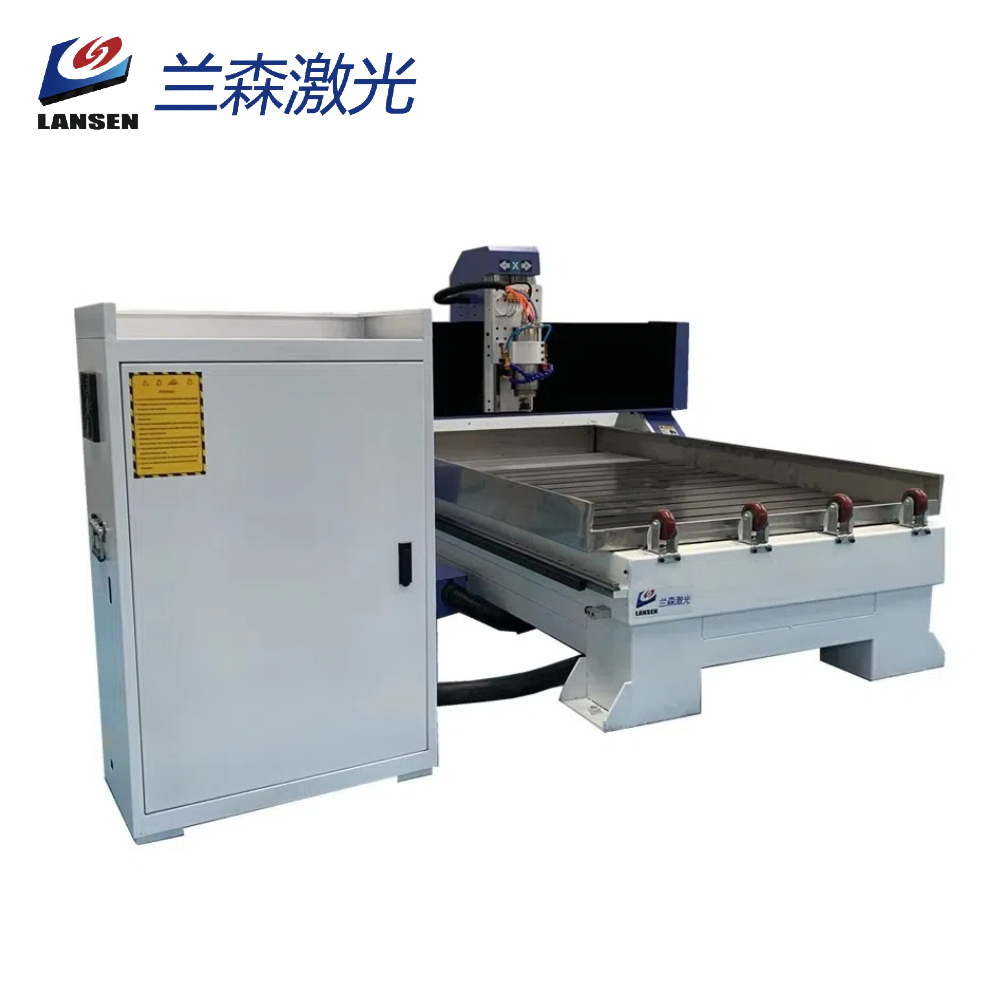

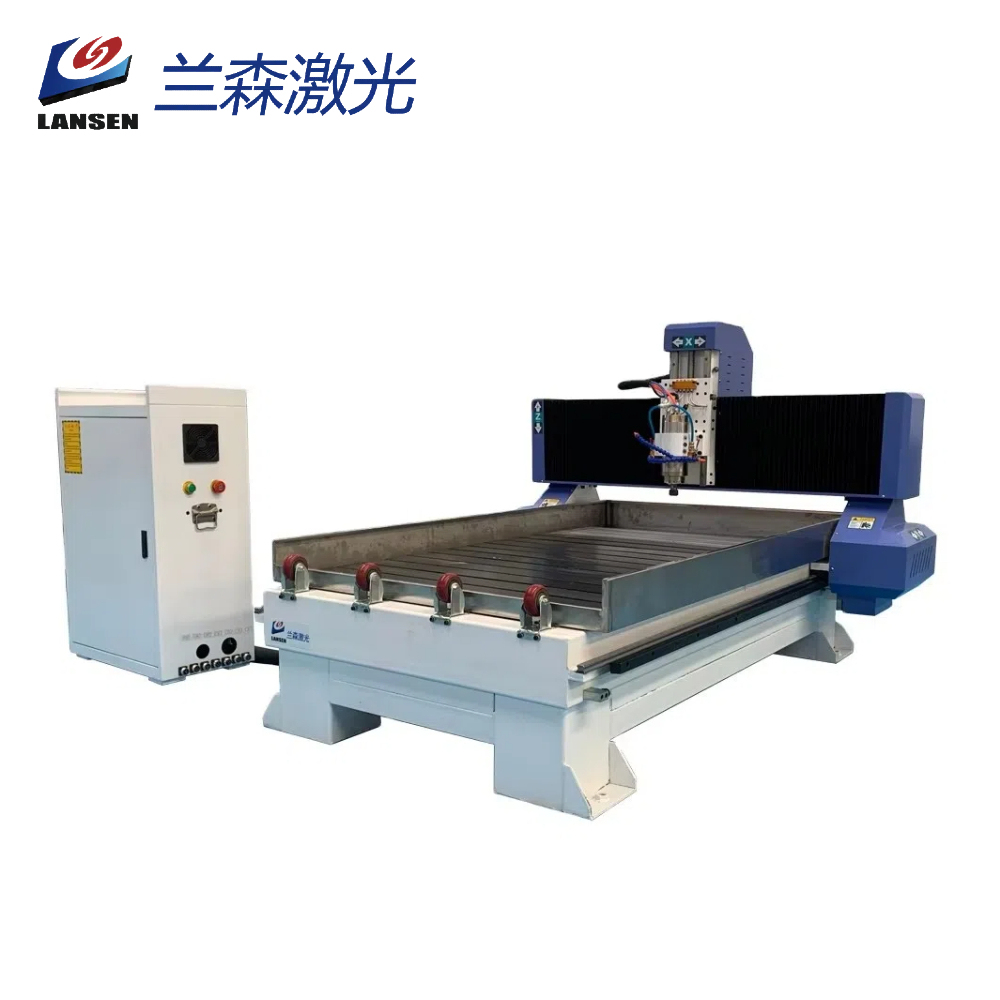

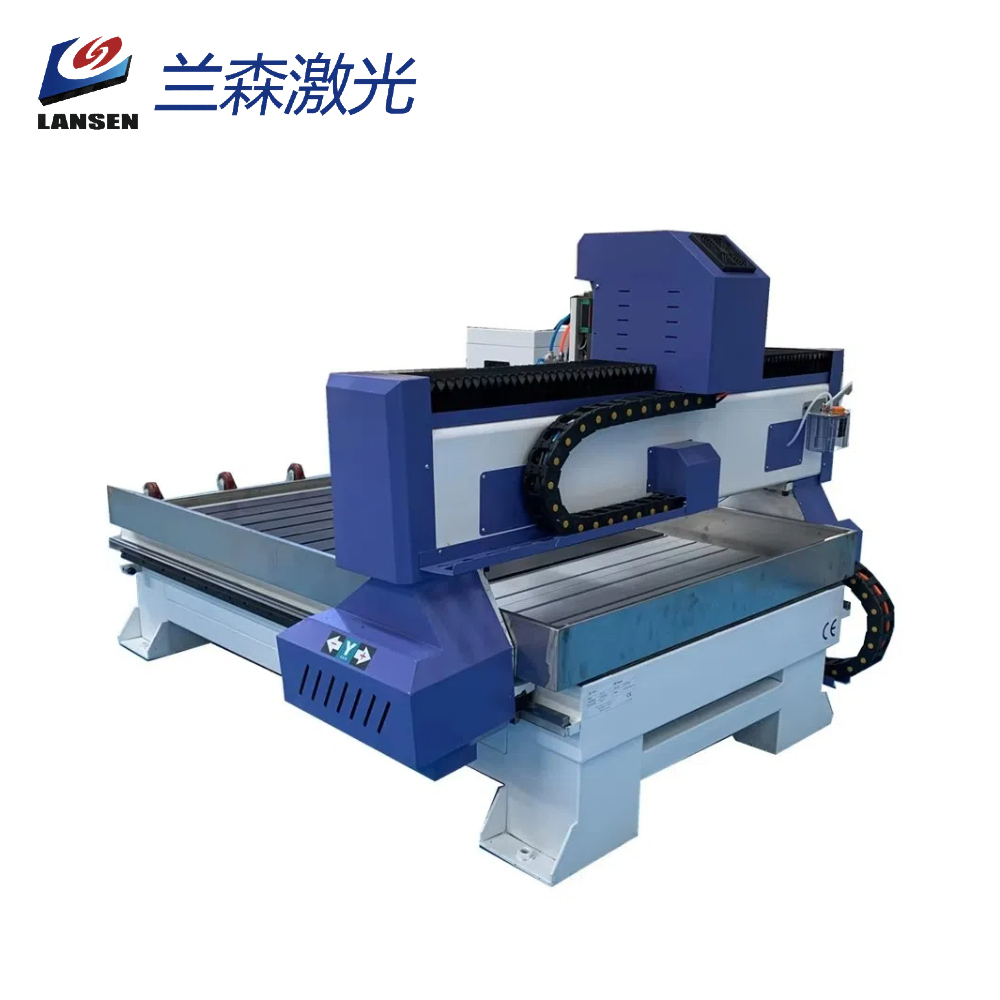

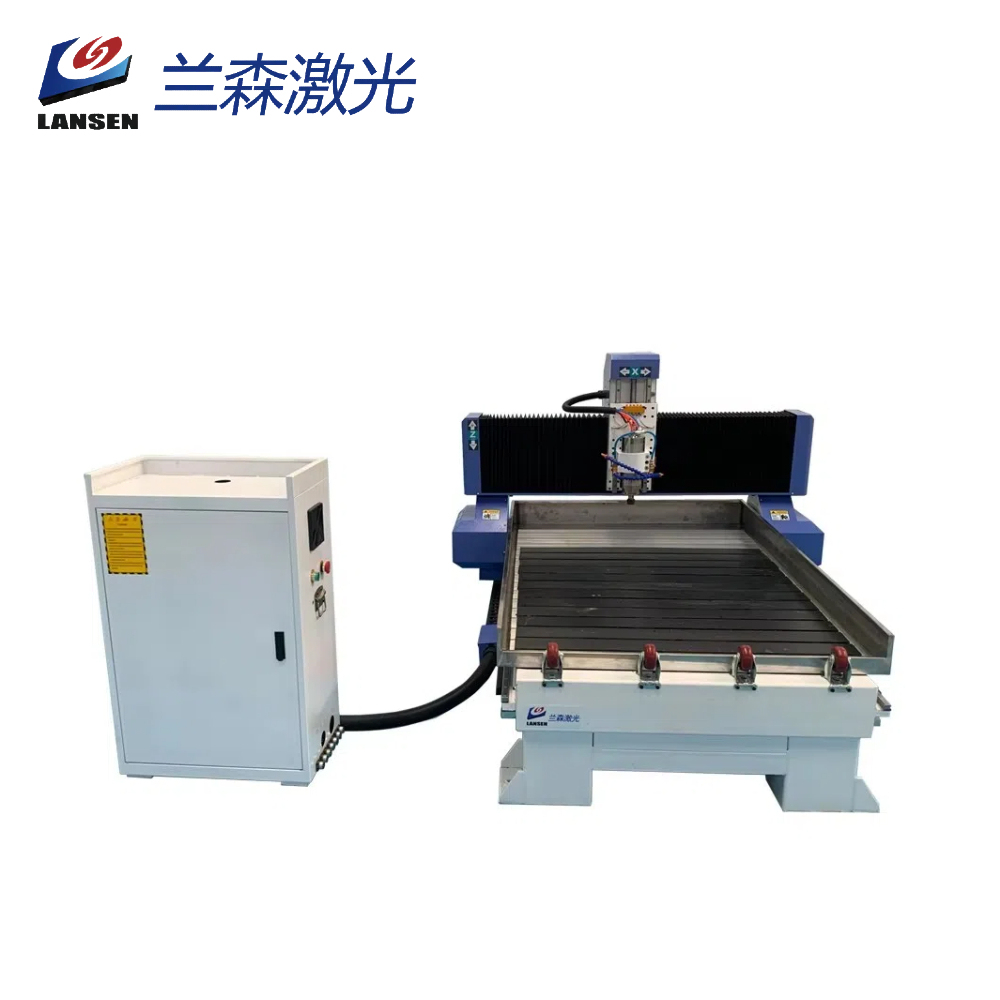

LSS1210 |
|
Brand |
LANSEN |
|
XYWorksize |
1200*1000mm |
|
Z-axis Worksize |
300mm |
|

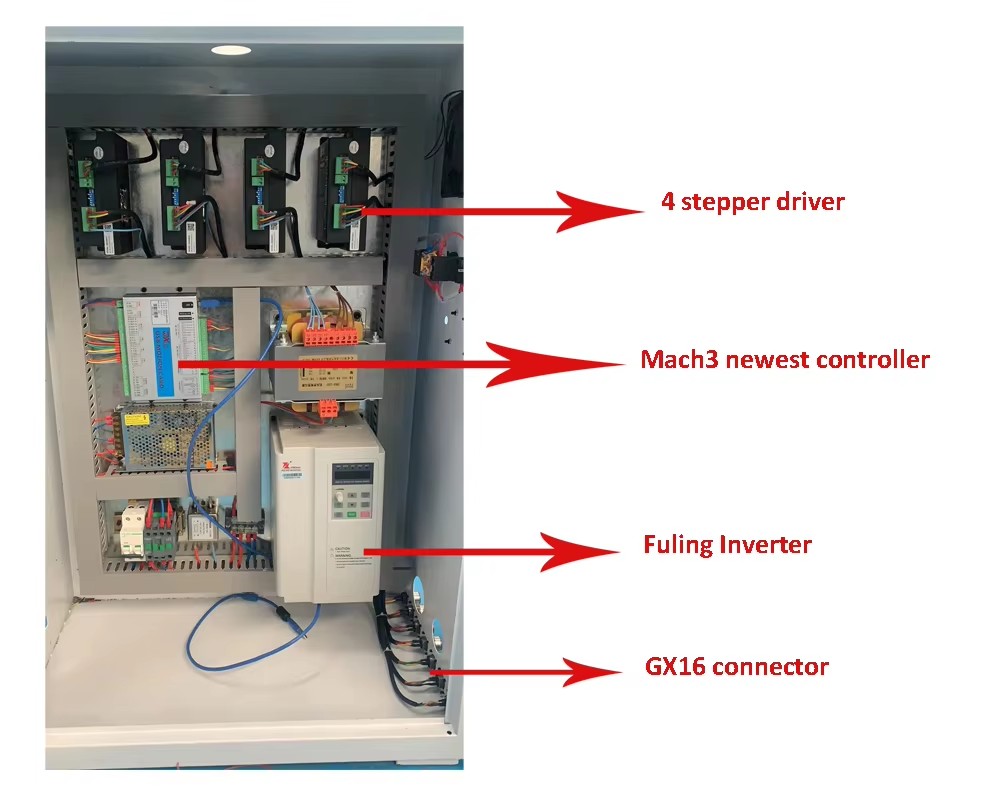

Control System |
DSP(Mach3 USB,NC Studio,Syntec,etc Optional) |
|
Spindle Power |
3.2KW(0-18000rpm)Water Cooling(Higher Power Optional) |
|
Table |
T-slot aluminum/t-slot Vacuum(Optional) |
|
Driver Motor |
Stepper(China Easy Servo and Yaskawa Servo Optional) |
|
RailGuide |
Square rails from Taian |
|
Transmit |
XY Gear Rack and Z Ballscrew |
|
Working Speed |
0-15000mm/min |
|
Command Code |
HPGL,G code |
|
Working Precision |
0.05mm |
|
Working Voltage |
AC220V士10%/50~60HZ,380V5060HZ,3 PHASE |
|
Compatible Software |
Tvpe3/Arcam/UG/Pro-e/Mastercam/Ucancam V10 etc |
