Name: LSM20F Portable mini fiber laser marking mahcine with touch screen
Brand: JINAN LANSEN LASER EQUIPMENT CO., LTD
Availability: InStock
Rating: 5 (1 reviews)

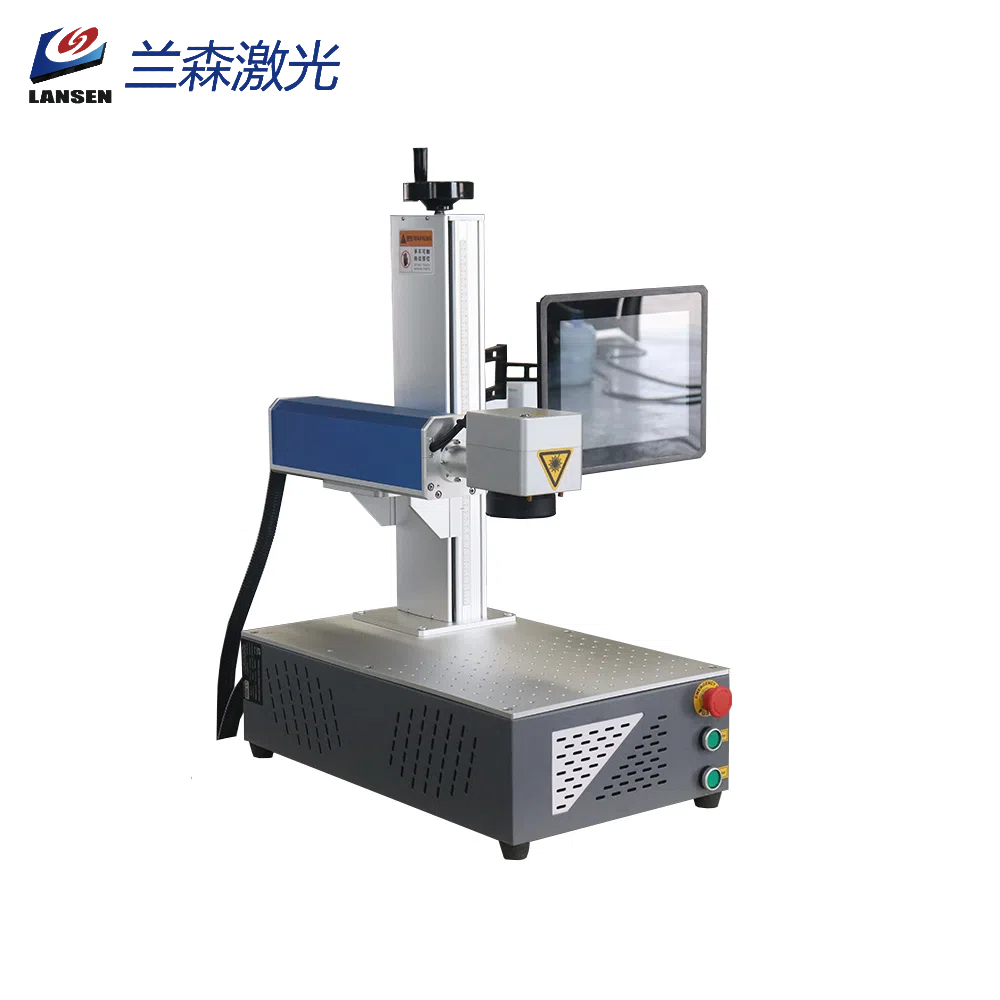

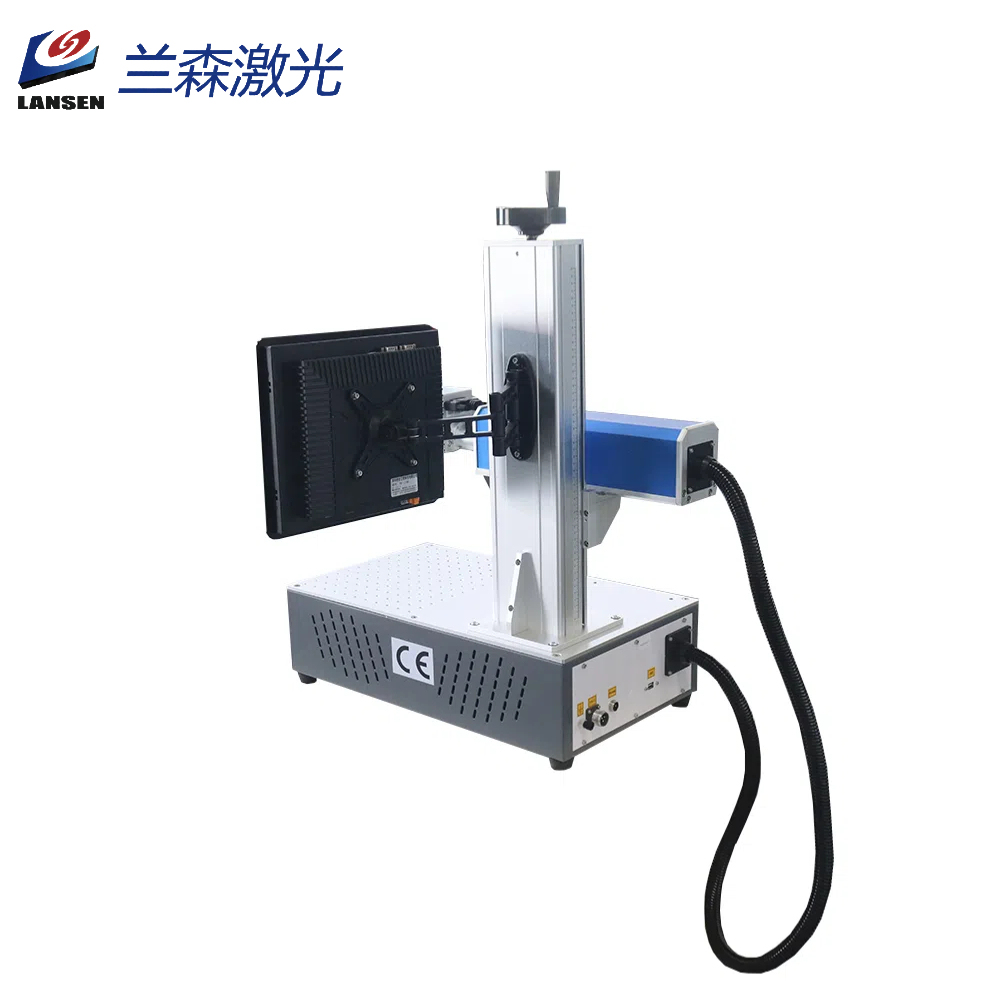

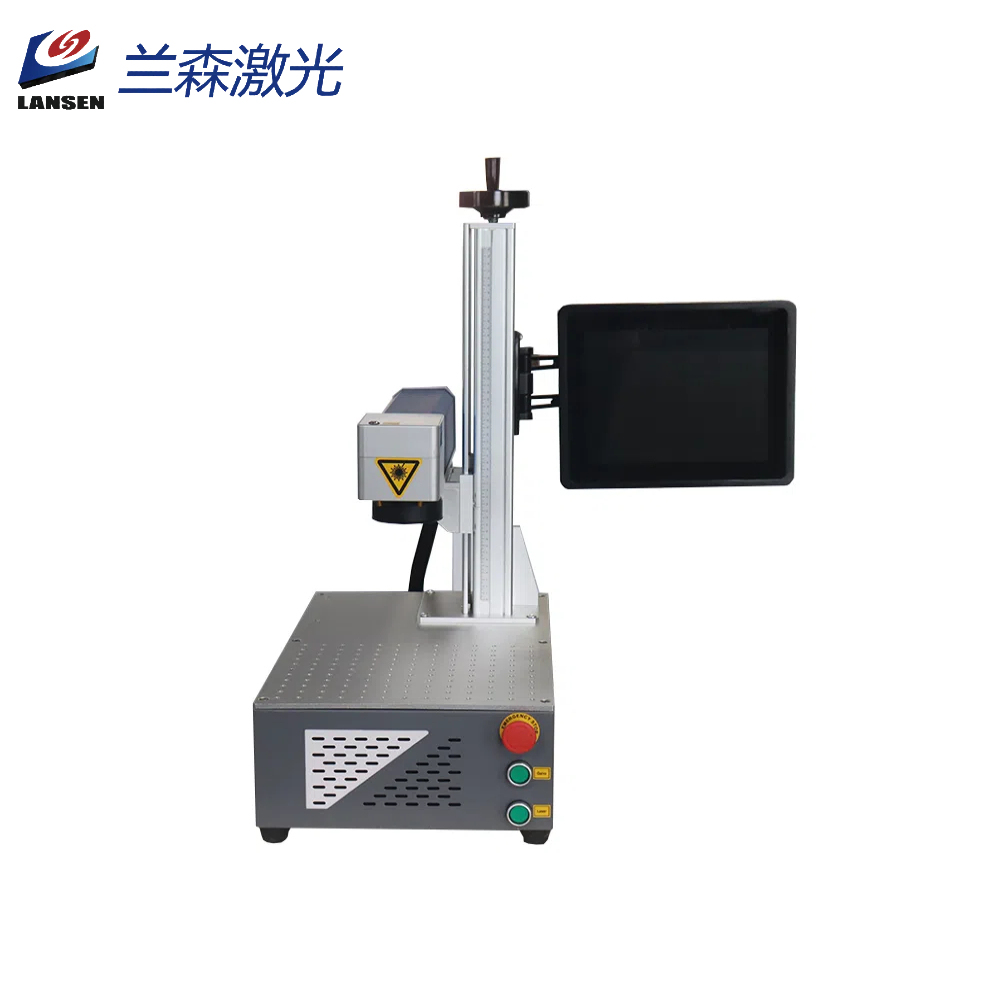

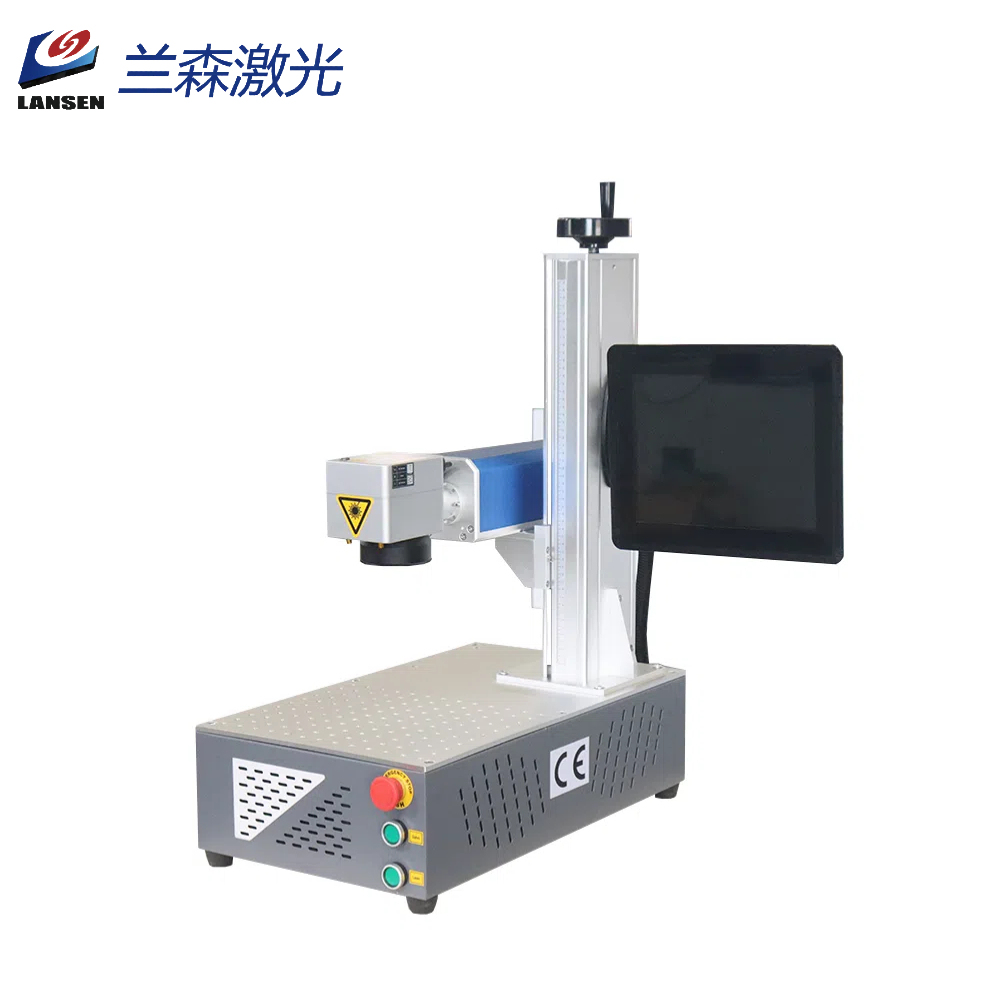

LSM20F Portable mini fiber laser marking mahcine with touch screen

The fiber laser marker works well with all kinds of metals, plastics, electroplating, metal coating, rubber, ceramic and so on.With small size,price favorable,and simple operation
This portable FIber laser marking machine coming with touch screen computer, easy to operation. And the laser machine with portable structure, very convenient to move.
This Laser marking machine with Ezcad software, easy to operation.

Description
Parameter

Main feature about the mini fiber laser marking machine:
1.High-quality imported fiber lasers: The metal laser marking machine has exquisite marking effects, and all kinds of fine and complex patterns can be marked on the surface of the product with fiber laser marking system, which is suitable for all types of super-fine marking.
2.Fast marking and high efficiency: In the same time, the output of workpieces processed by the metal laser marking machine is obviously improved, and the return on investment of users is accelerated.
3.Long life: The metal laser marking machine can work continuously in harsh working environments, and the laser is free of maintenance for 100,000 hours.
4. High-efficiency photoelectric conversion rate: no loss of power coupling, no consumables, obviously reducing operating costs for customers. 6. Compact and compact: easy to handle and save production space.

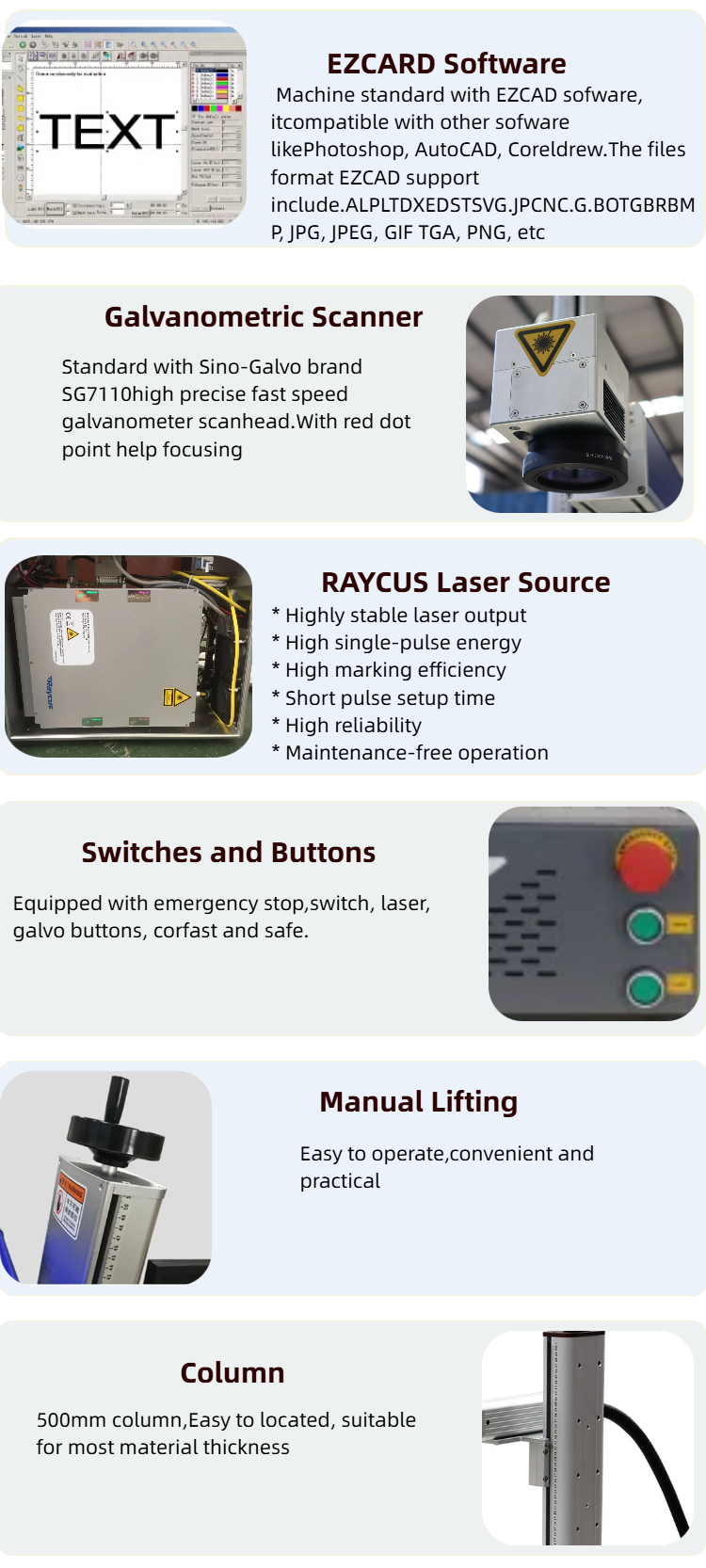

1, Raycus 20W laser source
2. Mini model carbinet
3. Flat plate worktable
4. With touch screen control ,no need to connect a computer
5. Sino-Galvo scanning system
6. 110x110mm Field lens
7. Original JCZ Control card
8. EZCAD software
9. 50cm up-down column
10. Outer and inner red dot pointer
11. Standard plywood package

ModelNo.	LSM
Power	10W/20W/30W
Laser wavelength	1060nm
Repeating frequency	0-100KHz
Light beam quality	<2
Carving range	70mm×70mm-200mm*200mm
Carving depth	≤0.4mm
Carving line speed	≤7000mm/s
Minimum line width	0.01mm
Minimum character	0.15mm
Repeating precision	±0.002
Power supply	220V/50Hz
Power consumption	500W
Cooling method	Inbuilt air cooling
Control interface	Standard USB
File format	All fonts/characters in characters library of WINDOWS

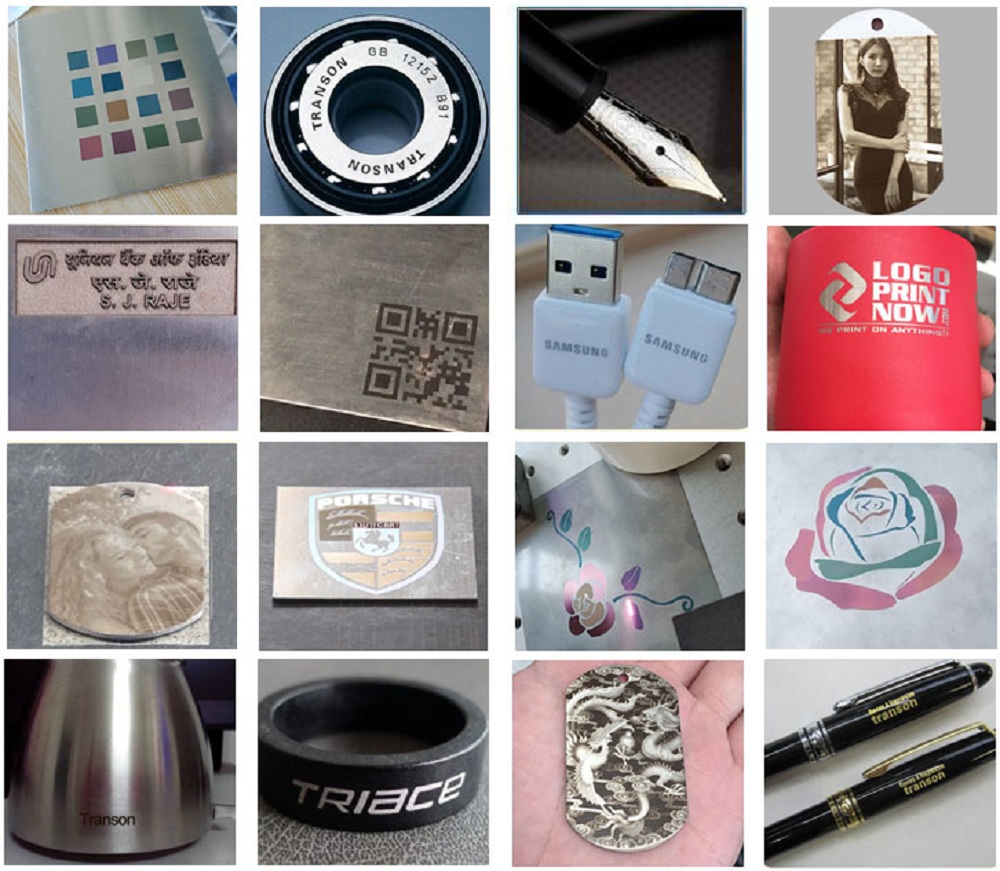

Fiber laser marking machine can marking on metal and nometal. The fiber laser marking machine main used to marking metal like stainless steel, carbon steel, aluminum, gold, silver ect. It is applicable to the advertising industry, gift customization, metal jewelry engraving, mobile phone case customization, stationery marking, logo marking, QR code printing, factory serial number marking, etc

The Fiber Laser Marking machine for metal adopts international most advanced technology and the fiber laser source's lifetime can reach 100,000 hours, 5-6 years without any consumables and maintenance. This laser etching machine for metal with PC for metal is the best choice for the customers who have special requirements to the smallest & finest laser beam and character. The software has already been installed and the parameter is settled before delivery. Once received, the laser etcher could work directly without data adjustment. Laser marking machinecan do quickly and permanently mark of text, picture, serial numbers, bar codes, QR code, etc. for all metal material and part nonmetal material. It mainly use for mark on tools, metal parts, jewelry, firearms and industry polymers. Can be use as animal ear tag laser marking machine, jewelry laser marking machine, led bulb laser marking machine, etc.

Laser Source	RAYCUS/JPT M7
Beam quality	M2<1.8
Laser wavelength	1064±1nm
Power adjustment range	10~100%
Frequency ofpulse	20~250KHz
Power supply	220V/50Hz(110V/60Hzcan choose)
Cooling system	Air Cooling
Marking content suppor	import vector files lke PLT
	Add Text,series number,etc.inSHX,TTFand CSF
	Add Barcode,QR code
Working area	110110mm(Standard) 5050mm,7575mm,150150mm,175mm175mm,200200mm,300*300mm(0ption al)
Marking depth	<1mm
Marking speed	<7000mm/s
Min.line width	0.05mm
Repeatability accuracy	0.003mm
Power Machine	300W-800W(Depend onfiber laser power)
Operation temperature	-15~+60*C
Operating environment	Clean and free of dust
Warranty	18 Months forlaser source,2 years for machine
Optional	Conveyor belt at differentsize/C02 laser source fornonmetal/Auto feeding system
Model	LSD DiskLaser Marking Machine
Type	Standby
Computer	ncludes PC
Mode of operation	Pulsed
Polarization	random
