Name: LSM-UV 3W 5W 10W Mini uv laser marking machine
Brand: JINAN LANSEN LASER EQUIPMENT CO., LTD
Availability: InStock
Rating: 5 (1 reviews)

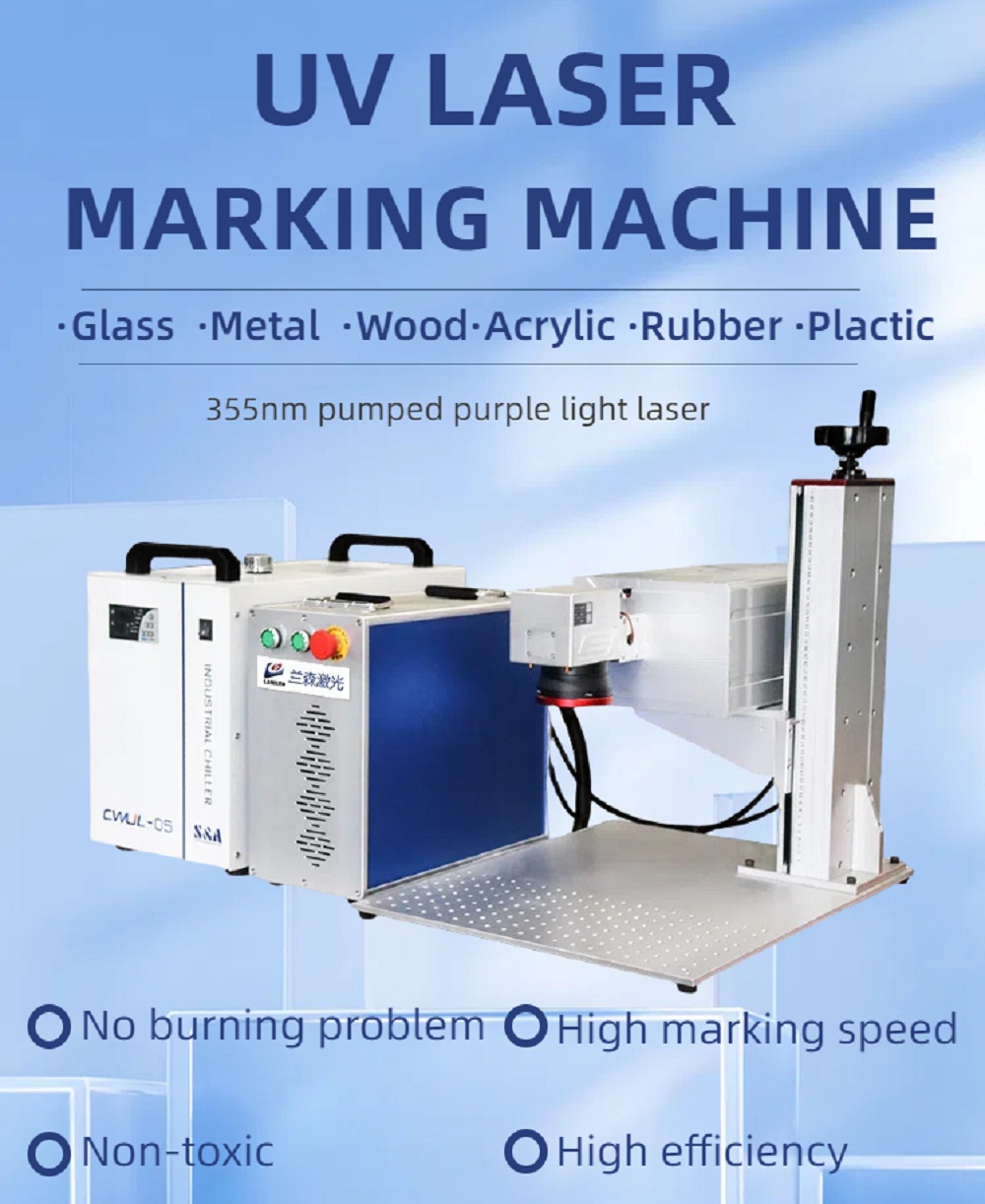

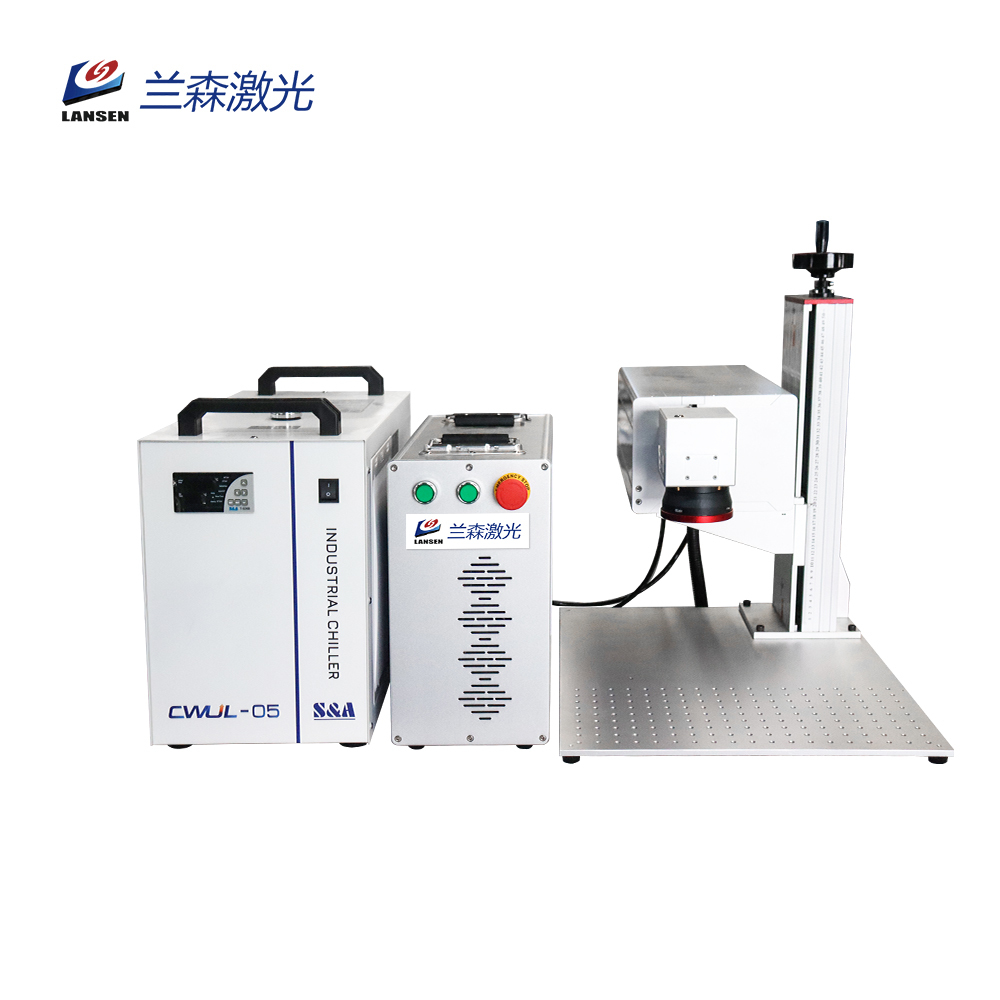

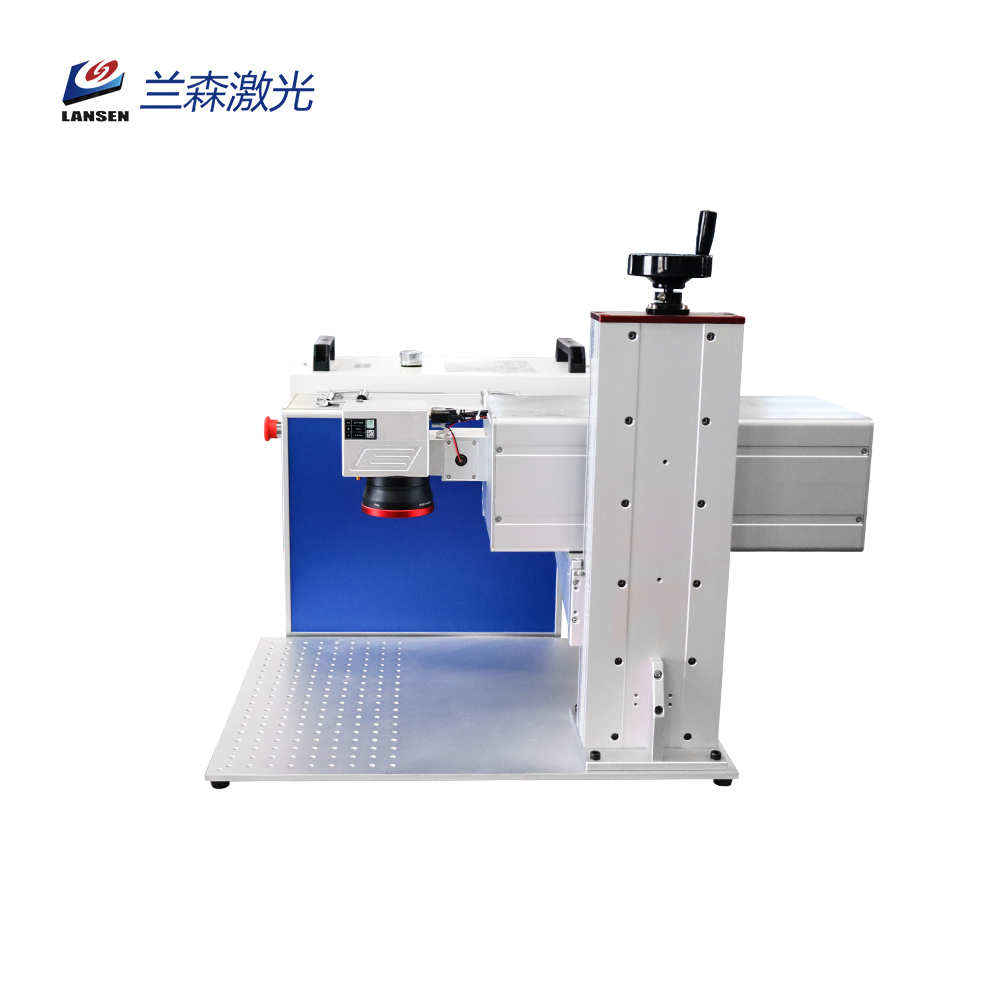

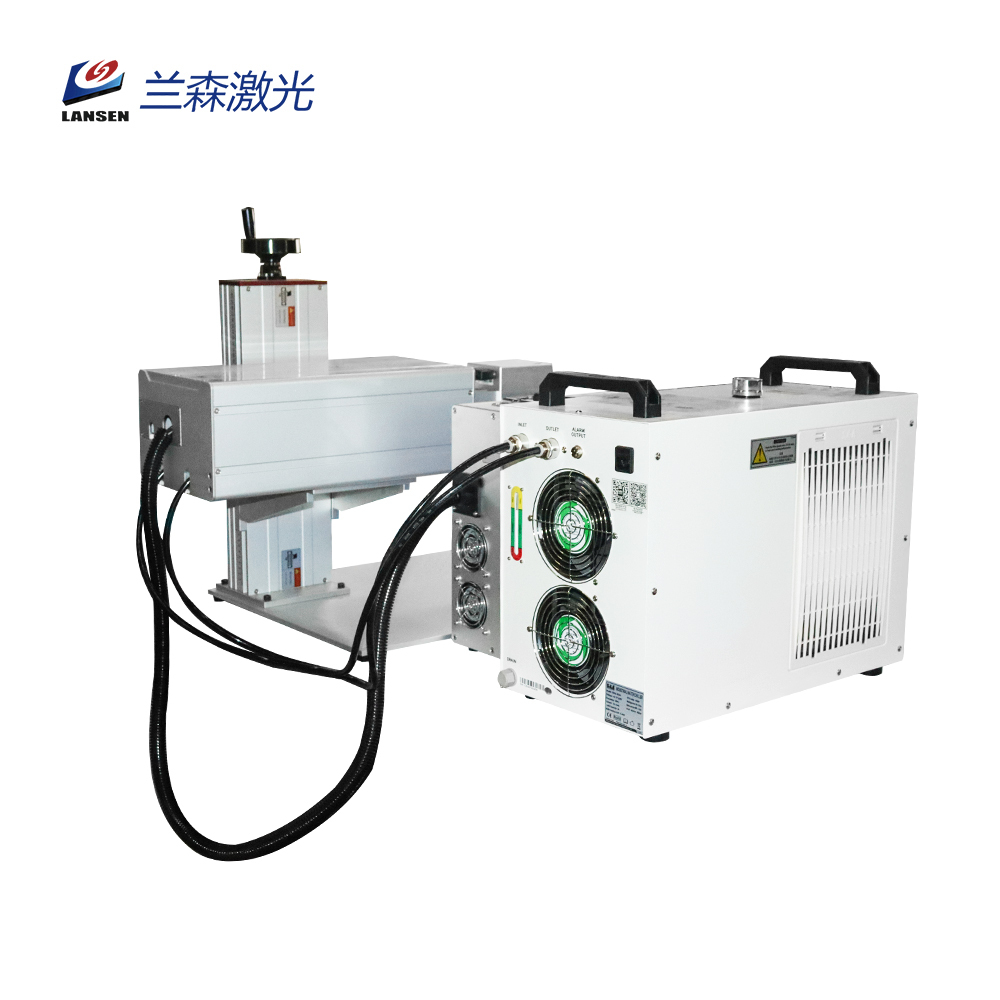

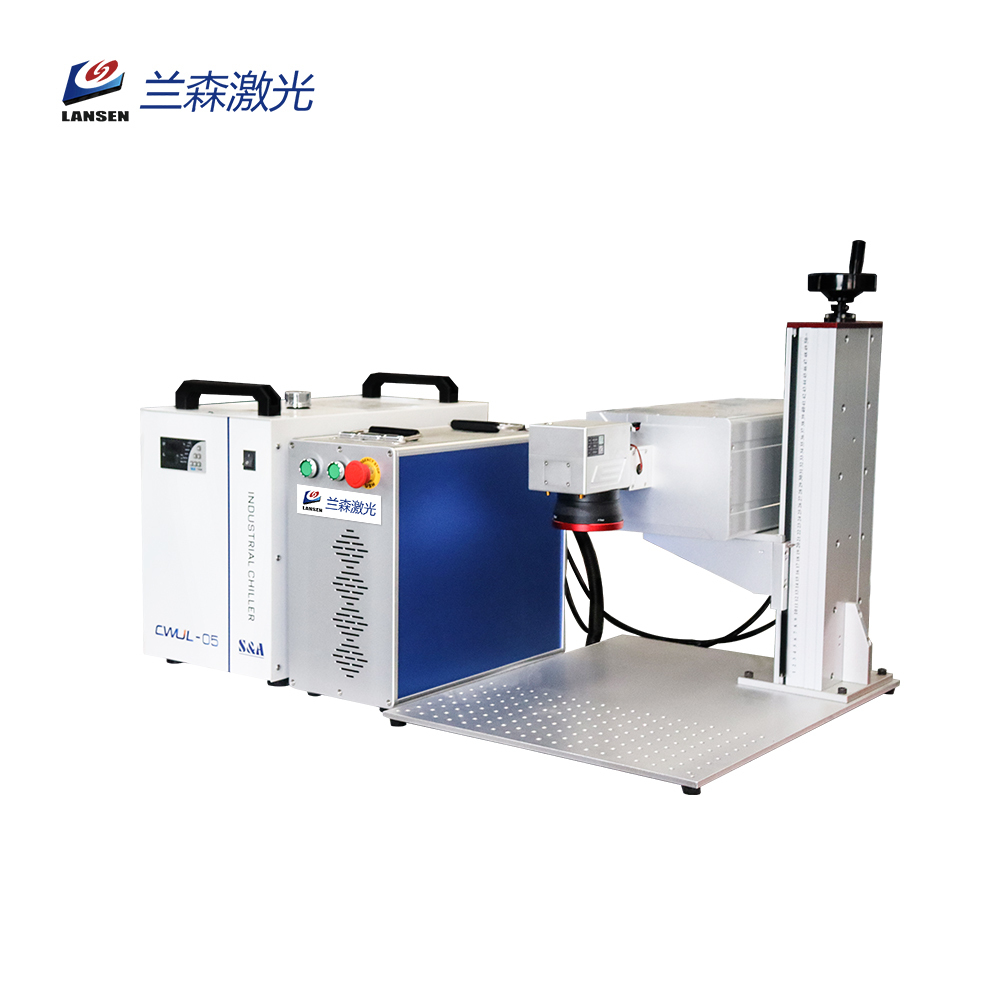

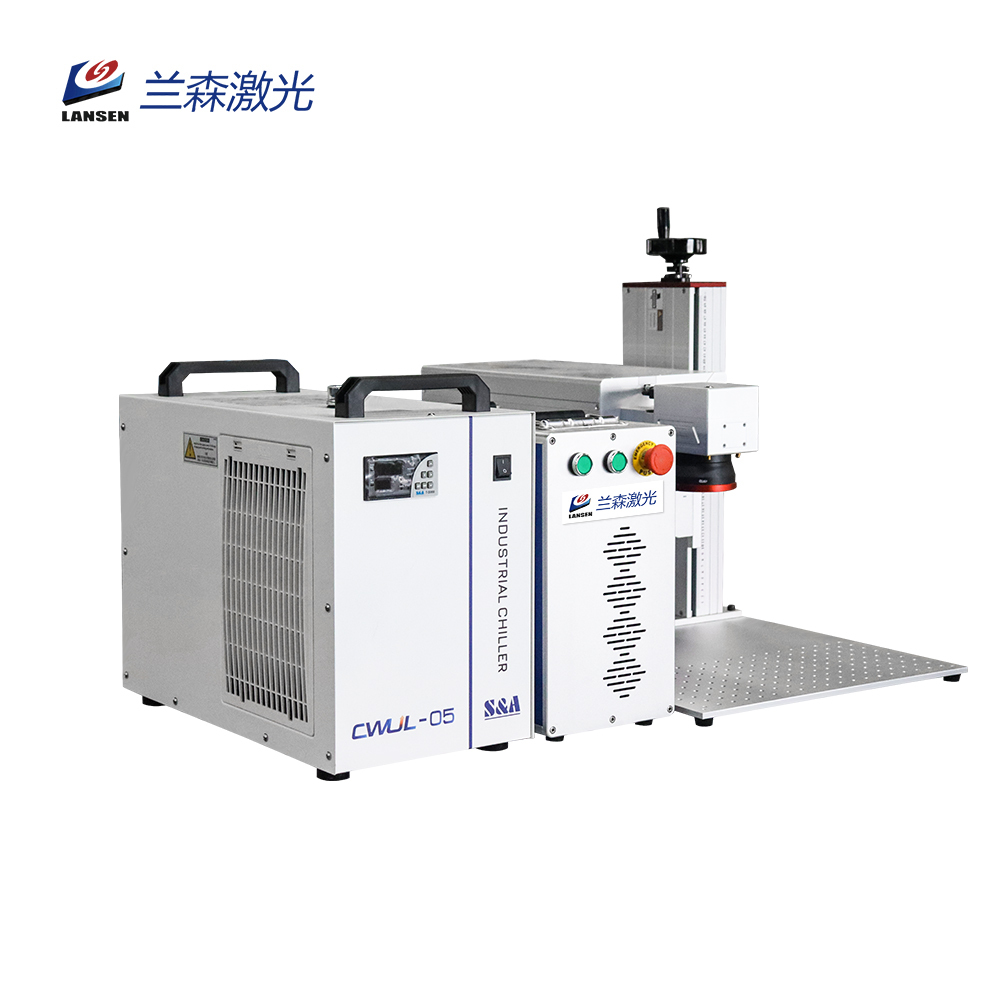

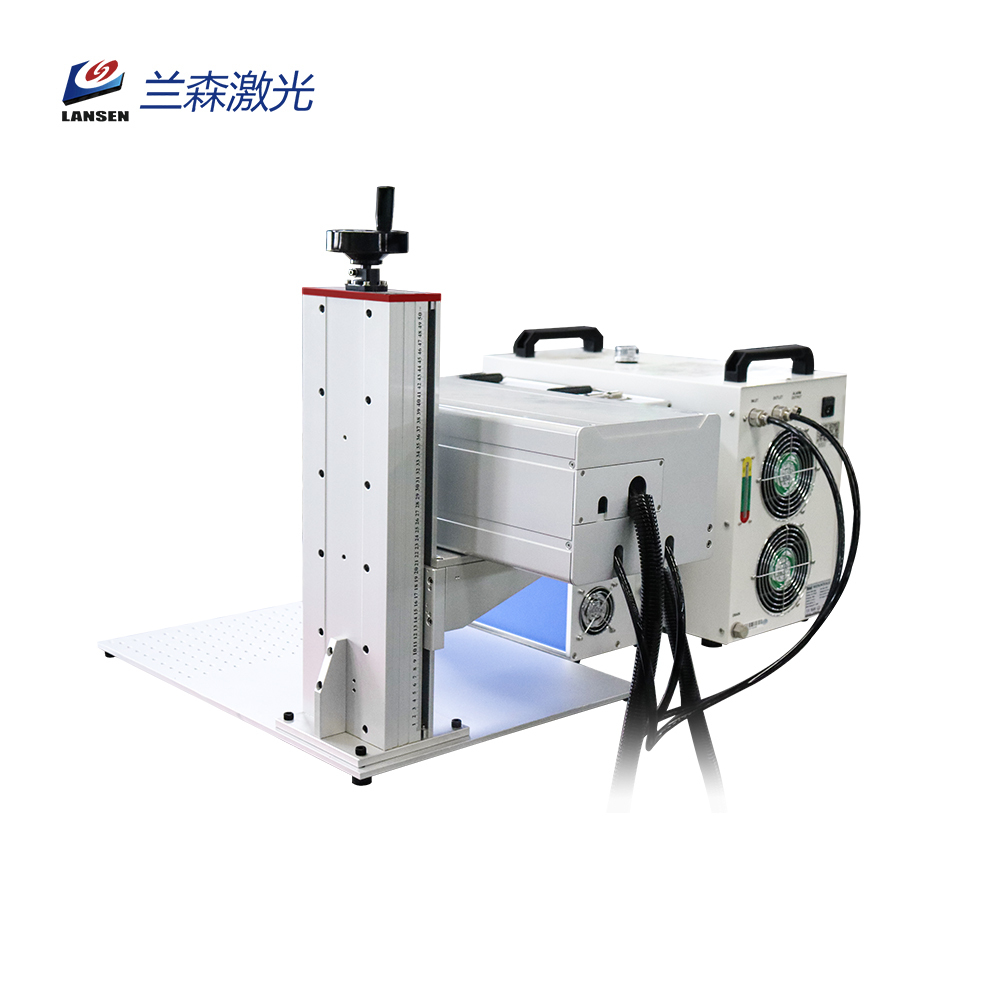

LSM-UV 3W 5W 10W Mini uv laser marking machine

The uv laser marking machine can be marked on the metal and non-metallic materials .Narrower pulse width and smaller heat affection contribute to generate peak power.
It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products

Description
Parameter

FEATURE

The machine takes 355nm light laserdevice as the light source. Ultraviolet laser marking machines have the advantage of limiting thermal stress that other laser machines do not.
The heat affected area is very small, will not produce thermaleffects,will not produce material scorching problem.
The good quality and small focus spotlight could achieve the ultrafine marking with high speed and high efficiency.
Pre-installed high-precision practical multi-functional work surface, the table has a number of flexible screw holes,convenient installation of special fixture platform.
High efficiency of the photoelectric conversion and long servicelife.
Applications：

Metals (Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card) Non-metal (Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)

1,The machine takes 355nm light laserdevice as the light source. Ultraviolet laser marking machines have the advantage of limiting thermal stress that other laser machines do not.
2, The heat affected area is very small, will not produce thermaleffects, will not produce material scorching problem.
3, The good quality and small focus spotlight could achieve the ultrafine marking with high speed and high efficiency.
4, Pre-installed high-precision practical multi-functional work surface, the table has a number of flexible screw holes,convenient installation of special fixture platform.
5. High efficiency of the photoelectric conversion and long servicelife.

Laser source	3W 5W 10W 15W
Wavelength	355nm
Marking area	100*100mm
Laser repetition frequency	20KHZ-150KHZ
Beam quality	M²≤1.2
Marking speed	7000-12000mm/s
Marking depth	0.01-1mm
Repetition Precision	0.013mm
Minimum Character	0.2 mm
Cooling Style	water cooling
Positioning Way	Red light
Control software	JCZ EZCAD marking software and UV laser marking machine software
Control board	JCZ
Supported Format	PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF,CAD, CDR, DWG and ETC
Operating Voltage	AC 110V/60HZ
Gross Power	≤500W
Supported Windows	Windows XP,7,8,10
Certificate	ISO, CE
Warranty	2 years
