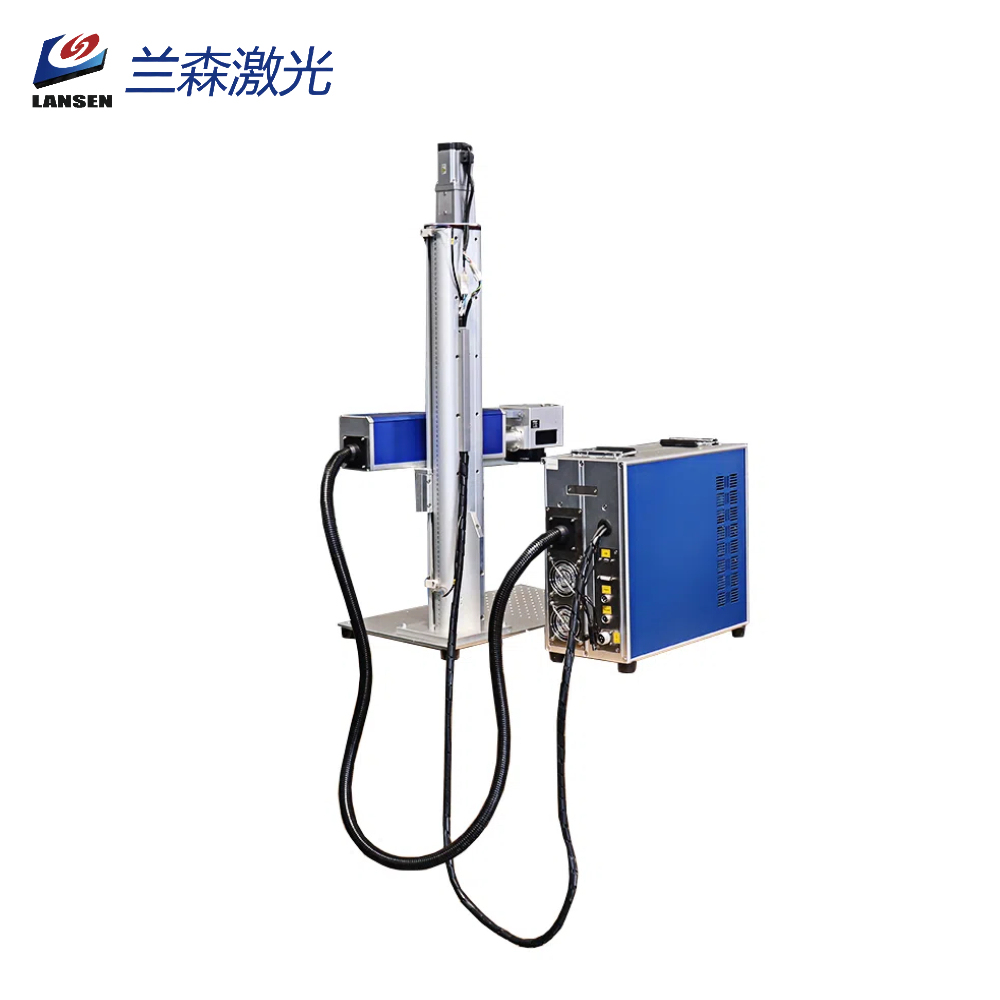

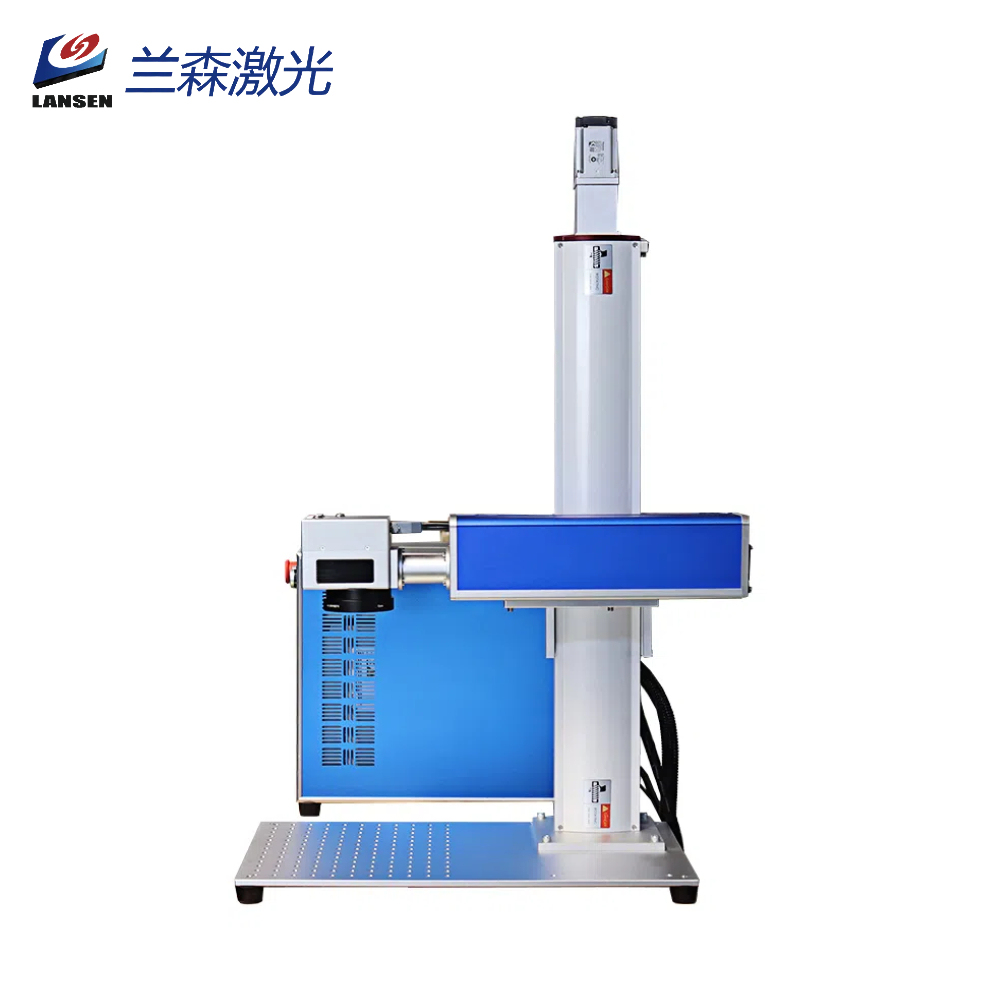

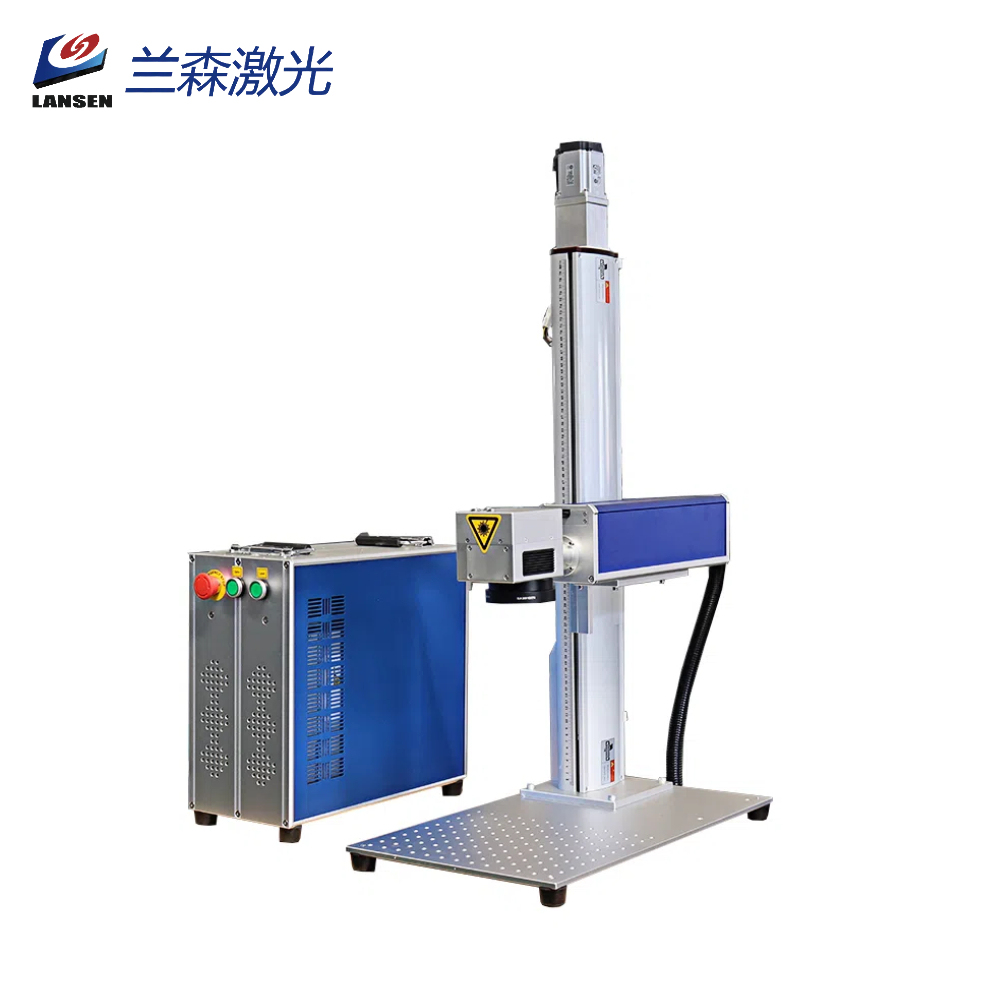

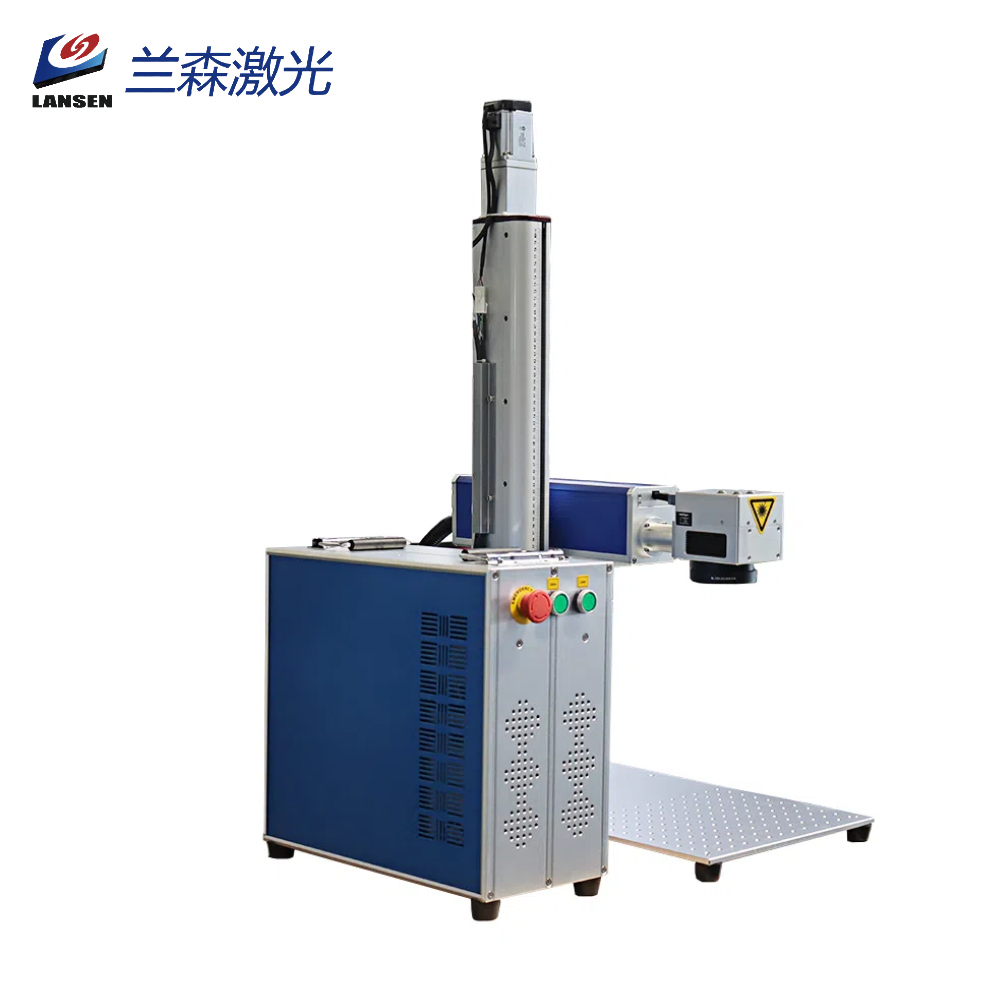

LSM Galvanometer Automatic Focus Fiber Laser Marking Machine

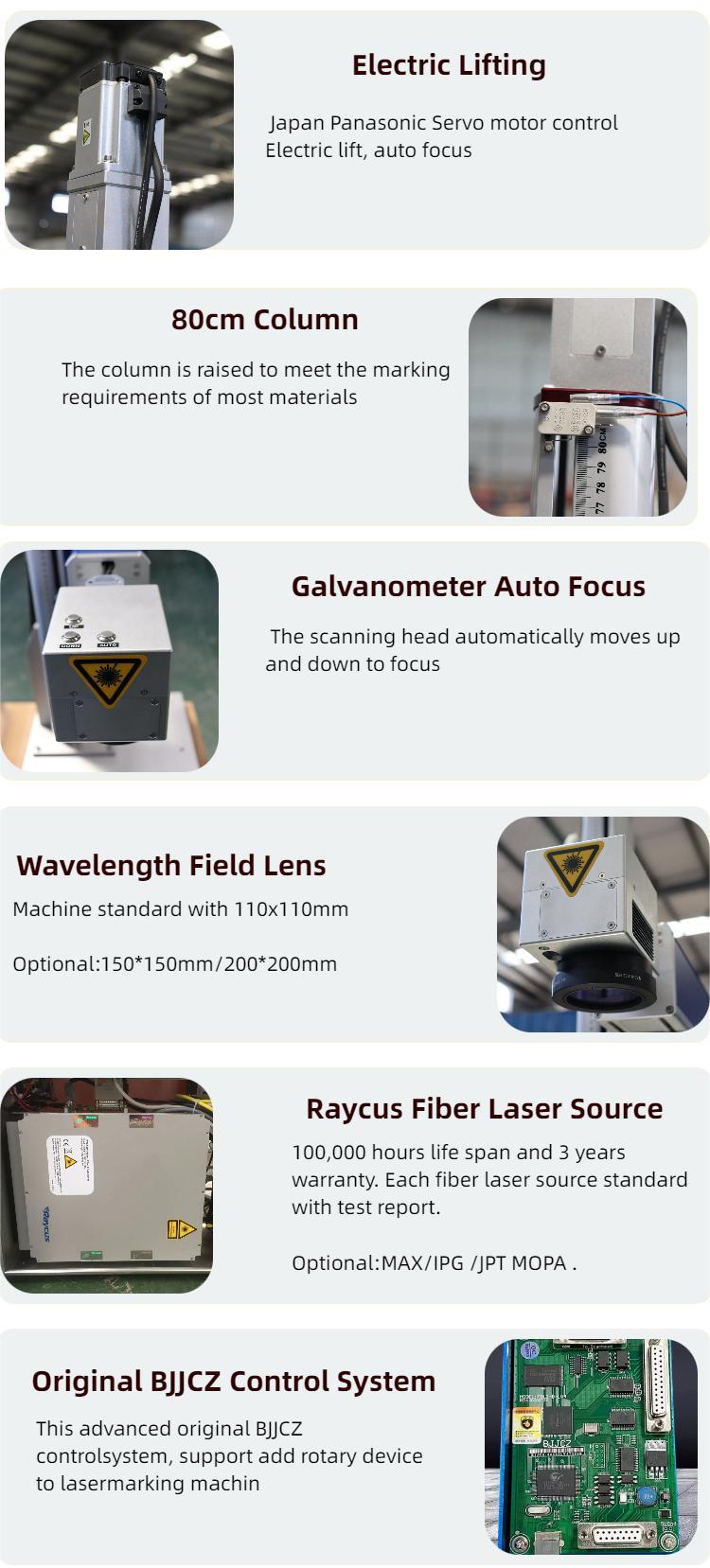

This autofocus fiber laser marking machine is a software control model, user only need input the thickness of the marking object to software, then the scan head can automatically move up down.

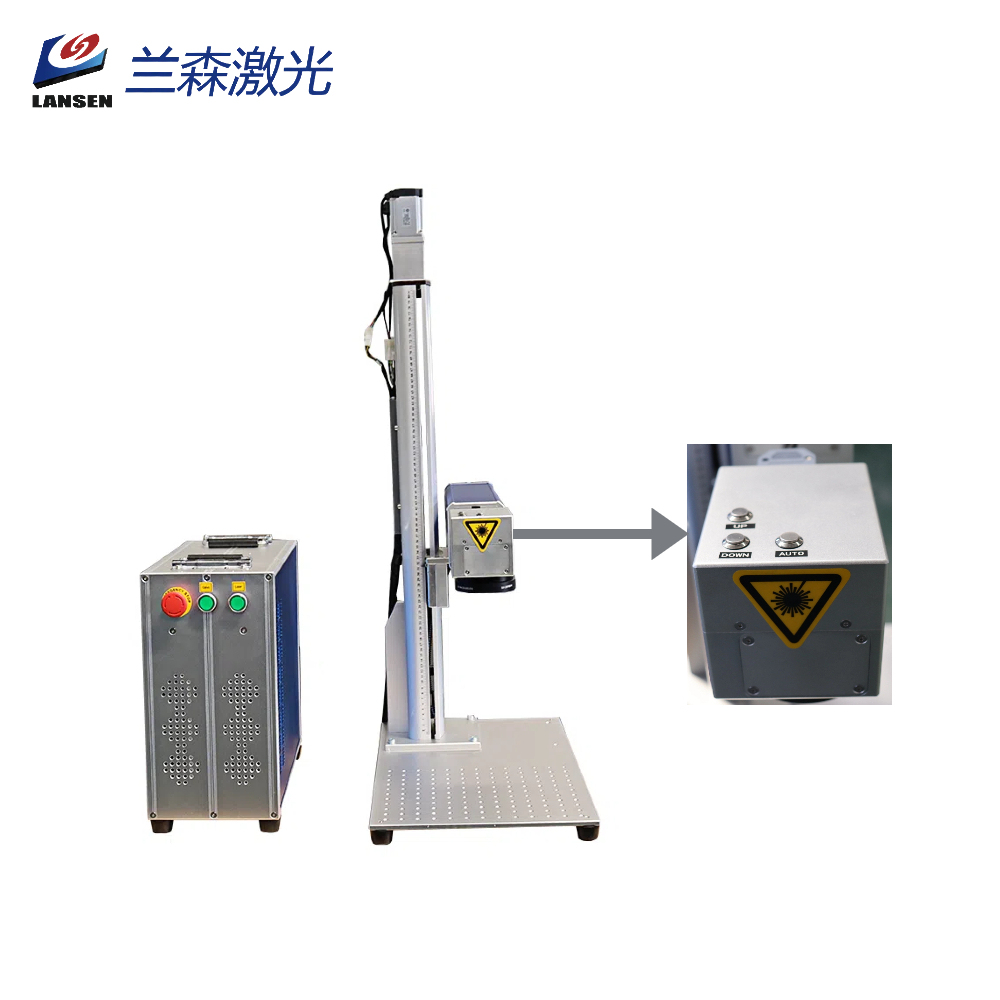

Using motorized structure in Z axis, the galvo scanner can moving up and down without manual operation. It saves much time and operates more easily.
Filed Lens
110*110mm(150*150mm/200*200mm/300*300mm optional)
Power:
20w
30w
50w
100w
  • LSM Galvanometer Automatic Focus Fiber Laser Marking Machine
  • LSM Galvanometer Automatic Focus Fiber Laser Marking Machine
  • LSM Galvanometer Automatic Focus Fiber Laser Marking Machine
  • LSM Galvanometer Automatic Focus Fiber Laser Marking Machine
  • LSM Galvanometer Automatic Focus Fiber Laser Marking Machine
  • Description

  • Parameter

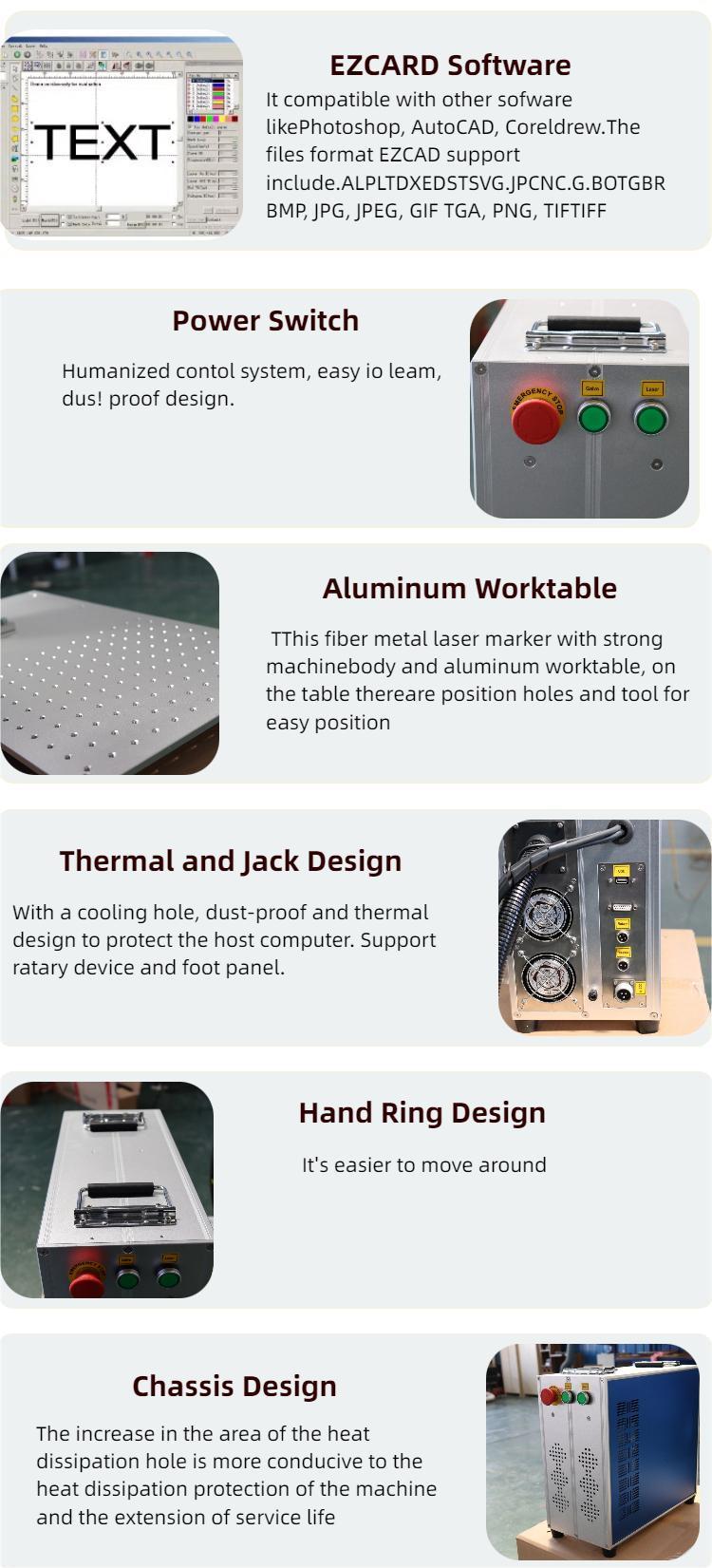

Features:
1, Compliant CE Certification, ISO9001 quality certification.
2, Fast, permanently precise and smooth mark effect.
3, Wide application, can mark on all metal and part nonmetal material.
4, 20W 30W 50W fiber laser source for choice, with 100,000 hours life span, almost no maintenance.
5, Different fiber laser source brand for choice, like Raycus, MAX, JPT, IPG, etc.
6, Support add optional rotary device for mark on cylinder objects, rings, bracelets






The Fiber Laser Marking machine for metal adopts international most advanced technology and the fiber laser source's lifetime can reach 100,000 hours, 5-6 years without any consumables and maintenance. This laser etching machine for metal with PC for metal is the best choice for the customers who have special requirements to the smallest & finest laser beam and character. The software has already been installed and the parameter is settled before delivery. Once received, the laser etcher could work directly without data adjustment. Laser marking machinecan do quickly and permanently mark of text, picture, serial numbers, bar codes, QR code, etc. for all metal material and part nonmetal material. It mainly use for mark on tools, metal parts, jewelry, firearms and industry polymers. Can be use as animal ear tag laser marking machine, jewelry laser marking machine, led bulb laser marking machine, etc.

Laser Source

RAYCUS/JPT M7

Beam quality

M2<1.8

Laser wavelength

1064±1nm

Power adjustment range

10~100%

Frequency ofpulse

20~250KHz

Power supply

220V/50Hz(110V/60Hzcan choose)

Cooling system

Air Cooling

Marking content suppor

import vector files lke PLT



Add Text,series number,etc.inSHX,TTFand CSF



Add Barcode,QR code

Working area

110*110mm(Standard)
50*50mm,75*75mm,150*150mm,175mm*175mm,200*200mm,300*300mm(0ption
al)

Marking depth

<1mm

Marking speed

<7000mm/s

Min.line width

0.05mm

Repeatability accuracy

0.003mm

Power Machine

300W-800W(Depend onfiber laser power)

Operation temperature

-15~+60*C

Operating environment

Clean and free of dust

Warranty

18 Months forlaser source,2 years for machine

Optional

Conveyor belt at differentsize/C02 laser source fornonmetal/Auto feeding
system

Model

LSD DiskLaser Marking Machine

Type

Standby

Computer

ncludes PC

Mode of operation

Pulsed

Polarization

random
