Advertising CNC Router takes ballscrew structure, which guarantees the precision. It’s widely used in billboard industry, cutting plate production, LED / neon light trough, literally shaped hole cut, light box molding, and so on.

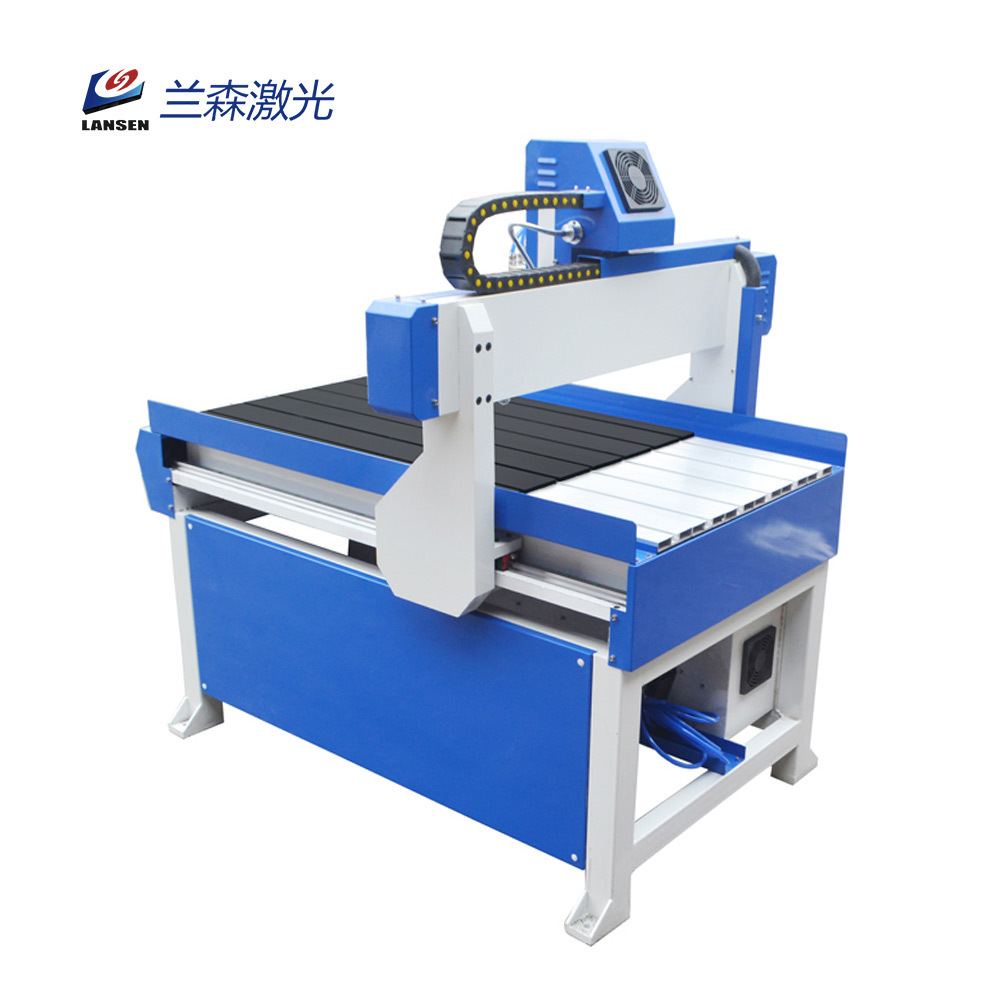

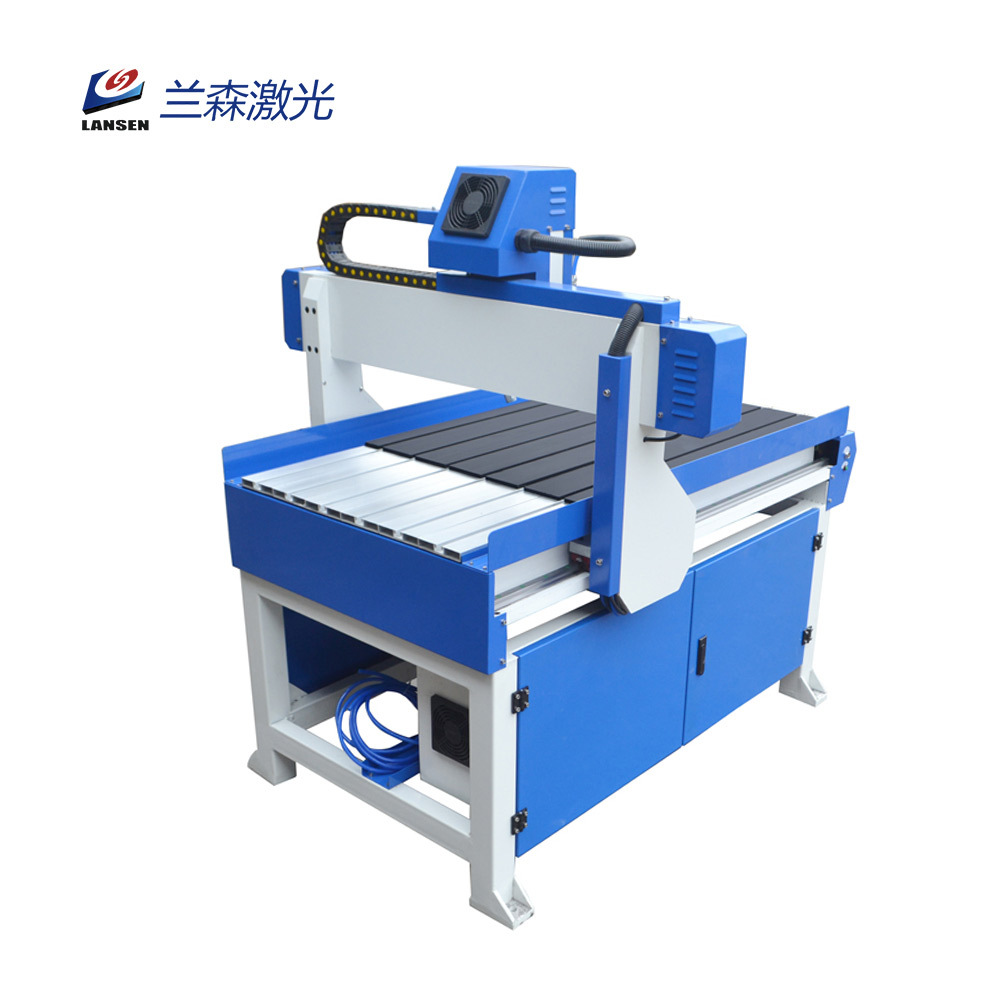

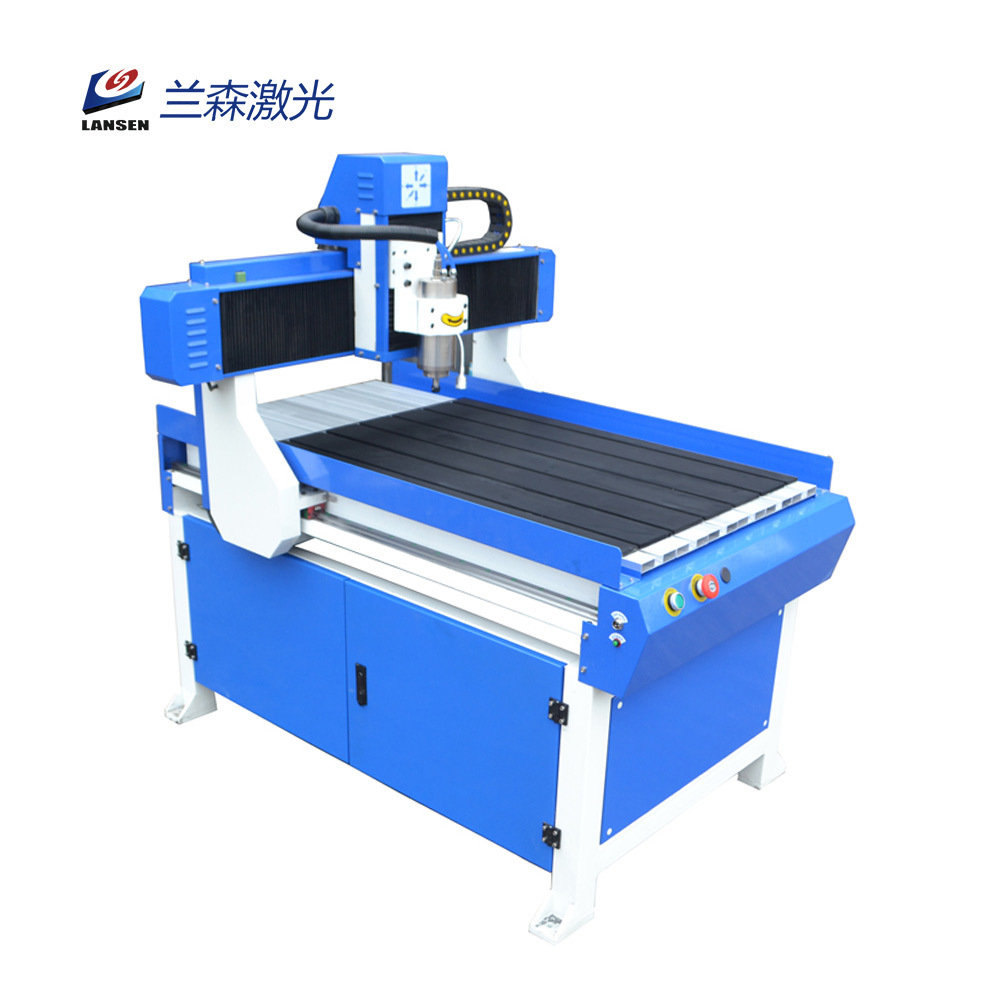

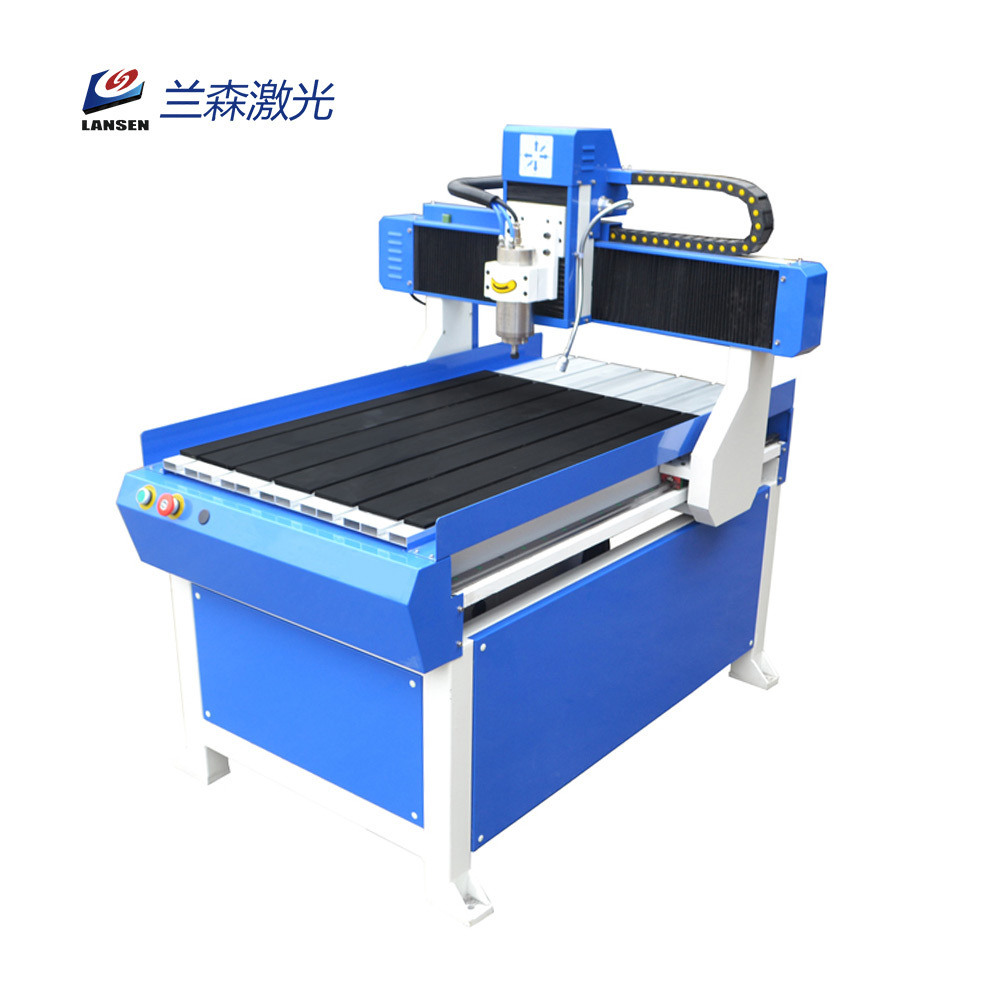

LSA6090 Advertising CNC Router Features:
1. More reasonable equipment structure: gantry movement way.
2. Mach3 control system; DSP Controllrt,USB port optional
3. Ballscrew Transmit way: High accuracy.
4. Linear Guide Rail: Guide rails adopts linear guide rails.
|
Brand |
LANSEN |
|
Z-axis Worksize |
150mm |
|
ControlSystem |
DSP(Mach3 USB,NC Studio,Syntec,etcOptiona) |
|
Spindle Power |
1.5KW/2.2KW /3.2KW (0-18000rpm)Water Cooling(Higher PowerOptional) |
|
Table |
T-slot aluminum/t-slot Vacuum(Optional) |
|
Driver Motor |
Stepper(China Easy Servo and Yaskawa Servo Optional) |
|
Rail Guide |
Square railsfrom Taian |
|
Transmit |
XY Gear Rack and Z Ballscrew |
|
Working Speed |
0-15000mm/min |
|
Command Code |
HPGL,G code |
|
Working Precision |
0.05mm |
|
Working Voltage |
AC220V士10%/50~60HZ,380V5060HZ,3 PHASE |
|
Compatible Software |
Tvpe3/Arcam/UG/Pro-e/Mastercam/UcancamV10 etc |
