Name: LP-M1390 Mixed co2 laser cutting machine for metal and nonmetal
Brand: JINAN LANSEN LASER EQUIPMENT CO., LTD
Availability: InStock
Rating: 5 (1 reviews)

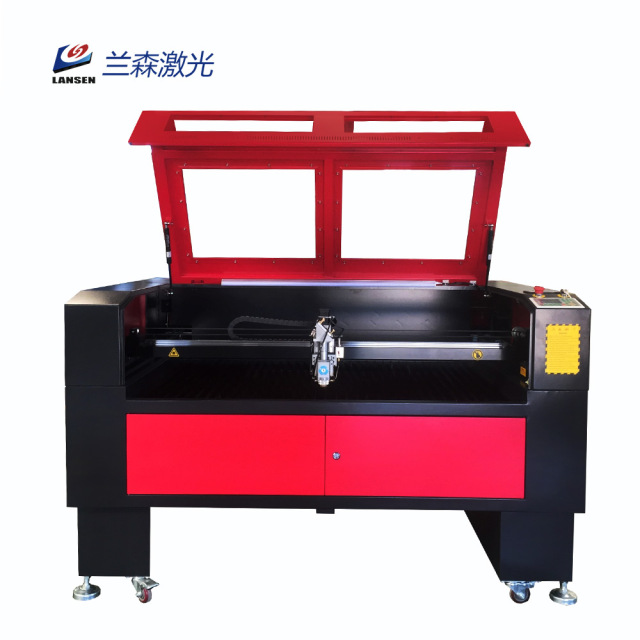

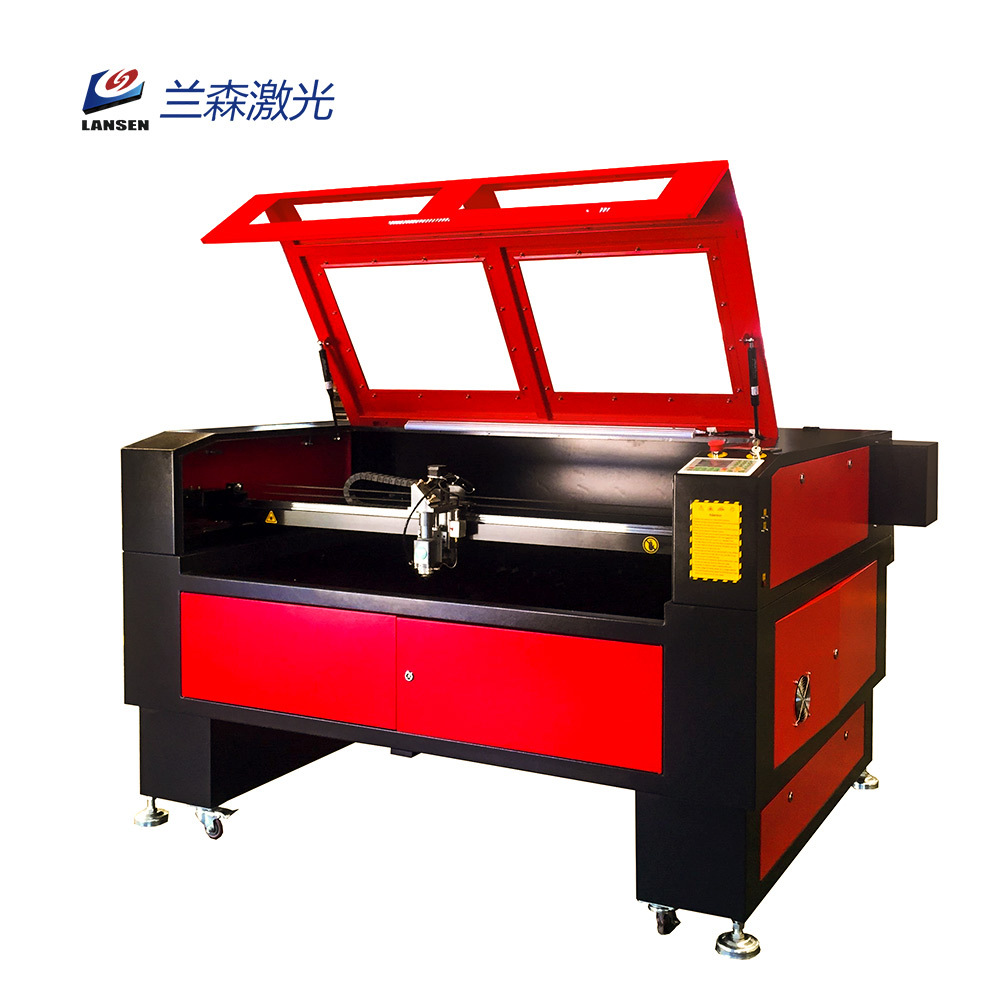

LP-M1390 Mixed co2 laser cutting machine for metal and nonmetal

This LP-M1390 model mixed co2 laser cutting engraving machine suit for cut work of thin metal sheet include stainless steel and carbon steel.
It can also do engrave and cut work for almost all nonmetal material include acrylic, wood, leather, plywood, MDF, fabric, etc.

LP-M1390 Metal And Nonmetal Laser Cutting Machine applications:

sheet metal processing, metal fabricating, metals components and parts, ironware, chassis, racks & cabinets processing, metal
enclosure, kitchen ware, kitchen cabinet, advertising metal sign, metal crafts, artware, elevator panel cutting, hardware, auto
parts, jewelry, glasses frame, nameplates, electronic part

Work Size

1300mm*900mm

Power:

130W

150W

180W

260W

300W

Description
Parameter

FEATURE
1)Max Cutting: It supports both Metal and Non-Metal Cutting for stainless steel, carbon steel, mild steel, and acrylic, wood, MDF engraving and cutting.
2) Adopt 150w – 300w Laser Tube, high power, 10000 hours long life span.
3) Adopt Servo Motor and Ball Screw Transmission Rod, with fast speed and high precision.
4) Dynamic Auto-Focusing Laser Cutting Head: When the metal sheet is not plain, the dynamic focus laser cutting head can adjust the focusing distance automatically.
5) Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
6) LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
7) Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
8) Professional Strip work table, which meet the needs of diversified laser procession;
9) Water Cooling System with Alarm Protection, adopt CW-6000 Water Chiller with temperature display,which can avoid over burning, to protect the water circulation from electricity-off.
10） Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, makes high efficiency and steady.
11） High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
12） Red Light Pointer realizes the exact position without laser.
13） Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility, support any
computer operating system.

Laser power	130w-300w
Cooling mode	water-cooled, 10. 6umWater Cooling
Laser type	CO2 sealed laser tube
Cutting speed	20m/min
Resetting positioning	≤±0.01mm
Laser output	1-100%software setting
Min forming character	Chinese: 2. 0mm x 2.0mm, English 1.0mm x 1.0mm
Operating temperature	0 - 45°C
Operating humidity	5-95℃
Power supply	AC110V/220V±10%,50-60HZ
Picture Formats Supported	BMP, PLT, DST, DXF, AI
Software supported	Tajima, Corel Draw, Photoshop, Auto CAD
Driving system	stepper motor
Control system	Ruida controlling system
Data transfer interface	USB flash disk / directly from computer
Laser output control	1-100% software setting
Highest scanning engraving	2500DPI
Color separation	Color separation
