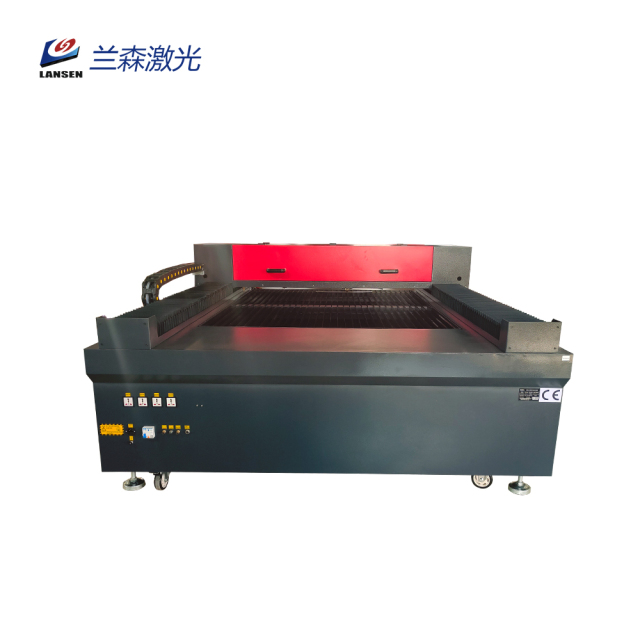

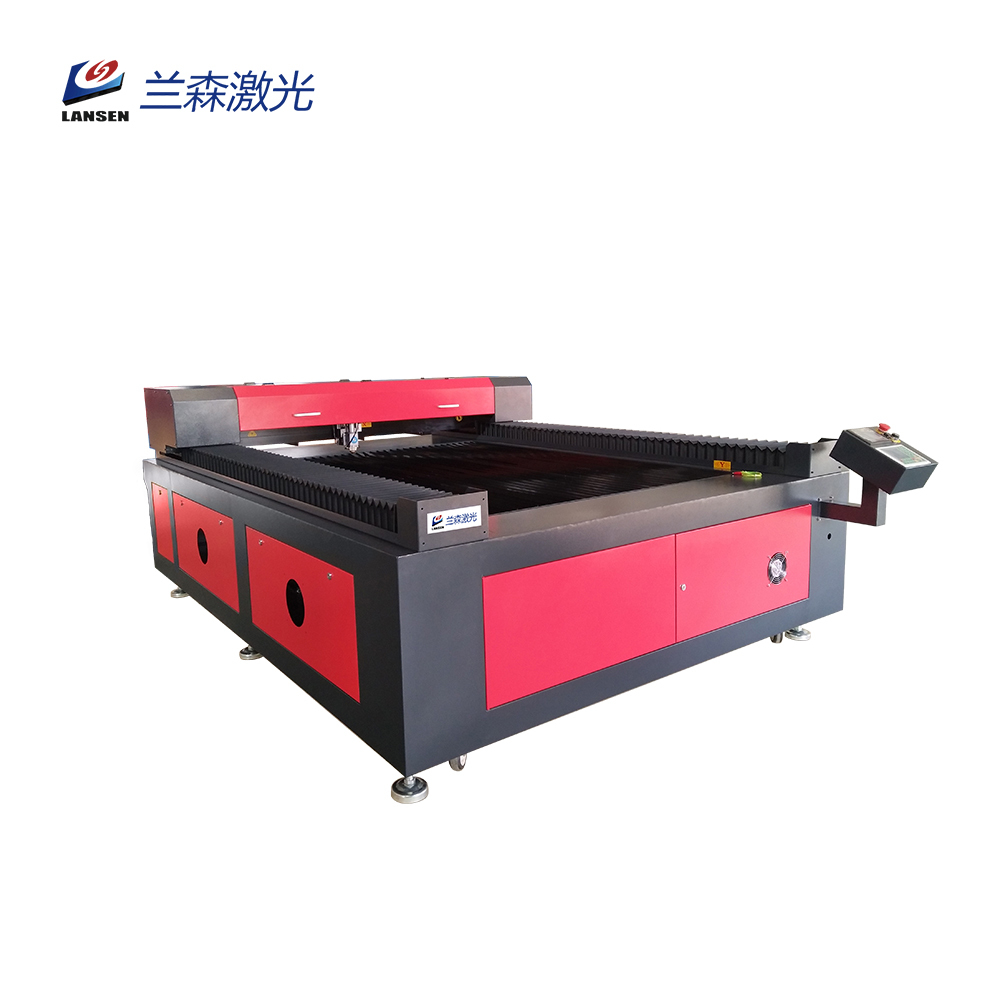

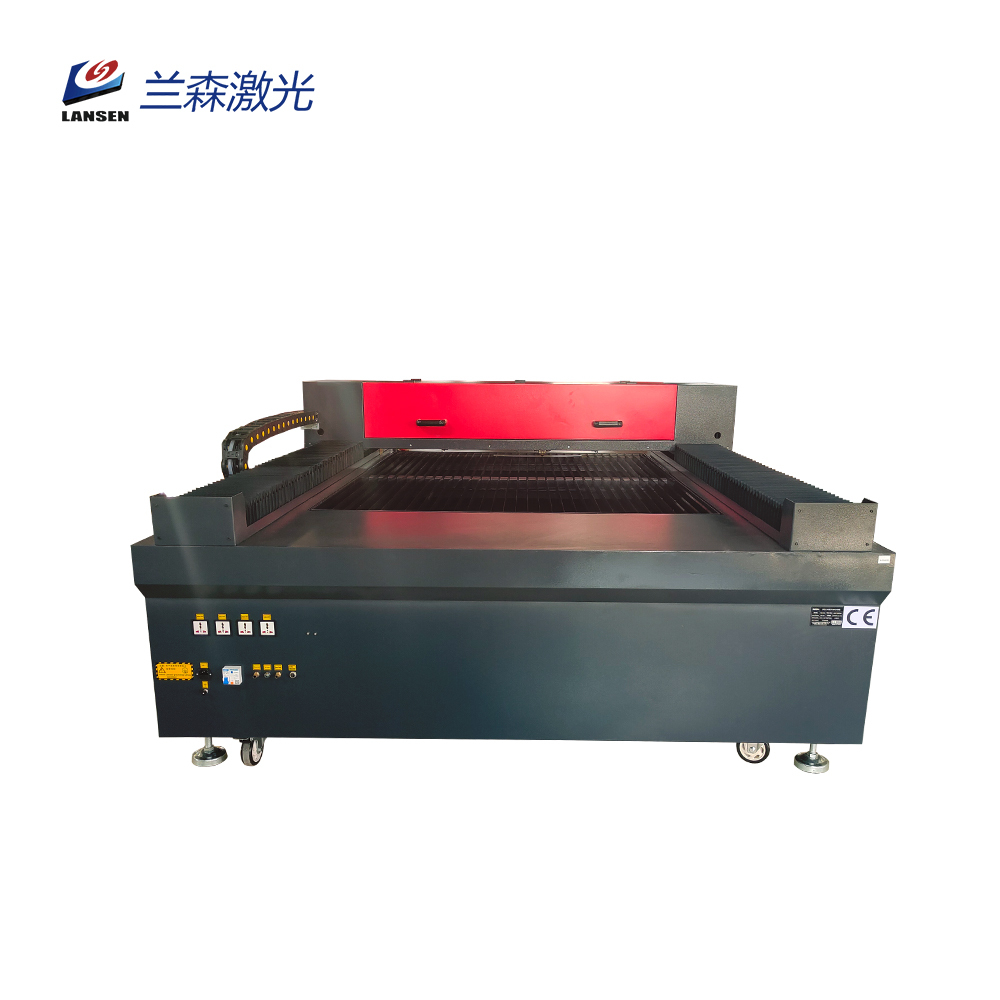

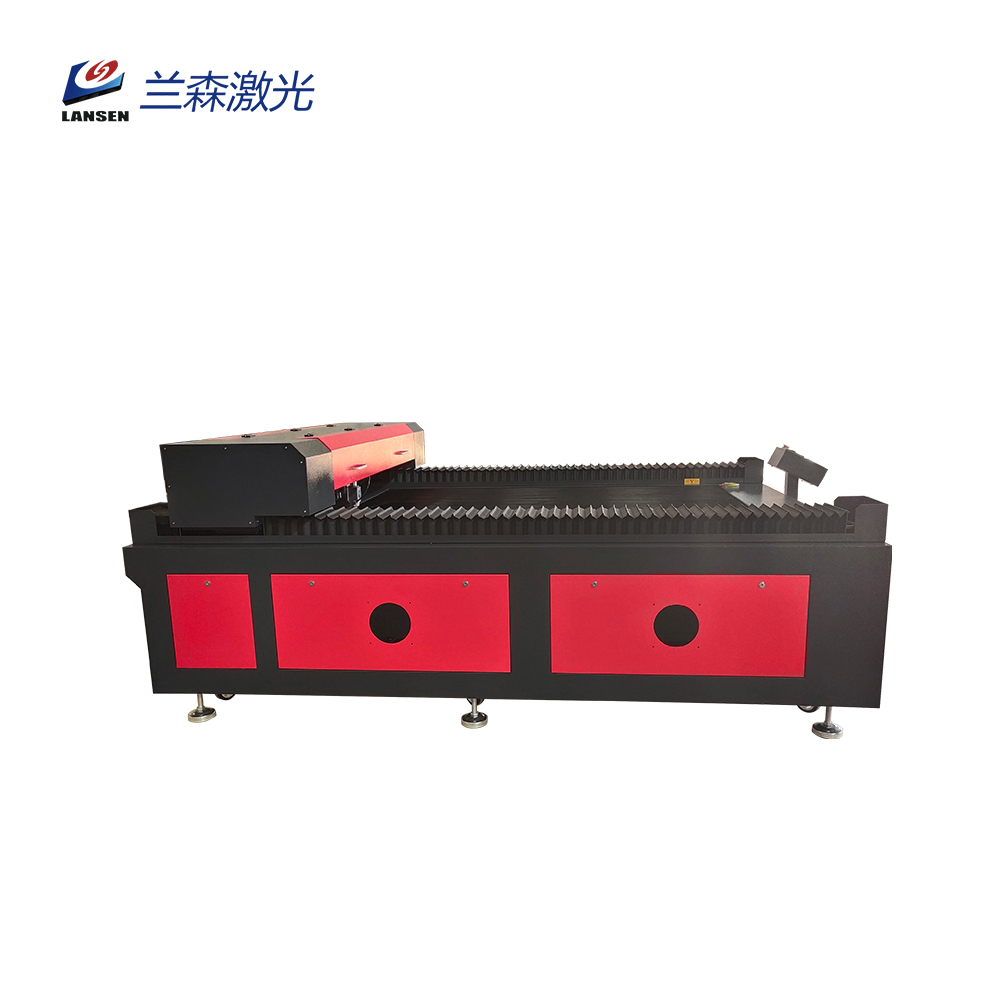

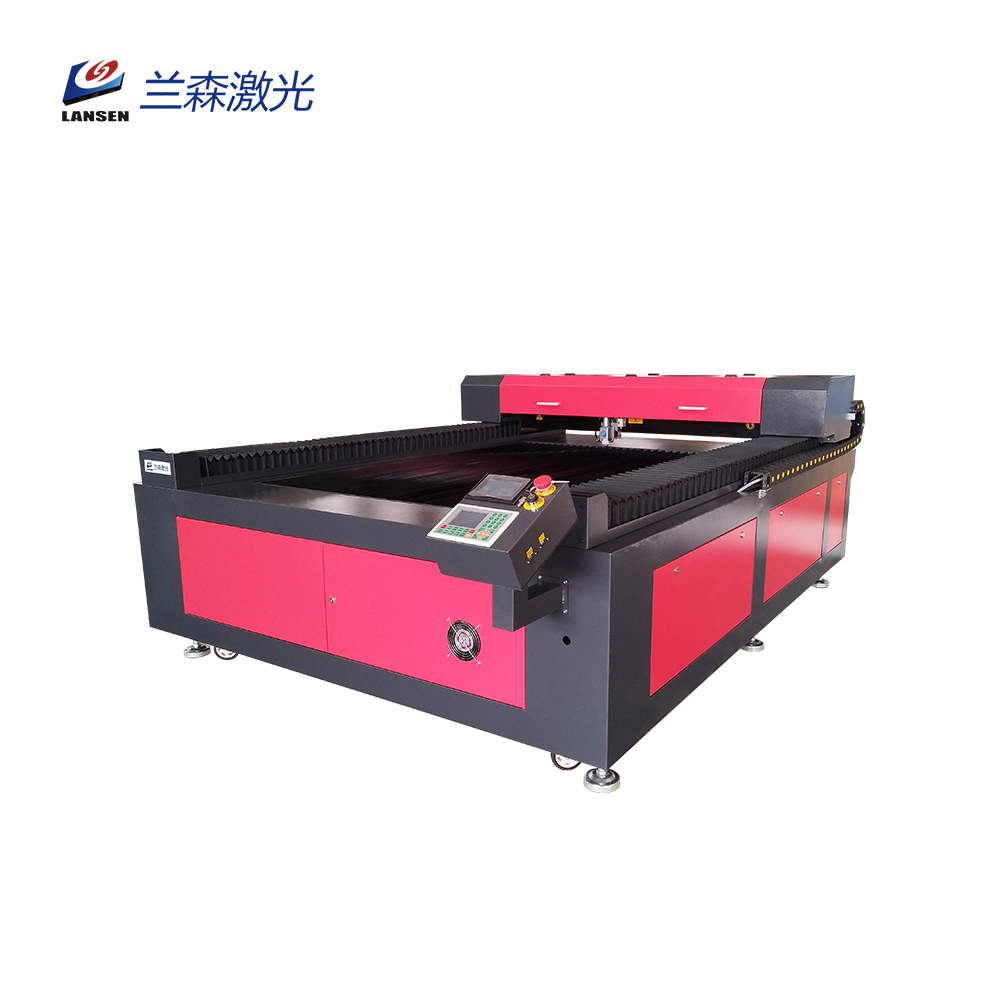

Name: LP-M1318 Mixed metal nonmetal co2 laser engraving cutting machine
Brand: JINAN LANSEN LASER EQUIPMENT CO., LTD
Availability: InStock
Rating: 5 (1 reviews)

LP-M1318 Mixed metal nonmetal co2 laser engraving cutting machine

Co2 Metal And Nonmetal Laser Cutter

mainly applied to sheet metal processing, metal fabricating, metals components and parts, ironware, chassis, racks & cabinets processing, metal enclosure, kitchen ware, kitchen cabinet, advertising metal sign, metal crafts, artware, elevator panel cutting, hardware, auto parts, jewelry, glasses frame, nameplates, electronic parts etc.

Work Size

1300mm*1800mm

Power:

130W

150W

180W

200W

260W

300W

Description
Parameter

Feature
1) Dynamic Auto-Focusing Laser Cutting Head: When the metal sheet is not plain, the dynamic focus laser
cutting head can adjust the focusing distance automatically.

2) Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can work not only without computer,
also connect to U disk, USB communication.

3) LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting,
compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.

4) Imported high precision linear guide rail and professional optical system, dust proof, which improve the engraving
quality and prolong machine lifetime.

5) Professional Strip work table, which meet the needs of diversified laser procession;

6) Water Cooling System with Alarm Protection, adopt CW6000 Water Chiller with temperature display,which can
avoid over burning, to protect the water circulation from electricity-off.

7) Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, makes high efficiency and steady.

8) High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error,
repetition high precision, engrave 1×1mm little English character perfect.

9) Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility,
support any computer operating system.

Laser power	130w-300w
Cooling mode	water-cooled, 10. 6umWater Cooling
Laser type	CO2 sealed laser tube
Cutting speed	20m/min
Resetting positioning	≤±0.01mm
Laser output	1-100%software setting
Min forming character	Chinese: 2. 0mm x 2.0mm, English 1.0mm x 1.0mm
Operating temperature	0 - 45°C
Operating humidity	5-95℃
Power supply	AC110V/220V±10%,50-60HZ
Picture Formats Supported	BMP, PLT, DST, DXF, AI
Software supported	Tajima, Corel Draw, Photoshop, Auto CAD
Driving system	stepper motor
Control system	Ruida controlling system
Data transfer interface	USB flash disk / directly from computer
Laser output control	1-100% software setting
Highest scanning engraving	2500DPI
Color separation	Color separation
