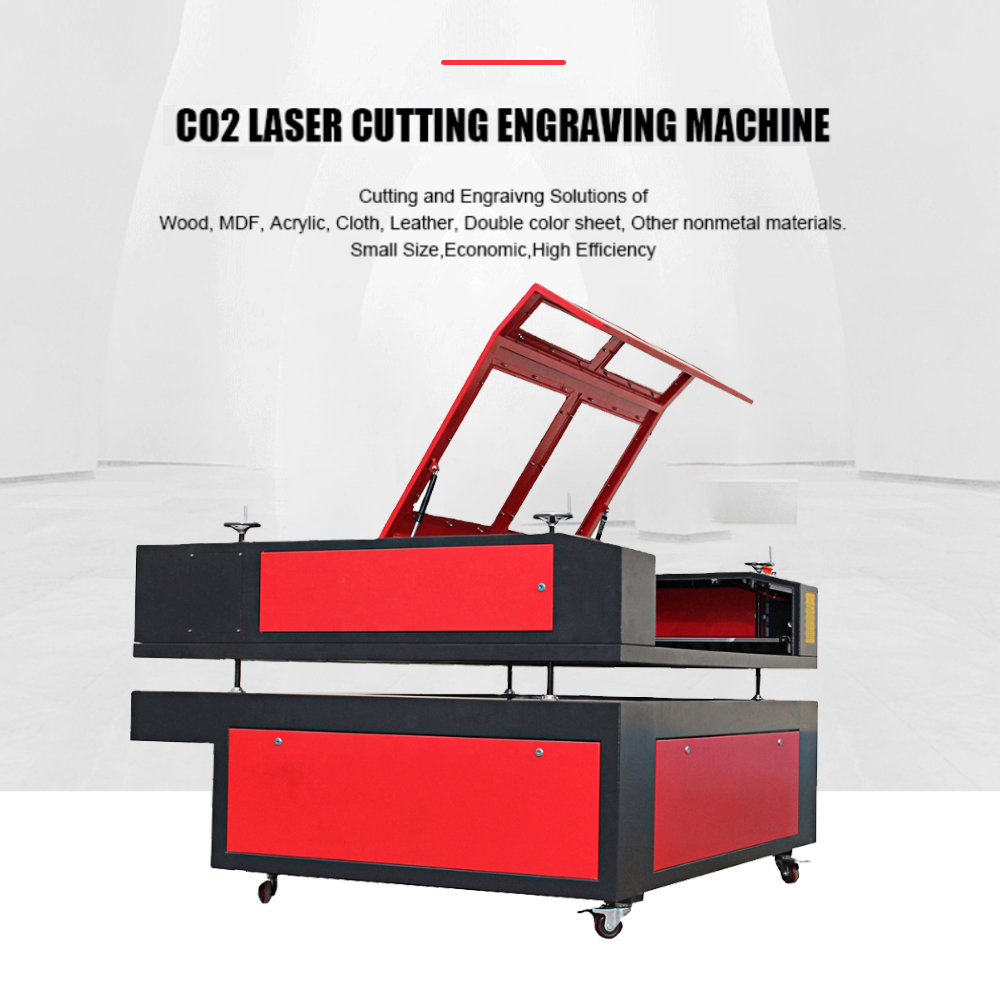

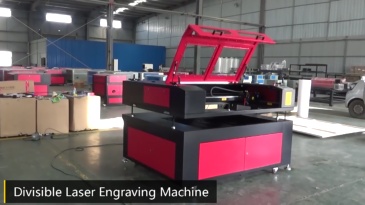

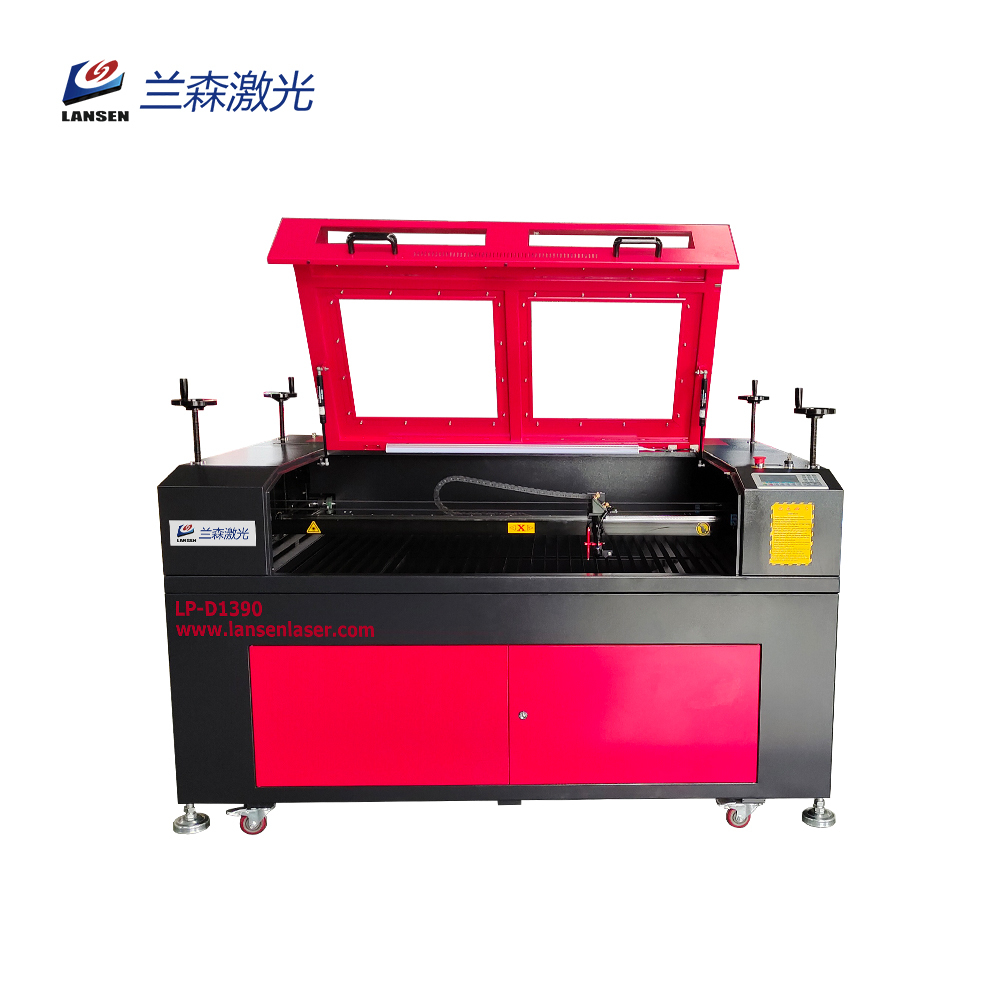

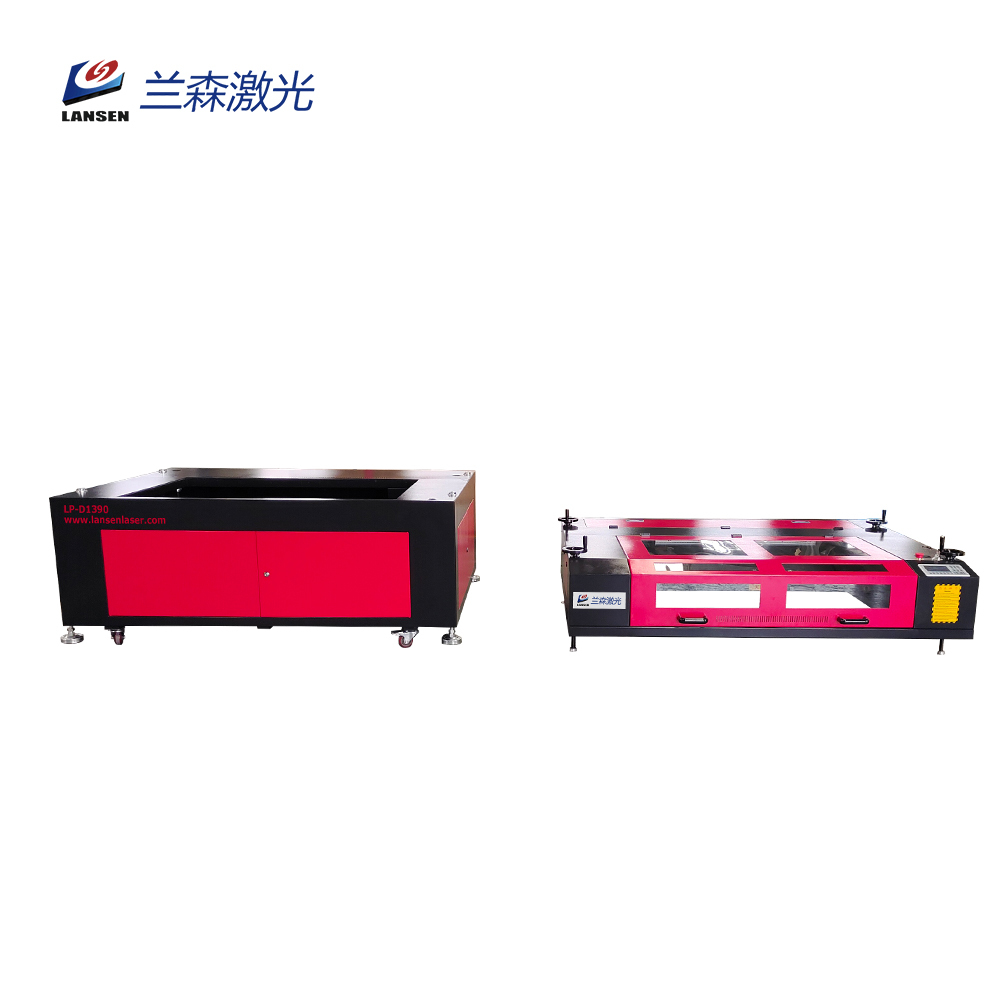

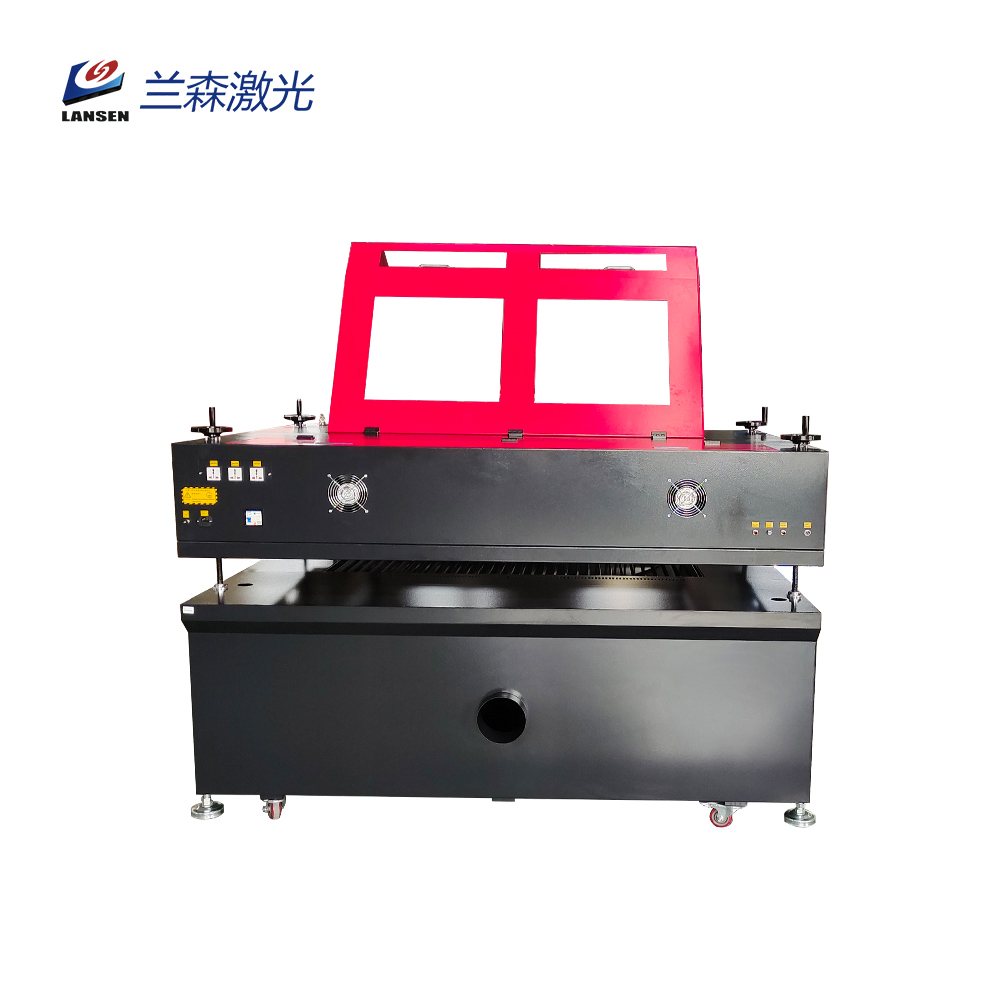

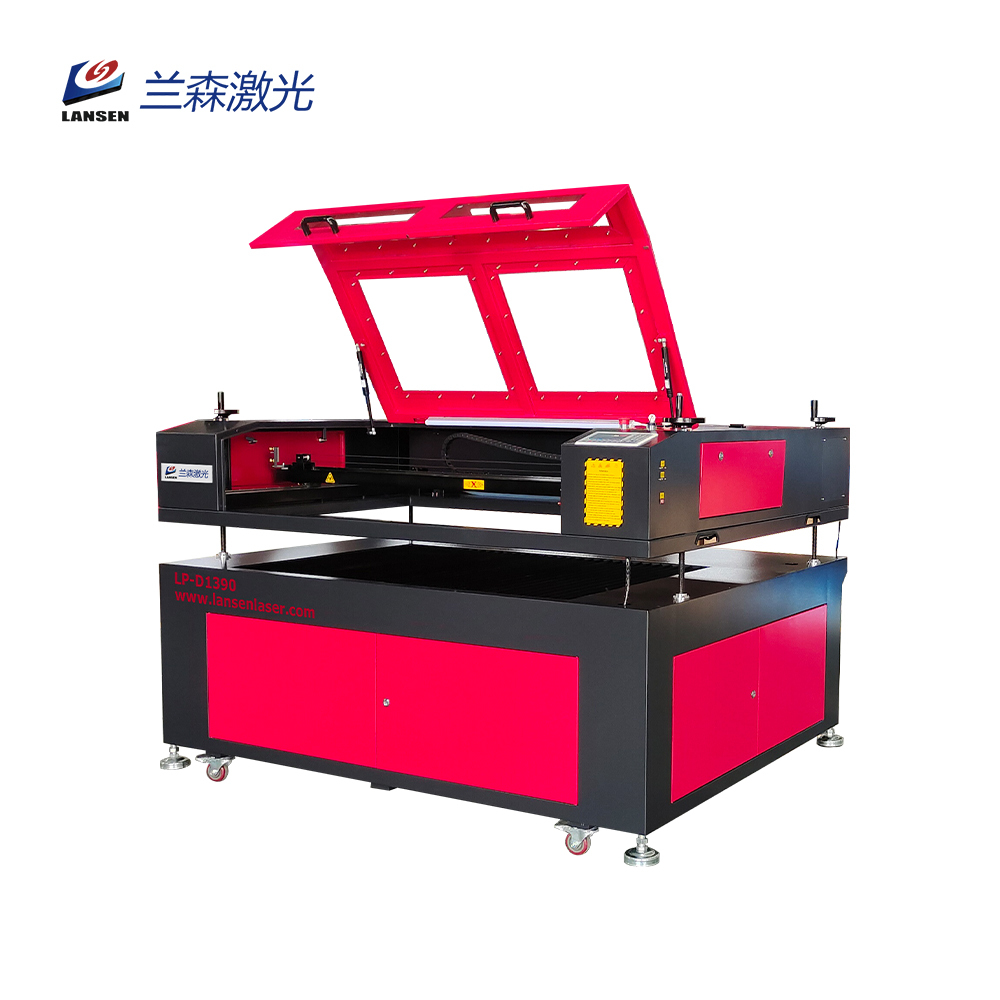

Divisible Stone Engraving Laser Engraving machine is developed for heavy materials. It brings great convenience to customers. The machine is designed by upper part and lower part, and the two parts can be separated. The upper part can be moved down from the machine, and the lower part can configure suitable platforms according to customers’ requirements. The design changes the traditional engraving method. For some heavy materials we can put the upper part onto them, so that avoiding the difficulty of moving heavy material. Meanwhile, it solves the problem that platform has a limited bearing ability. Both parts can be up and down so that engraving objects with greatly thickness changing is much easier to process.
With unique design, excellent technique, our divisible style laser engraving machines are popular in marble engraving industry and many heavy material engraving industries.
The detachable dual-purpose laser machine can not only engrave and cut ordinary non-metallic materials, but also the upper part can be removed and placed on large materials for engraving, which solves the problem of limited load-bearing capacity of ordinary laser machines. It expands the working range of the machine and can meet the engraving requirements of most industries.
Applicable materials:
Marble, stone, tomb stone, wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials Applicable industries: Advertisement, gift, shoes, toys, computers, garments, model cutting,building, packaging, paper industry
|
Model LP-D1390 |
|
|
Working area |
1300mmx900mm |
|
Laser power |
80w-180w |
|
Cooling mode |
Water cooling |
|
Laser type |
CO2 laser tube |
|
Cutting speed |
0-40000mm/min |
|
Max moving Speed |
70000mm/min |
|
Resetting positioning |
<0.01mm |
|
Min forming character |
1x 1mm |
|
Operating temperature |
0 - 45°C |
|
Operating humidity |
5-95℃ |
|
Power supply |
110V/220V±10%,50-60HZ |
|
Picture Formats Supported |
AI, DXF,PLT,DST,DSB,EPS,DAT,NC,BMP,RDB,GIF,JPG,JPEG,JPE, JFIF,PNG,MNG,ICO,CUR,TIF,TIFF,TGA,PCX,WBMP,WMF,EMF,JBG, J2C,JPC,PGX,RAS,PNM,PGM,PPM,SKA,RAW, |
|
Software supported |
CorelDraw, AutoCAD,PhotoShop |
|
Driving system |
stepper motor |
|
Control system |
Ruida controlling system |
|
Data transfer interface |
USB flash disk / directly from computer |
|
Laser output control |
1-100% software setting |
This equipment can be applied to different kinds of materials and has many advantages such as smooth cutting edges, free from polishing, dust free, fast processing speed, high precision, less waste and higher efficiency. It is the best optional for upgrading traditional equipments in various industries. The professional laser engraving and cutting software installed in it, is particularly designed and written for engraving and cutting It's with high compatibility powerful editing function, friendly interface, easy to install and use, can support DXF, PLT, BMP, Al and many other graphs, support win 7, win 8 and win 10 computer operating system
|
Laser power |
60w-130w |
|
Cooling mode |
Water cooling |
|
Laser type |
CO2 laser tube |
|
Cutting speed |
0-40000mm/min |
|
Max moving Speed |
70000mm/min |
|
Resetting positioning |
<0.01mm |
|
Min forming character |
1x 1mm |
|
Operating temperature |
0 - 45°C |
|
Operating humidity |
5-95℃ |
|
Power supply |
110V/220V±10%,50-60HZ |
|
Picture Formats Supported |
AI,DXF,PLT,DST,DSB,EPS,DAT,NC,BMP,RDB,GIF,JPG,JPEG,JPE,JFIF,PNG,MNG,ICO,CUR,TIF,TIFF,TGA,PCX,WBMP,WMF,EMF,JBG,J2C,JPC,PGX,RAS,PNM,PGM,PPM,SKA,RAW, |
|
Software supported |
CorelDraw, AutoCAD,PhotoShop |
|
Driving system |
stepper motor |
