Name: LP-C1610AF 4 Heads Auto Feeding Co2 Laser Cutting Machine
Brand: JINAN LANSEN LASER EQUIPMENT CO., LTD
Availability: InStock
Rating: 5 (1 reviews)

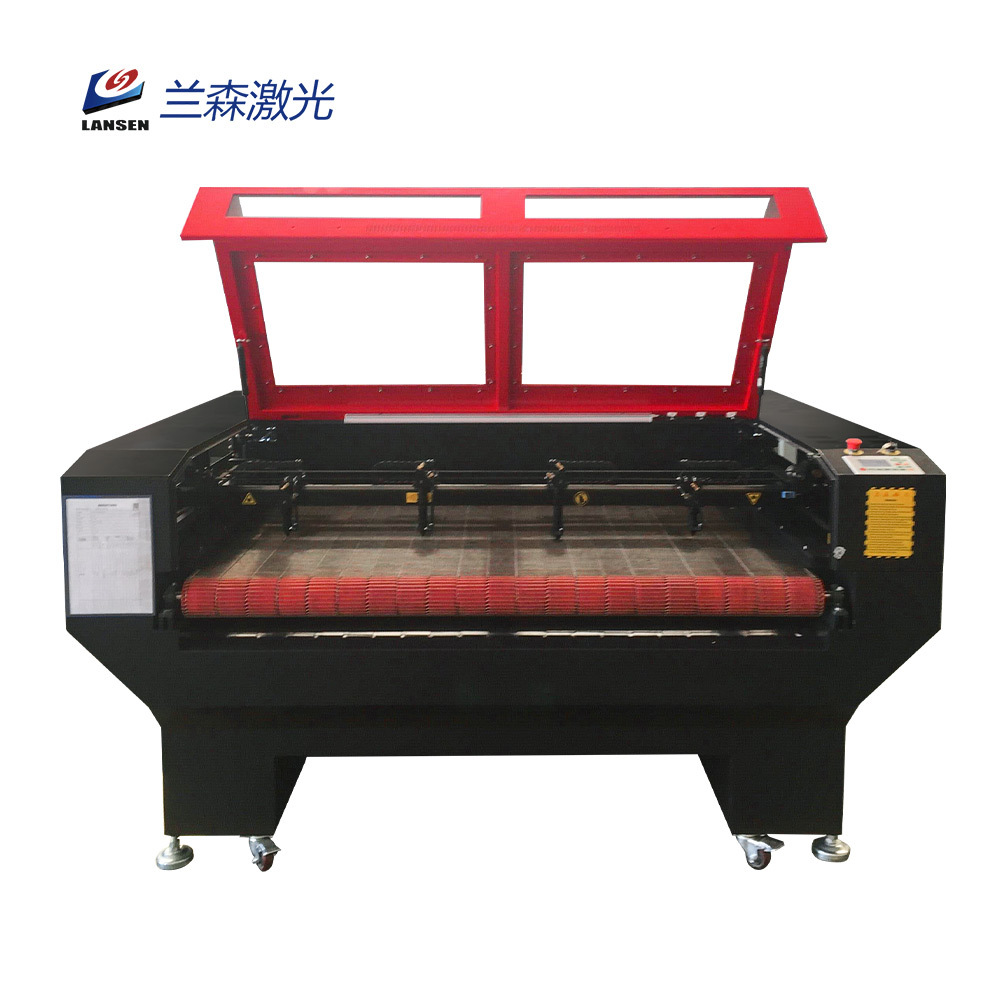

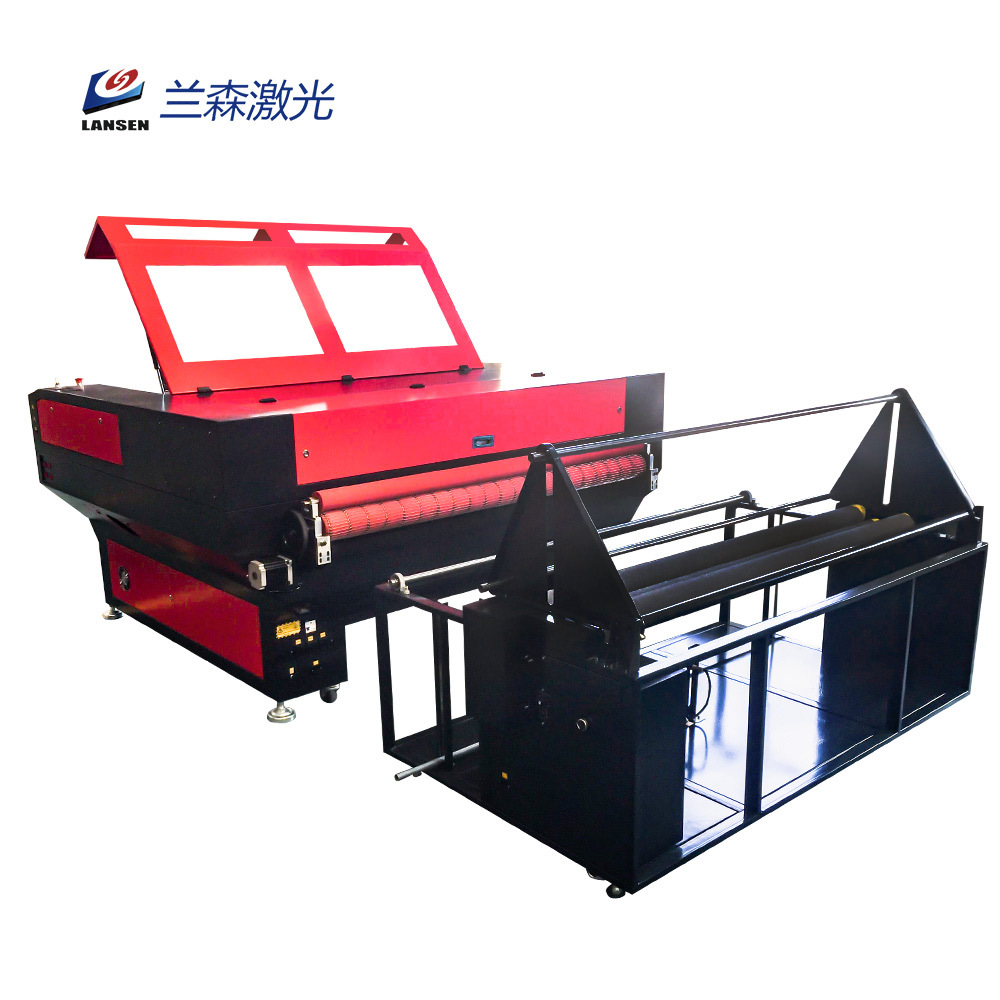

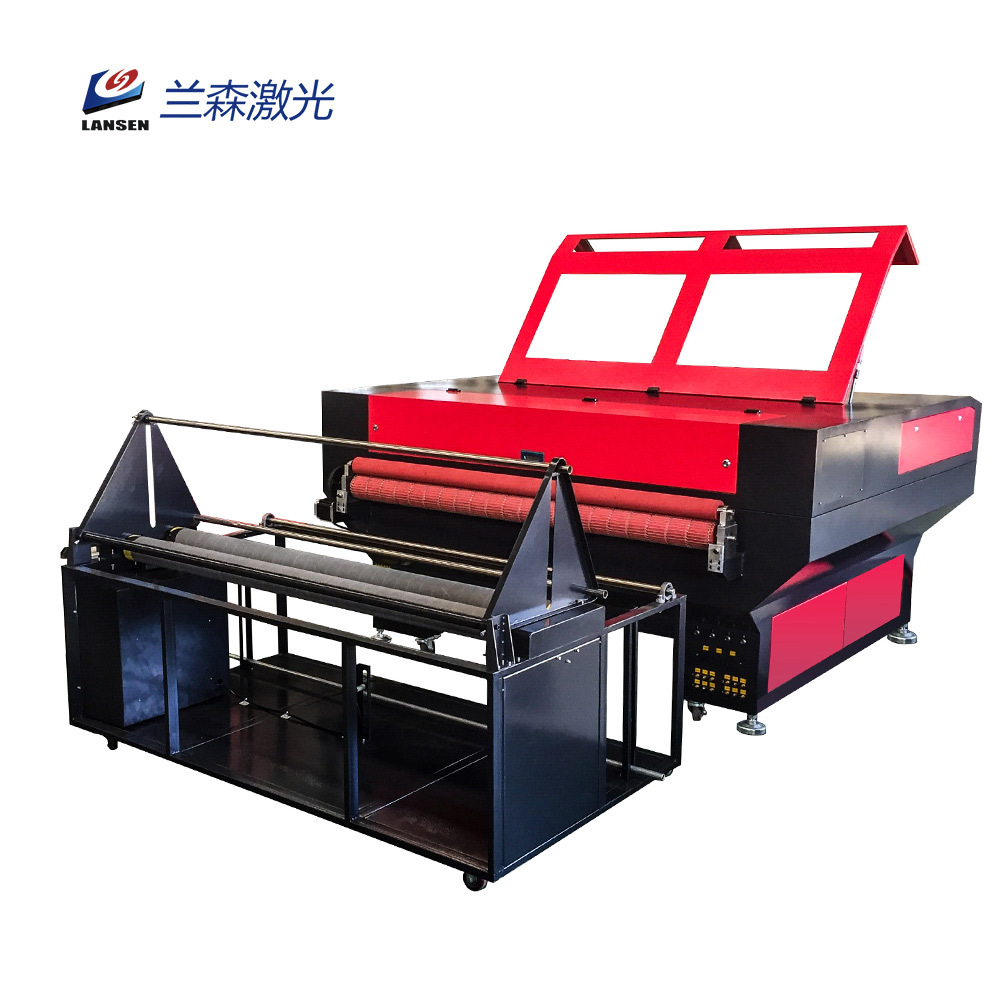

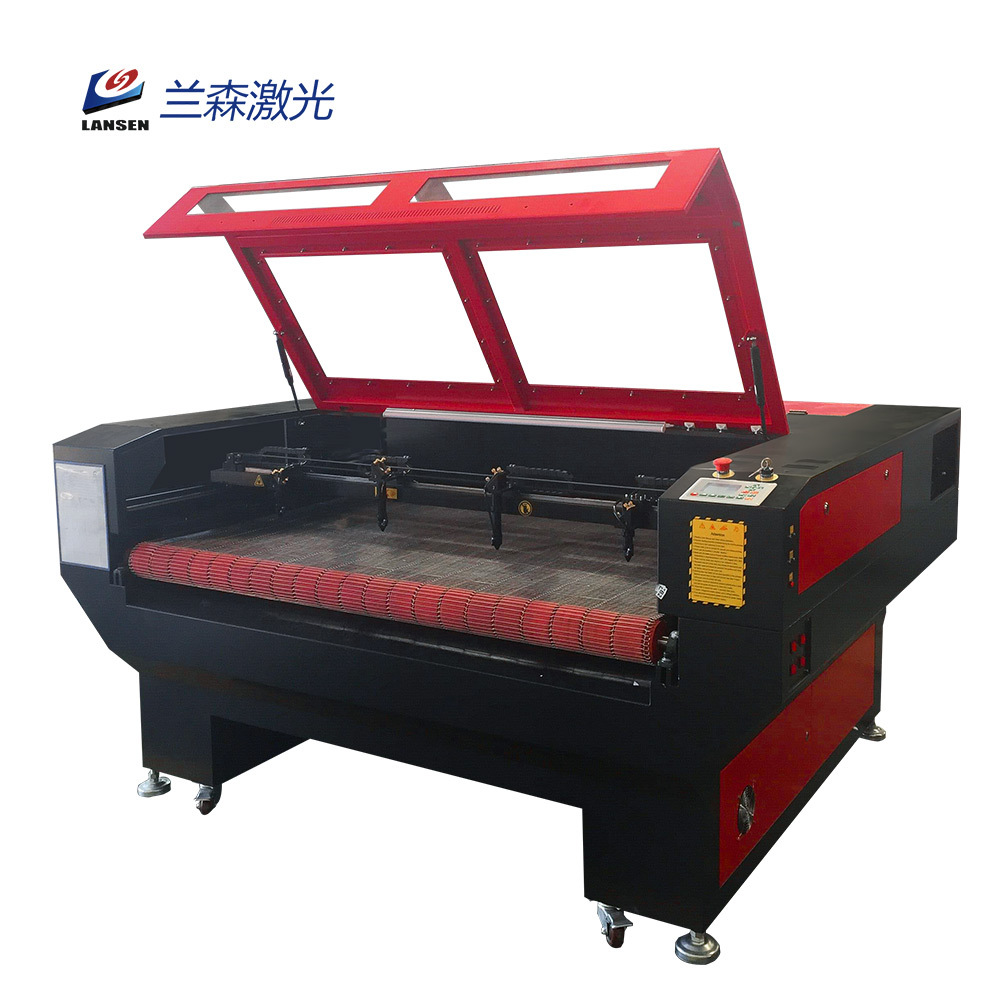

LP-C1610AF 4 Heads Auto Feeding Co2 Laser Cutting Machine

This multi-head feeder has high production efficiency and is mainly used for cutting textiles, leather, cloth, etc. It is widely used in toys, clothing, packaging, shoes, bags and other industries

Description
Parameter

1.This machine is specially designed for small for large format fabric and textile cutting works, it adopts auto feeding systems, largely improved the working efficiency.
2. This machine use unique feeding design with rotating table, auto-feeder at back andmaterials holder at front, can collect the cutting sample when cutting, saves a lot of energy and time for you.
3. Long life and strictly tested machine parts ensures the machine stability and life time. This machine uses USB port and USB flash disk to transmit data, greatly improving working speed and efficiency. You can control the feeding speed through software.
4.Four-head cutting and engraving at the same time to improve work efficiency

Model LP-C1610AF
Working area	1600mmx1000mm
Laser power	90w-300w
Cooling mode	Water cooling
Laser type	CO2 laser tube
Cutting speed	0-40000mm/min
Max moving Speed	70000mm/min
Resetting positioning	<0.01mm
Min forming character	1x 1mm
Operating temperature	0 - 45°C
Operating humidity	5-95℃
Power supply	110V/220V±10%,50-60HZ
Picture Formats Supported	AI, DXF,PLT,DST,DSB,EPS,DAT,NC,BMP,RDB,GIF,JPG,JPEG,JPE, JFIF,PNG,MNG,ICO,CUR,TIF,TIFF,TGA,PCX,WBMP,WMF,EMF,JBG, J2C,JPC,PGX,RAS,PNM,PGM,PPM,SKA,RAW,
Software supported	CorelDraw, AutoCAD,PhotoShop
Driving system	stepper motor
Control system	Ruida controlling system
Data transfer interface	USB flash disk / directly from computer
Laser output control	1-100% software setting
Highest scanning engraving	2500DPI

Advantage

1) No burr/fraying with laser cutting:
Laser cutting is done by high temperature process. It can make cut edge to close up automatically. Hence, no need to recut the patterns after one-time cutting.
2) No distortion to the processed fabric:
In the process of cutting, laser dose not touch the processed fabric, but laser beam works on the fabric.
3) High precision:
Diameter of the laser beam can be focalized into 0.1 mm. Cutting is done exactly according to uploaded graphics through computer ontrol.
4) High efficiency and easy operation:

Just upload the graphics into the cutting machine and laser will cut fabric into shapes as desi

Multi Heads Co2 Laser Cutting Engraving Machine
Laser Power	80W/00W/100W/130W
Laser Type	Co2
Worktable	Metal slat /Honeycomb (standard with one
Engraving Speed	0-70000mm/min
Cutting Speed	0-40000mm/min
Highest Scanning Precision	2500DP
PowerRequirement	110V/220V,50HZ/60HZ
Min.Shaping Character	English 1.0x 1.0mm,Chinese 1.5x1.5mm
Graphic.Format.Supported	BMP,PLT,DST,DXF,A
Software Supported	CorelDraw,PhotoShop.AutoCAD.TAJIMA
Control System	Ruida DSP control system
Machine WorkSoftware	RDworks
Laser Output Control	1-100%by setting in the software
nterface	USB
Driving System	Stepper
Color Separation	Yes
Optional Pats	Upand down worktable/Another worktable/Red dot pointer /Auto focus/ Rotar attachment withroller /Rotary attachment withclip
Spare Parts	Extra laser tube/Extra 1 lens and 3mirrors
