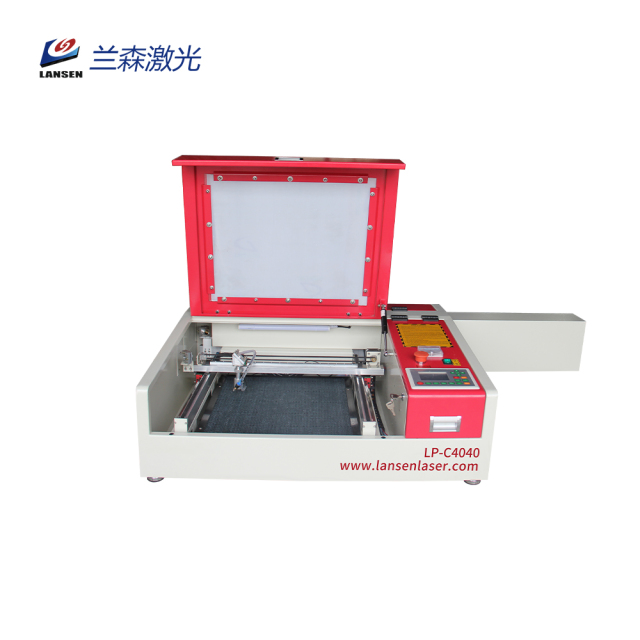

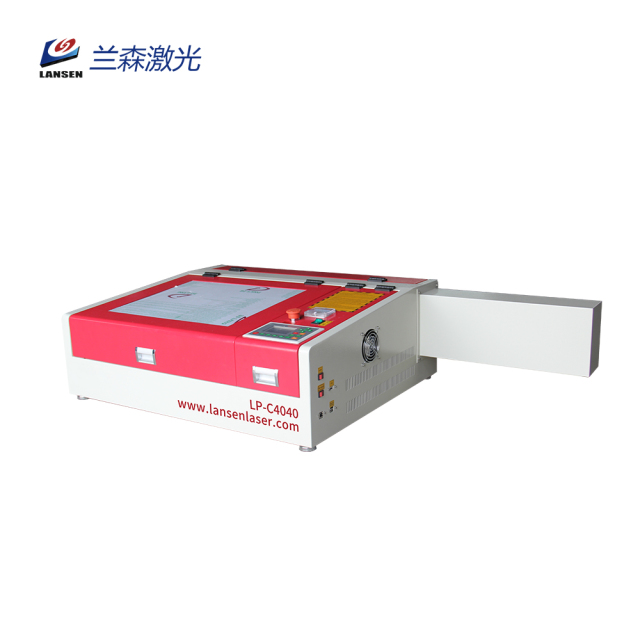

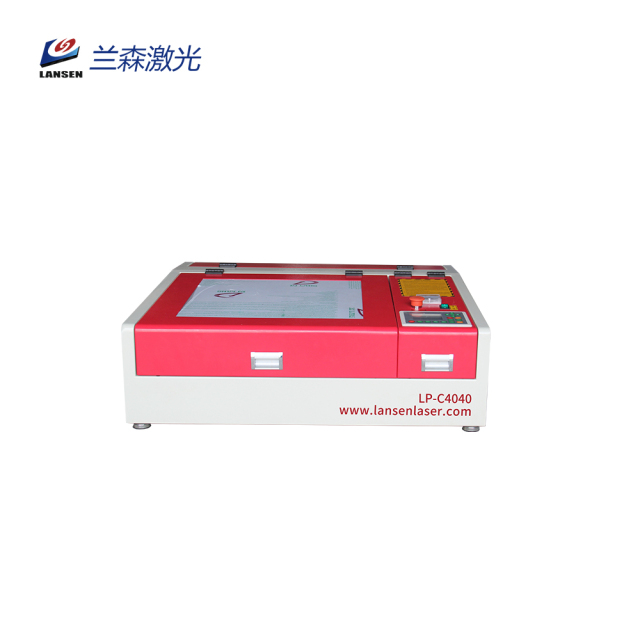

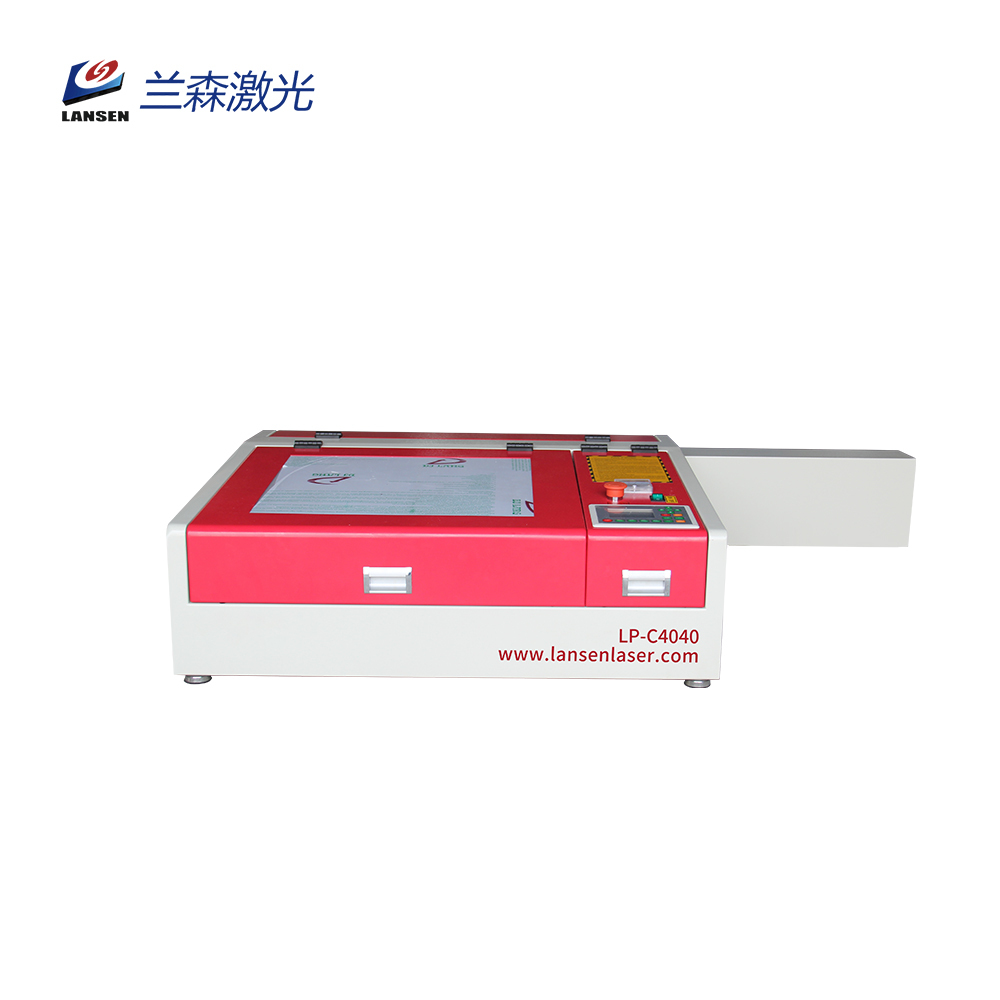

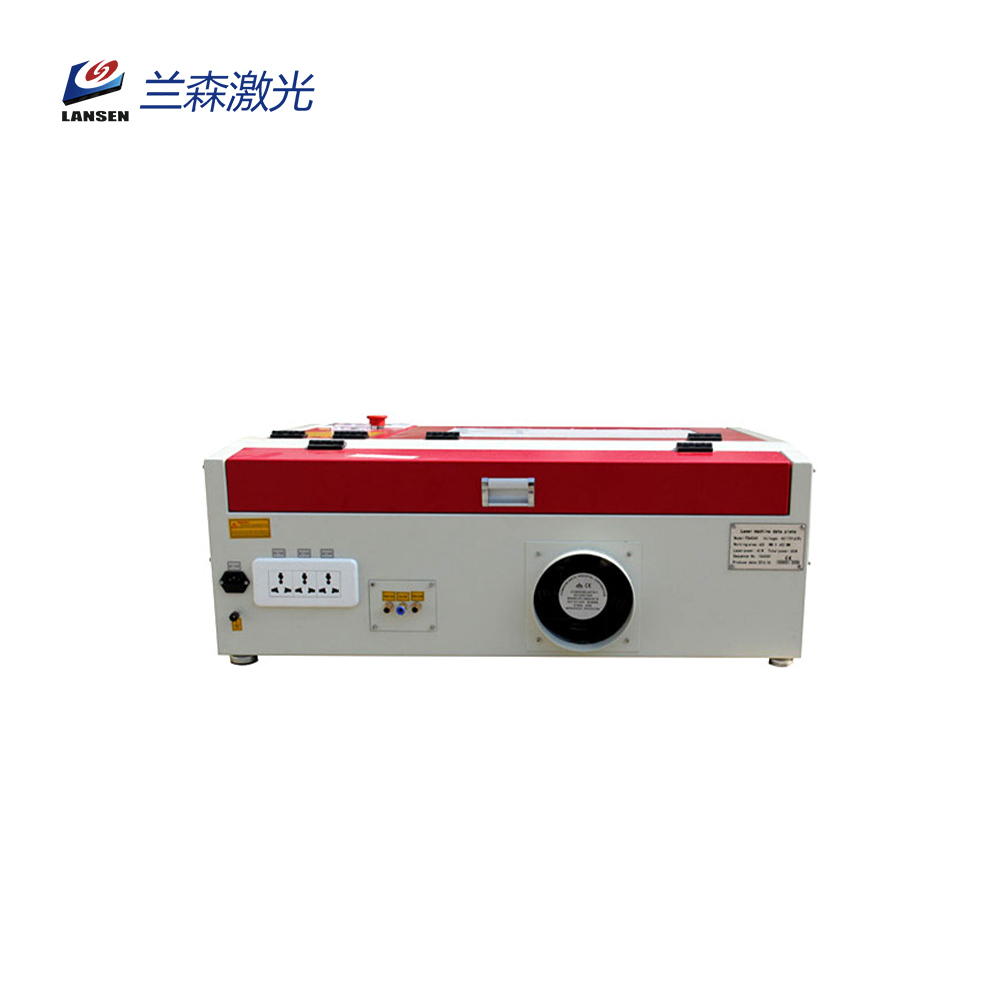

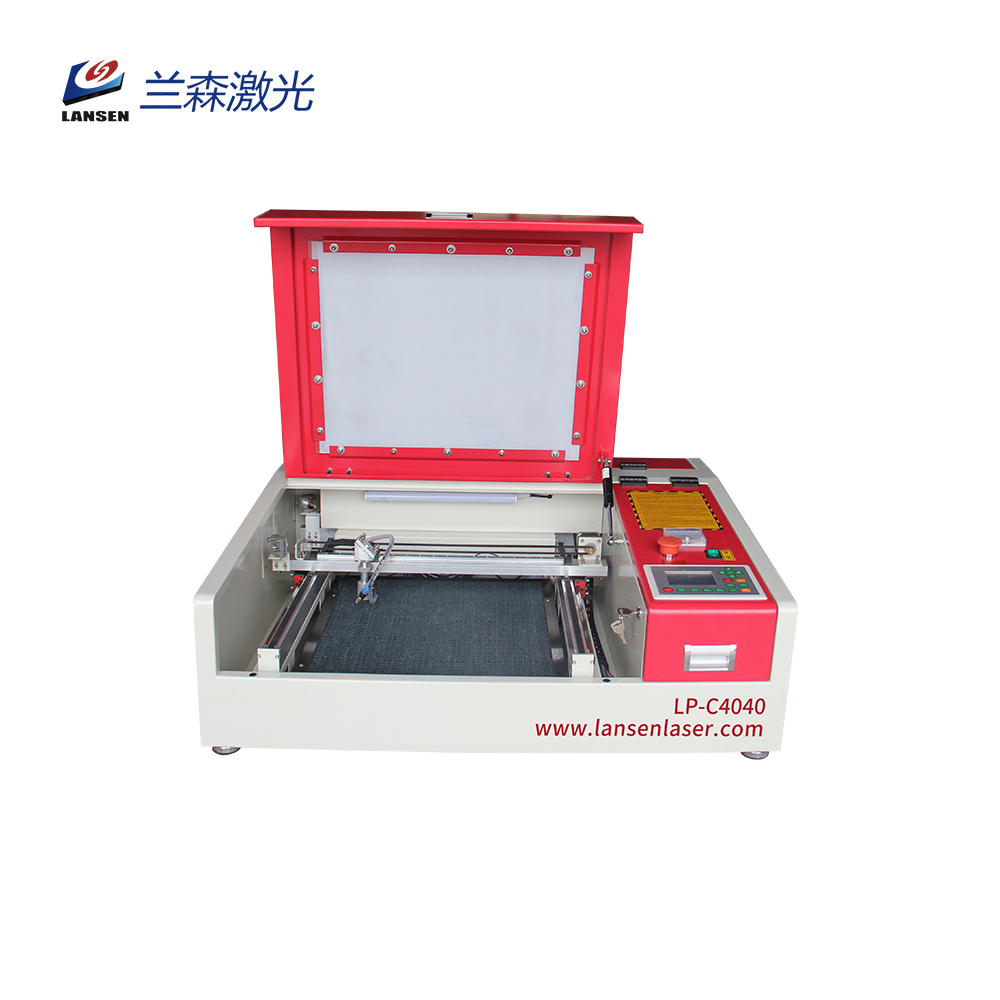

This is a mini Laser engraving machine:which is designed according to market requirement. It is small enough and could be taken easily. LP-C4040 is the perfect choice for home shop, DIY, sign maker, engraver, panel maker, stamp making, arts and craft making and so on. It’s economical model, full function, small enough to fit into almost any work space.
It can be used to engrave or cut alone on the surface of various materials and can simultaneously conduct engraving and cutting. The features of equipment are fast operation speed, easy to use, low cost, reliable engraving effects and burr-free cut edges. Thus, the grinding is not necessary to handle again and the cutting waste is little. Besides, the engraving depth can be easily adjusted with high precision.

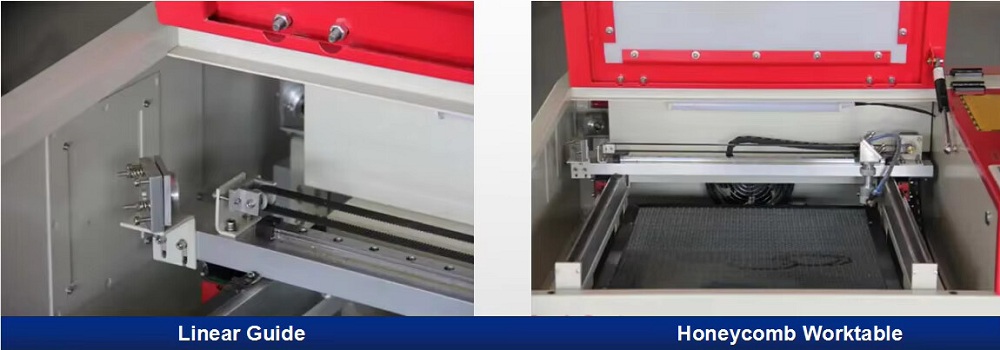

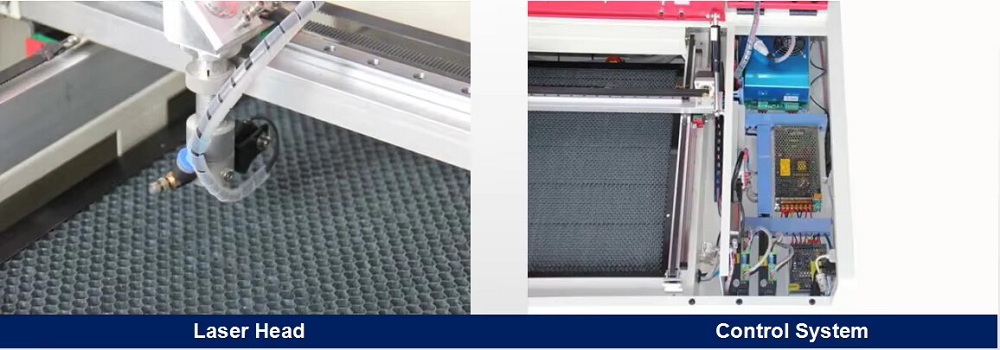

Laser Power: 40w/60w Working area:400x400mm Worktable: Honeycomb, electric up and down Control System: ruida with air pump and exhaust system Ruida DSP control system with RDworks software
This LP-C4040 laser machine is Lansen factory 2023 new designed co2 laser engraver cutter. Can be widely used in cutting engraving of almost all nonmetal leather, fabric, wood, acrylic,marble, etc. With 40W laser tube design, it have perfect engrave effect than big power tube. As a desktop mini model, suit industry work also suit hobbiest for DIY work and home business.
Suitable to industries such as artistic gifts, crystal ornaments, paper-cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration and frame fabrication, ect.
Non mental material such as double color sheets, acrylic, glass, wood planks, paper, leather, rubber, marble, granite and titles, glass, cloth, paper ect.
|
Model |
LP-C4040 |
|
Working area |
400*400mm |
|
Laser power |
40W/60Woptional |
|
Laser type |
Sealed 002 LaserTube,Water cooling,10.6um |
|
Cooling type |
Water cooling |
|
Engraving speed |
0-1200mm/s |
|
Cutting speed |
0-500mm/min |
|
Laser output control |
1-100%softwaresetting |
|
Resetting position accuracy |
<0.01mm |
|
Outting depth |
0-10mm(Acrylic) |
|
Engraving depth |
0-5mm(Acrylic) |
|
Minimum character |
1ximm |
|
Highest scanning precision |
4000DPI |
|
Power supply |
220V±10%/50HZ,110V±10%/60HZ |
|
Drive motors |
Stepper |
|
Working voltage |
AC220V/50-60HZ |
|
Communication interface |
USB |
|
5oftware supported |
ArtOut,Photo5hop (Conversionoutput) |
|
|
CorelDraw,AutoCAD,Lasercut(Direct output) |
|
Main Graphic format supported |
PLT/DXF/BMP/DST/AI (Direct output) |
|
Max height of engraved object |
80mm (with motorized up-down) |
