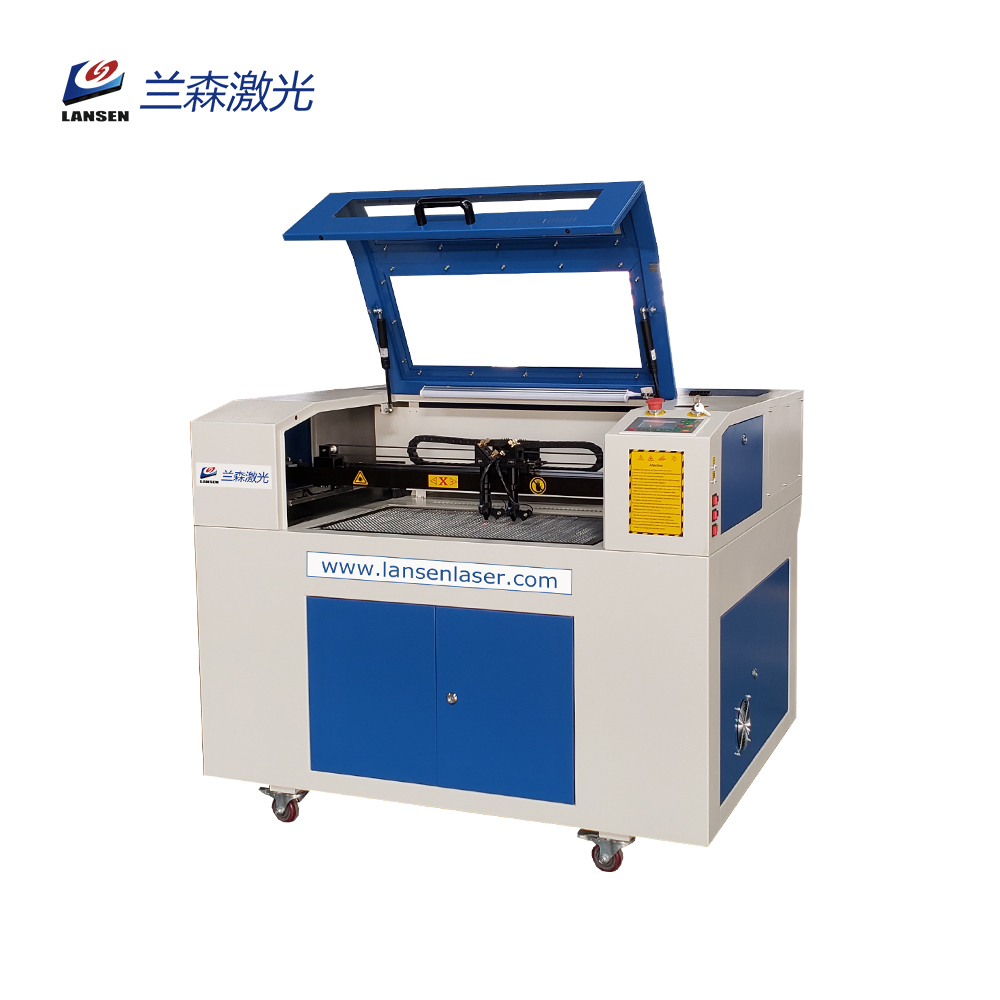

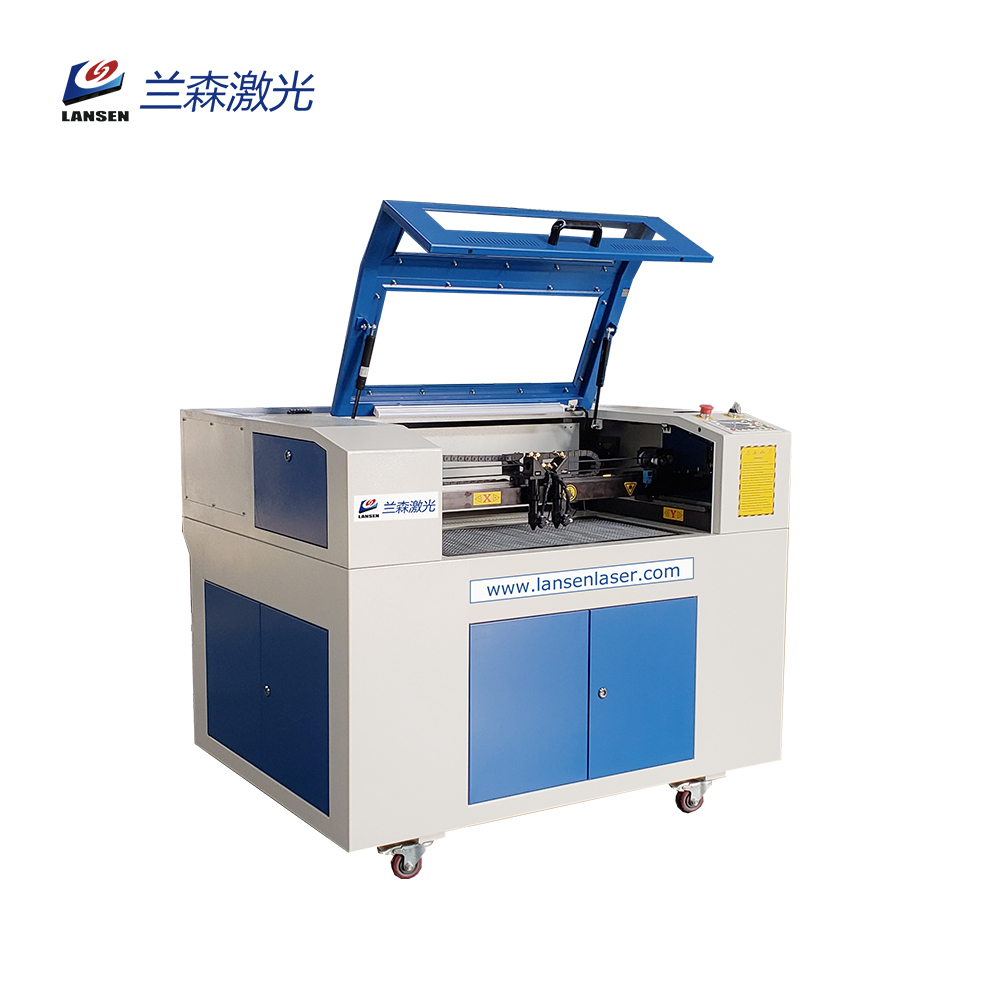

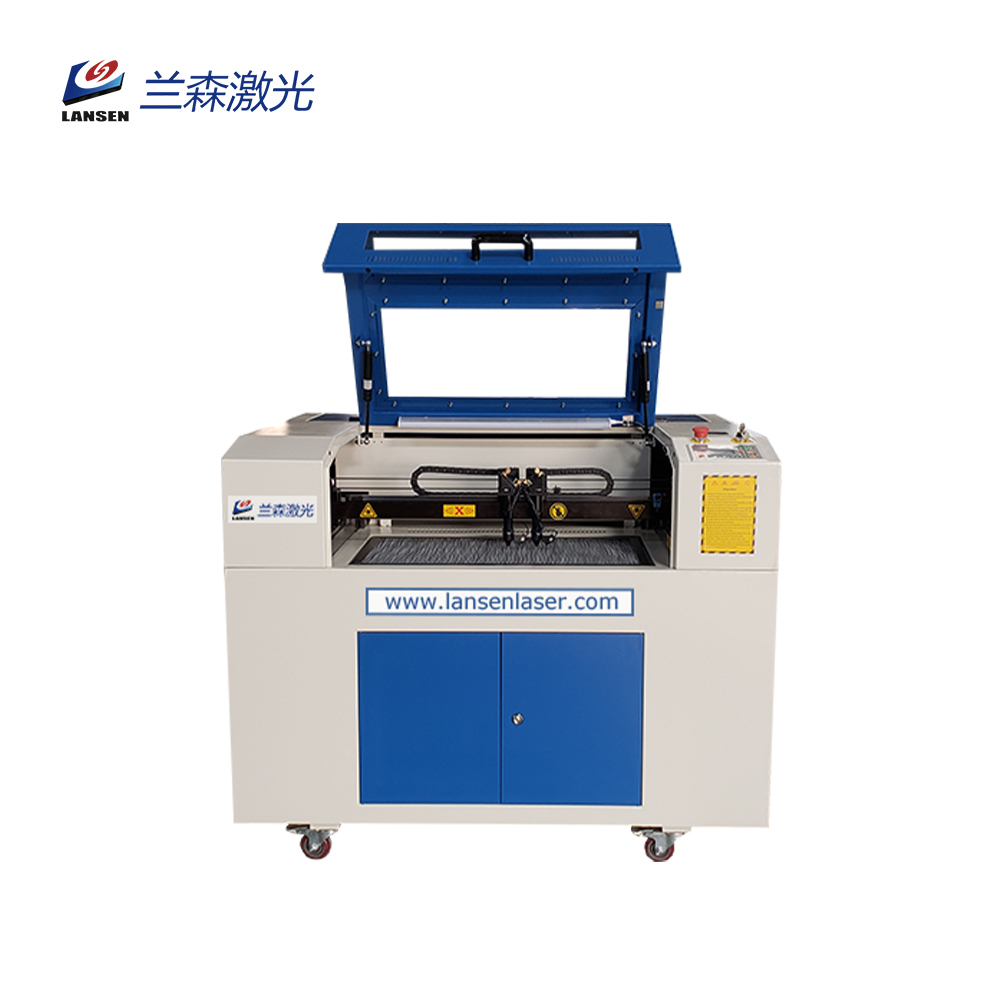

LFC4060 Co2&fiber 2 head laser engraving cutting machine

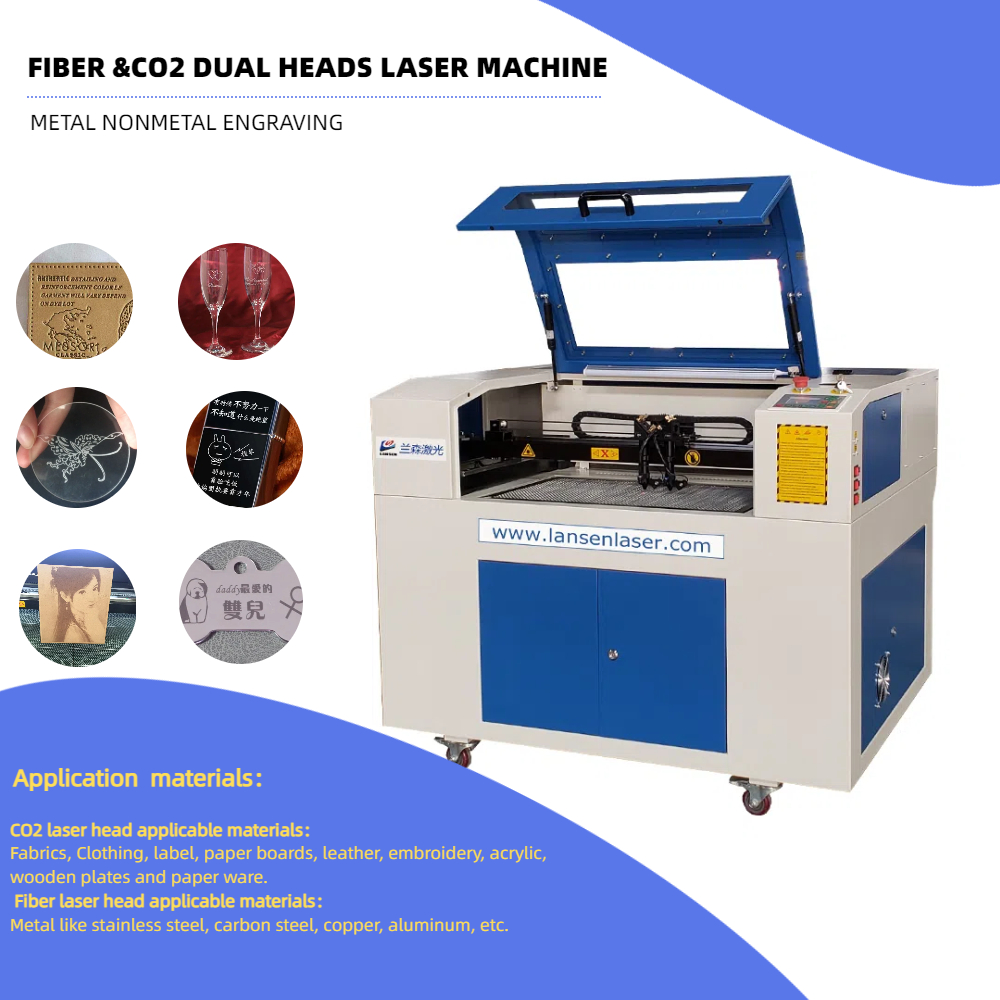

Co2 laser and fiber laser in one double headed laser engraving cutting and marking Machine
One for metal engraving ,one for nonmetal engraving and cutting .The two laser heads are put together to make the machine powerful, meet the two needs at the same time, save time and space, and reduce investment. Perfect for small businesses.

Name: LFC4060 Co2&fiber 2 head laser engraving cutting machine
Brand: JINAN LANSEN LASER EQUIPMENT CO., LTD
Availability: InStock
Rating: 5 (1 reviews)

Laser source

co2 laser and fiber laser

Description

This two-head Laser engraving Cutting Machine is developed to engrave on both metal and nonmetal, cut nonmetal.
1. CO2 laser head applicable materials：
Fabrics, Clothing, label, paper boards, leather, embroidery, acrylic, wooden plates and paper ware.
CO2 laser head applicable industries：Garments, shoe making, label processing, art crafts, etc
2. Fiber laser head applicable materials：
Metal like stainless steel, carbon steel, copper, aluminum, etc.
Fiber laser head applicable industries：Decoration, advertising industry, art crafts,etc.

Parameters
Working area	400mmx600mm
Co2 Laser power	80w
Fiber laser power	30w
Cooling mode	Water cooling
Laser type	CO2 &fiber laser
Cutting speed	0-40000mm/min
Max moving Speed	70000mm/min
Resetting positioning	<0.01mm
Min forming character	English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm
Operating temperature	0 - 45°C
Operating humidity	5-95℃
Power supply	110V/220V±10%,50-60HZ
Picture Formats Supported	AI, DXF,PLT,DST,DSB,EPS,DAT,NC,BMP,RDB,GIF,JPG,JPEG,JPE, JFIF,PNG,MNG,ICO,CUR,TIF,TIFF,TGA,PCX,WBMP,WMF,EMF,JBG, J2C,JPC,PGX,RAS,PNM,PGM,PPM,SKA,RAW,
Software supported	CorelDraw, AutoCAD,PhotoShop
Driving system	stepper motor

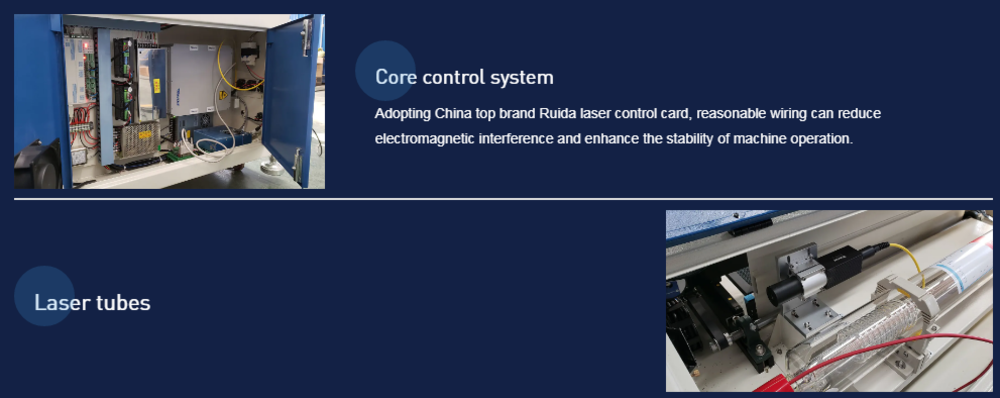

Control system	Ruida controlling system
Data transfer interface	USB flash disk / directly from computer
Laser output control	1-100% software setting
Highest scanning engraving	2500DPI
