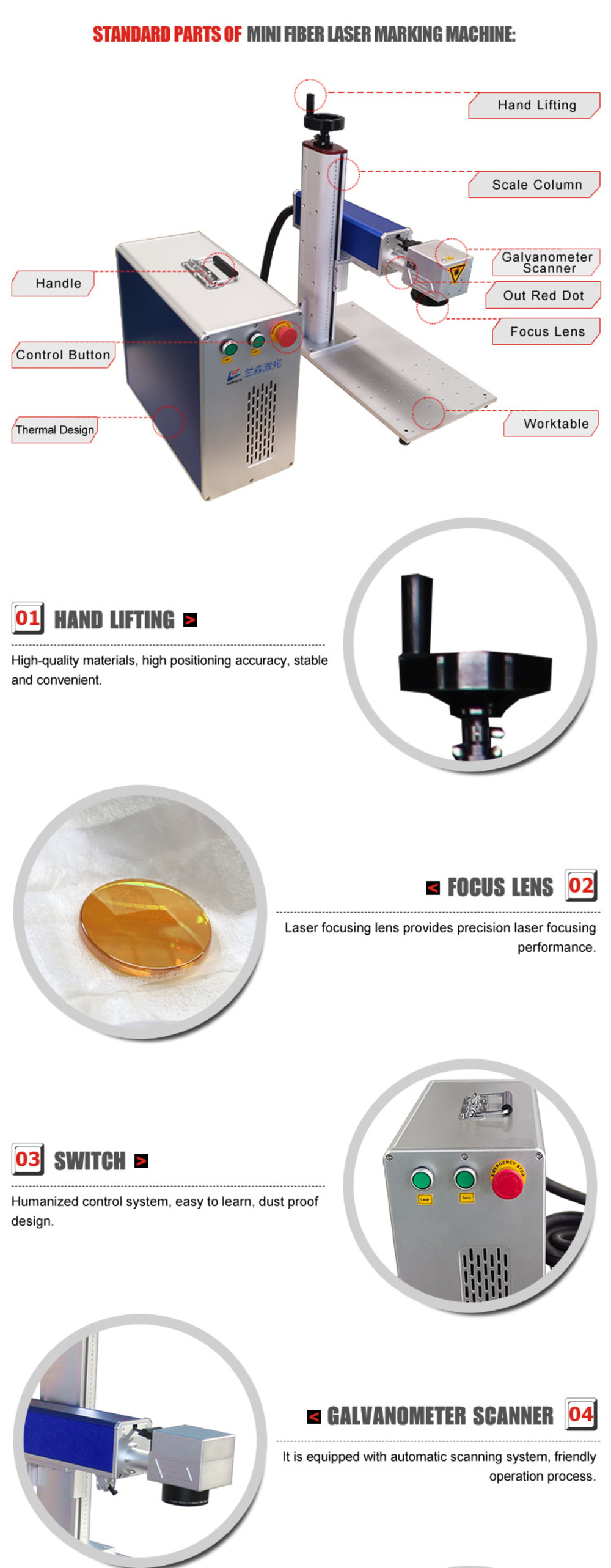

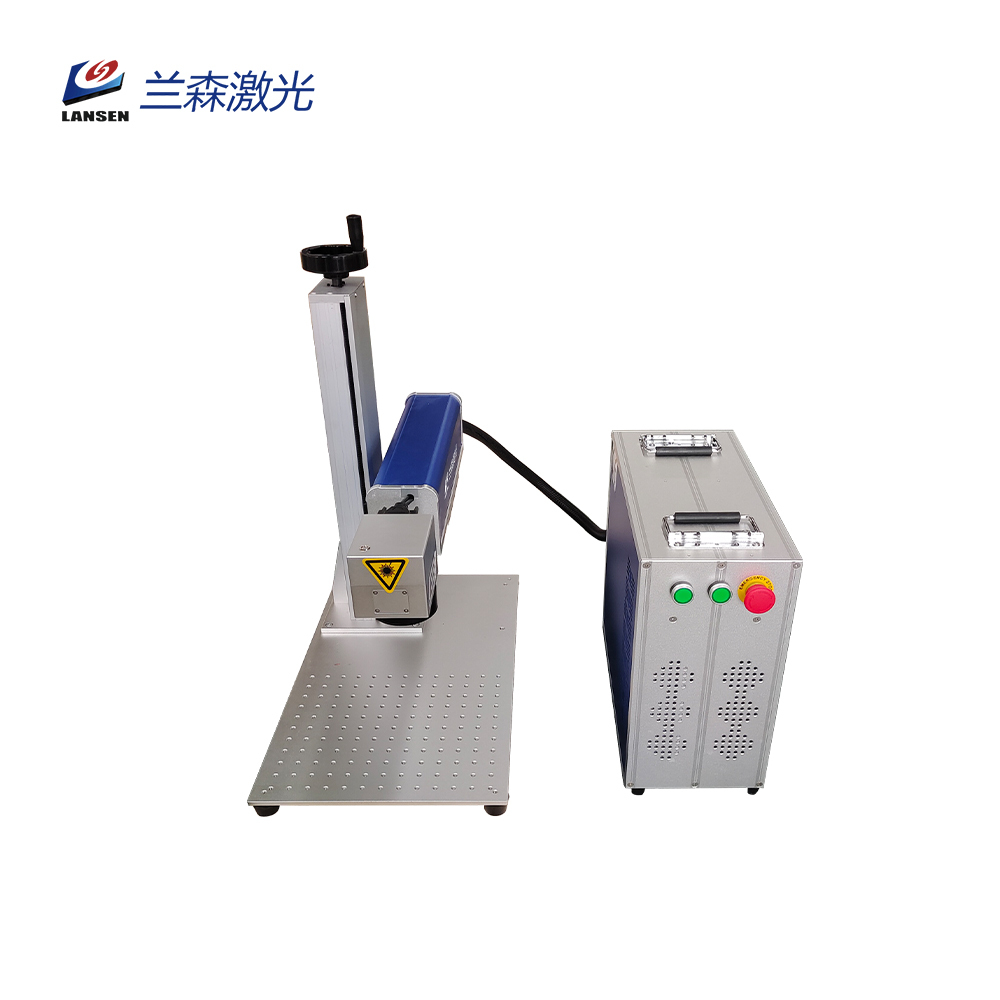

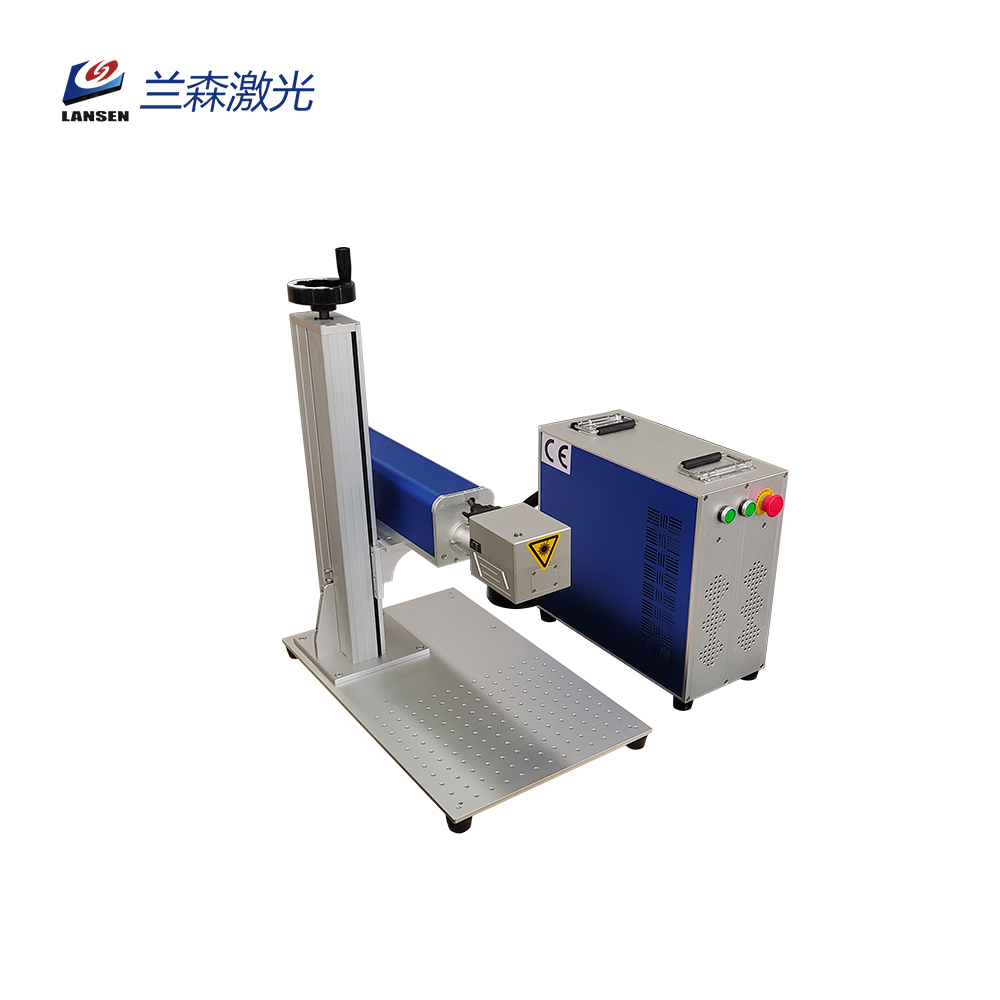

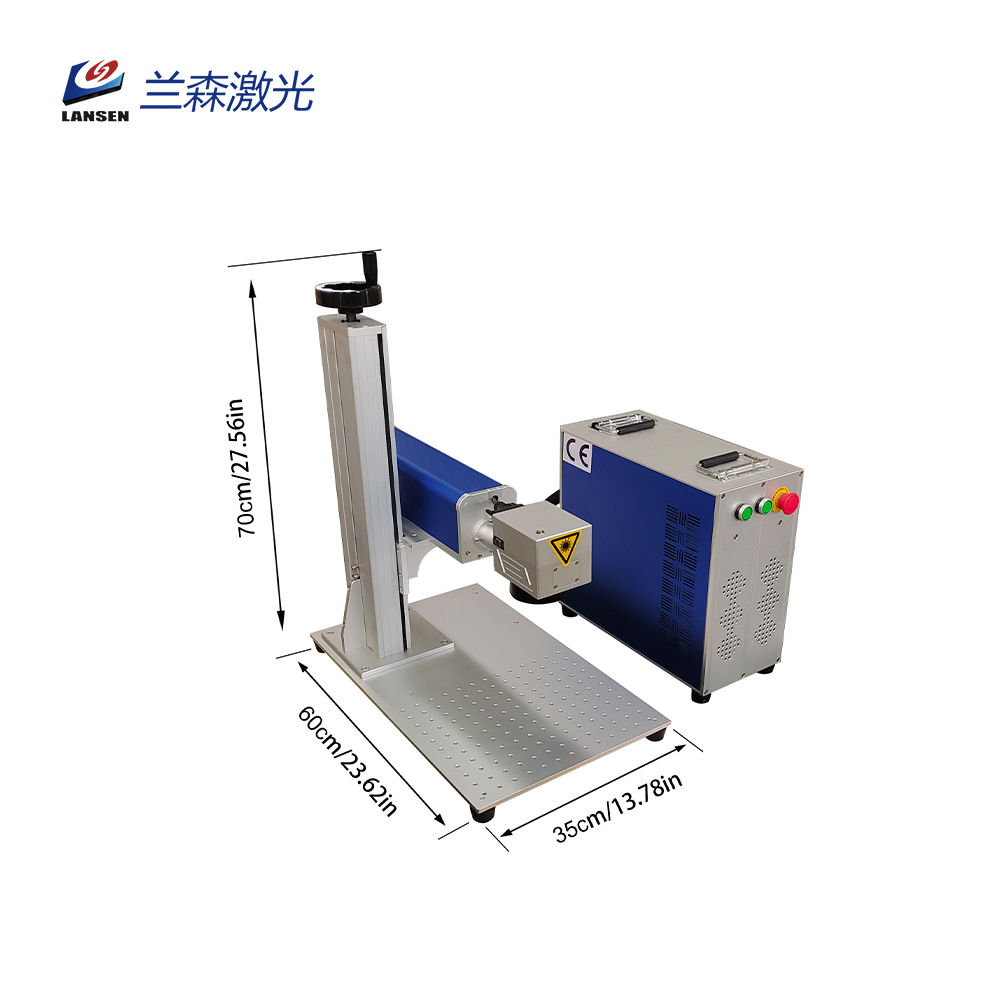

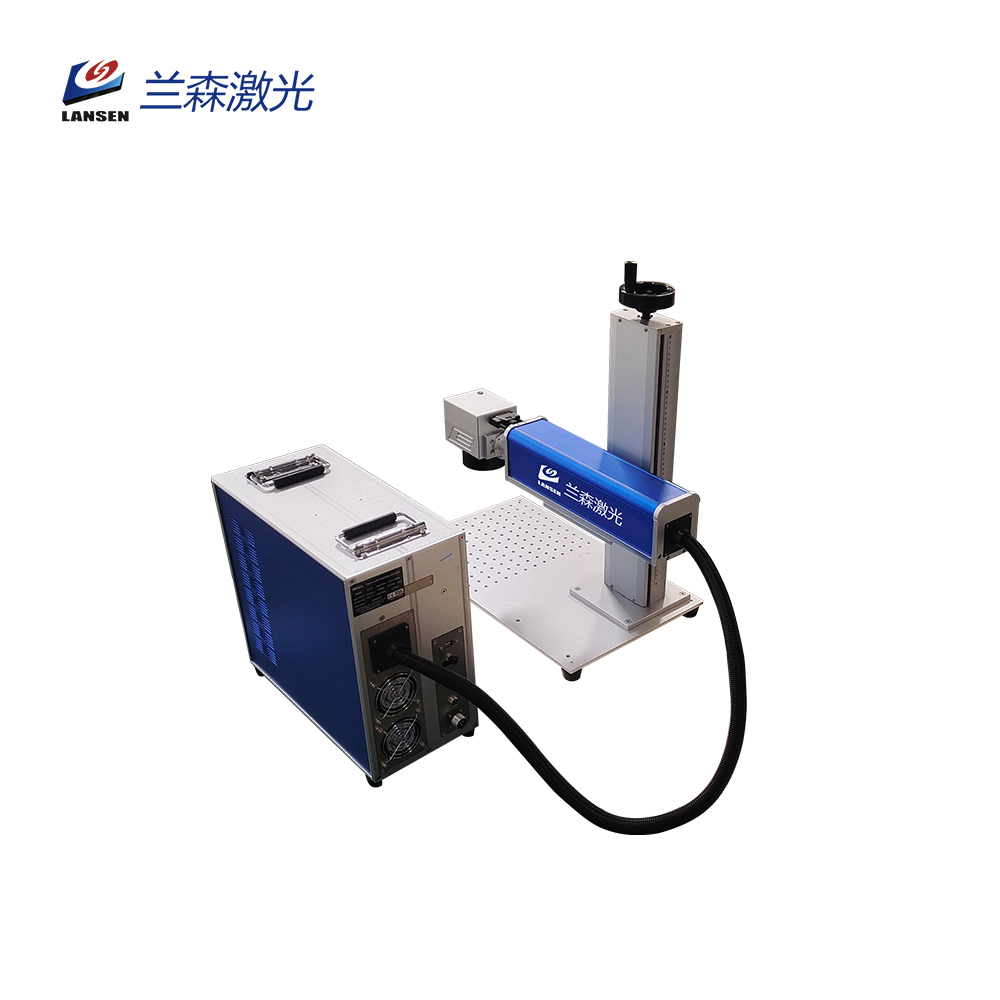

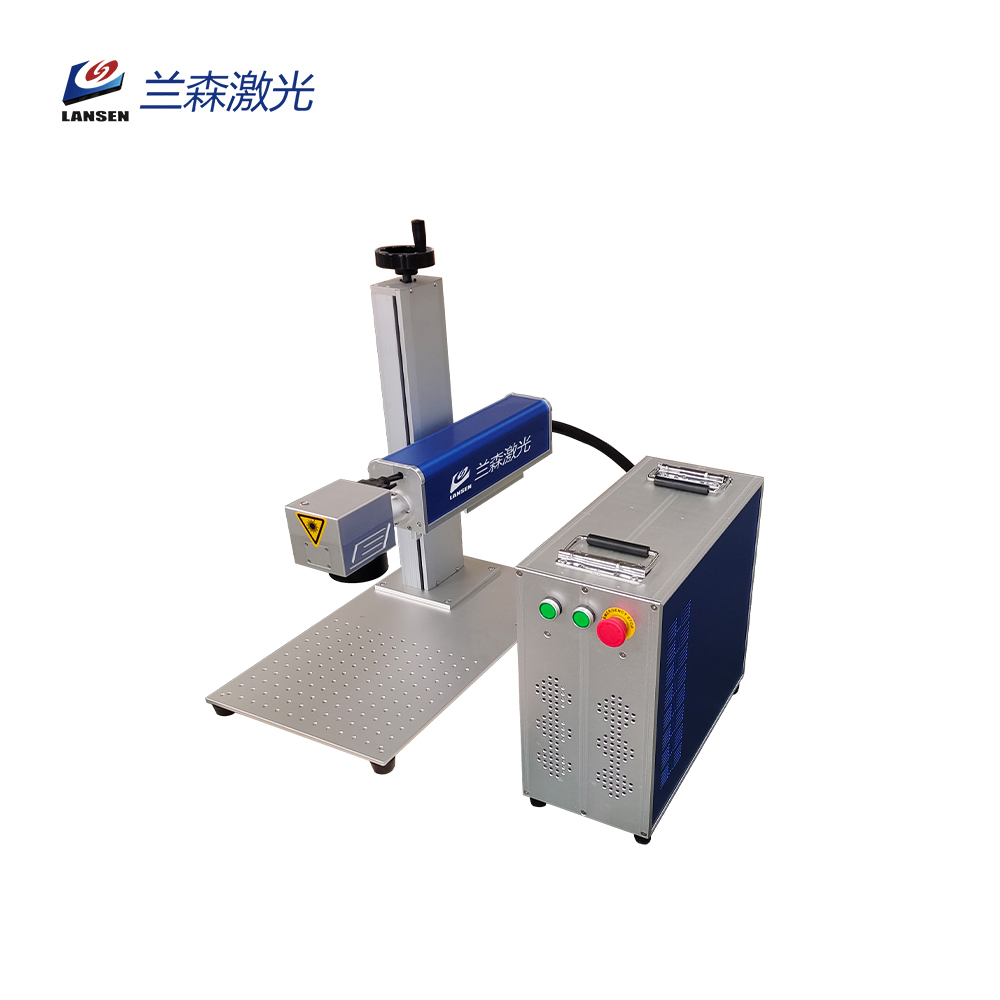

Mini Fiber Laser Marking machine has the advantages of small size, easy to move, and operation functions is sufficient. Also this machine can adds various optional parts to assist the special work requirements.
The Fiber Laser Marking machine for metal adopts international most advanced technology and the fiber laser source's lifetime can reach 100,000 hours, 5-6 years without any consumables and maintenance. This laser etching machine for metal with PC for metal is the best choice for the customers who have special requirements to the smallest & finest laser beam and character. The software has already been installed and the parameter is settled before delivery. Once received, the laser etcher could work directly without data adjustment. Laser marking machine price can do quickly and permanently mark of text, picture, serial numbers, bar codes, QR code, etc. for all metal material and part nonmetal material. It mainly use for mark on tools, metal parts, jewelry, firearms and industry polymers. Can be use as animal ear tag laser marking machine, jewelry laser marking machine, led bulb laser marking machine, etc
FEATURE
1).Wide range: Can be used on many materials like metal, plastic, leather, alloy etc.
2).Permanent marking: It won’t fade, run or become less discernable as time passes.
3).Long service time: Fiber laser model has a over 100,000 hours working life. Almost no maintenance during this period.
4).Easy to operate: Support almost any Windows-based software like Coreldraw,AutoCAD, Photoshop.
5).High precision: 0.003mm re-position accuracy. Minimum line width 0.01mm.
6).Non-contact process: Won’t cause mechanical extrusion or mechanical stress to materials.
50W above with cutting ability for thin silver, gold, aluminum.
|
Laser Source |
RAYCUS/JPT M7 |
|
Beam quality |
M2<1.8 |
|
Laser wavelength |
1064±1nm |
|
Power adjustment range |
10~100% |
|
Frequency ofpulse |
20~250KHz |
|
Power supply |
220V/50Hz(110V/60Hzcan choose) |
|
Cooling system |
Air Cooling |
|
Marking content suppor |
import vector files lke PLT |
|
|
Add Text,series number,etc.inSHX,TTFand CSF |
|
|
Add Barcode,QR code |
|
Working area |
110*110mm(Standard) |
|
Marking depth |
<1mm |
|
Marking speed |
<7000mm/s |
|
Min.line width |
0.05mm |
|
Repeatability accuracy |
0.003mm |
|
Power Machine |
300W-800W(Depend onfiber laser power) |
|
Operation temperature |
-15~+60*C |
|
Operating environment |
Clean and free of dust |
|
Warranty |
18 Months forlaser source,2 years for machine |
|

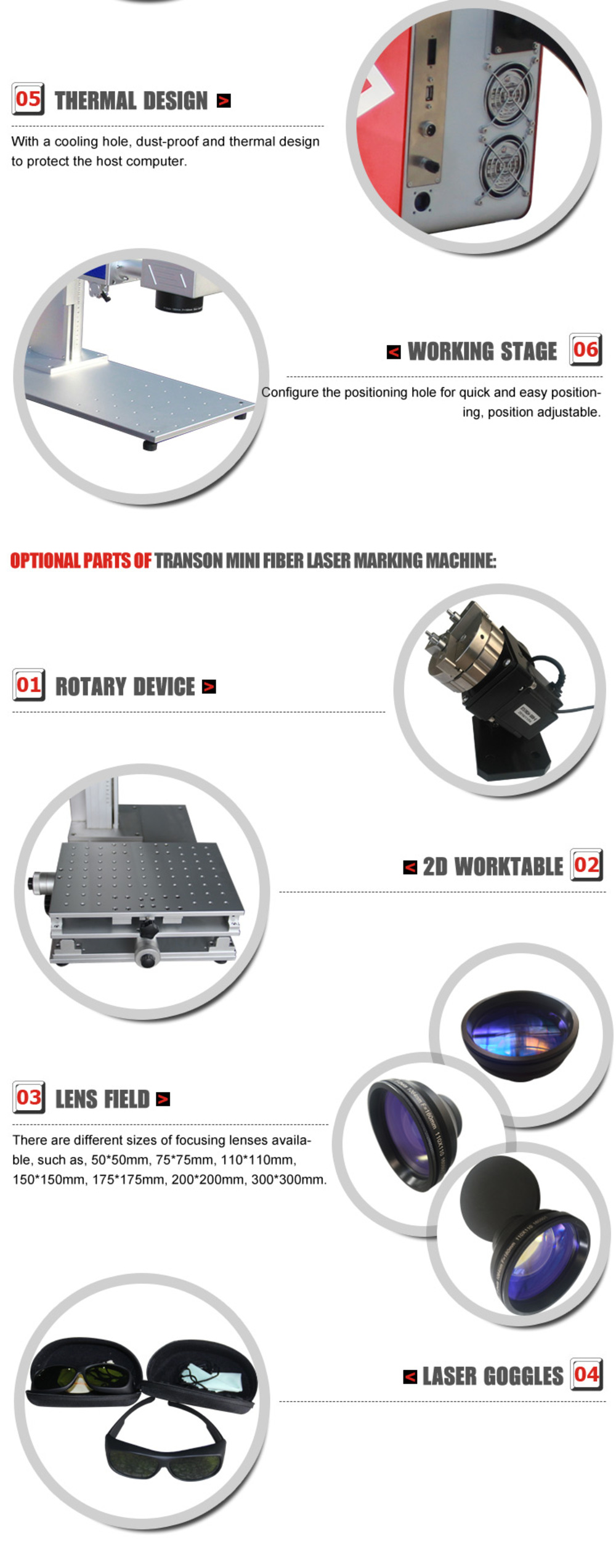

Optional |
Conveyor belt at differentsize/C02 laser source fornonmetal/Auto feeding |
|
Model |
LSD DiskLaser Marking Machine |
|
Type |
Standby |
|
Computer |
ncludes PC |
|
Mode of operation |
Pulsed |
|
Polarization |
random |
