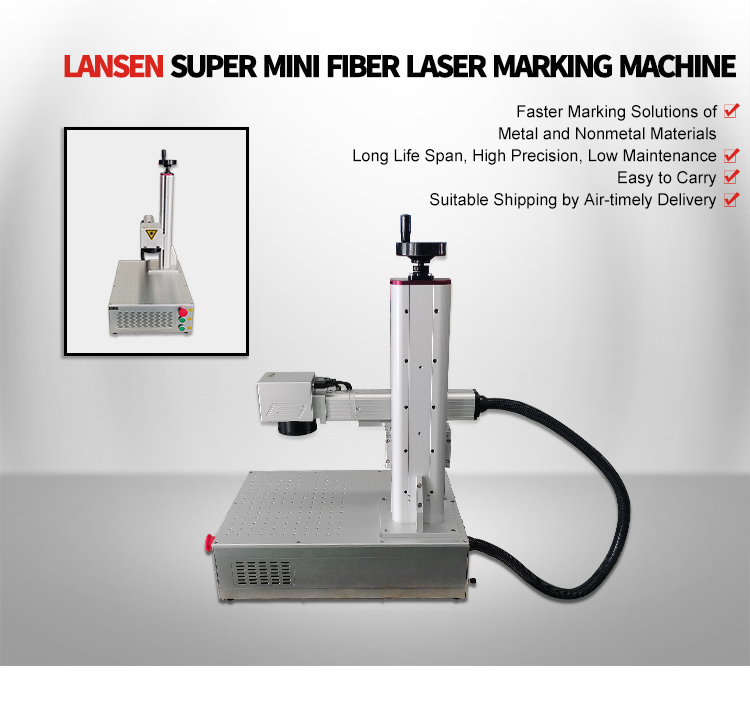

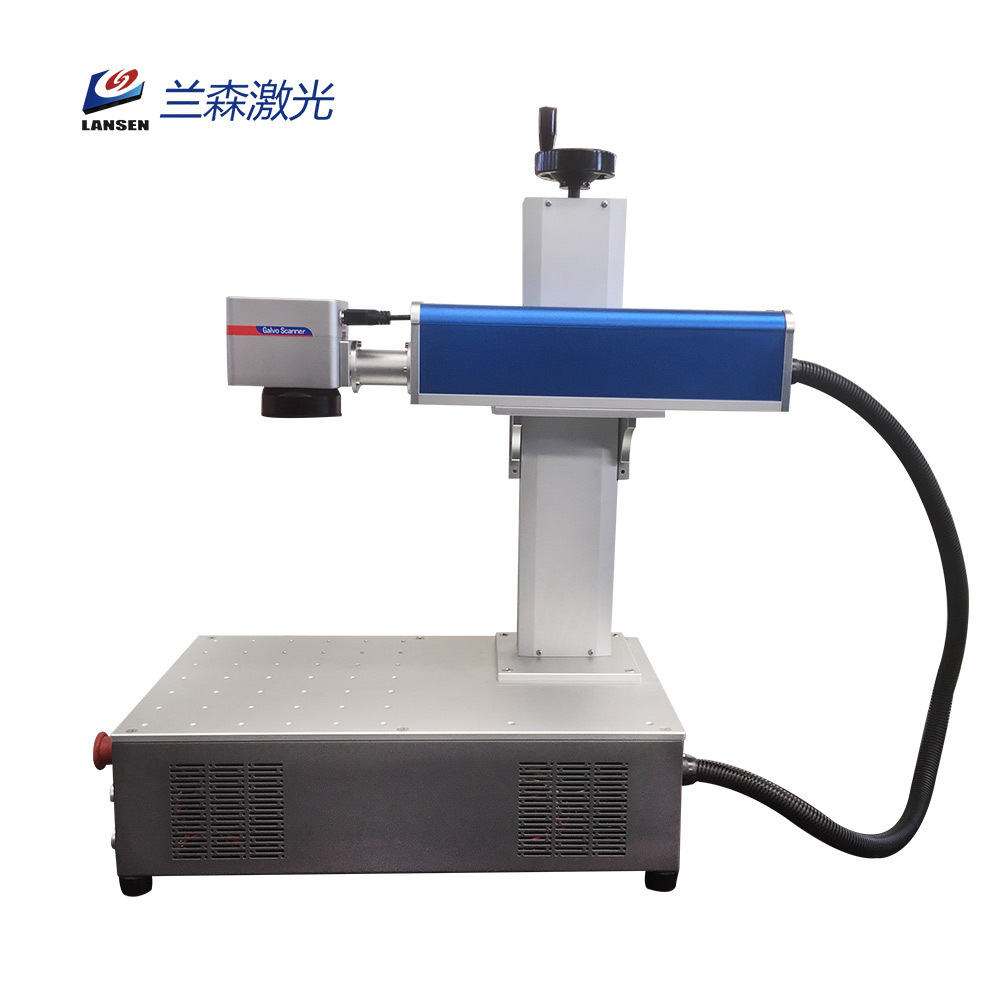

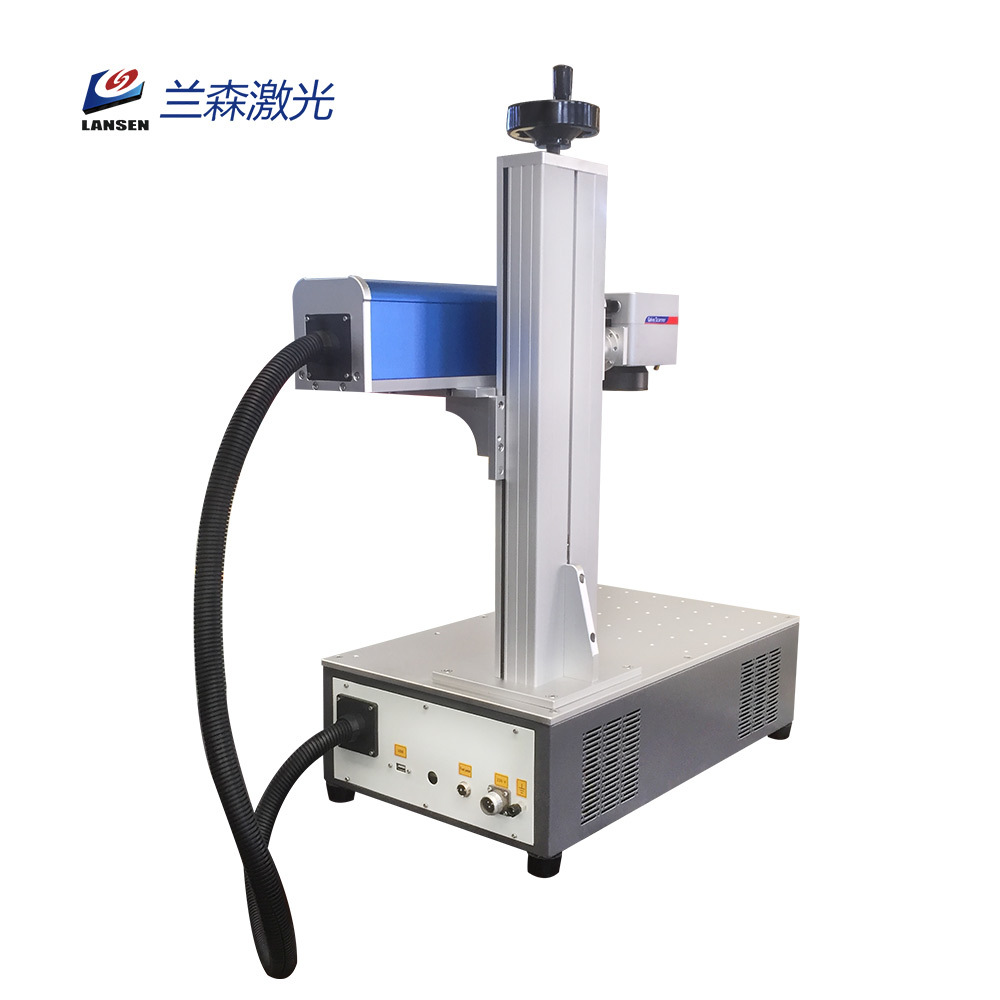

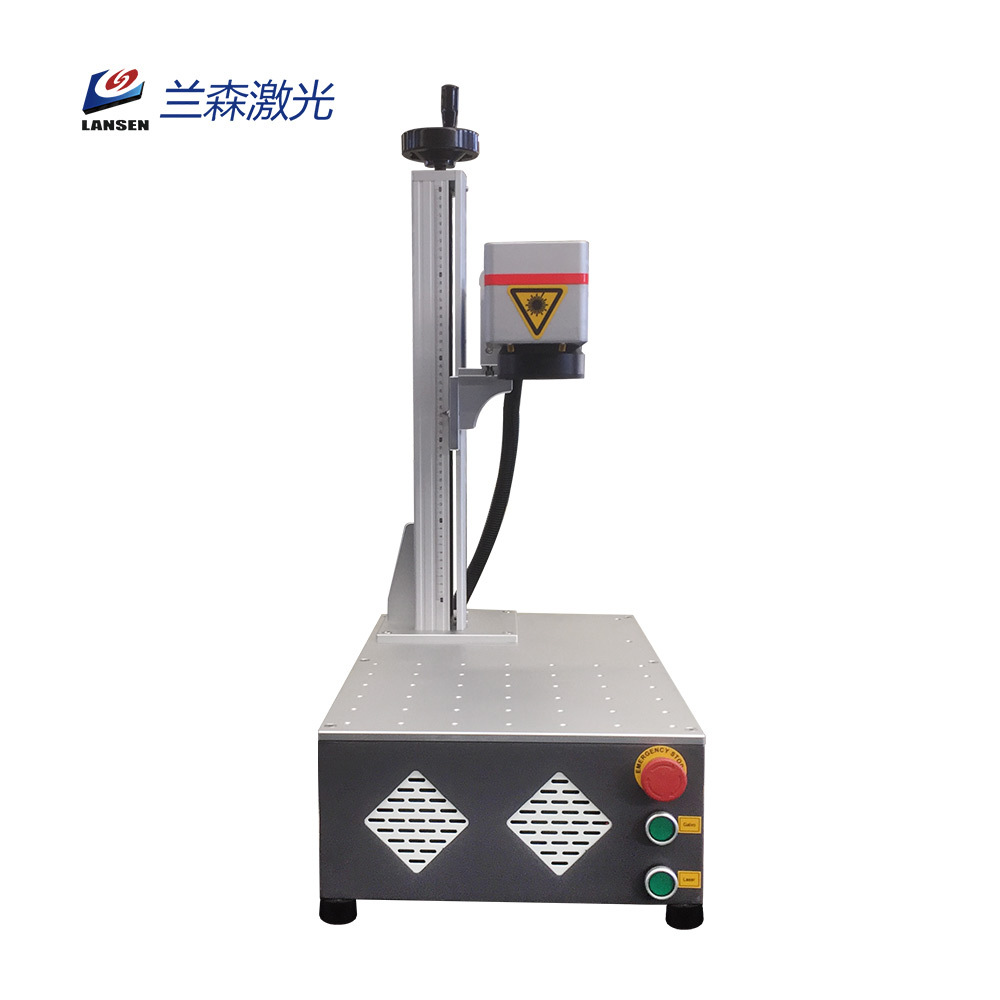

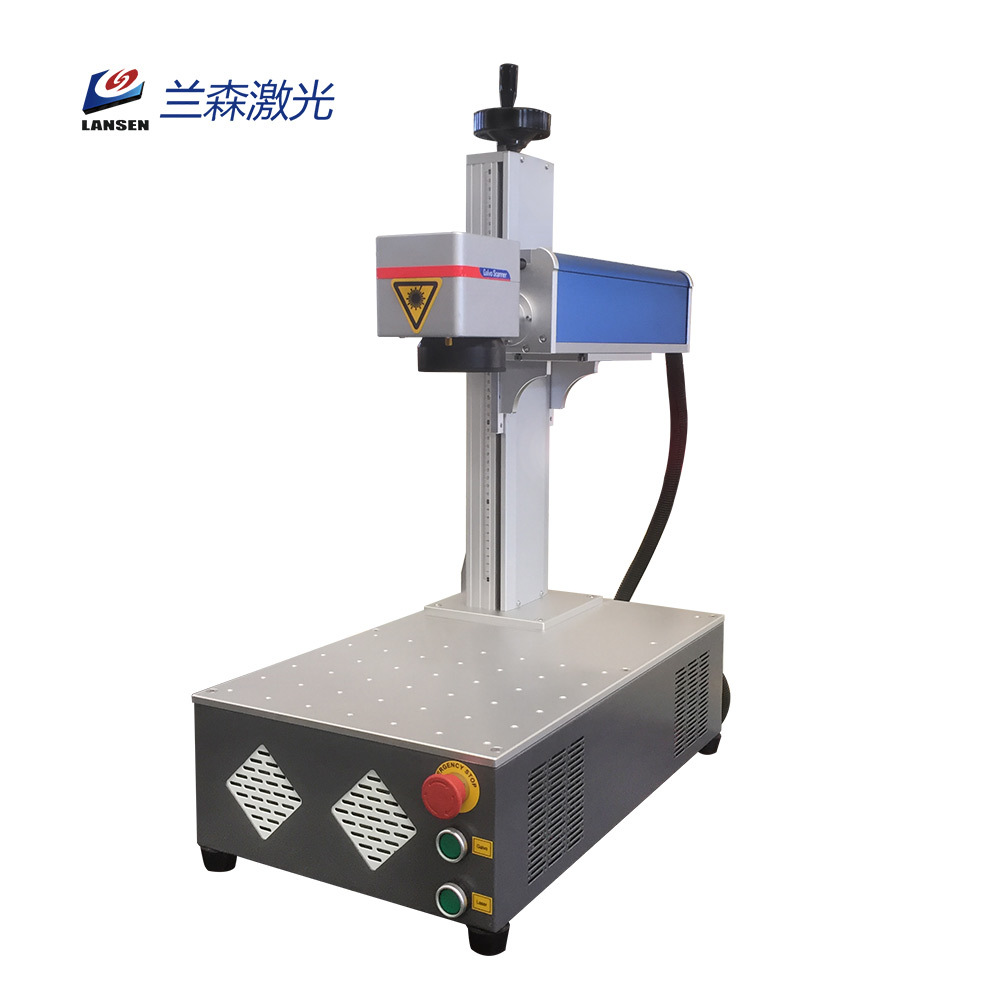

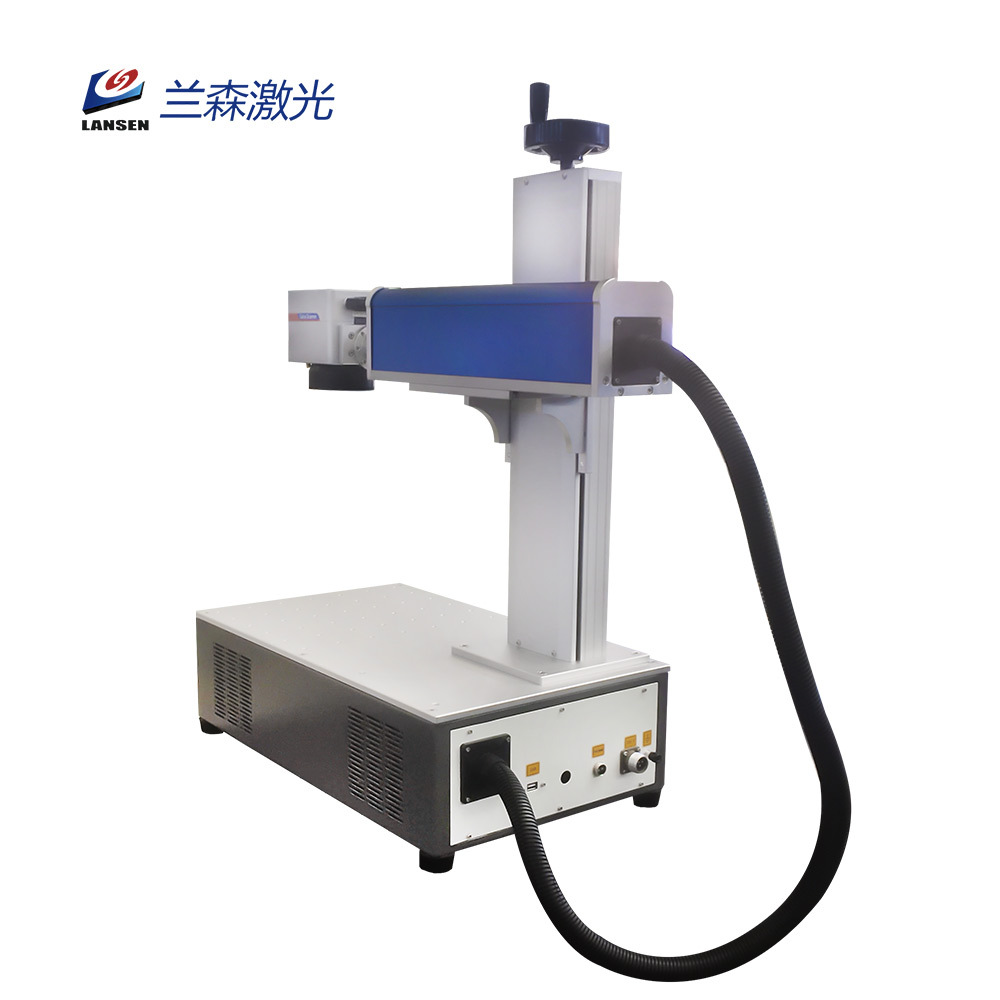

The Fiber Laser Marking machine for metal adopts international most advanced technology and the fiber laser source's lifetime can reach one hundred thousand hours, Five to ten years without any consumables and maintenance. This laser etching machine for metal with PC for metal is the best choice for the customers who have special requirements to the smallest and finest laser beam and character. The software has already been installed and the parameter is settled before delivery. Once received, the laser etcher could work directly without data adjustment.











|

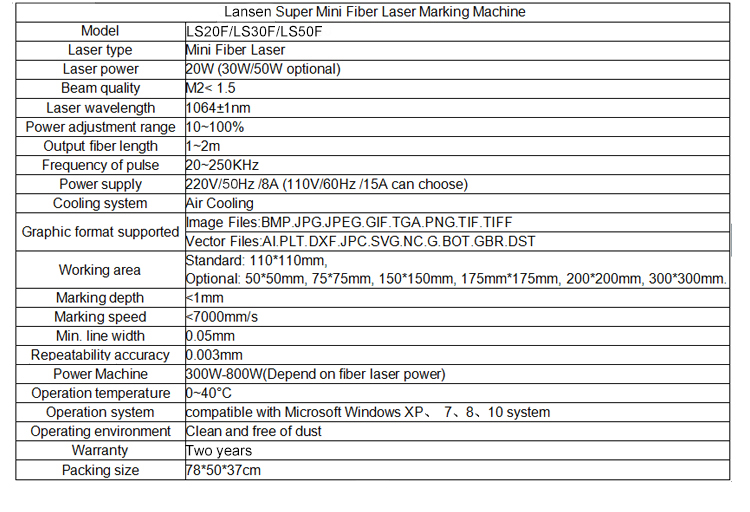

Laser Source |
RAYCUS/JPT M7 |
|
Beam quality |
M2<1.8 |
|
Laser wavelength |
1064±1nm |
|
Power adjustment range |
10~100% |
|
Frequency ofpulse |
20~250KHz |
|
Power supply |
220V/50Hz(110V/60Hzcan choose) |
|
Cooling system |
Air Cooling |
|
Marking content suppor |
import vector files lke PLT |
|
|
Add Text,series number,etc.inSHX,TTFand CSF |
|
|
Add Barcode,QR code |
|
Working area |
110*110mm(Standard) |
|
Marking depth |
<1mm |
|
Marking speed |
<7000mm/s |
|
Min.line width |
0.05mm |
|
Repeatability accuracy |
0.003mm |
|
Power Machine |
300W-800W(Depend onfiber laser power) |
|
Operation temperature |
-15~+60*C |
|
Operating environment |
Clean and free of dust |
|
Warranty |
18 Months forlaser source,2 years for machine |
|
Optional |

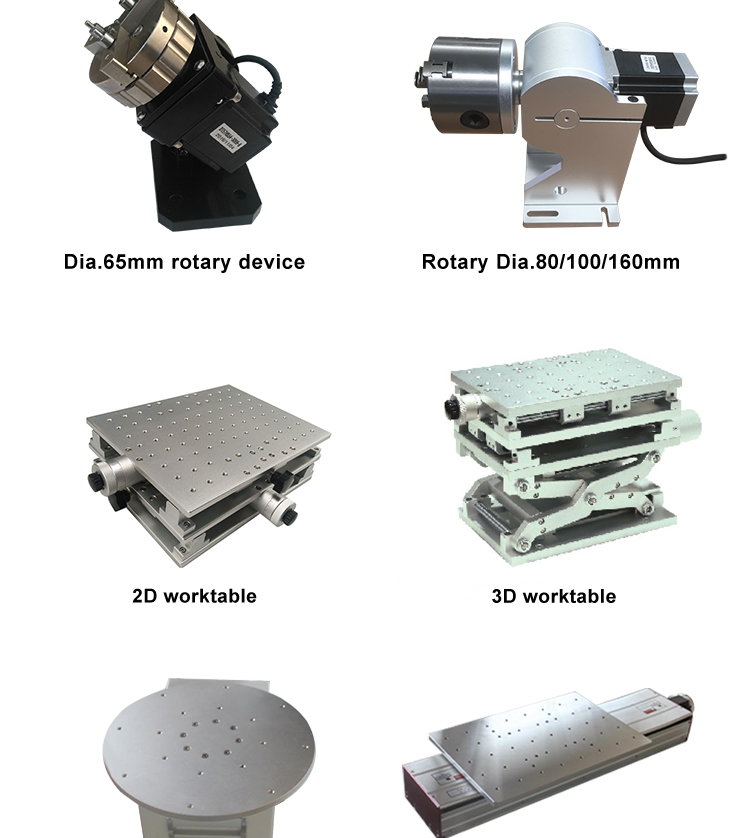

Conveyor belt at differentsize/C02 laser source fornonmetal/Auto feeding |
|
Model |
LSD DiskLaser Marking Machine |
|
Type |
Standby |
|
Computer |
ncludes PC |
|
Mode of operation |
Pulsed |
|
Polarization |
random |
