Name: Integrated handheld fiber laser marking machine
Brand: JINAN LANSEN LASER EQUIPMENT CO., LTD
Availability: InStock
Rating: 5 (1 reviews)

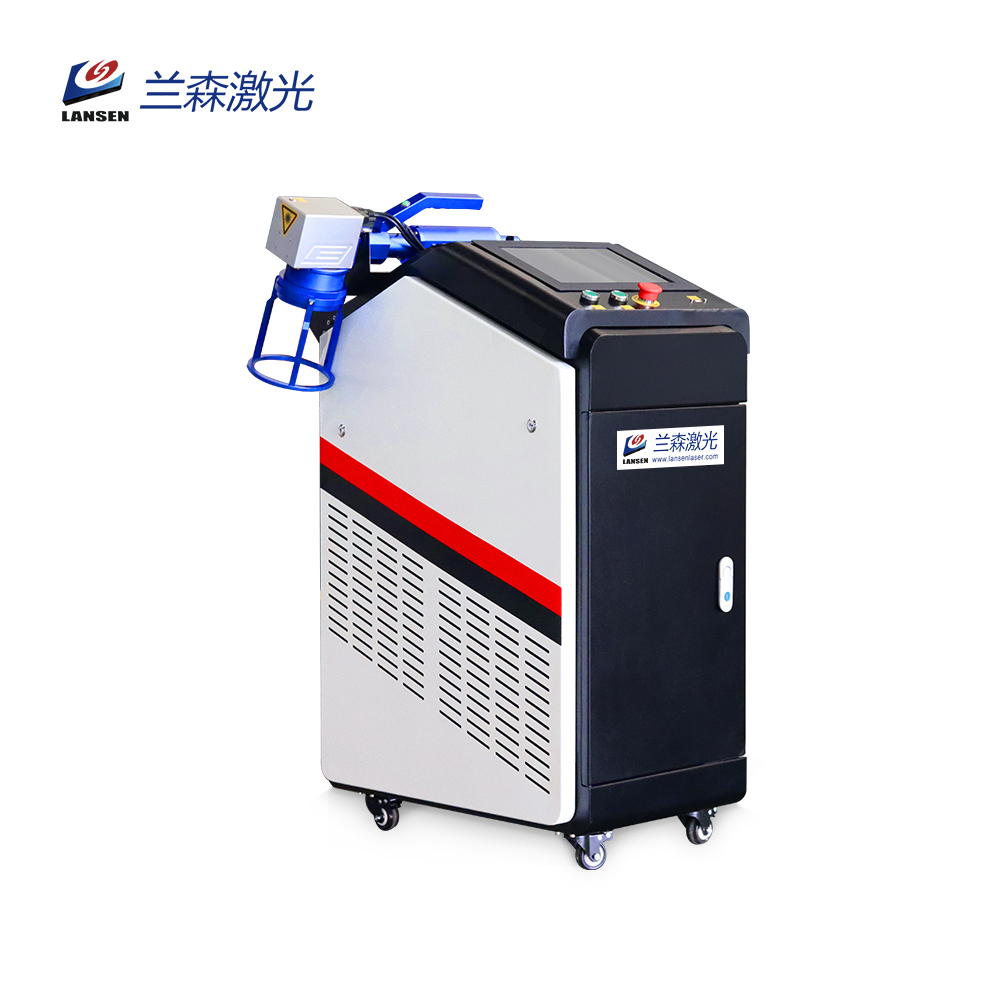

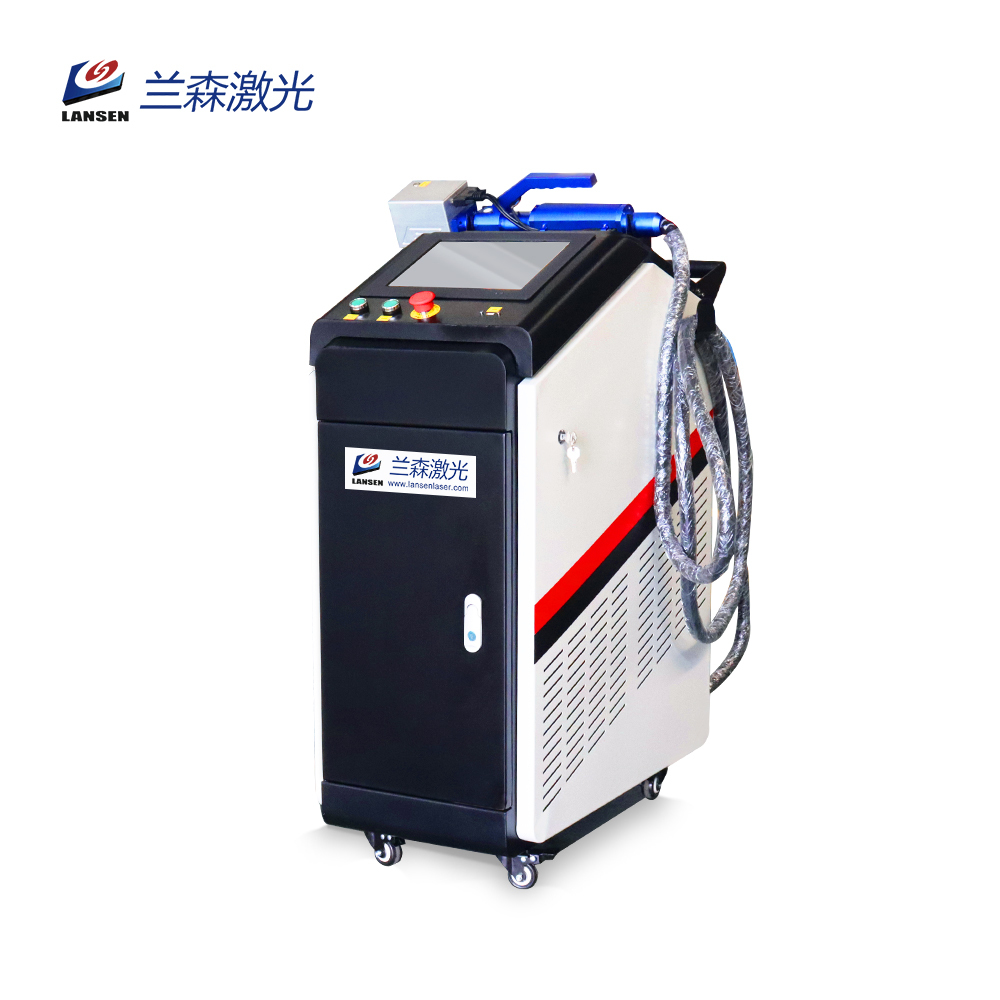

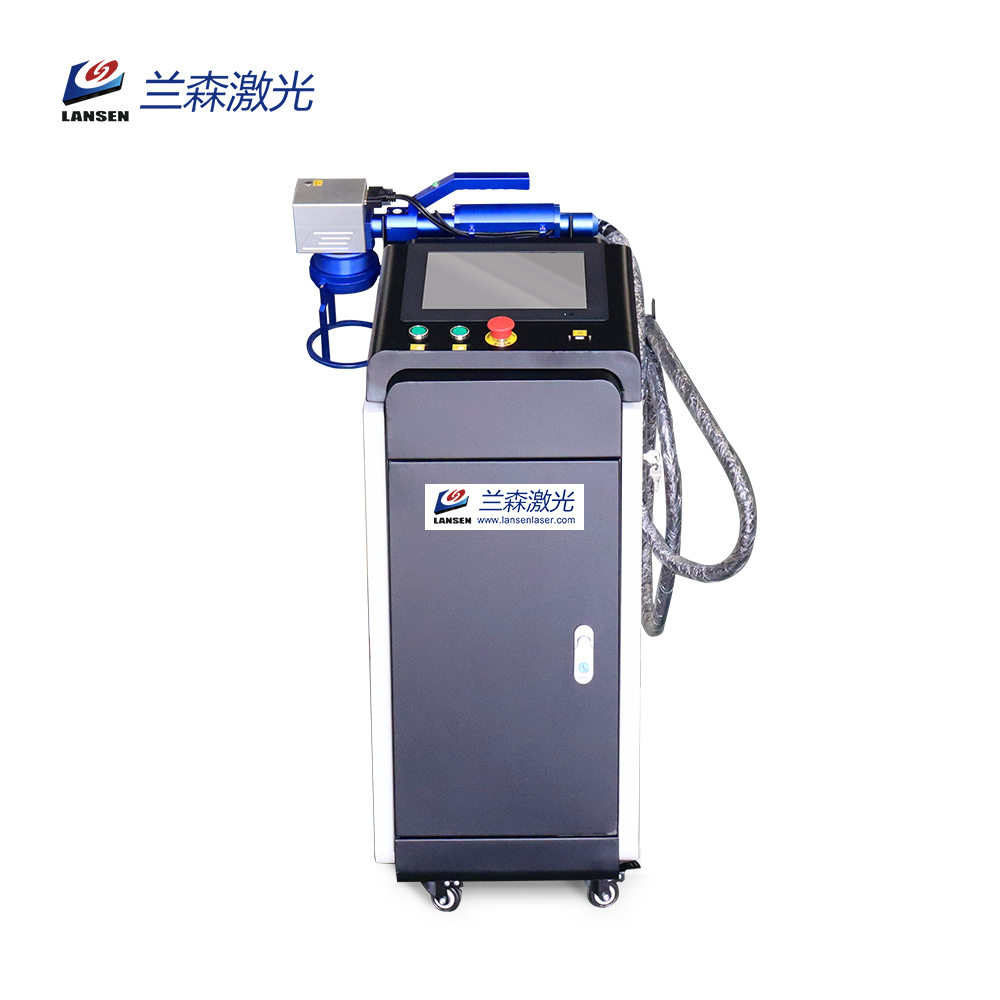

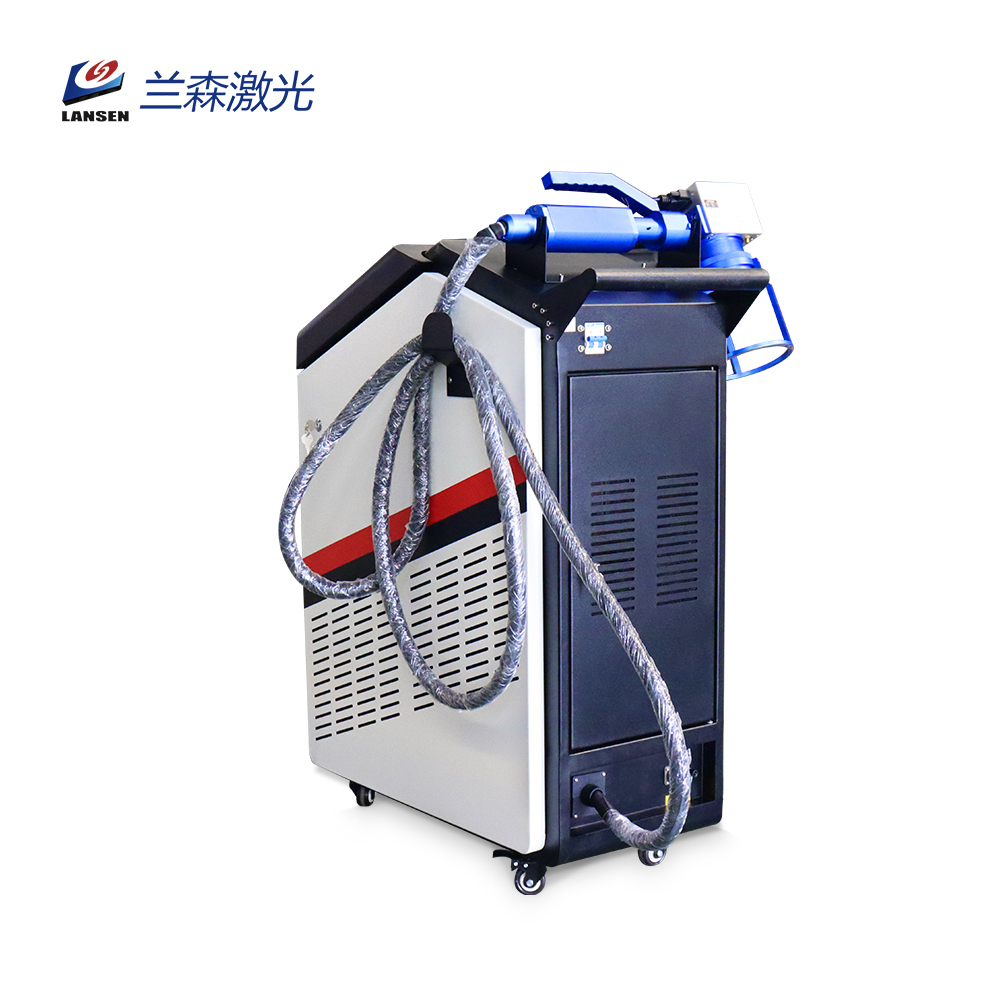

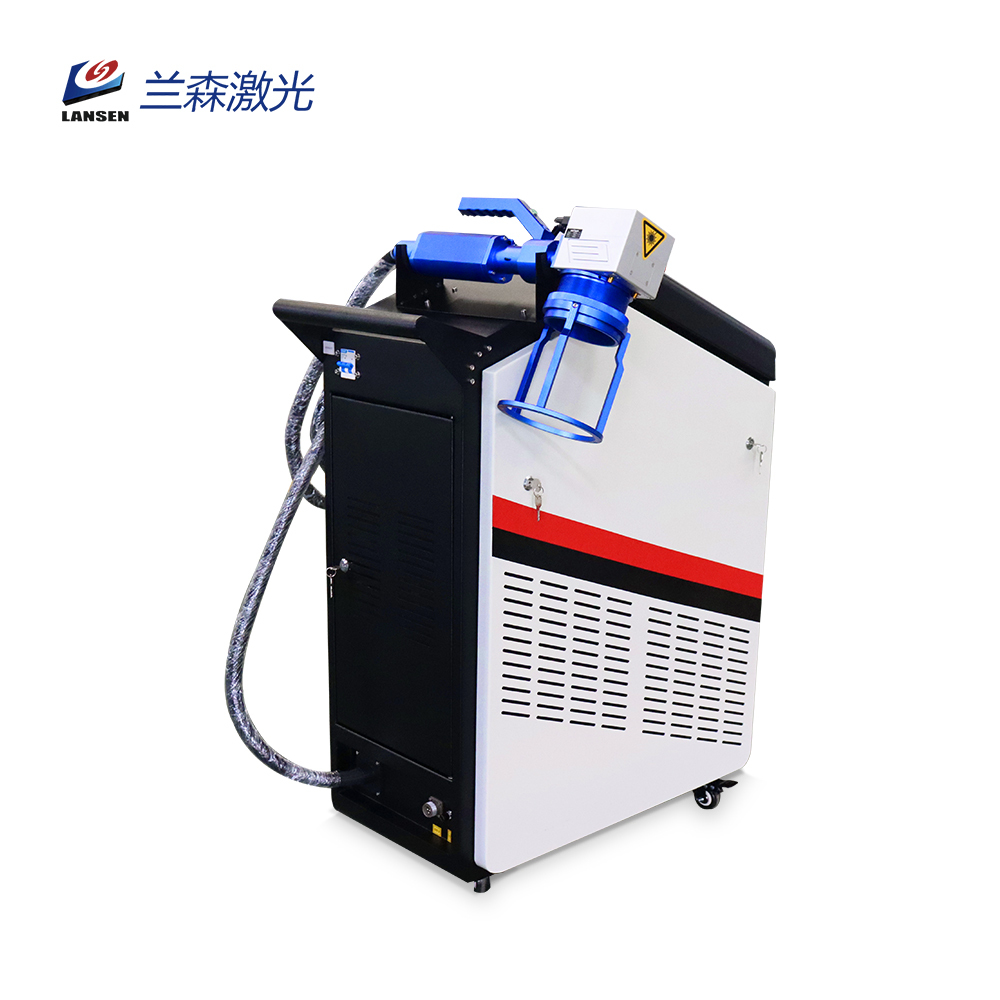

Integrated handheld fiber laser marking machine

This integrated touch screen control fiber laser marking machine with 5m fiber cable, universal wheel and focusing bracket,Easy to move and operate, suitable for large mechanical marking,logo printing

Description
Parameter

Features:
1, Compliant, CE Certification, ISO9001 quality certification.
2, Fast, permanently precise and smooth mark effect.
3, Wide application, can mark on all metal and part nonmetal material.
4, With focus circle, 5m fiber cable
5. With touch screen computer

Laser type	Fiber Laser
Laser power	30w 50w 100w
Beam quality	M2<1.5
Laser wavelength	1064±1nm
Power adjustment range	10~100%
Frequency ofpulse	20~250KHz
Power supply	220V/50Hz(110V/60Hzcan choose)
Cooling system	Air Cooling
Marking content suppor	mport vector files lke PLT
Working area	110110mm(Standard) 5050mm/75*75mm,(0ptional)
Marking depth	<1mm
Marking speed	<7000mm/s
Min.line width	0.05mm
Repeatability accuracy	0.003mm
Power Machine	300W-800W(Depend onfiber laser power)
Operation temperature	-15~+60*C
Operating environment	Clean and free of dust
Warranty	18 Months forlaser source,2 years for machine
Optional	Conveyor belt at differentsize/C02 laser source fornonmetal/Auto feeding system

The Fiber Laser Marking machine for metal adopts international most advanced technology and the fiber laser source's lifetime can reach 100,000 hours, 5-6 years without any consumables and maintenance. This laser etching machine for metal with PC for metal is the best choice for the customers who have special requirements to the smallest & finest laser beam and character. The software has already been installed and the parameter is settled before delivery. Once received, the laser etcher could work directly without data adjustment. Laser marking machinecan do quickly and permanently mark of text, picture, serial numbers, bar codes, QR code, etc. for all metal material and part nonmetal material. It mainly use for mark on tools, metal parts, jewelry, firearms and industry polymers. Can be use as animal ear tag laser marking machine, jewelry laser marking machine, led bulb laser marking machine, etc.

Laser Source	RAYCUS/JPT M7
Beam quality	M2<1.8
Laser wavelength	1064±1nm
Power adjustment range	10~100%
Frequency ofpulse	20~250KHz
Power supply	220V/50Hz(110V/60Hzcan choose)
Cooling system	Air Cooling
Marking content suppor	import vector files lke PLT
	Add Text,series number,etc.inSHX,TTFand CSF
	Add Barcode,QR code
Working area	110110mm(Standard) 5050mm,7575mm,150150mm,175mm175mm,200200mm,300*300mm(0ption al)
Marking depth	<1mm
Marking speed	<7000mm/s
Min.line width	0.05mm
Repeatability accuracy	0.003mm
Power Machine	300W-800W(Depend onfiber laser power)
Operation temperature	-15~+60*C
Operating environment	Clean and free of dust
Warranty	18 Months forlaser source,2 years for machine
Optional	Conveyor belt at differentsize/C02 laser source fornonmetal/Auto feeding system
Model	LSD DiskLaser Marking Machine
Type	Standby
Computer	ncludes PC
Mode of operation	Pulsed
Polarization	random
