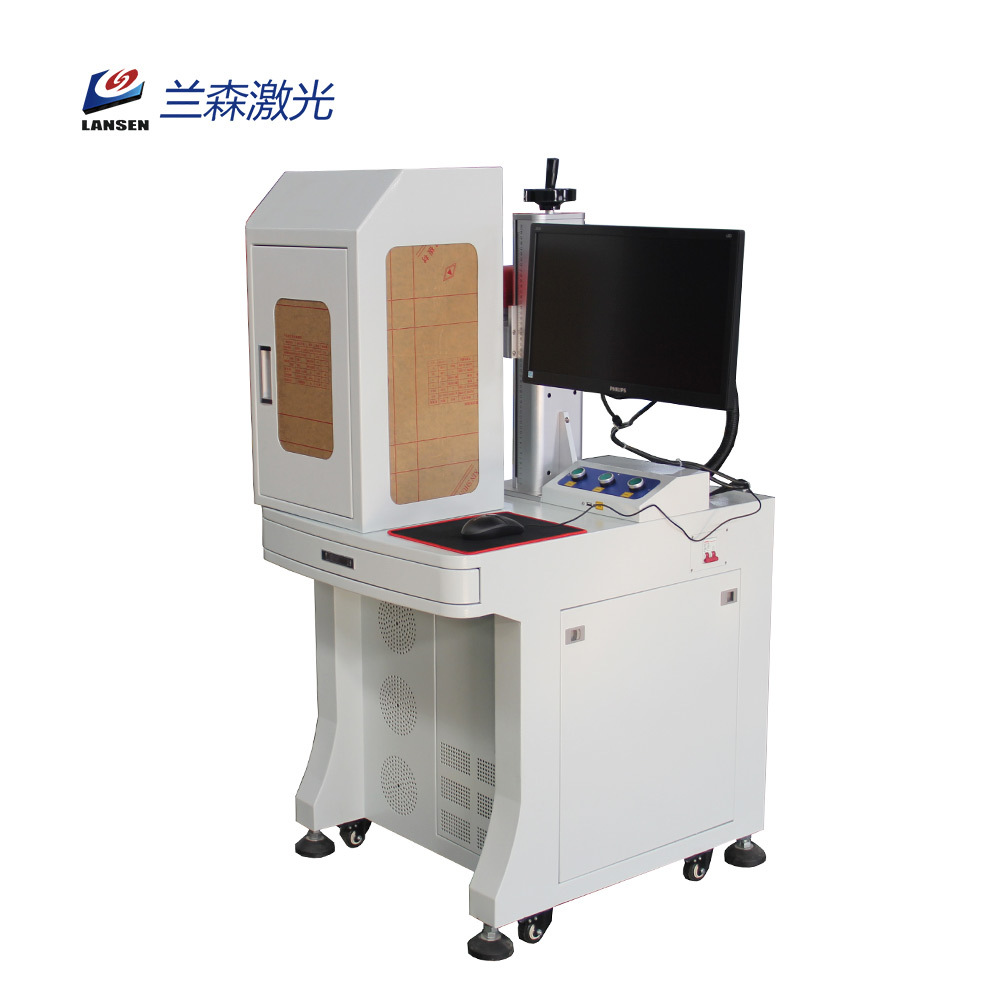

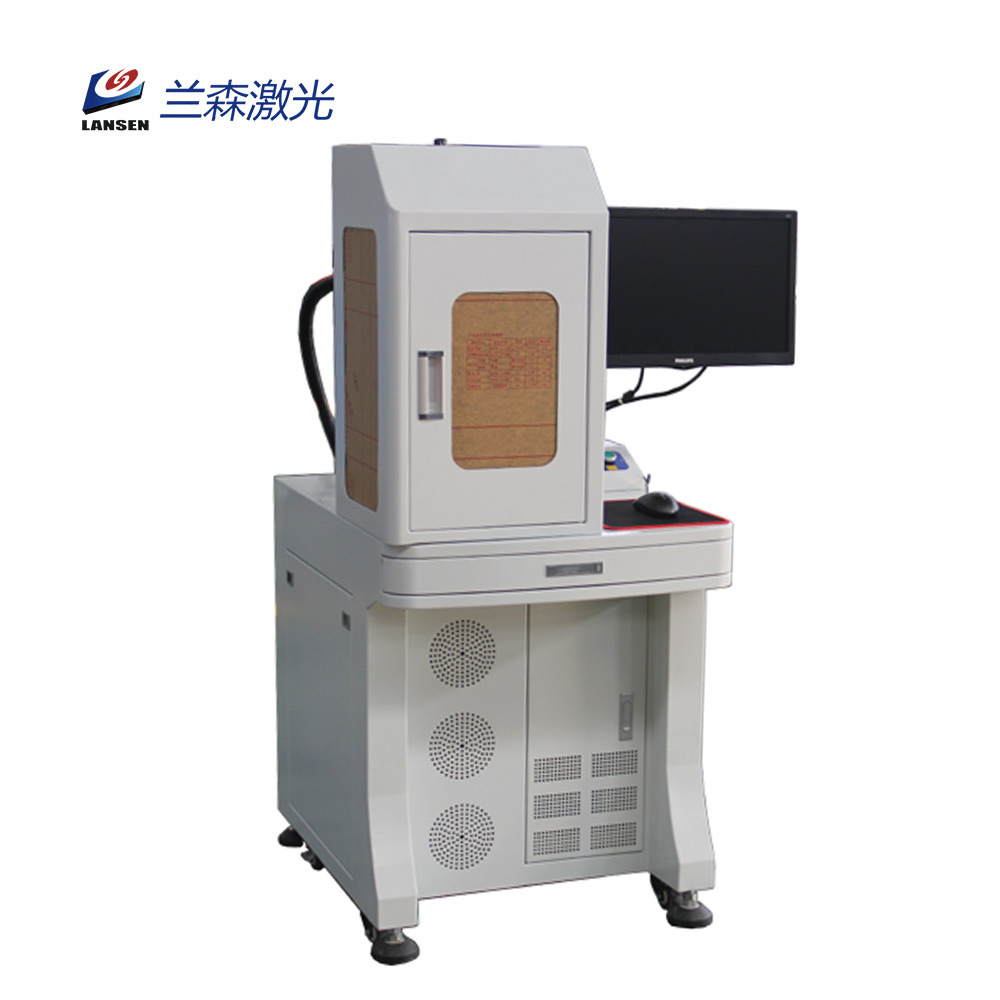

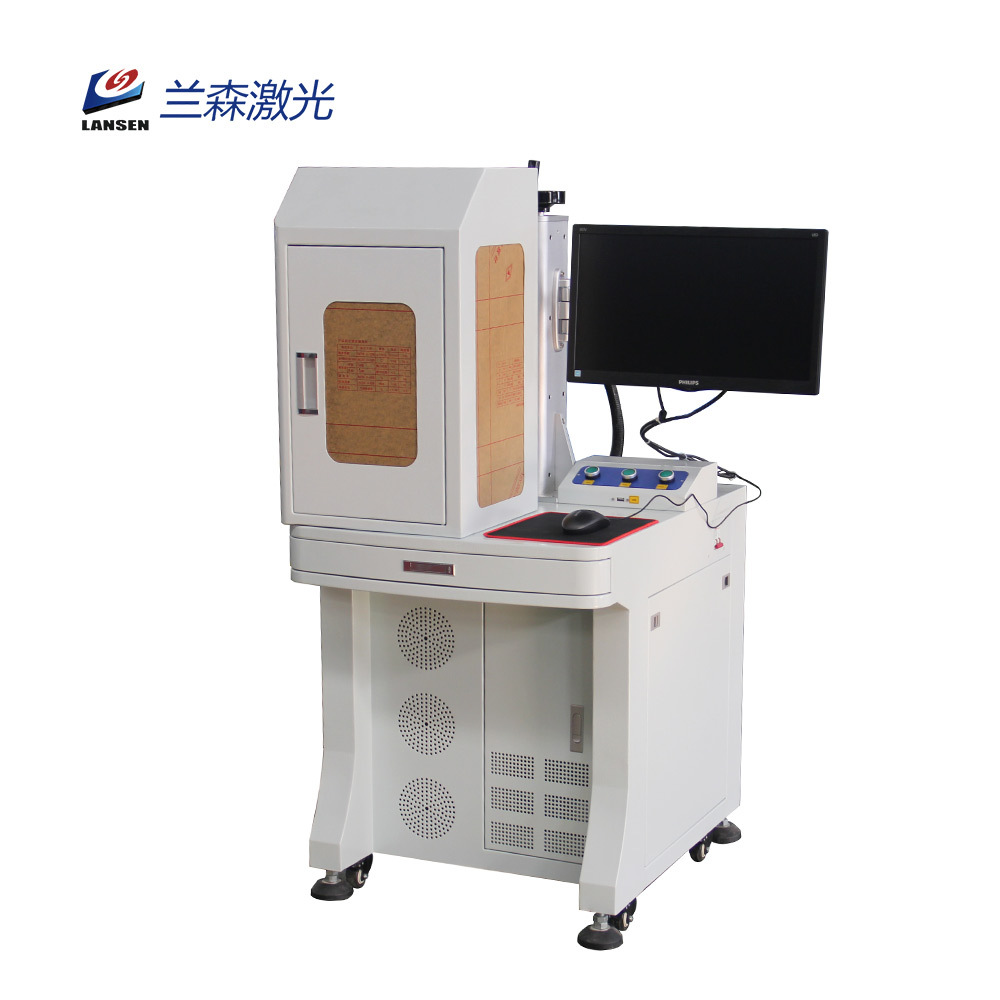

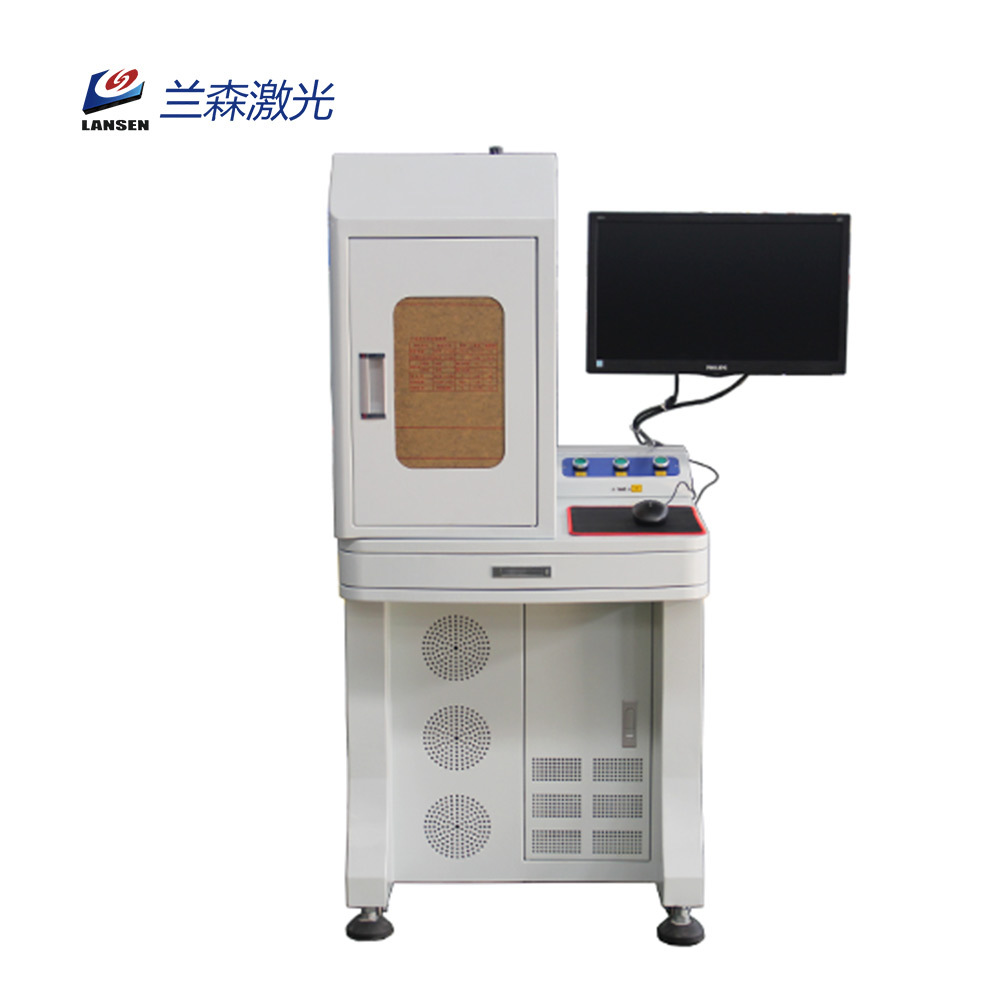

The Closed Fiber Laser Marking machine has a sealed structure. During work, fog will be kept in the enclosed laser cabinet without emission to outside. Environmental, friendly and healthy, this design is special for European market or other markets which have high demands for working environment. The effect of the metal etching machines is particularly outstanding.
The Fiber Laser Marking machine for metal adopts international most advanced technology and the fiber laser source's lifetime can reach 100,000 hours, 5-6 years without any consumables and maintenance. This laser etching machine for metal with PC for metal is the best choice for the customers who have special requirements to the smallest & finest laser beam and character. The software has already been installed and the parameter is settled before delivery. Once received, the laser etcher could work directly without data adjustment. Laser marking machinecan do quickly and permanently mark of text, picture, serial numbers, bar codes, QR code, etc. for all metal material and part nonmetal material. It mainly use for mark on tools, metal parts, jewelry, firearms and industry polymers. Can be use as animal ear tag laser marking machine, jewelry laser marking machine, led bulb laser marking machine, etc. 50W above with cutting ability for thin silver, gold, aluminum.
Features:|
Laser Power |
20w |
30w |
50w |
100w |
||
|
Laser Wavelength |
1064nm |
|||||
|
Q-frequency |
20KHz-30KHz |
|||||
|
Divergence |
0.3mard |
|||||
|
Marking Range |
110*110mm/200*200mm/300*300mm |
|||||
|
Minimum LineWidth |
0.02mm |
|||||
|
Minimum Character |
0.15mm |
|||||
|
Marking Depth |
0~0.5mm |
|||||
|
Engraving Line Speed |
≤7000mm/s |
|||||
|
Repeatability Accuracy |
±0.001mm |
|||||
|
Beam Quality |
M2:1.2~1.8 |
|||||
|
Marking Format |
Graphics,Text,BarCodes,Two-dimensional Code,Automatically |
|||||
|
Graphic Format Supported |
BMP IPG,GIF,TGA.PNG,TIF.AI,DXFDST₂PLTetc |
|||||
|
Working Voltage |
220V±10%/50Hz4A |
|||||
|
UnitPower |
<0.5kw |
|||||
|
Use of theEnvironment |
Clean and Dust Free o Dustless |
|||||
|
Working Condition Humidity |
5%-75%.Free of Condensed Water |
|||||
|
Laser ModuleLife |
>100000 hours |
|||||
|
Laser Source |
RAYCUS/JPT M7 |
|
Beam quality |
M2<1.8 |
|
Laser wavelength |
1064±1nm |
|
Power adjustment range |
10~100% |
|
Frequency ofpulse |
20~250KHz |
|
Power supply |
220V/50Hz(110V/60Hzcan choose) |
|
Cooling system |
Air Cooling |
|
Marking content suppor |
import vector files lke PLT |
|
|
Add Text,series number,etc.inSHX,TTFand CSF |
|
|
Add Barcode,QR code |
|
Working area |
110*110mm(Standard) |
|
Marking depth |
<1mm |
|
Marking speed |
<7000mm/s |
|
Min.line width |
0.05mm |
|
Repeatability accuracy |
0.003mm |
|
Power Machine |
300W-800W(Depend onfiber laser power) |
|
Operation temperature |
-15~+60*C |
|
Operating environment |
Clean and free of dust |
|
Warranty |
18 Months forlaser source,2 years for machine |
|
Optional |
Conveyor belt at differentsize/C02 laser source fornonmetal/Auto feeding |
|
Model |
LSD DiskLaser Marking Machine |
|
Type |
Standby |
|
Computer |
ncludes PC |
|
Mode of operation |
Pulsed |
|
Polarization |
random |
