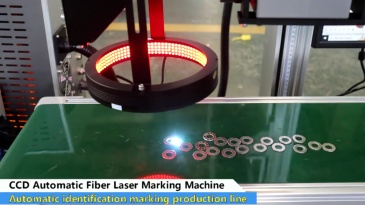

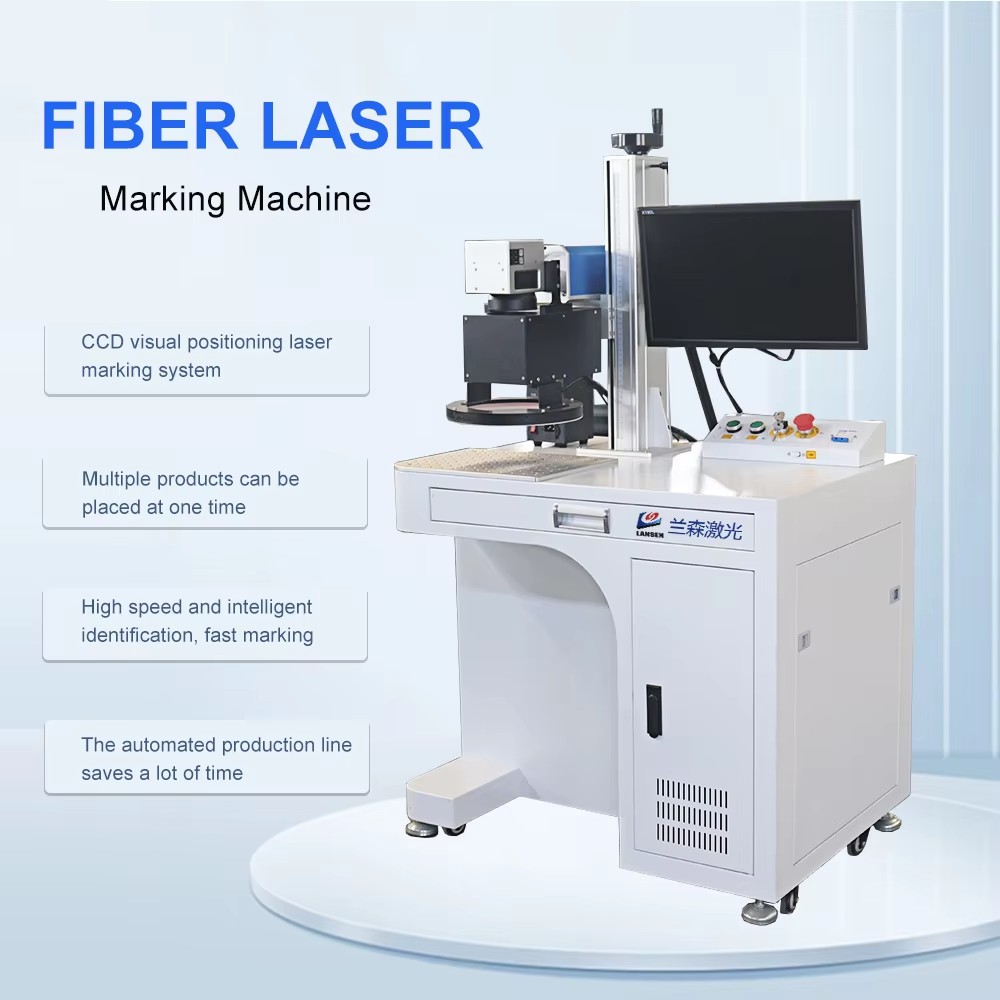

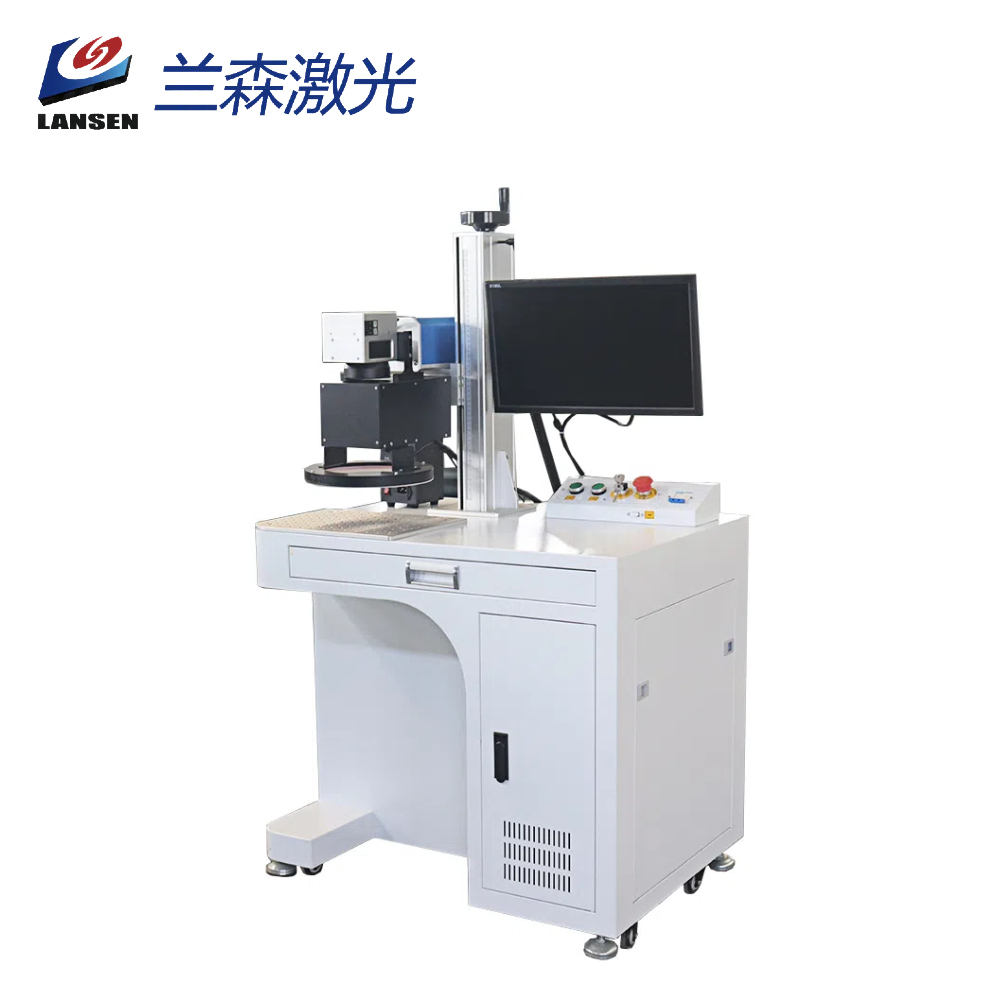

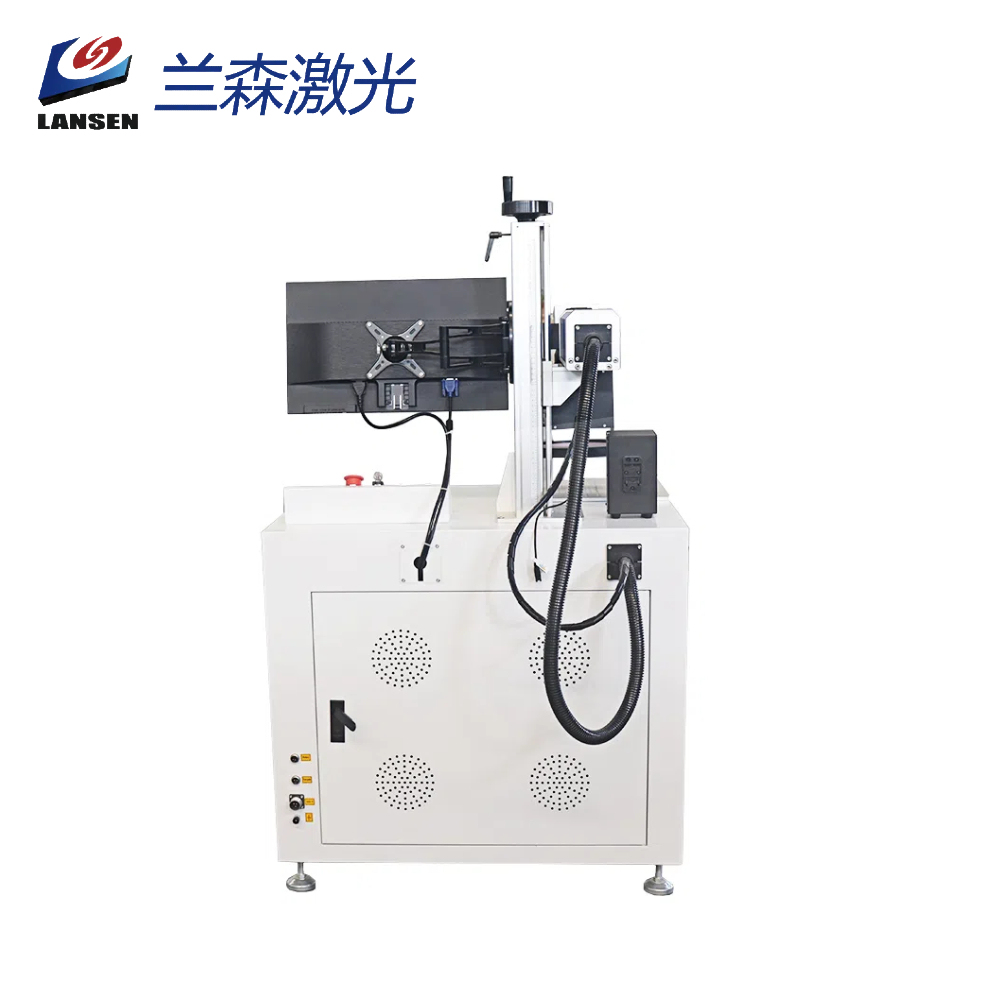

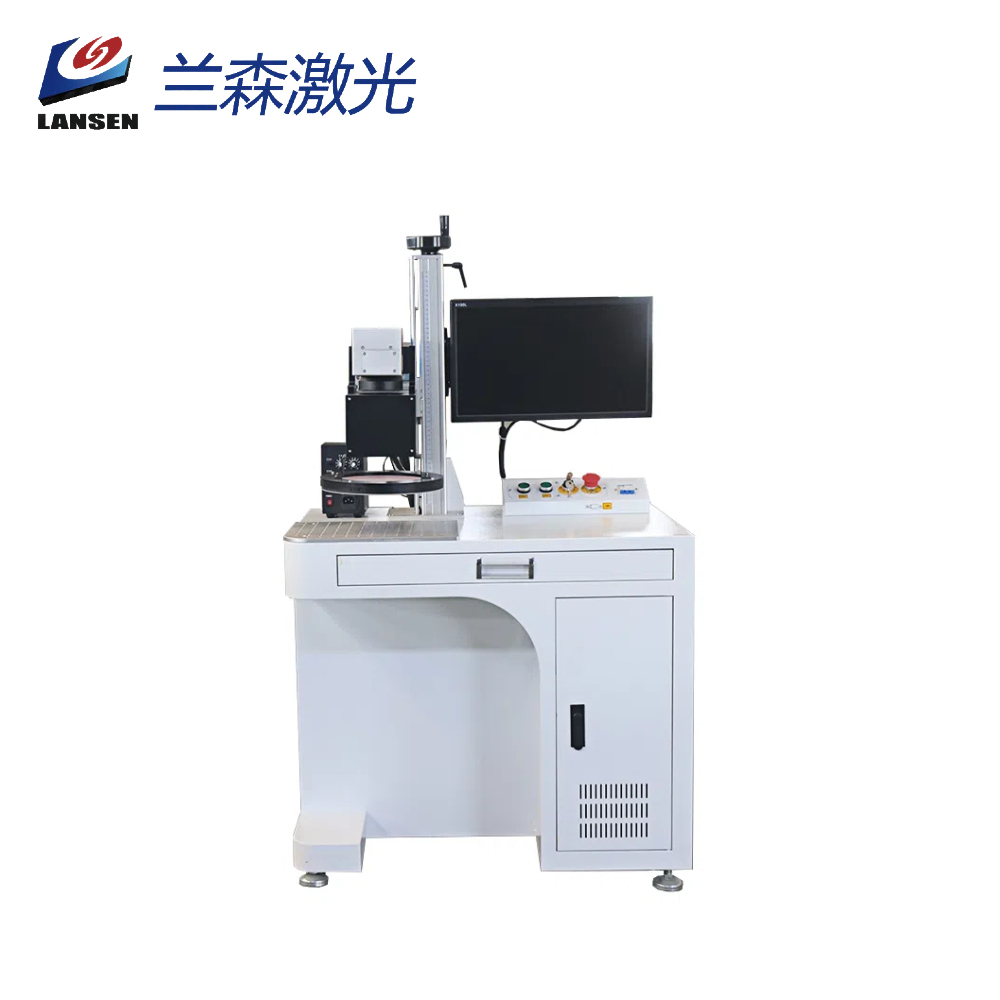

This visual positioning laser marking system has three positioning systems:coaxial,pseudo-coaxial and paraxial. Moreover, the visual positioning range can be designed according to the field lens range, and the accuracy is optional. It can be equipped with Fiber laser marking machine,UV laser marking machine and Co2 laser marking machine equipment. It can be used for static desktop marking or automatic marking with assembly line.

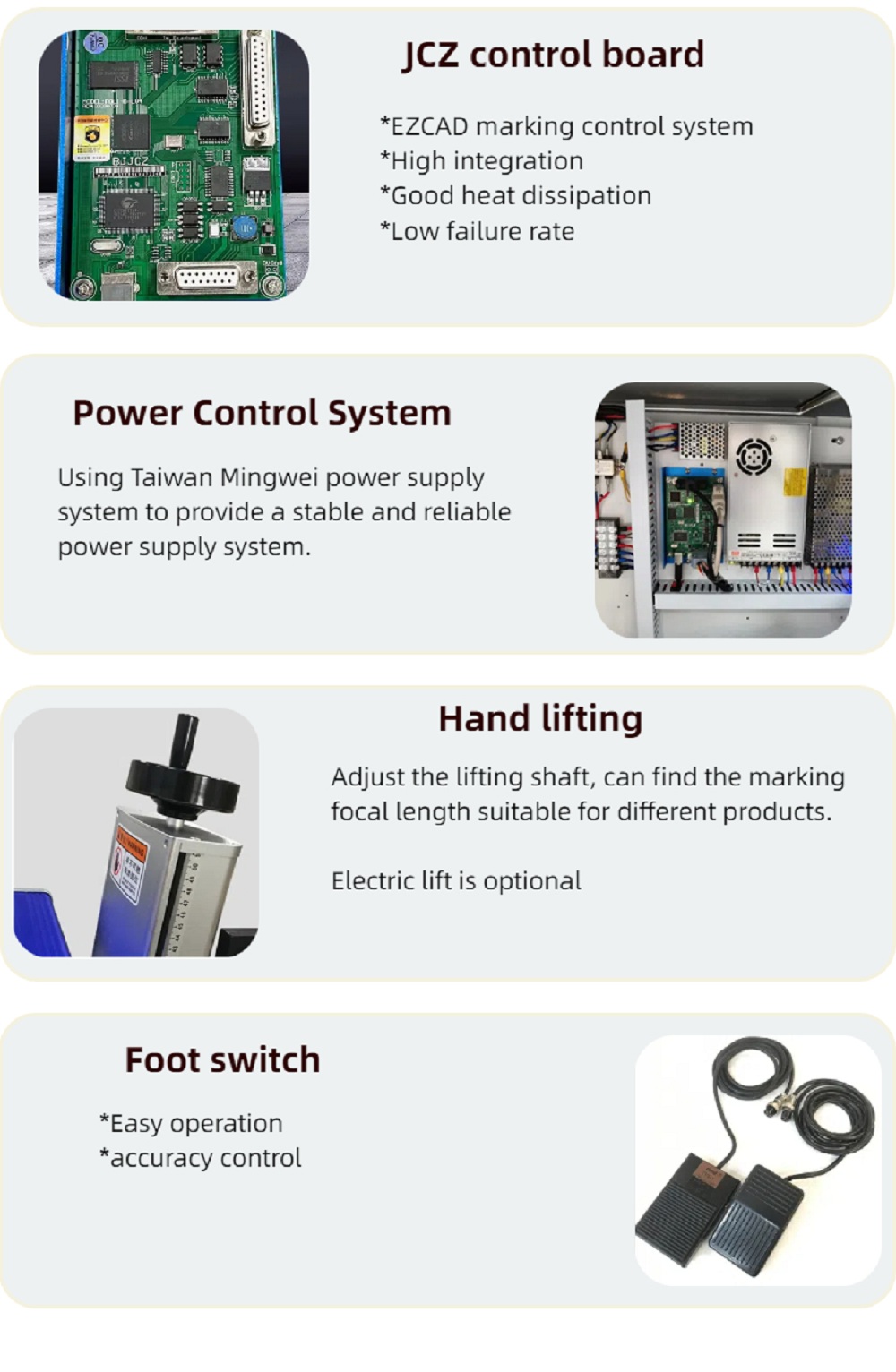

Features
1.The visual positioning system makes small-size products"big"and solves the accuracy problem that traditional laser marking machines cannot control.
2.Arbitrarily place the position and angle of the product,the vision system automatically captures it, without the need for fixture positioning,and automatically recognizes and marks.
3.The marking position is accurate, without missing or re-marking,and the production capacity is 3-5 times that of ordinary laser marking machines.
|
Laser Type |
Fiber laser/UV/Co2 optional |
|
Laser Power |
20W/30W/50W |
|
Laser Wavelength |
1064nm |
|
Marking Speed |
s7000mm/s |
|
Repeated Positioning Accuracy |
±0.001mm |
|
Beam Quality |
<1.5M² |
|
Minimum Line Width |
0.01mm |
|
Minimum Character |
0.15mm |
|
Positioning System |
CCD vision |
|
Positioning Time |
200ms |
|
Camera System |
Single CCD camera positioning/Dual CCD camera positioning |
|
Camera Pixels |
3 million/5 million/6 million pixels above optional |
|
Lens Diameter |
8mm/12mm/16mm/25mm/35mm optional |
|
Cooling Mode |
Air cooling |
|
Power Consumption |
500W-700W |
|
Electricity Requirement |
220V 50/60Hz |

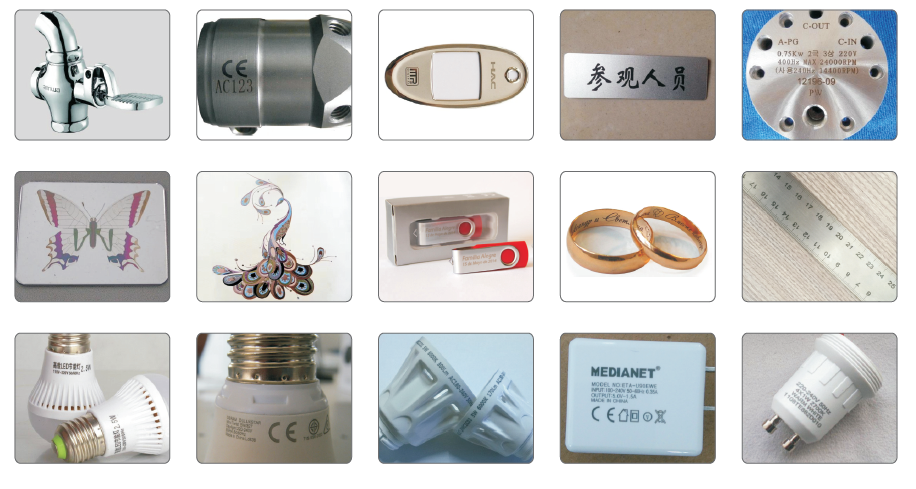

Product Applications
Widely used in digital products,plastic products, electronic components,mechanical parts, leather, instrumentation,hardware tools IC,circuit boards,daily necessities,auto parts,jewelry, sanitary ware,fire. fighting supplies. medicine and food,electrical appliances,High-precision,automated marking in the fields of mobile communications,glasses,clocks,craft gifts, signs, etc.
Especially suitable for product processing such as heavy workload,difficult feeding positioning,and diversified and complex workpieces.
|

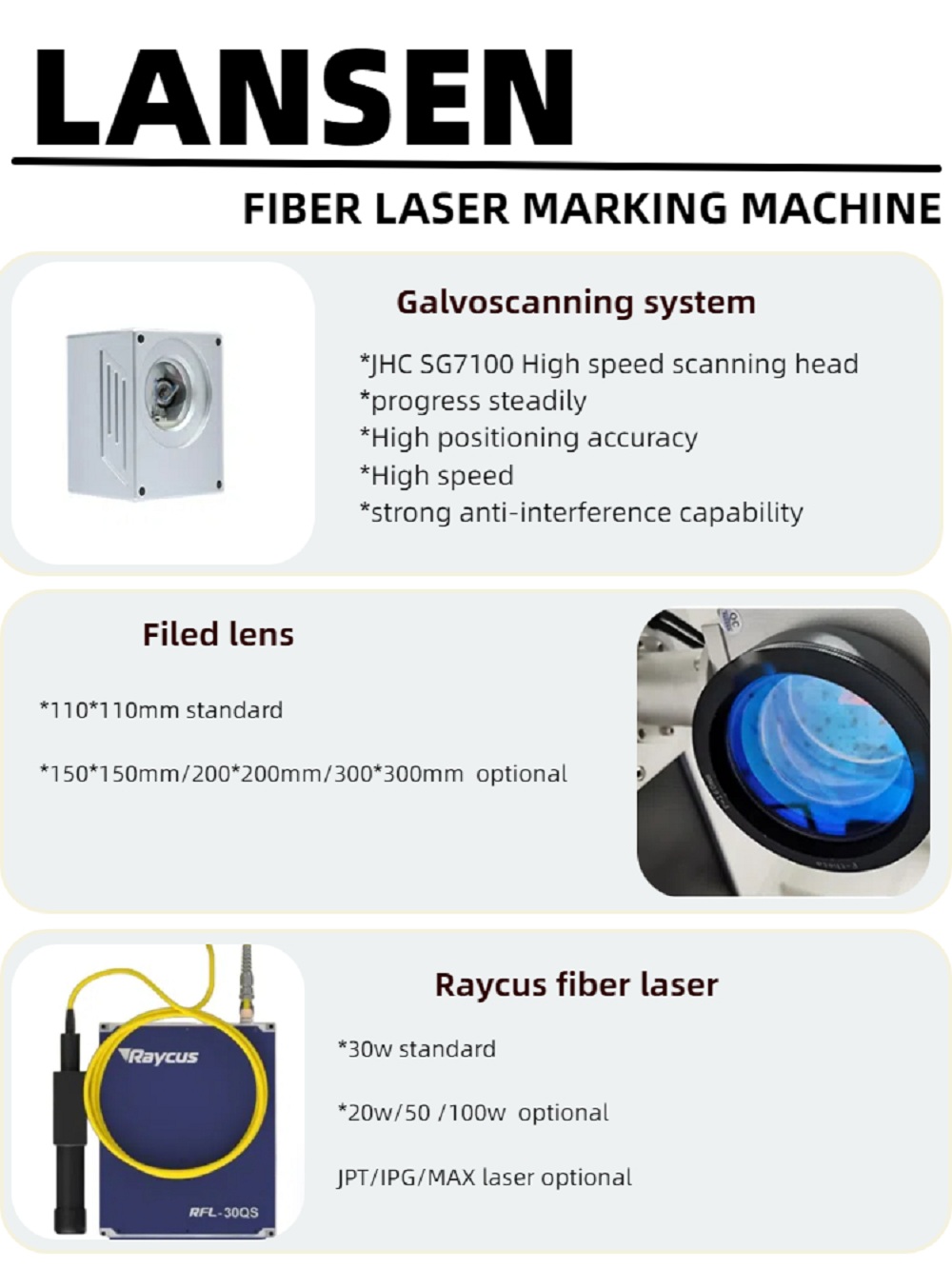

Laser Source |
RAYCUS/JPT M7 |
|
Beam quality |
M2<1.8 |
|
Laser wavelength |
1064±1nm |
|
Power adjustment range |
10~100% |
|
Frequency ofpulse |
20~250KHz |
|
Power supply |
220V/50Hz(110V/60Hzcan choose) |
|
Cooling system |
Air Cooling |
|
Marking content suppor |
import vector files lke PLT |
|
|
Add Text,series number,etc.inSHX,TTFand CSF |
|
|
Add Barcode,QR code |
|
Working area |
110*110mm(Standard) |
|
Marking depth |
<1mm |
|
Marking speed |
<7000mm/s |
|
Min.line width |
0.05mm |
|
Repeatability accuracy |
0.003mm |
|
Power Machine |
300W-800W(Depend onfiber laser power) |
|
Operation temperature |
-15~+60*C |
|
Operating environment |
Clean and free of dust |
|
Warranty |
18 Months forlaser source,2 years for machine |
|

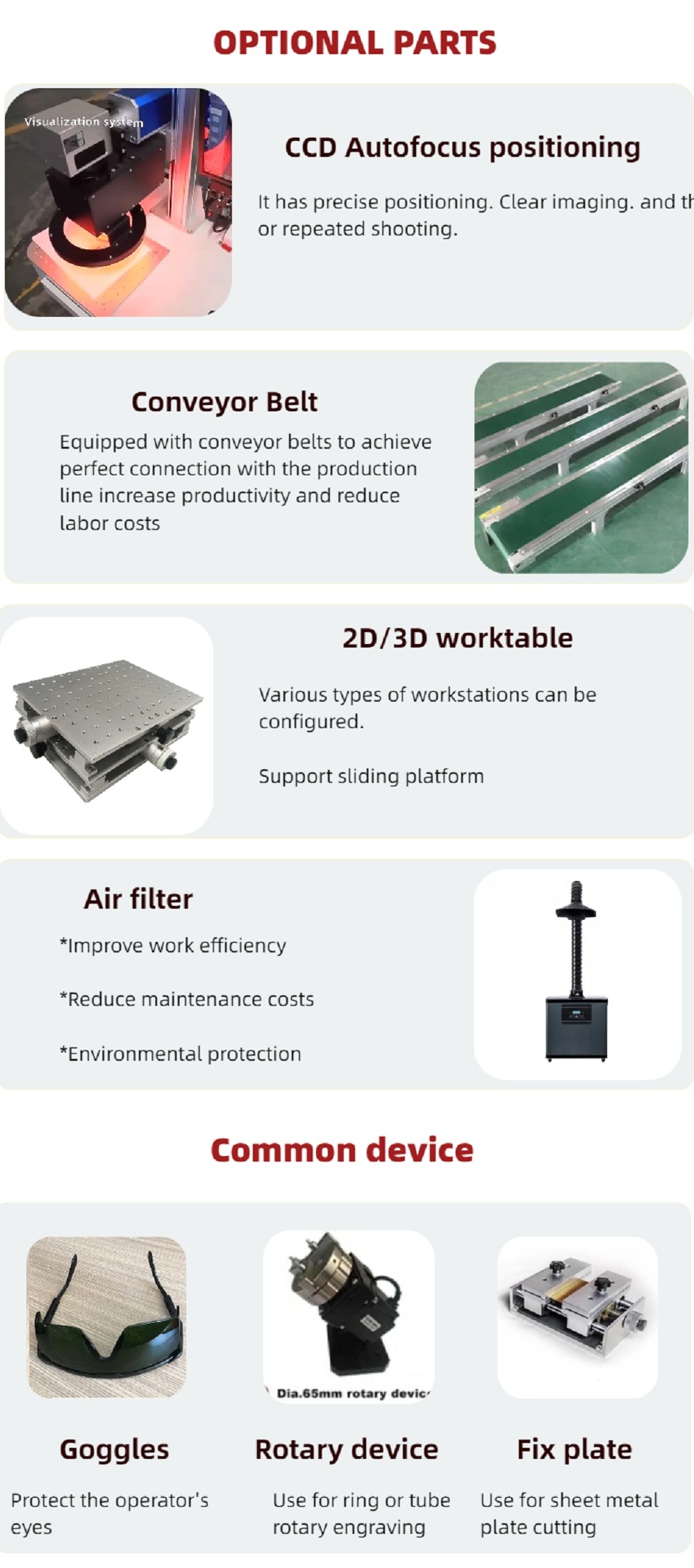

Optional |
Conveyor belt at differentsize/C02 laser source fornonmetal/Auto feeding |
|
Model |
LSD DiskLaser Marking Machine |
|
Type |
Standby |
|
Computer |
ncludes PC |
|
Mode of operation |
Pulsed |
|
Polarization |
random |
