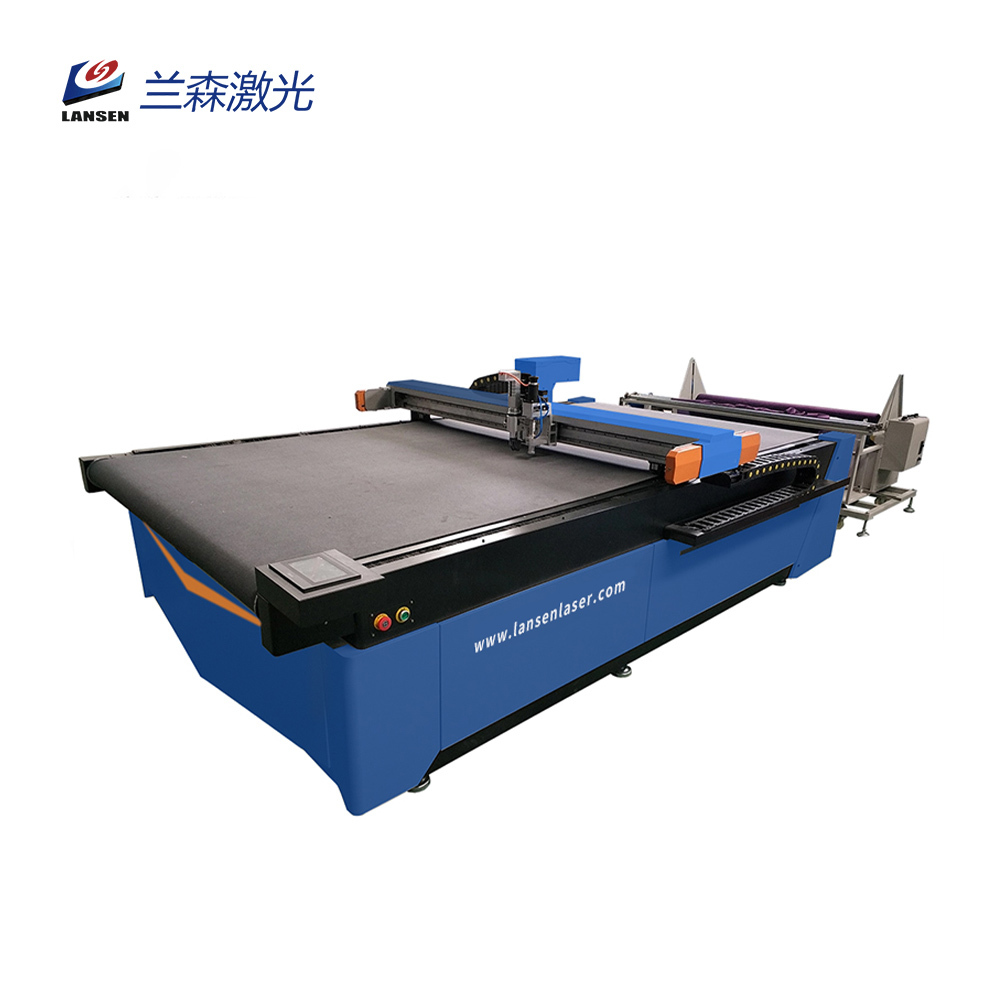

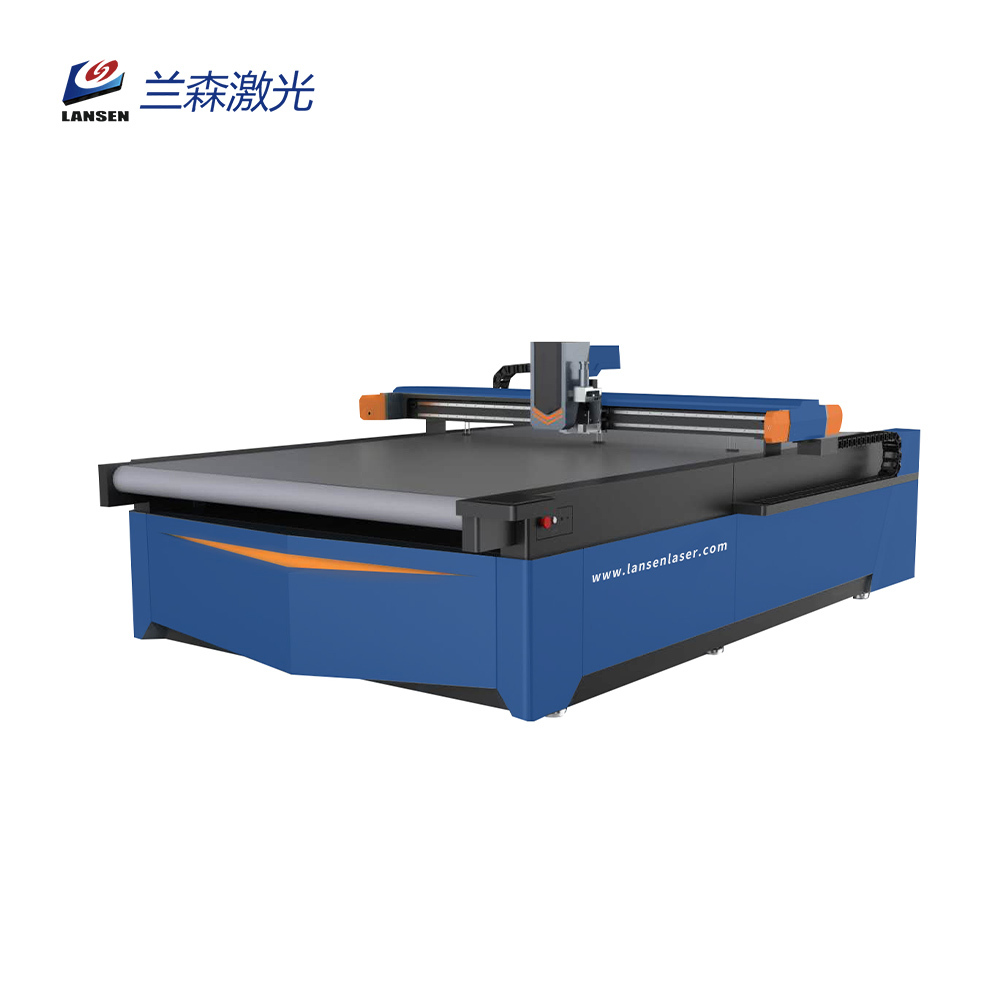

1625 round knife cutting machine standard with high speed round knife.The vacuum auto feeding worktable with auto correction function can make sure material feed in high precise. What’s more, this round knife can cut fabric, cloth fold in many layers, can save a lot labor cost. This round knife cutting machine is widely used in garment industry, sofa industry, curtain industry, carpets industry, car seat mat industry, etc.
Features:
1, Cut many layers fabric in a time, greatly improve working efficiency.
2, Knife cutting, not laser, no pollution, and no burn of material.

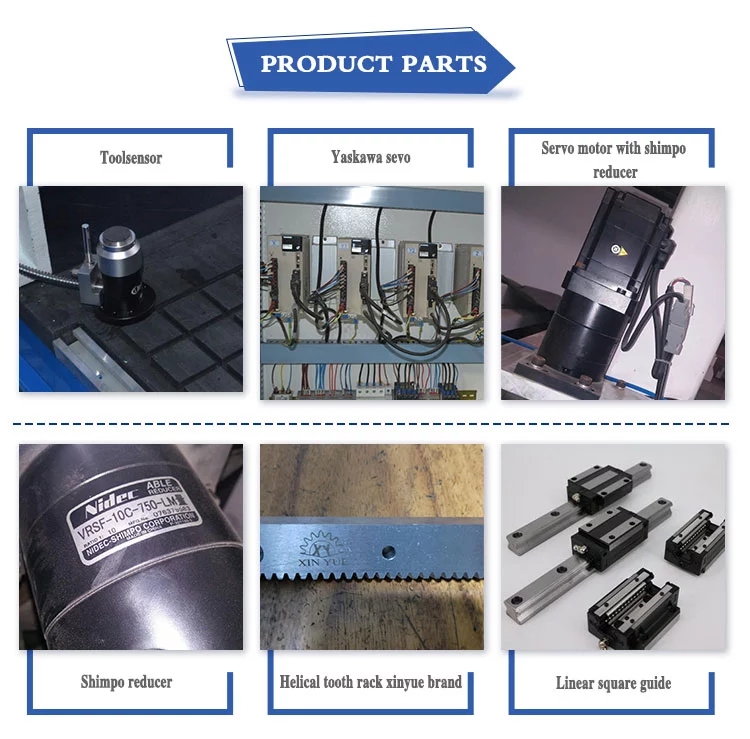

3, Imported Servo motor with high precise round knife, fast and precise cutting effect.
4, Auto feed vacuum worktable, CNC control feed of material while cutting.
5, Worktable with feeding material auto correction system, material feed straight.
Parameters
|
Model |
LS1625 |
|
Working area |
1600*2500mm |
|
Machine size |
2300x5000x1300mm |
|
Cutting tools |
Auto focus round knife |
|
Feeding stand |
Auto correction system |
|
Control system |
Ruida control system |
|
Driving system |
Imported Servo motor |
|
Transmission |
Imported square rail guild |
|
Work platform |
Aluminum vacuum worktable+auto feed system |
|
Compatible software |
Coreldraw, AutoCAD, Photoshop |
|
File format support: |
PLT, DXF, AI, DST, etc |
|
Auxiliary equipment |
Exhaust-fan, air compressor |
|
Minimum shaping character |
English 1*1mm |
|
Cutting speed |
0-100mm/min due to material |
|
Position accuracy |
±0.03mm |
|
Operating temperature |
0-45 degree |
|
Working voltage |
AC380V ±10%/10A,50-60HZ |
|
Power |
10KW/H, vacuum pump 7.5KW |
|
Packing |
Standard plywood export package |
|
Weight |
1800KGS |
Applied material:
Fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam,polyethylene foam, PE foam, PVC foam, etc.
Applied industry:
shoes making industry, apparel and fashion cloth industry, automotive interior industry, luggage industry, package industry, decoration industry, electronic industry, composite materials industry etc.
