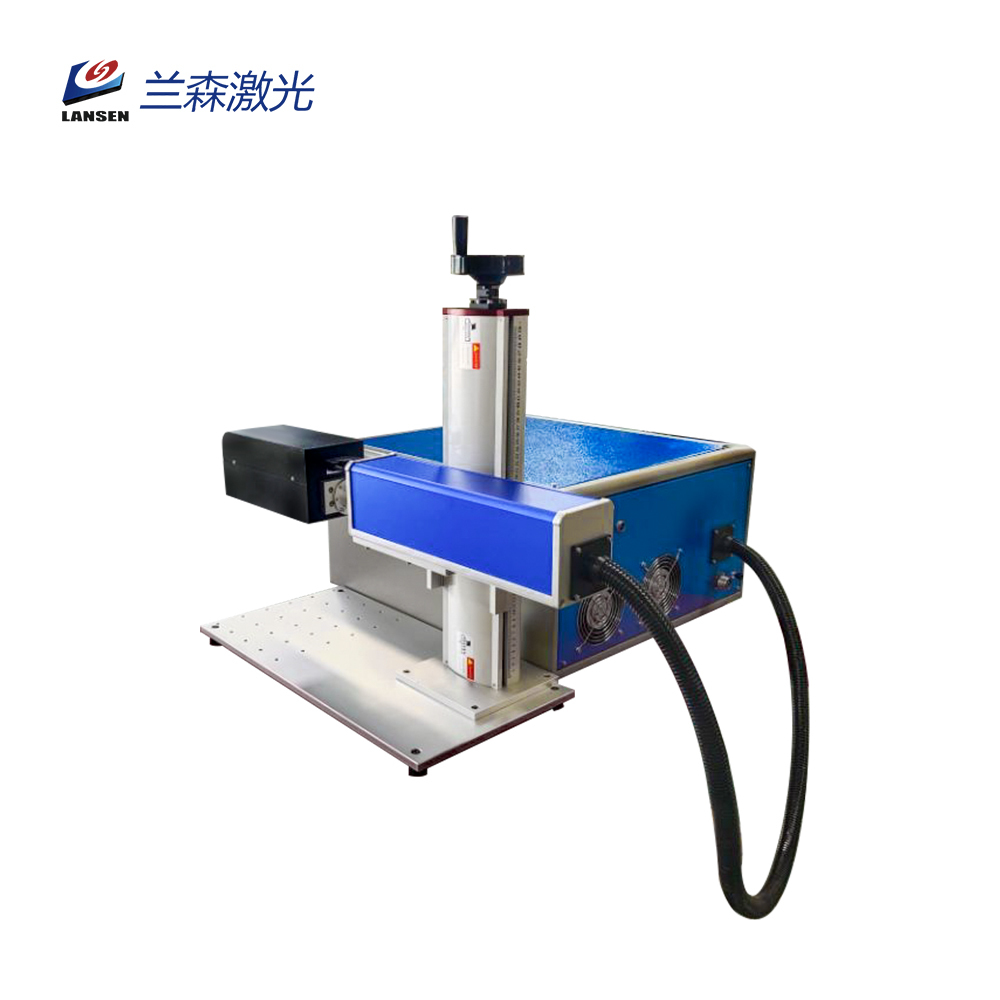

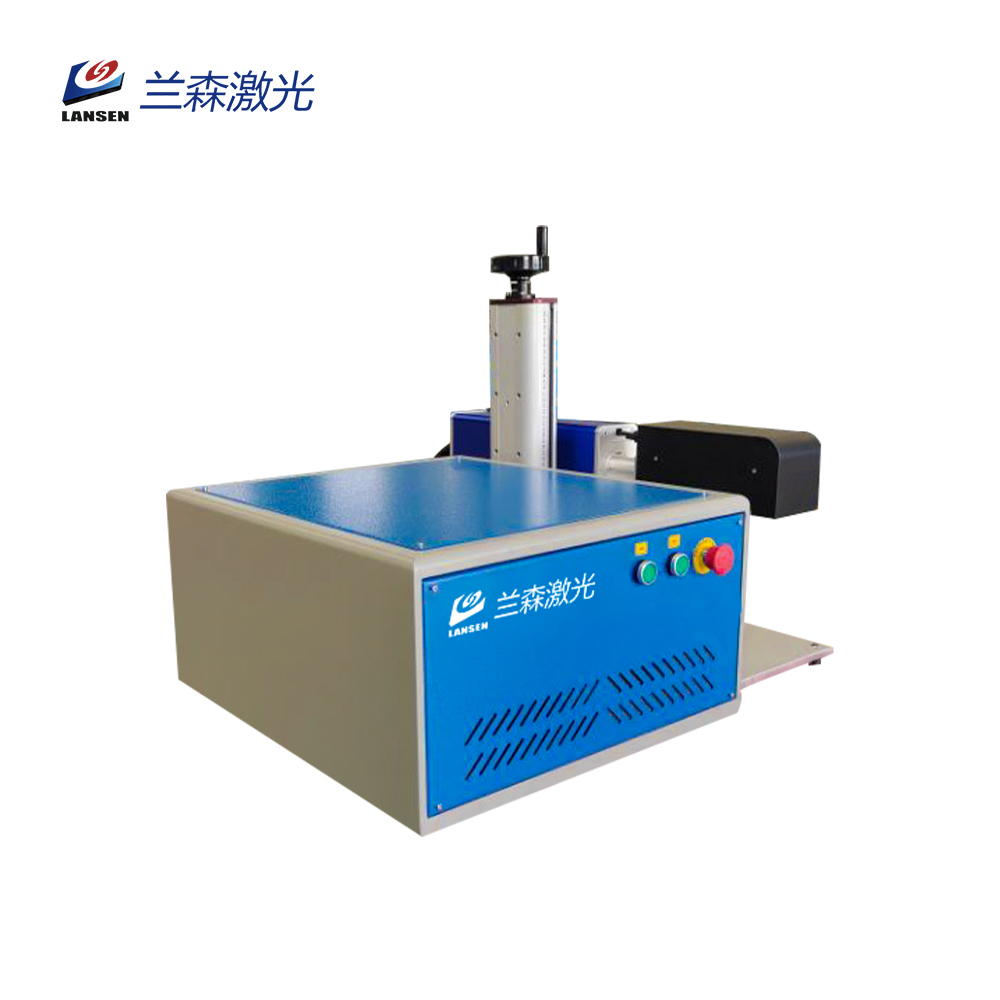

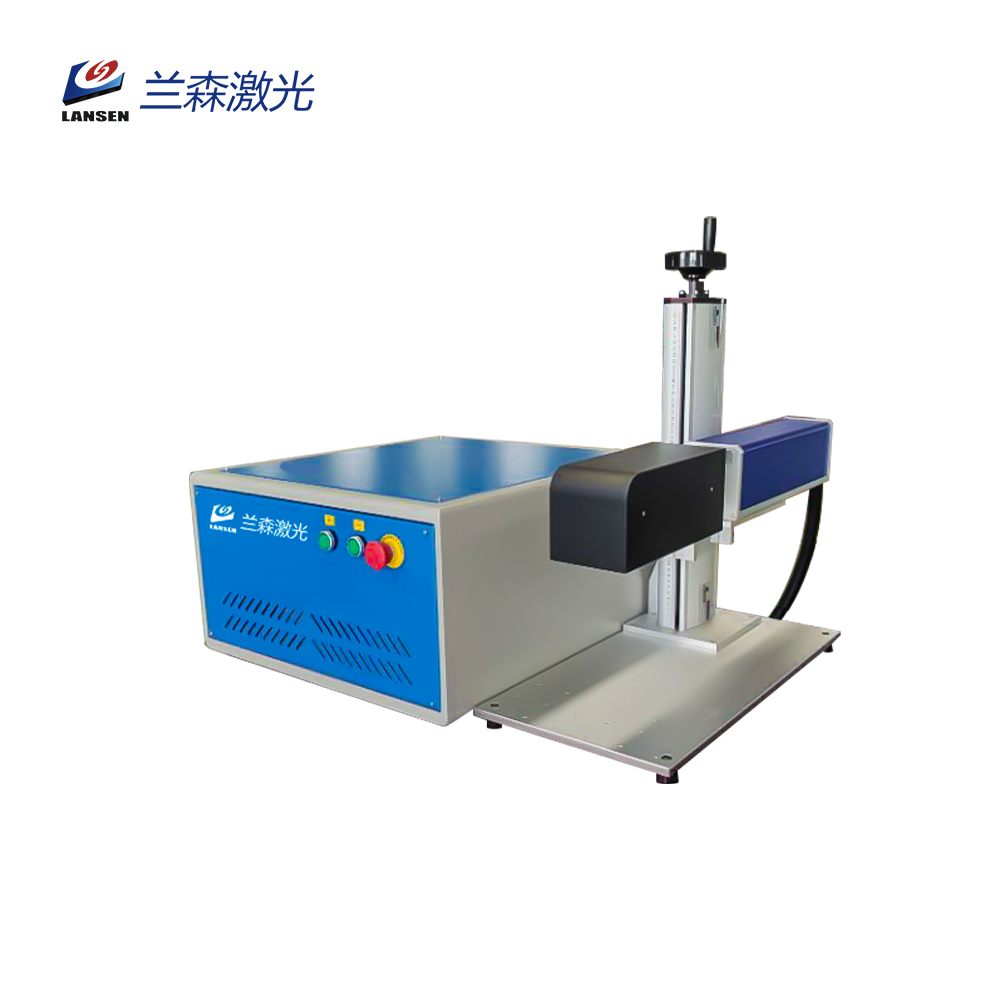

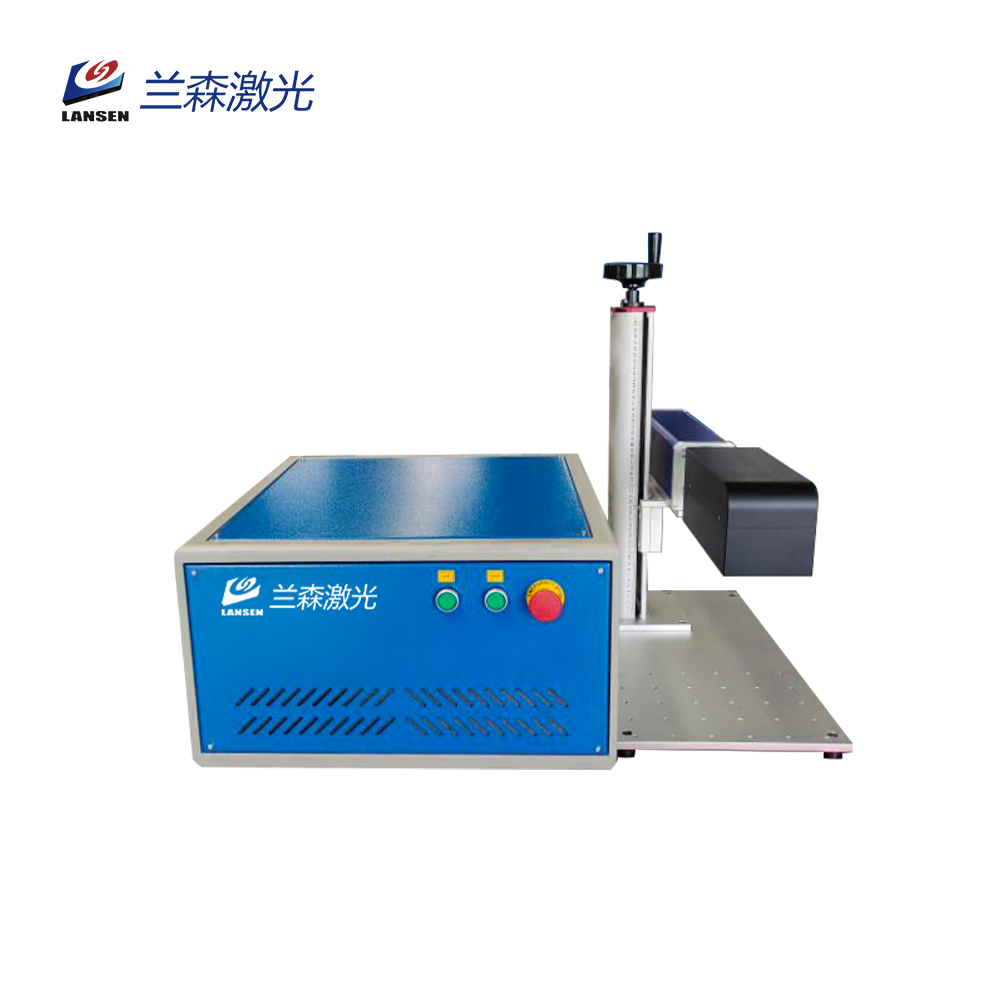

Name: 3D JPT Portable fiber laser marking machine for metal deep carving
Brand: JINAN LANSEN LASER EQUIPMENT CO., LTD
Availability: InStock
Rating: 5 (1 reviews)

3D JPT Portable fiber laser marking machine for metal deep carving

1. For a variety of shapes carved, the three-axis control can be achieved freedom control of focus, undifferentiated marking in
variety of steps and uneven surfaces.
2. A greater range marking. Under the premise of standard marking range, z-axis can achieve large variable focal length marking
range.
3. High precision marking. The three-axis scanning system can arbitrarily adjust the focus of the traditional fixed-focus laser
marking machine, eliminate the range deformation and spot deviations from the characteristics of traditional F lens.
4. More suitable for deep engraving. The dynamic marking is able to automatically adjust the focus in the process of engraving,
deeper marking depth through marking on the machined surface with continuously highest energy density.

Description
Parameter

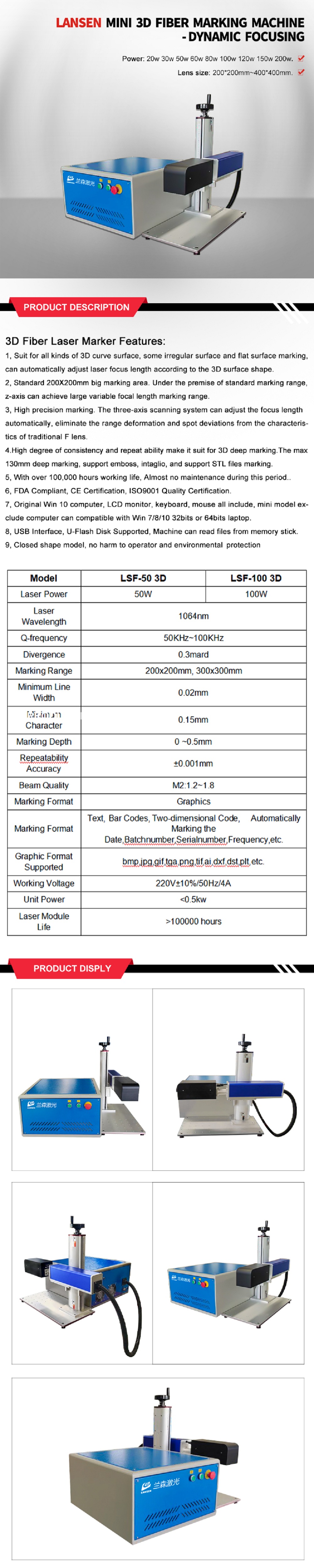

3D Fiber Laser Marking machine features:
1. 3D Dynamic Fiber Laser Marking machine with advanced small focal spot design, the min focal spot is 30um.
2. Dynamic Fiber Laser Marking machine is with accurate optical path design and fabrication, low energy decrement for large scan field and curved surface processing.
3. Machine scan field up to 400x400mm, meet large scan field engraving requirements. Can be marked on multi-level large format,on the three-dimensional surface, on the plane, according to the need to configure various types of lasers.
4. Dynamic Fiber Laser Marking machine is with high speed system, meets above 4000mm/s marking speed.
5. 3D Fiber Laser marking machine maximum marking height up to 280mm, far exceed the industry height standard of 80mm.

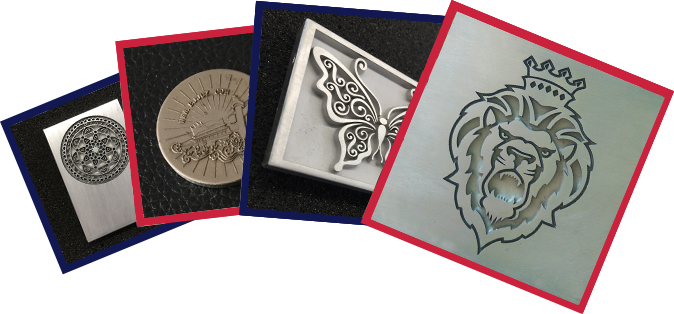

6. The focal axis position is optimized for deep engraving, suitable for embossment, 3D applications. Deep Marking with high accuracy.
7. Marking software with 3D operation interface, operate 3D upper and lower, right and left, front and back view, set base level, front and back switch, 3D coordinate axis simulating marking content, model frame function to help the operator place the work piece and edit marking graphics.
8. Precisely control the focal length position of marking machine, automatically adjust Z-axis for 3D marking process, keep the spot size to minimum, and ensure the uniform graphic effect after marking on the object.
9. Built-in concave and convex circular tube, concave and convex sphere, slope, cone, polygon, etc. basic models, the operator can easily and rapidly set the marking.
10. 3D models can be imported, 2D graphics can be directly cladded or projected onto built-in curve surface.
11. The whole system adopted the optimization designing of electromagnetic compatibility, with high. signal-to-noise ratio and strong anti-interference ability.
12. 3D laser marking machine Software control system can automatically calculate the arc radian, automatically adjust the focal length.
13. 3D laser marking machine with friendly operation interface, it is suit for many file formats, such as dxf, plt, cnc, step,
iges, etc.

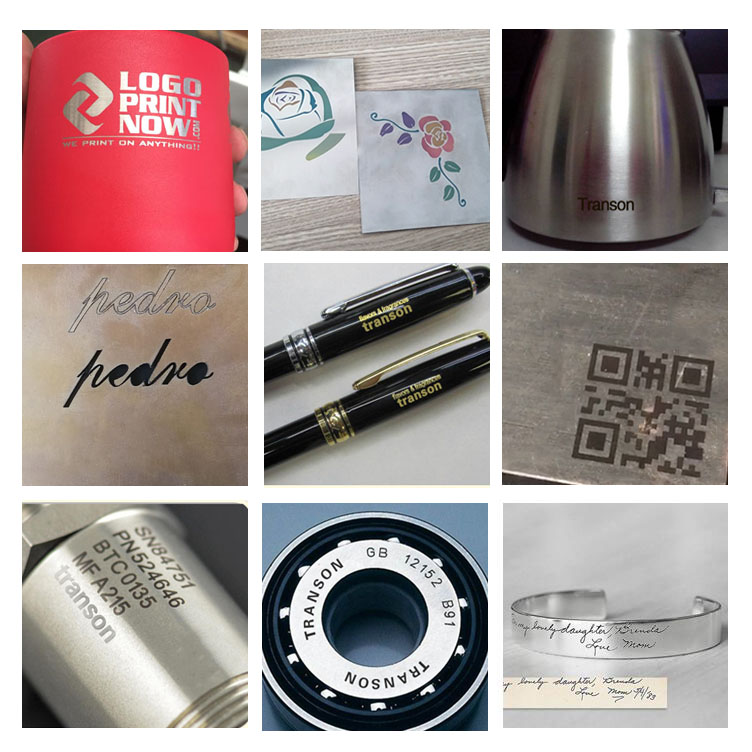

SAMPLE

The Fiber Laser Marking machine for metal adopts international most advanced technology and the fiber laser source's lifetime can reach 100,000 hours, 5-6 years without any consumables and maintenance. This laser etching machine for metal with PC for metal is the best choice for the customers who have special requirements to the smallest & finest laser beam and character. The software has already been installed and the parameter is settled before delivery. Once received, the laser etcher could work directly without data adjustment. Laser marking machinecan do quickly and permanently mark of text, picture, serial numbers, bar codes, QR code, etc. for all metal material and part nonmetal material. It mainly use for mark on tools, metal parts, jewelry, firearms and industry polymers. Can be use as animal ear tag laser marking machine, jewelry laser marking machine, led bulb laser marking machine, etc.

Laser Source	RAYCUS/JPT M7
Beam quality	M2<1.8
Laser wavelength	1064±1nm
Power adjustment range	10~100%
Frequency ofpulse	20~250KHz
Power supply	220V/50Hz(110V/60Hzcan choose)
Cooling system	Air Cooling
Marking content suppor	import vector files lke PLT
	Add Text,series number,etc.inSHX,TTFand CSF
	Add Barcode,QR code
Working area	110110mm(Standard) 5050mm,7575mm,150150mm,175mm175mm,200200mm,300*300mm(0ption al)
Marking depth	<1mm
Marking speed	<7000mm/s
Min.line width	0.05mm
Repeatability accuracy	0.003mm
Power Machine	300W-800W(Depend onfiber laser power)
Operation temperature	-15~+60*C
Operating environment	Clean and free of dust
Warranty	18 Months forlaser source,2 years for machine
Optional	Conveyor belt at differentsize/C02 laser source fornonmetal/Auto feeding system
Model	LSD DiskLaser Marking Machine
Type	Standby
Computer	ncludes PC
Mode of operation	Pulsed
Polarization	random
